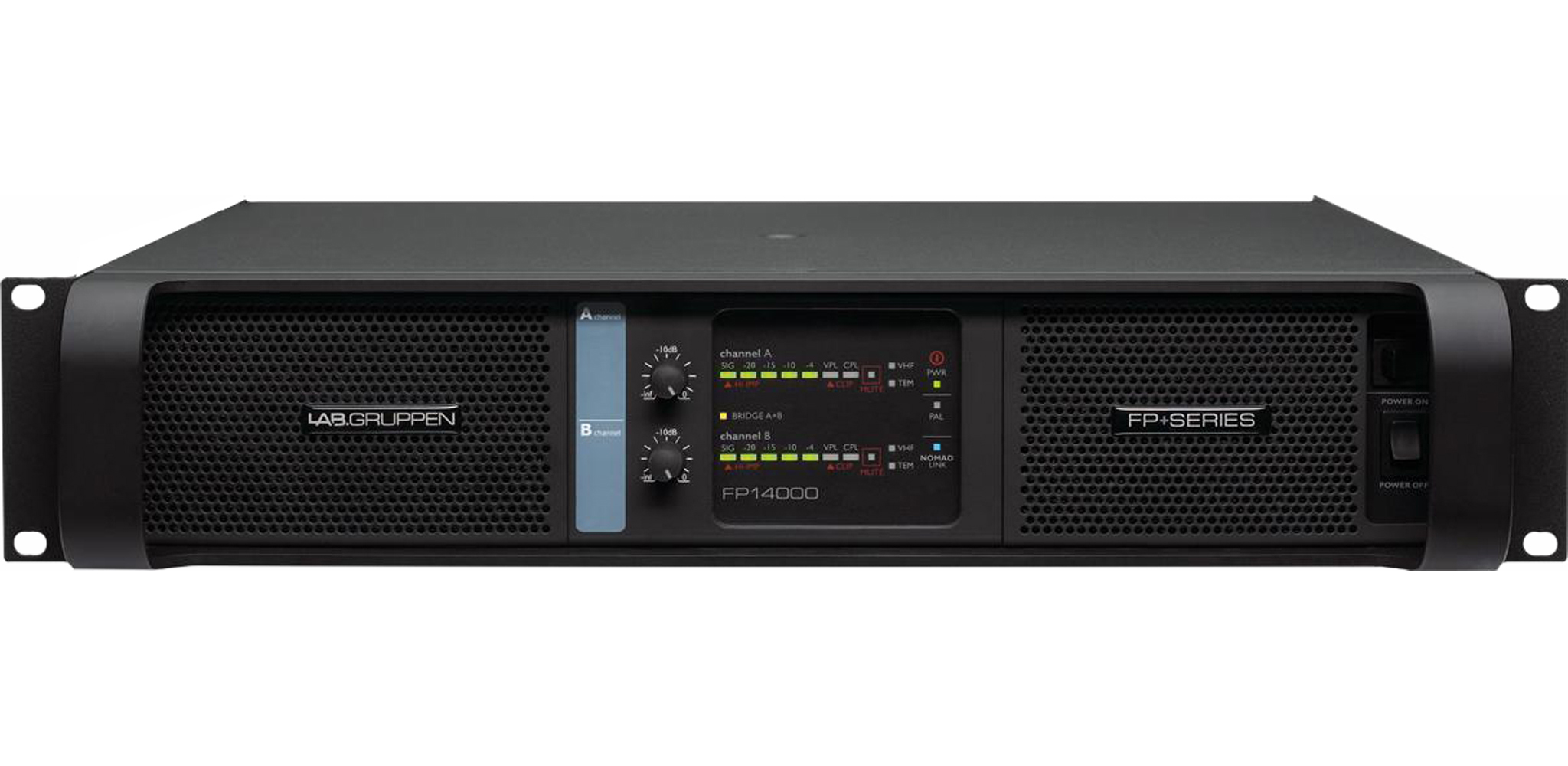

FP 14000 Power Amp Labgruppen - USED ITEMS

Product code: FP 14000      2,208
4.67/5 in 3 times
Lab Gruppen
  • FP 14000
  • FP 14000
  • FP 14000
  • FP 14000
  • FP 14000
  • FP 14000
FP 14000
FP 14000
FP 14000
FP 14000
FP 14000
FP 14000

$2,195
Out of stock
  • Price only applicable for overseas
  • Technical Support
  • Term of shipment: Ex-Works
  • Pick up at Hoang Bao Khoa LTD company
  • All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Genuine product
Like New 97%, full box
12-month warranty
14,000 Watt 2-Channel Amplifier with NomadLink Network Monitoring and Dedicated Control for Touring Applications

Shipping informations

Length
62.5 cm
Width
55 cm
Height
17.00 cm
Weight
14.71 kg

Official Distributor Certificate

 Product Features

  • 14,000 Watt, 2-channel amplifier with up to 7,000 Watts output per channel and NomadLink network for monitoring and control

  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application

  • 2 x 7,000 Watts into 2 Ohms, 2 x 4,400 Watts into 4 Ohms, 2 x 2,350 Watts into 8 Ohms, 2 x 1,200 Watts into 16 Ohms

  • Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency

  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times

  • Intuitive DeviceControl software monitors and controls key functions via the NomadLink network

  • Comprehensive protection scheme including current, voltage, DC, temperature, short circuit and open load warnings

  • Efficient Intercooler copper cooling system dissipates more heat for extended peak output

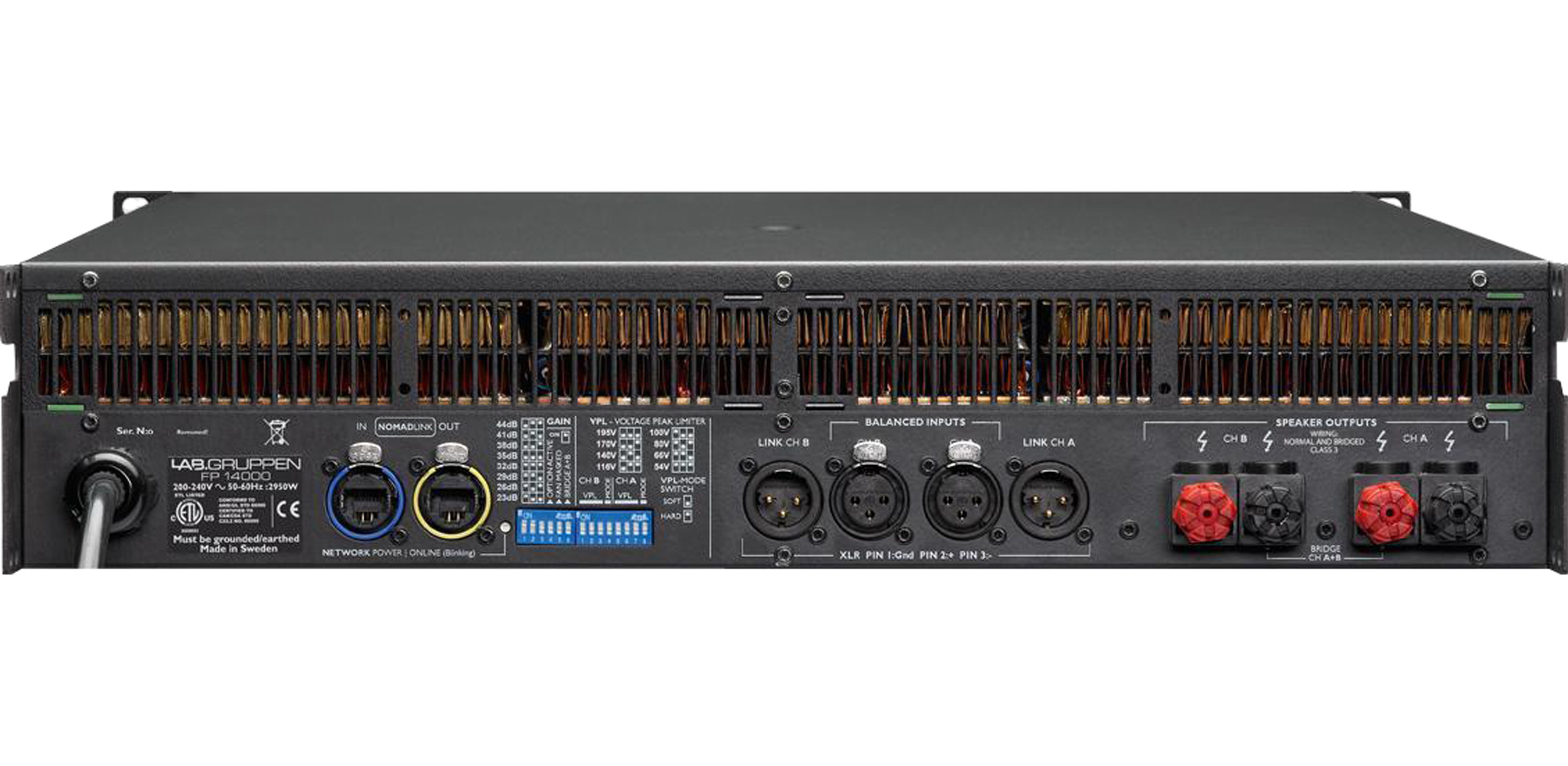

  • 2 x balanced analog audio inputs and 2 x link outputs on Neutrik XLR* connectors

  • Binding post output connectors

  • Removable dust filter grilles for increased air circulation

  • Rugged 2U rackmount chassis for durability in touring applications

  • Designed and engineered in Sweden

Built to Handle Extreme Low-Frequency Loads Effortlessly...

Built to Handle Extreme Low-Frequency Loads Effortlessly...

Over the past decade, the tight and transparent sound of LAB GRUPPEN touring amplifiers has earned the praise of renowned FOH engineers and leading sound rental companies worldwide. FP 14000, the new flagship model of the FP+ Series, advances this tradition by further augmenting effective power output to effortlessly handle extreme low-frequency loads.The Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content, while at the same time ensuring stable rail voltages even with wide fluctuations of external mains voltage. The forceful, high-current (83 A peak) output stage relies on LAB GRUPPEN’s patented Class TD topology, a breakthrough in amplifier technology that approaches the efficiency of Class D while retaining the sonic purity of proven Class B designs. A highly refined and efficient circuit layout further optimizes the interaction of R.SMPS and Class TD to produce the unprecedented power density of the FP 14000.

To keep its cool under extreme demands, the FP 14000 relies on LAB GRUPPEN’s proprietary Intercooler. This innovation uses thousands of copper fins to multiply the exposed heatsink surface’s rapid heat dissipation. Also, all output devices are mounted transverse to the airflow for uniform cooling. As a result, the FP 14000 delivers LAB GRUPPEN’s’ trademark “all the power, all the time” with no degradation of sonic performance.

To maximize headroom in any application, the FP 14000 offers adjustable input gain along with LAB GRUPPEN’s exclusive Voltage Peak Limiter (VPL). Adjustable on a per-channel basis, VPL optimizes the output for any load, from a single massive subwoofer to a series of HF compression drivers.

The comprehensive warning and protection features on the FP 14000 safeguard output circuits and connected loads while also extending amplifier life and minimizing the chance of service interruptions Whether it’s a matter of faulty wiring, improper use, or extreme ambient temperatures, the FP 14000 gives clear indication of any problems. Automatic protection measures engage only at critical thresholds. Operating conditions are re-checked every six seconds and, if a fault is detected, normal operation is resumed when measurements return to nominal.

The FP 14000 is shipped with a NomadLink network interface as standard. In conjunction with DeviceControl software, NomadLink allows comprehensive monitoring of amplifier status (including fault or warning indications) and also enables remote control of power on/off, channel mute, and channel solo functions. NomadLink is compatible with popular third-party control platforms; a separate NLB 60E NomadLink Bridge & Network Controller is required.

Specification

General

Number of amplifier channels

2

Peak total output all channels driven

14000 W

Peak output voltage per channel

195 V

Max output current per channel

90 A peak

Max output power (all channels driven)

2 ohms

7000 W

4 ohms

4400 W

8 ohms

2350 W

16 ohms

1200 W

Max output power bridged

2 ohms

Not recommended 1

4 ohms

14000 W

8 ohms

8800 W

16 ohms

4700 W

Performance

THD 20 Hz - 20 kHz at 1 W

<0.1%

THD at 1 kHz and 1 dB below clipping

<0.05%

Signal to Noise Ratio

>112 dBA

Channel separation (Crosstalk) at 1 kHz

>70 dB

Input impedance

20 kOhm

Output impedance @ 100 Hz

19 mOhm

Gain, Sensitivity and Limiters

VPL, selectable per ch

195, 170, 140, 116, 100, 80, 66, 54 V

VPL, when bridged 2

390, 340, 280, 232, 200, 160, 132, 108 V

Voltage Peak Limiter mode (per ch.)

Hard / Soft

Amplifier gain selectable (all channels) – rear-panel switches 2

23, 26, 29, 32, 35, 38, 41, 44 dB

Default gain

38 dB

Level adjustment (per channel)

Front-panel potentiometer, 31 position detented from -inf to

Connectors and Buttons

Input connectors (per ch.)

3-pin XLR, electronically balanced

Output connectors (per ch.)

Binding post

Output bridge mode

A+B - Ch. A is signal input source. A+B, C+D - Ch.’s A and C are input source

NomadLink network

On board, 2 x RJ45 connectors IN and OUT

Intelligent fans (on/off)

Yes, depending on presence of output signal

Power on/off and Remote enable on/off

Individual switches on front-panel

Cooling

Dual fan, front to rear airflow, no filter required, temperature controlled speed

Front-panel user interface

Common

NomadLink Network; Power Average Limiter (PAL)4; Power on

Per channel

Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute

Power

Operating voltage, 230 V / 115 V nominal 3

130-265 V / 65 -135 V

Minimum power-up voltage, 230 V / 115 V

171 V / 85 V

Power Average Limiter (PAL) 4

Yes

Soft-start / Inrush Current Draw

Yes / max. 5 A

Mains connector

230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock

Dimensions

Dimensions

W: 483 mm (19”), H: 88 mm (2 U), D: 396 mm (15.6”)

Weight

Weight

12 kg (26.4 lbs)

Finish

Finish

Black painted steel chassis with black painted steel / aluminum front

Approvals

Approvals

CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
