Does the company offer free shipping?

Free shipping for local order over $22. Oversea buyers will pay for shipping cost under Ex-work term.

Which brand does CM82 belongs to?

CM82 belongs to Lab Gruppen . Lab Gruppen, DSP combined amplifier (Power Amplifier) from Sweden

Does HoangBaoKhoa support for installment?

Yes, installment payment via credit card.

Commercial Mixer Lab.Gruppen CM82

CM82 Commercial Mixer Lab.Gruppen

Product code: CM82 620,507,962

4.7/5 in 16 times

~~$278.87~~-4%

$268.42

In stock

Buy Now

Add to cart

Warranty 24 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

8 input / 2 output mixer for commercial and industrial applications

8 mic/line inputs with individual volume controls and output routing

Front panel power control button for direct access

Rack Mixer Lab.Gruppen CM82 CM82. Commercial Mixer with 8 Inputs and 2 Outputs

Shipping informations

Length

54.20 cm

Width

35.90 cm

Height

12.80 cm

Weight

4.10 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

- 8 input / 2 output mixer for commercial and industrial applications
- 8 mic/line inputs with individual volume controls and output routing
- Individual front panel master volume and bass/treble controls for each output
- Configurable priority muting function for background music override
- GPI remote volume control using standard RJ-45 connector and Ethernet cable
- Front panel power control button for direct access
- Aux output for expansion to connect with amplifiers
- Rack-mountable 1U, 19" enclosure with brackets for rack mounting
- Euroblock type mic/line input and output connectors

CM82

Commercial Mixer provides the perfect mixer solution for commercial and industrial applications requiring great sounding distributed audio. CM82 is easy to install and operate – even for non-technical personnel. Simply put, the CM82 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Easy to Install

The CM82 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

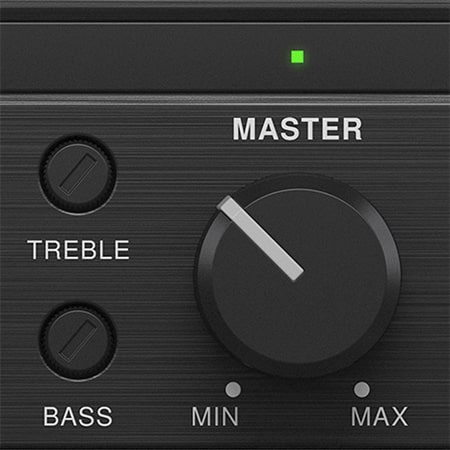

Sublimely Simple Controls

CM82’s controls are sublimely intuitive, allowing the operator to quickly make adjustments. The front panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning – but require a tool when making changes.

Easy to Hook Up

For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Alternatively, RCA cables can be connected for unbalanced stereo sources (summed to mono), such as players, phones or computers, however only one input source should be used at a time. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.

Line Output

Connect the CM82 to Commercial Audio Amplifiers or other Audio Equipment through the Euroblock output connectors.

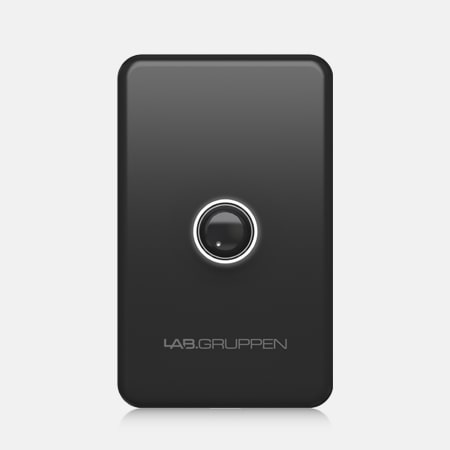

Expandable Remote Control

The RJ45 receptacle on the rear panel opens up a broad range of remote-control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily-available Ethernet cabling.

System Scalability

Commercial installs vary widely in scope and often grow and change over time. The CM82 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CM82 is an ideal building block for a dynamic and scalable system solution.

Real-World Energy Savings

The Commercial Amplifier Series makes it easy to bring highest-quality music and announcements to business and industrial environments in an easy to integrate – and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the Energy Star certified Commercial Amplifier Series can generate enough energy savings to pay for itself in virtually no time at all.

Specification

Mixer

Mixing capabillity

8 inputs with confi gurable routing - 2 outputs

Audio Inputs

Mic/Line with priority/ducking input	2 x 5-pin Euroblock connector (channel A, E)
Mic/Line with summed RCA	6 x 3-pin Euroblock connector, 6 x stereo RCA (channel B, C, D, F, G, H)
Impedance	Balanced mic/line: 20 kΩ Unbalanced line and RCA: 10 kΩ
Maximum input level	4.88 V (+16 dBu)
Microphone phantom power	48 V

Audio Outputs

Output	2 x 3-pin Euroblock connector
Gain range	-(infinity sign - +10dB
Output max level	9.6 V (+22 dBu)

Controls

Front	Power standby button, input and output gain control, tone controls - bass and treble
Rear	mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only)

Tone Controls

Bass	±10 dB @ 100 Hz
Treble	±10 dB @ 10 kHz

Indicators

Power	On (blue), force standby (red), standby (yellow)
Inputs
Signal (green LED)	>12.3 mV (-36 dBu)
Clip (red LED)	4.88 V (+16 dBu)
Master
Signal (green LED)	>-50 dBu
Limit (red LED)	3 V (+12 dBu)

System

Remote connector

2 x RJ45 Ethernet connector

Performance

Distortion	<0.05%
Frequency response	20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk (2 channel models)	>70 dB
Signal-to-noise	>97 dBA

Power Supply, Voltage (Fuse)

Main voltage	Universal 100-240 V~, 50/60 Hz
Fuse	T 3.15 A H 250 V
Power consumption	20 W
Mains connector	Standard IEC connector

Dimensions / Weight

Dimensions (H x W x D)	44 x 437 x 248 mm (1.7 x 17.2 x 9.8")
Weight	2.4 kg (5.3 lbs
Finish	Brushed black anodized aluminum chassis with black painted steel bottom
Approvals	CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
