Common DMX Lighting System Problems and How to Fix Them

lighting consultation: What is DMX and what are the most common lighting system faults?

DMX512 (Digital Multiplex) is the industry-standard communication protocol used to transmit control signals between a lighting console and lighting fixtures.

A single DMX signal line can control multiple fixtures simultaneously, including:

• Moving Head Beam
• Moving Head Wash
• Moving Head Spot
• LED PAR
• LED Bar
• Strobe
• Laser
• Fog machine

DMX serves as the foundation of most professional Stage Lighting systems used today.

During operation, several common lighting system faults can occur if the wiring or configuration is not completed correctly.

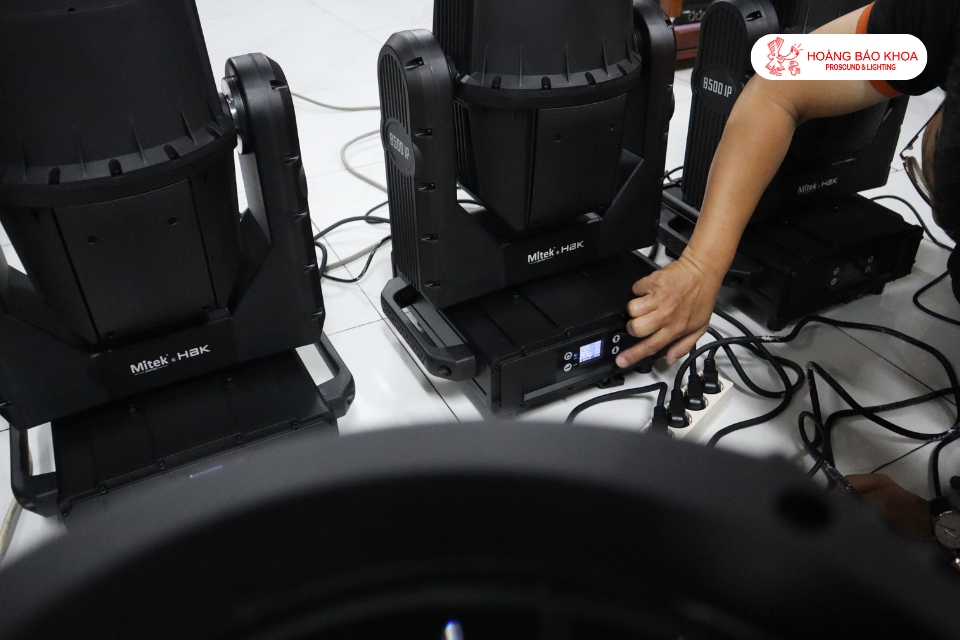

1. Lighting fixtures do not receive a DMX signal

This is the most common problem encountered during system operation.

Typical causes include:

• Incorrect DMX address.
• Damaged DMX cable.
• Loose DMX connector.
• Incorrect Master/Slave mode.
• The lighting console is not transmitting a DMX signal.

Solutions:

• Verify the DMX address of every fixture.
• Inspect the DMX cable.
• Test each fixture individually.
• Check the console's DMX output.

2. Lighting fixtures flicker or operate intermittently

If the entire lighting system behaves inconsistently, the problem usually originates from the signal transmission path.

Common causes include:

• Using the wrong type of cable.
• Excessive cable length.
• Oxidized connectors.
• Electromagnetic interference.

Recommended solutions:

• Use dedicated DMX cable.
• Avoid routing DMX cables alongside power cables.
• Replace damaged connectors or cables.
• Install a DMX terminator at the end of the signal chain.

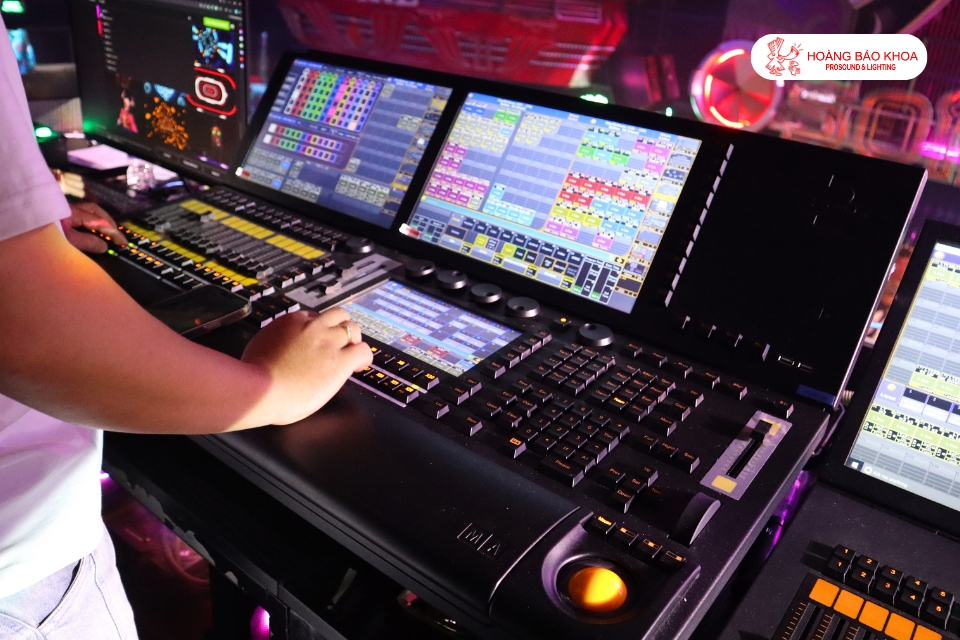

3. Lighting fixtures respond incorrectly to control commands

In some situations, fixtures still receive DMX data but display incorrect colors, movements, or lighting effects.

Possible causes include:

• Incorrect fixture personality selection.
• Incorrect DMX channel mode.
• Incorrect patch settings in the lighting console.

This is a common issue when multiple lighting fixture models from different manufacturers are used within the same system.

4. Duplicate DMX addresses

When multiple fixtures unintentionally share the same DMX address, they respond identically to control commands.

Typical symptoms include:

• Multiple fixtures moving simultaneously.
• Individual fixture control becomes impossible.
• Color changes occur simultaneously across multiple fixtures.

The solution is to verify the DMX addressing plan and assign unique addresses during system setup.

Using the correct DMX cable and inspection procedures improves system reliability

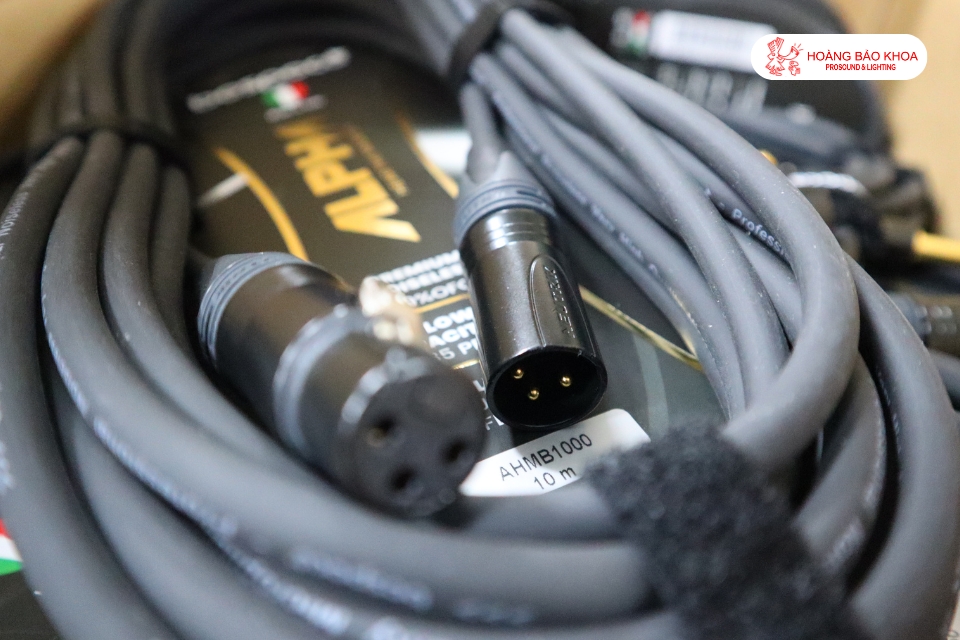

Use dedicated DMX cable instead of Microphone cable

This is a common mistake in newly installed lighting systems.

Although both cable types use XLR connectors, there are significant differences:

• Microphone cable typically has an impedance of approximately 50–75 & OMEGA;.
• DMX cable is designed with a standard impedance of 110 & OMEGA;.

Using microphone cable instead of DMX cable may result in signal degradation, particularly in large systems with long cable runs or numerous fixtures.

Hoang Bao Khoa supplies professional connectivity solutions from Neutrik, Rean, Bespeco, and ABCCables, helping lighting systems operate reliably in demanding live production environments.

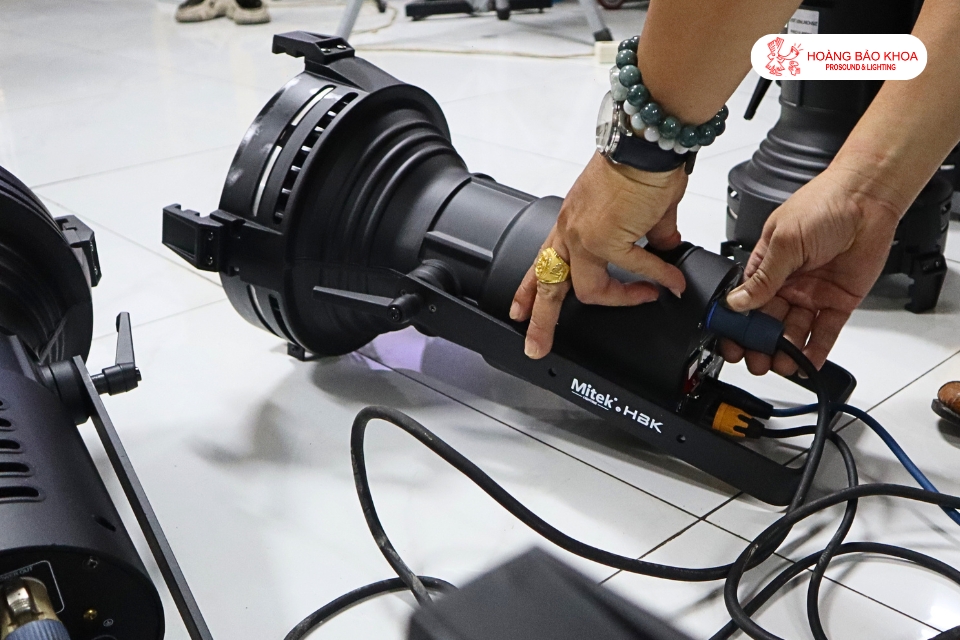

Inspect the entire system before every event

To minimize lighting system failures, always check:

• DMX connectors.
• Cables.
• Power supply.
• DMX addresses.
• Console patch configuration.
• Fixture firmware.

Routine inspections significantly reduce the risk of technical failures during live events.

Professional Lighting consultationminimizes problems from the design stage

A properly designed system from the beginning dramatically reduces troubleshooting time during operation.

During the lighting consultation process, engineers evaluate:

• DMX wiring topology.
• Signal transmission distance.
• Appropriate cable type.
• Lighting control equipment.
• Universe allocation.
• Future expansion capability.

Proper system design results in a more reliable installation, easier future expansion, and significantly fewer operational issues.

Hoang Bao Khoa provides complete Stage lighting solutions, including system design, installation, and professional Lighting consultationfor stages, auditoriums, event centers, theaters, and bars/clubs.

• Site survey.
• DMX system design.
• Supply of genuine lighting equipment.
• Lighting console programming.
• Installation and commissioning.
• Warranty and long-term technical support.

In addition to stage lighting solutions, Hoang Bao Khoa also provides auditorium audio systems, stage sound systems, Professional Audio consultation, and lighting consultation for projects throughout Vietnam.
