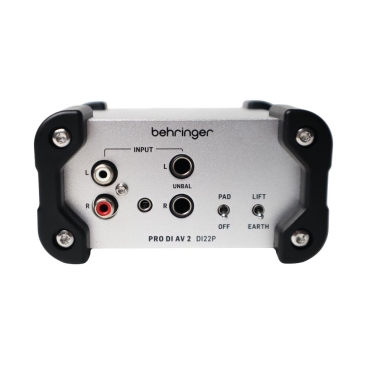

Passive DI Boxes Behringer DI22P

Name: Passive DI Boxes Behringer DI22P
Brand: Behringer
SKU: HBK61308
Availability: InStock
Rating: 4.67 (3 reviews)

DI22P Passive DI Boxes Behringer

Product code: DI22P 4

4.67/5 in 3 times

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Passive Stereo DI Box

Midas Transformer

Extended Dynamic Range

Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range

Shipping informations

Chiều Dài

17.50 cm

Chiều Rộng

11.90 cm

Chiều Cao

16.40 cm

Cân Nặng

0.64 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

Passive Stereo DI Box for general purpose and multimedia applications
Custom-built Midas transformers for highest signal integrity
High headroom design offers superior sound quality
Passive design does not require any power supply
Stereo input on 1/4", 1/8" TRS and RCA connectors
Switchable input attenuation for guitar, line and speaker levels
High quality Neutrik* XLR connectors
Earth Lift switches for input and output eliminate ground loop problems
Fully transformer-isolated design ensures electrical separation
Ultra-low noise and ultra-linear system for highest signal integrity
Aluminium extrusion casing with protective rubber corners

Midas - The Legend in Sound Quality

Ever since its formation in the 1970s, Midas has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary Midas consoles such as the XL4 and Heritage H3000 quickly became industry standards.

Midas has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning products which are considered by industry experts as the industry’s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

Compact & Rugged Construction

The ultra-compact DI22P is built to handle the rigours of life on the road via a thick and rugged aluminium extrusion that protects the electronics. The enclosure’s roadworthiness is further enhanced through the implementation of sturdy rubber corner bumpers.

High Headroom Design

A custom instrumentation-grade input circuit was designed for the DI22P using advanced analogue design techniques to create the ideal input impedance match. This innovative approach provides an ultra low noise, low harmonic and phase distortion input stage with a ruler-flat frequency response that ranges from 20 Hz to 30 kHz (±1 dB).

Connectivity & More

DI22P PRO DI AV 2 Inputs are: 2 x 1/4" TS; 2 x RCA ; and 1 x 1/8" TRS connectors, which can accommodate virtually any type of signal – for the utmost in versatility. The genuine Neutrik* Output XLR jacks send balanced versions of the input signals to your mixing board or other processing device.

Input Pad, Earth Lift Switch & More

A -15 dB input Pad enables the DI22P to easily accept a wide range of input signals including guitar, line and speaker levels (up to 30 dBu). The onboard Earth Lift switches separate the input and output grounds, eliminating earth loops between equipment on different mains electricity supplies. DI22P’s fully transformer-isolated design further ensures pristine performance – even in large-scale production environments.

Versatility

The DI22P PRO DI AV 2 provides maximum versatility with frequency response from 20 Hz to 30 kHz (±1 dB), MIDAS custom-design transformers for the ultimate signal integrity, and much more – all in a road-ready enclosure that stands ready for your input.

Specification

Inputs

Connectors	2 x ¼" TS, 1/8" TRS, RCA unbalanced
Impedance	30 k& OMEGA;
Max. input level	30 dBu @ 1 kHz

Outputs

Connectors	2 x XLR, balanced
Impedance	600 & OMEGA;
Max. output level	8.5 dBu @ 1 kHz

System

Frequency response	20 Hz to 30 kHz (± 1 dB)
THD + N (distortion)	0.01% @ 1 kHz, 0 dBU
Signal-to-noise ratio	105 dBu
Input pad	-15 dB
Power requirement	Passive

Physical

Dimensions (W x D x H)	118 x 112 x 64 mm (4.6 x 4.4 x 2.5")
Weight	0.53 kg (1.2 lbs)
