PRODUCT DESCRIPTION

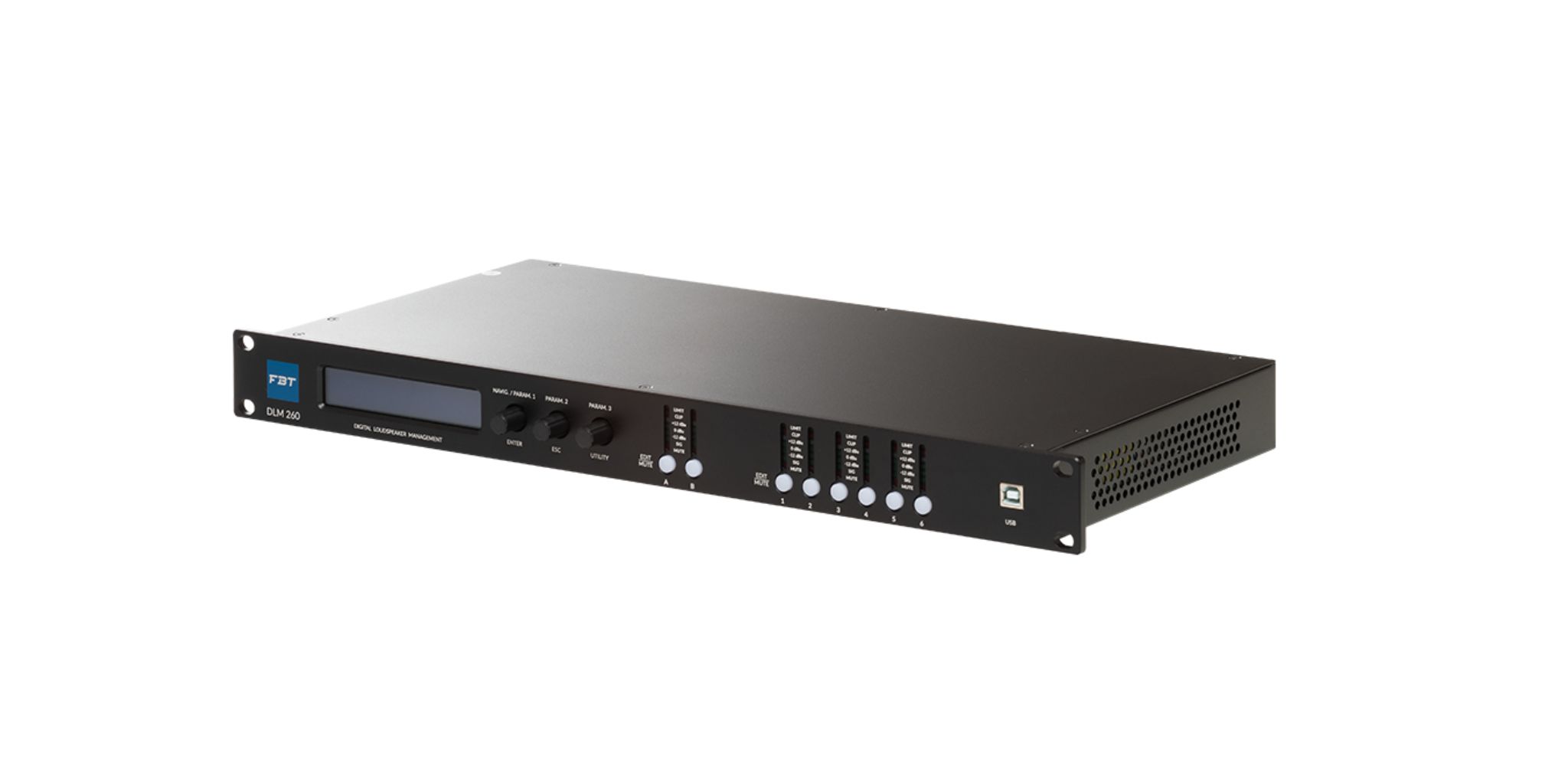

The DLM 260 is a DSP based 2 inputs x 6 output digital loudspeaker management processor, ideally suited for fixed installations and live events. It combines the functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities.
Routing is freely assignable from the two inputs to the six outputs. Input and output equalisation is available with a choice of 16 filter options. A total of 31 IIR EQ is available for each input, or 32 user memory locations is also available. Many options for crossover type include IIR from 6 to 48dB/oct, FIR and Linear Phase with constant group Delay. Input and output delay is available to time align components in a system; RMS and peak limiters will protect your speakers from damage due to excessive power being applied.
On input paths, the processing chain sees in cascade: input gain / delay / noise gate / dynamic loudness / filtering section / RMS Compressor.
On output paths the processing chain sees in cascade: output gain / delay / polarity/ filtering section / RMS compressor / peak limiter.

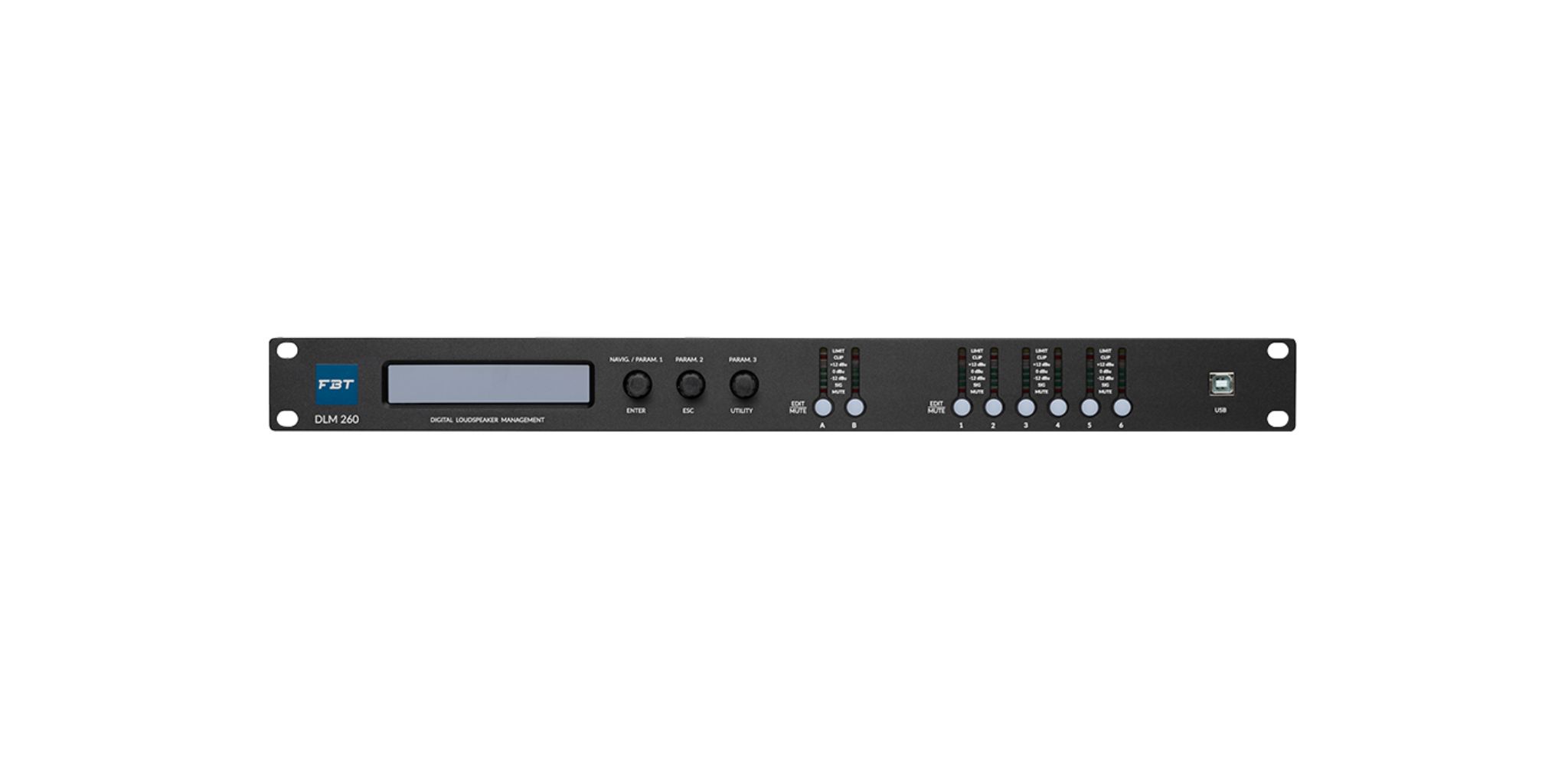

The processor features 32 user memory locations to store popular configurations and settings can be exported to a file via the dedicated PC application, either as a back-up or to store more favourite configurations if the 32 on-board presets are not sufficient. A very useful function is the ability to recall entire output channel configurations. PC connectivity is available via a front panel USB port but for larger systems with several processors can use Ethernet or RS-485 network connections.
TECHNICAL SPECIFICATIONS
GENERAL
| Input Impedance |
20K Ohm balanced |
| Output Impedance |
100 Ohm |
| Max. Input Level |
+20dBu |
| Max. Output Level |
+18dBu |
| Crosstalk |
< -95dB |
| Sample Rate |
48kHz |
| Signal to Noise Ratio |
>116dB (A weighted) |
| Noise Floor |
< -95dB (A weighted) |
| Common Mode Rejection Ratio |
60dB |
| Frequency Response |
20Hz - 20KHz +0.3dB |
| THD (+4dBu 1kHz) |
< 0.003% |
| Mains Voltage Range |
90 - 240Vac / 50-60Hz |
| Nominal Power Consumption |
30W |

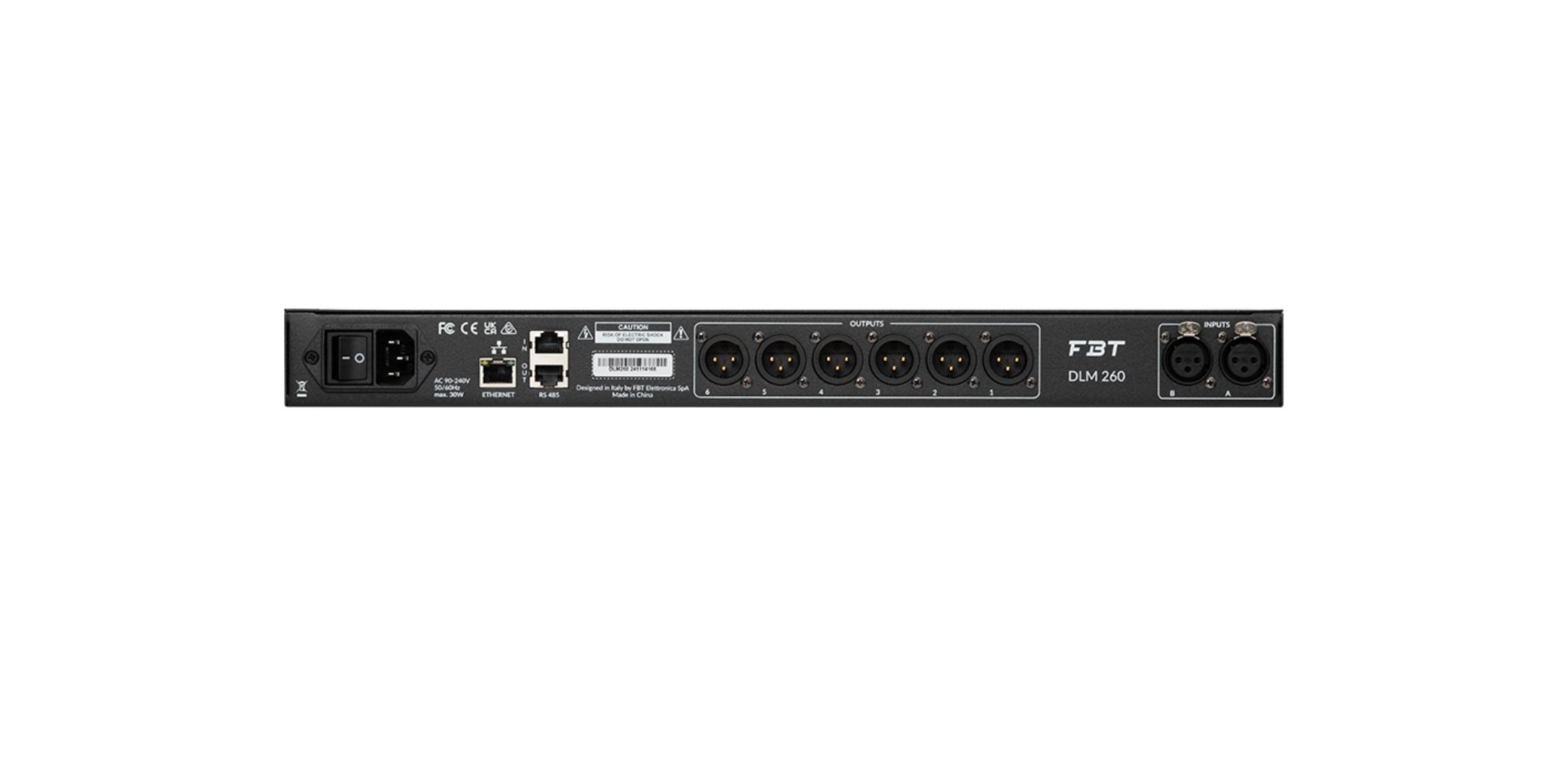

CONNECTORS
| Audio Input |
2 x 3 pin female XLR |
| Audio Output |
6 x 3 pin male XLR |
| Ethernet |
shielded RJ45, Dynamic or Static IP |
| RS485 |
2 x RJ45 |
| USB |
1 x USB "B" |
| Mains |
3 pin IEC |
PHYSICAL
| Height |
1U (44mm / 1.75") |
| Width |
482mm (19") |
| Depth |
230mm (9.1") |
| Weight |
3.0kg (6.6 lb) |
PROCESSING
| Signal Generator |
White/Pink noise, Level range: -30dBu +10dBu
-18dB -12dB, step 0.1dB |
| Noise Gate |
Threshold: -80dBu ~ -45dBu
Attack time: 1ms ~ 100ms |
| Dynamic Loudness Filter |
Release time: 10ms ~ 1000ms |
| Gain range |
0dB ~ +10dB |
| Parametric EQ |
Input channels up to 31 optional types of EQ
Output channels up to 8 optional types of EQ
Bell classic and constant Q filter, 1st order high shelf filter, 2nd order high shelf filter, 1st order low shelf filter, 2nd order low shelf filter, Variable Q low shelf filter, 1st order low-pass filter, 2nd order low-pass filter, Variable Q low-pass filter, 1st order high-pass filter, 2nd order high-pass filter, Variable Q high-pass filter, Band pass filter, notch filter, 1st order all-pass filter, 2nd order all-pass filter, variable Q value |
| Center Frequency |
Adjustable within the frequency range of 20Hz - 20kHz with a step accuracy of 1Hz |
| Q value / Bandwidth |
The Q value range of Bell filter is 0.4 - 128, the step is 0.01
the range of the Q value of the Chevorn highpass/lowpass filter is 0.1 - 5.1 and the step is 0.01
the value range of bandpass/notch filter Q is 4 - 104 and step is 1 |
| EQ Gain range |
-15dB ~ +15dB |
| IR |
