DN4816-O Stage Box Midas

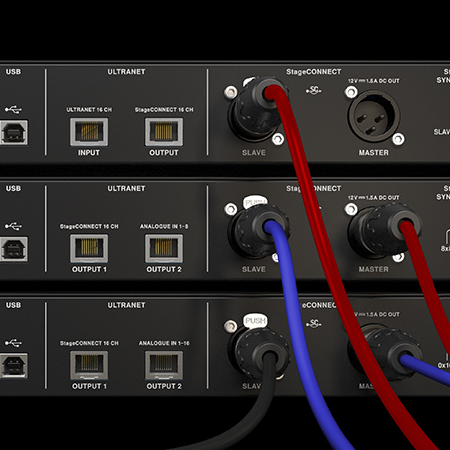

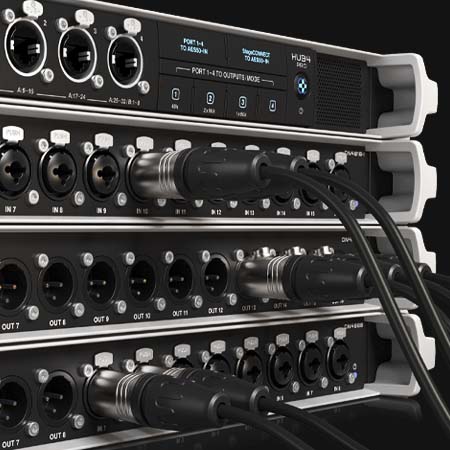

Cascade Interfaces to Meet Your Requirements

No matter if you want to use StageConnect for connecting wireless systems, external effects or playback systems, the devices of the DN48XX Series can easily be daisy-chained to meet the requirements of your respective I/O configurations. With a total bandwidth of 32 channels, all combinations ranging from 32 inputs over 16 In and outputs in parallel to 32 outputs can be achieved using different combinations of DN48XX interfaces connected using a simple XLR cable.

Power Via DC or StageConnect

The DN48XX Series devices can be powered via DC or via StageConnect. By design every SC Master provides 18W of power that can be used by devices in the chain. Depending on the respective power consumption multiple devices in the chain can be phantom powered by a single Master device. It should be noted that an SC device in the chain that is supplied with DC power can supply other devices connected to its Master port as well. To check your respective setup for power consumption, use the StageConnect Calculator (SSC Tool). This tool checks a virtually configured chain for the DMX cable lengths, power supply, audio routing and other parameters.

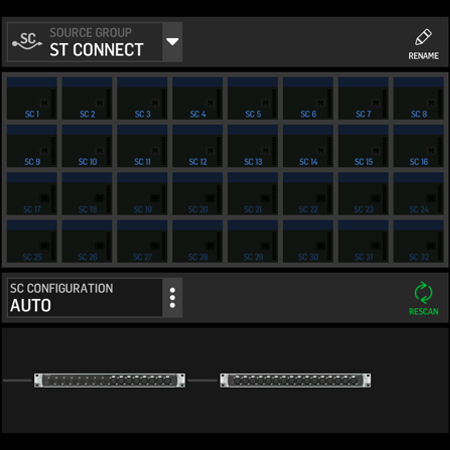

Automatic Bus Configuration

There are two ways to configure an SC chain. Either you can manually configure the chain using devices like WING or let the Automatic Bus Configuration do its work. This process adapts the input and output configuration of the SC Bus depending on the connected devices. Simply connect devices and the Master device of the chain will automatically change the routing. To check and plan setups the SSC Tool software is available, providing information about the routing and DMX cable length, power management and other parameters.

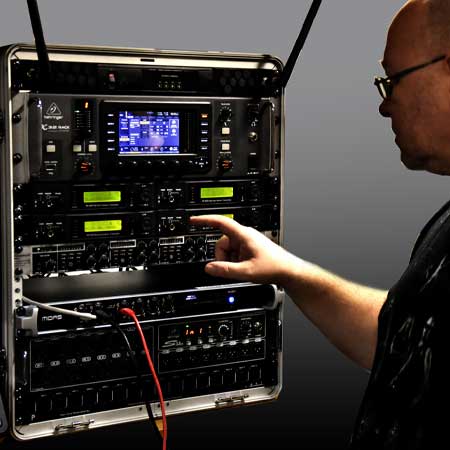

Analogue Outputs for IEM Transmitters

DN4816-O features 16 balanced line-level outputs that can carry up to 8 stereo mixes separated from the Console. All you need to do is mount the DN4816-O to your wireless rack and connect it to your console using a single XLR cable. This way you can save local outputs, reduce setup time and increase reliability considerably. Alternatively, these analogue outputs can also be used as spare outputs on stage receiving signals directly from the FOH consoles, e.g. for providing talkback or side fill outputs.

ULTRANET – Seamless Integration

The well-established ultranet technology transmits up to 16 independent channels of 24-bit digital audio via a single CAT5 cable between compatible digital devices. The DN48XX Series devices serve Ultranet connectivity for translation between StageConnect and Ultranet. This way more than 1 million Ultranet-Products in the market like the P16 monitoring system, AIR mixers and Turbosound speakers can be integrated in the StageConnect ecosystem.

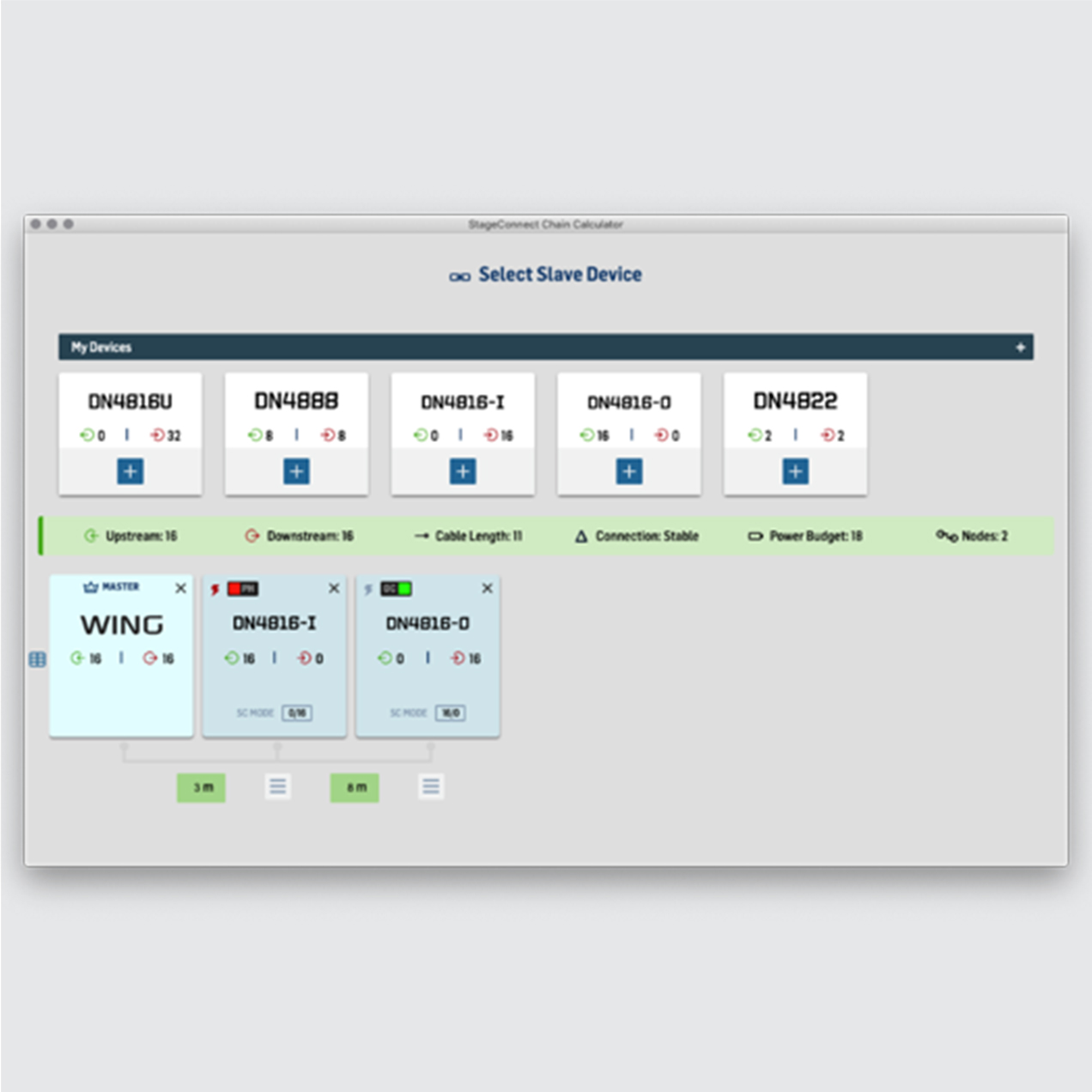

StageConnect Calculator

The StageConnect Calculator (SCC Tool) is a tool that can be used for checking and planning setups. You can create a virtual SC chain to study the upstream and downstream routing. The calculator also indicates parameters maximum DMX cable lengths, power budget and the overall stability of your connection.

You can virtually change the configuration of individual devices, change their order and intuitively add or remove devices from the chain. This allows you to explore the possibilities of routing signals through the new ecosystem.
