Product Features
- Up to 48 bidirectional channels @ 48 kHz and 24 bidirectional channels @ 96 kHz
- Switchable 48 kHz and 96 kHz sample rate operation
- Operates from incoming AES50 clock
- Powered via USB 2.0 interface
- Native Core Audio* driver support in Mac OS X*, software drivers available for Windows* PC
- LED indicators monitor network activity and speed
- Compact and rugged design with durable aluminium extrusion casing
DN9630
The DN9630 greatly simplifies the connection of computers to AES50 audio networks to provide simultaneous multi-channel computer audio recording and playback, making it ideal for use with MIDAS digital consoles and other AES50 equipped products. The single USB 2.0 interface connects directly to a Windows* PC or Apple* Mac and features a very high channel count, offering up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz sample rates.
Digital Audio Networking
Our SuperMAC (AES50-Compliant) digital audio networking technology simultaneously provides: high channel counts; ultra low and deterministic latencies; sample-synchronous and phase-aligned networked clock distribution; error detection and correction; network redundancy; and ease of deployment and use – to meet the demanding requirements of live concert touring. The DN9630 is fully compatible with all MIDAS digital consoles, audio system engines, digital I/O units, as well as all other AES50-equipped devices.

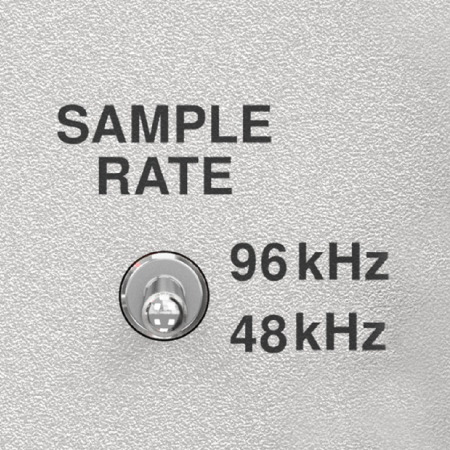

Dual Sample Rate Support
A dedicated slide switch is provided for either 48 or 96 kHz sample rates, allowing the DN9630 to work with either AES50 network’s incoming source clock for flawless synchronization.
Bus Powered
Operating power for the DN9630 is provided by the host computer’s USB 2.0 port via a single USB cable that simplifies set up – and helps keep your workspace clutter-free.
Drivers
DN9630 utilises dedicated audio software drivers for Windows* PC operation (free of charge download at klarkteknik.com), and supports the high channel counts offered via USB 2.0. Apple* Mac OS X provides native Core Audio driver support for the DN9630.

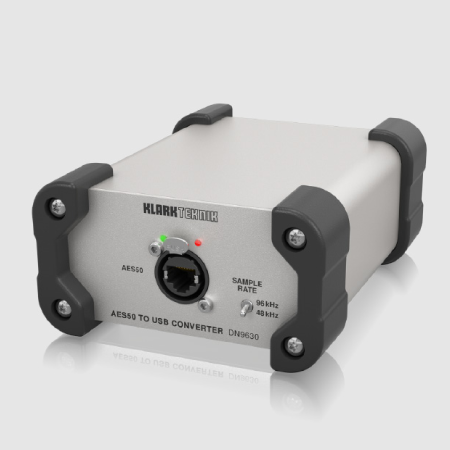

Built for the Road
Featuring a tough aluminium extrusion with durable protective silicone rubber corner bumpers, the DN9630 is designed to handle the rigours of live concert touring. A premium Neutrik etherCON connector ensures reliable AES50 network connection, night after night.
