Power Sequencer 16A 6000W / 7000w HBK SOUND DT-10Plus

Name: Power Sequencer 16A 6000W / 7000w HBK SOUND DT-10Plus
Brand: HBK SOUND
SKU: HBK59976
Availability: InStock
Rating: 4.67 (3 reviews)

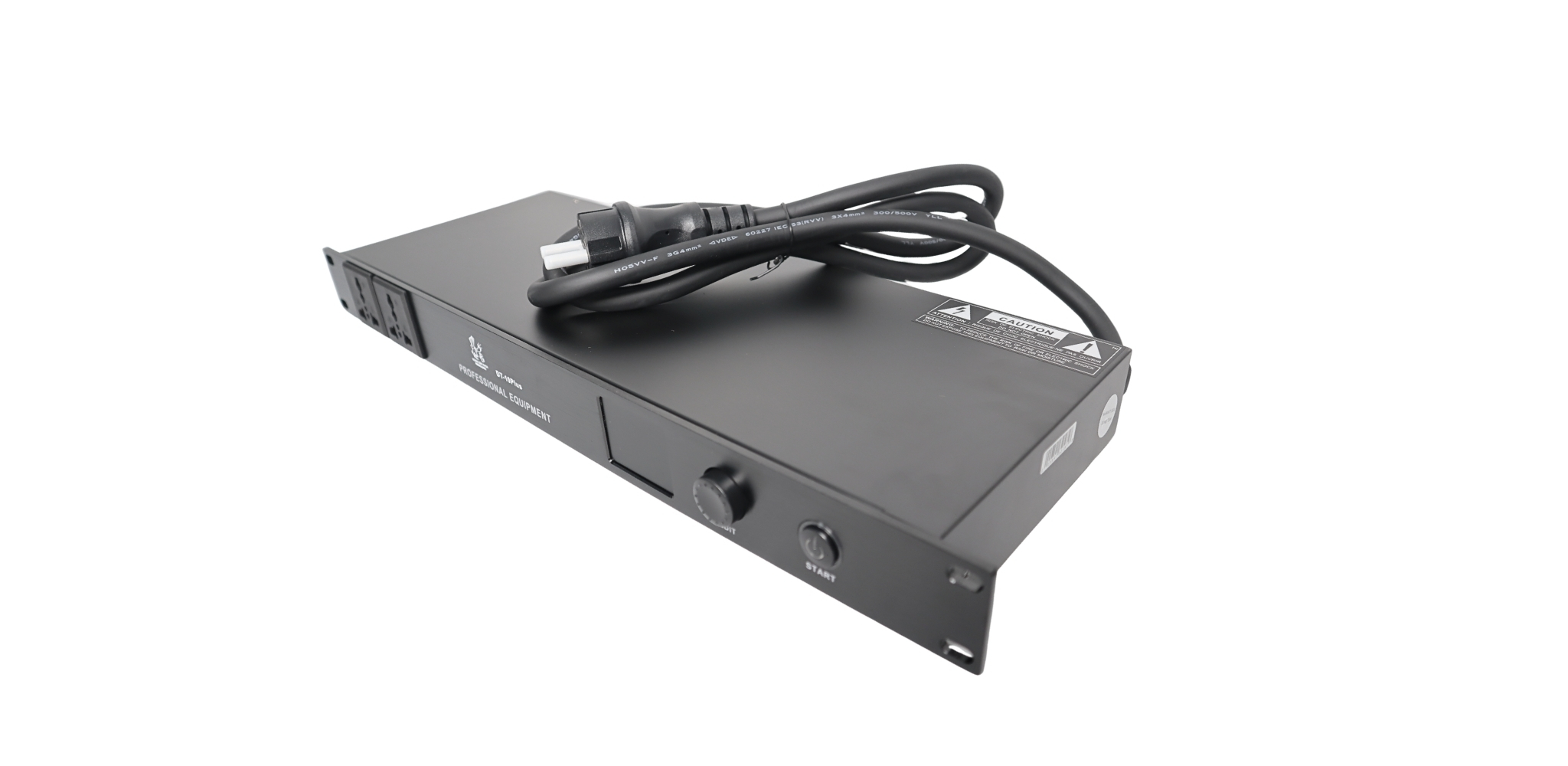

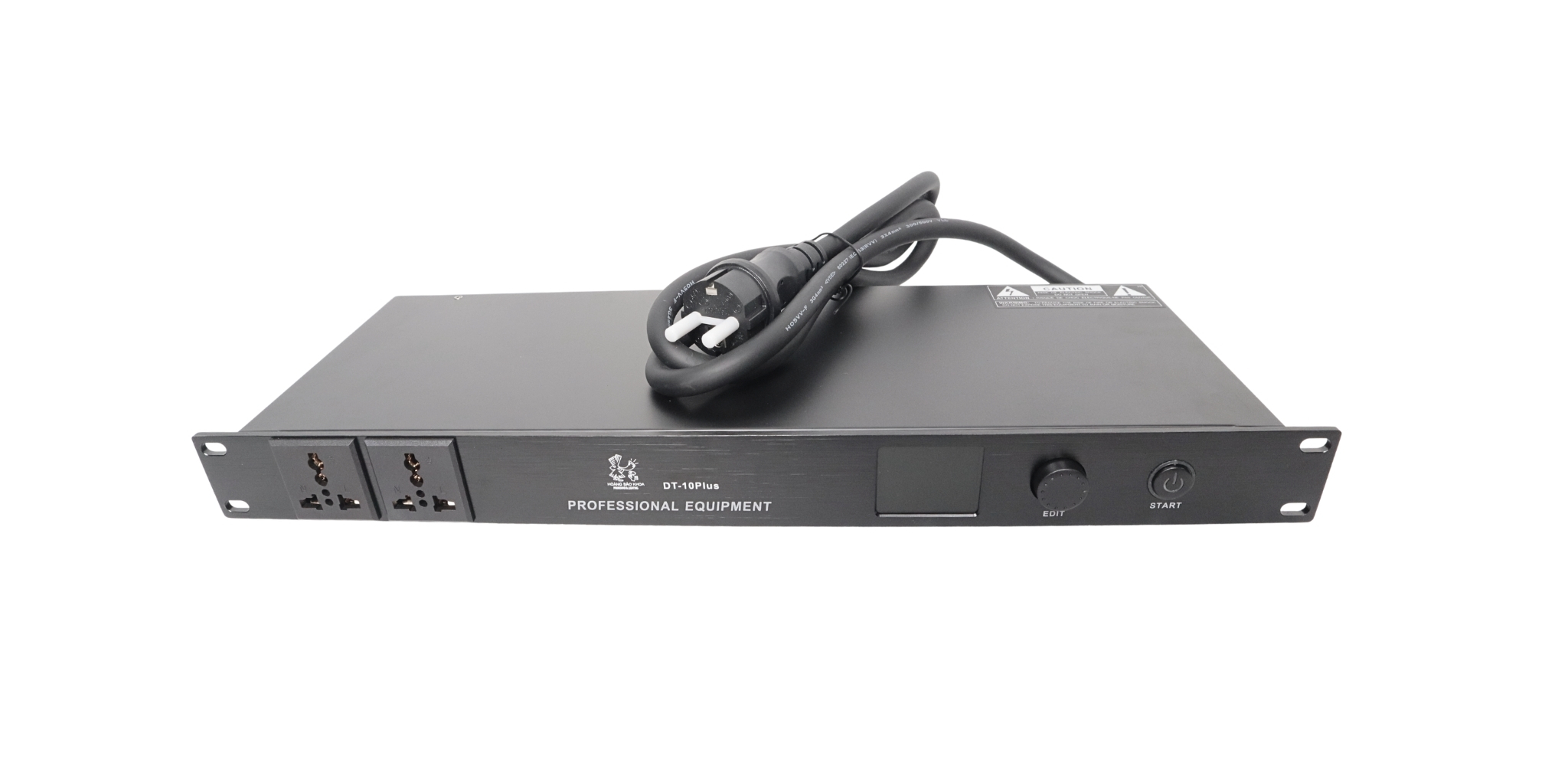

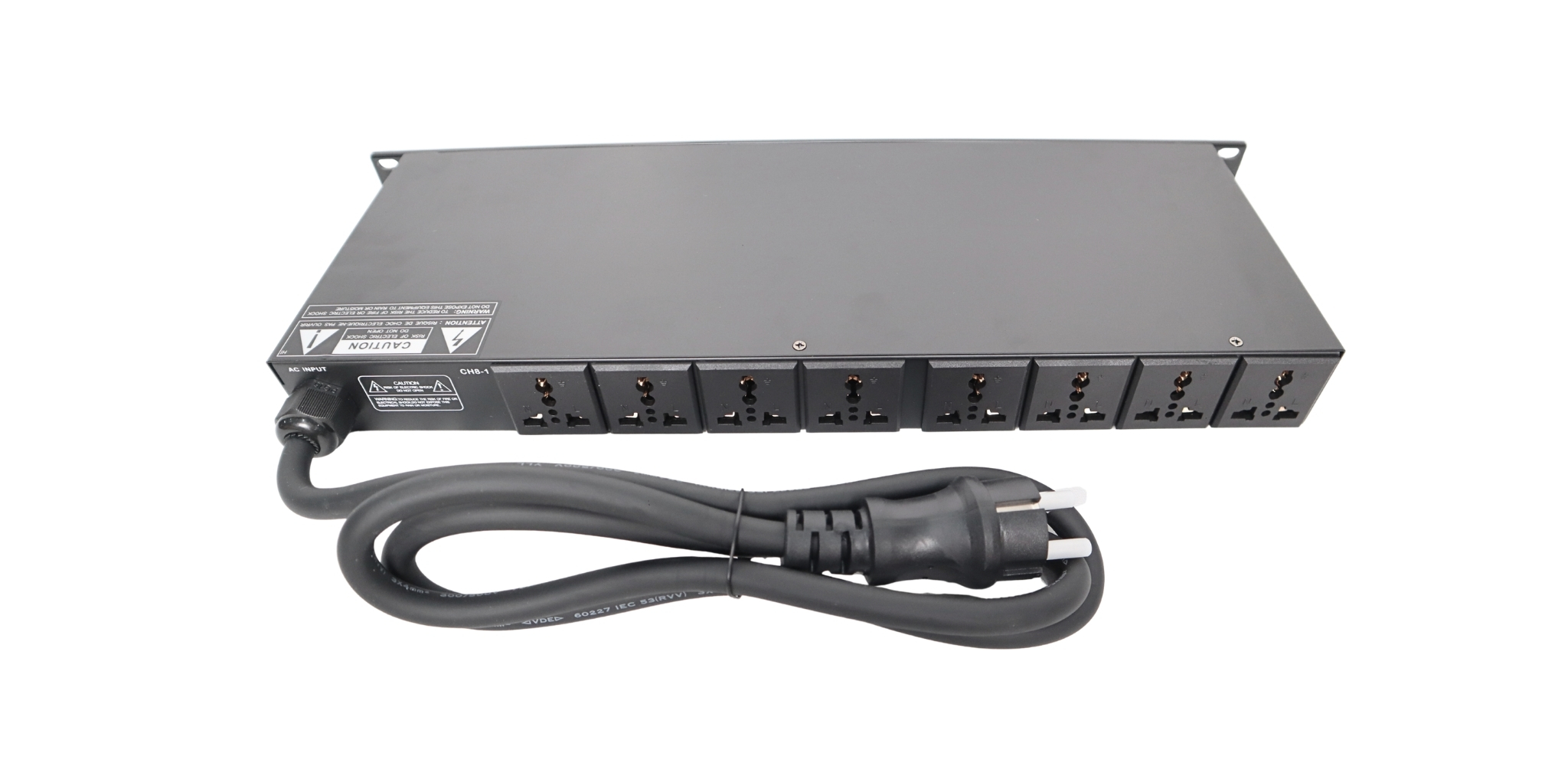

DT-10Plus Power Sequencer 16A 6000W / 7000w HBK SOUND

Product code: DT-10Plus 212

4.67/5 in 3 times

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

The rear socket is 16A, the relay is 30A, the plug is 10A.

A total of 10 controllable 8-way power output, each of which can reach 30A.

Controllable output delay time is 1–999s.

Each independent switch of liquid crystal display

Features

Iron panel, 2.0-inch liquid crystal display, equipped with real-time display of output voltage.
It can save multiple modes and different situations.
The time interval of each channel can be adjusted, and each channel can be opened and closed separately.
Timing switch with central control function.
A total of 10 controllable 8-way power output, each of which can reach 30A.
Controllable output delay time is 1–999s.
Add countdown shutdown function.
The rear socket is 16A, the relay is 30A, the plug is 10A.

Technical Specifications

Specification	Details
Panel color	Aluminum black
Power input conditions (single phase, three wire)	AC190–250V, 50–60Hz, two phase (three wire: Line, Neutral, Earth)
Channel quantity	8-channel multi socket relay controlled and 2-way universal socket direct output
Relay controlled output max withstand single / total power (reactive)	6000W / 7000W maximum withstand reactive power
Output power socket specification	Flame retardant ABS material, max. withstand 16A current phosphor copper material, standard universal socket
Function features	1: Dot matrix function display 2: LCD voltage display 3: Password setting startup 4: Sequential opening and reverse closing, free setting channel 5: Adjustable time interval 6: Free channel shutdown 7: Panel channel independent closing
Interval time / timing time of each switch	1 second by default (can be set freely)
Output relay contact current	30A 277VAC
Circuit board specification	Double-sided fiberboard, secondary thickening and thickening of main power wiring
Power supply specification	Built-in switch power supply, applicable to AC90–260V, 50–60Hz
Main cable specification	3 × 4 square cable, total length 1.5m, European plug
Opening type	Push button touch switch
Single channel independent switch function	Support panel independent control
Function display voltmeter type	Dot matrix function display voltmeter and function menu
External switch	Have
Power purification function (EMI professional grid filter)	None
Body size	482mm (L) × 185mm (W) × 44mm (H) (non-standard 1U)
Single package size	555mm (L) × 255mm (W) × 85mm (H) (meiniu cardboard box), gross weight: 3.5kg
Total weight and outer package size	1 piece, 5 sets, total 18kg; outer package size: 445mm (L) × 270mm (W) × 570mm (H)
