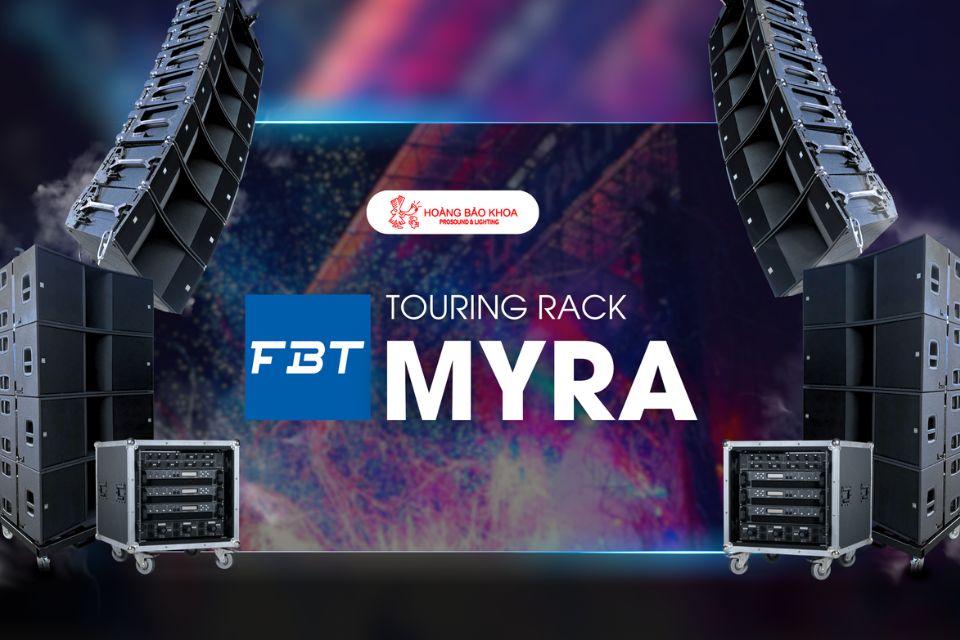

MYRA - Powerful Touring Sound Solution
Overview
Combining precision sound quality with practical hardware and FBT’s characteristic Italian style, the Myra system comprises the 214L mid/high line array and the 218S subwoofer. Both are the result of extensive consultation with the industry’s leading tour sound companies and an extensive, three years R&D program.
Designed without compromise, the Myra establishes a new reference for SPL to size ratio, directivity control, coherence, and ease of use.
MYRA 214L - Mid/High Line Array Element
At the heart of the 214L line array element is a new coaxial 4-inch voice coil mid-frequency and 2.5-inch voice coil high-frequency driver combination developed in cooperation with B&C, and covering the 400 Hz to 20 kHz range.
Combined output from the compression drivers is loaded by a proprietary short path waveguide that ensures low distortion and controlled broadband directivity.
Low Frequency Section
With extended frequency response down to 40 Hz, which in most applications avoids the need for flown subwoofers, the 214L’s low frequency section employs uniquely sized B&C 14-inch high excursion drive units with 3-inch long excursion voice coils to maintain long throw projection of low frequencies with power and authority.
Cabinet Construction
The cabinet construction typifies FBT’s signature ‘Made in Italy’ production philosophy. Completely fabricated in-house using premium Baltic birch and tour-ready weather-resistant polyurea coating, the 214L is built for a life on the road.
Rigging System
Audio crews will appreciate the intuitive four-point integrated rigging system which allows up to 24 cabinets to be flown quickly and easily in any venue with splay angle from 0.25° to 8°. An auto-locking internal mechanism makes it easy to set arrays at the desired inter-element angles using selector pins and securely lock all cabinets at the selected angle when lift-up.
Amplification and Connectivity
The MYRA 214L is Bi-Amped through a Neutrik NLT4 connector, one channel for LF and one for the MID/HF with internal passive crossover. The lowest octave of the Myra system is seamlessly reproduced by the companion 218S, a reflex-loaded dual 18-inch subwoofer featuring custom-designed, very long excursion B&C drivers.
Combining accurate cabinet resonance study and ingenious port arrangement which is designed to reduce turbulence and eliminate non-linearity, MYRA 218S delivers substantial low frequency energy down to 25 Hz, and can offer standard or cardioid directivity with suitable DSP preset and physical deployment. As with the 214L mid/high enclosure, the 218S cabinet benefits from premium Baltic plywood construction and, to ensure long term road-worthiness and all-weather resistance, is protected by a durable polyurea coating.
A two-point rigging system is flush-mounted into the cabinet, allowing the suspension of up to 12 enclosures with a 4:1 safety factor. Trucking and handling are made easy by the eight comfortable, ergonomically placed rubber gripped aluminium bar handles, along with removable heavy-duty casters.
MYRACK - Touring Rack
Overview
MYRACK is your new, powerful rack. It's built to professional touring industry standards, and we've taken great care to ensure that it's rugged enough to handle whatever comes your way. As an acoustic engineer or technician, MYRACK will help you do your job better, as it gives you more power and control over all of your gear.
Design and Functionality
Designed as closed system rack, MYRACK provides mains power distribution and connector interface for 3 x TALOS 20K4T amplifiers each. This Touring rack is equipped with a mains power distribution device which also serves as a loudspeaker connector panel. Also incorporated is an I/O panel which serves as a connector interface for both analog and digital audio signals as well as four network connectors for Ethernet remote capabilities.
Networking and Management
Designed for workgroups and departments, a Managed Switch with 24 RJ-45 ports that provides wire-speed performance is included.
