Using long cable runs or connecting too many effect pedals can cause guitar tones to become muddy, reduce treble response, and diminish playing dynamics. The TC Electronic Bonafide Buffer provides a technical solution that helps preserve 100% of the original tone.

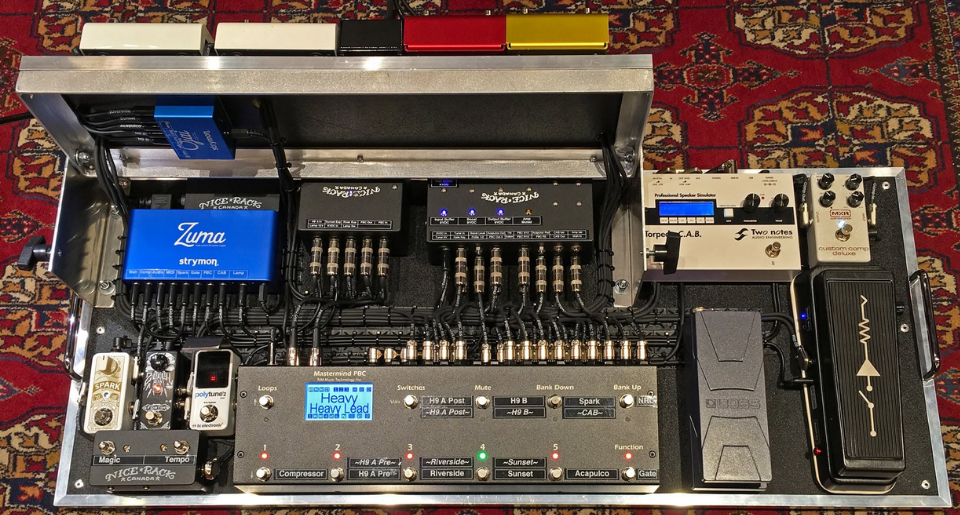

The "Tone Suck" Phenomenon in Long Pedalboard Systems
Many guitarists and bassists experience a strange phenomenon: when plugging their instrument directly into an amplifier, the sound is bright, punchy, and smooth. However, after connecting the instrument through a pedalboard chain containing 5 to 10 effects and using long cables on stage, the tone immediately becomes compressed, loses high frequencies (Treble), and sounds noticeably dull.
From an audio engineering perspective, this phenomenon is known as Tone Suck (Signal Loss):
- The characteristics of guitar pickups: Magnetic pickups generate electrical signals with high impedance (High Impedance, High-Z). These signals are extremely sensitive to the transmission environment.
- The impact of cable capacitance: Signal cables naturally possess a certain level of capacitance. The longer the cable, the greater the accumulated capacitance. This capacitance combines with the pickup's impedance to create a natural low-pass filter, directly attenuating high frequencies from 2 kHz to 8 kHz.
- Load impedance created by a True Bypass pedal chain: Although True Bypass pedals help preserve the signal when turned off, connecting multiple jacks and switching circuits in series still increases the overall load impedance, significantly weakening the signal.

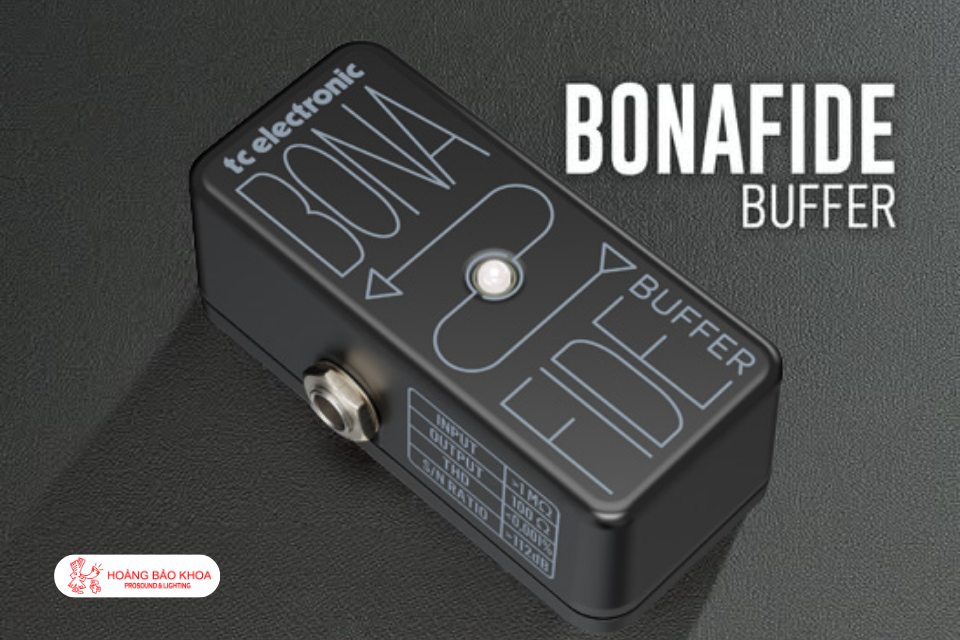

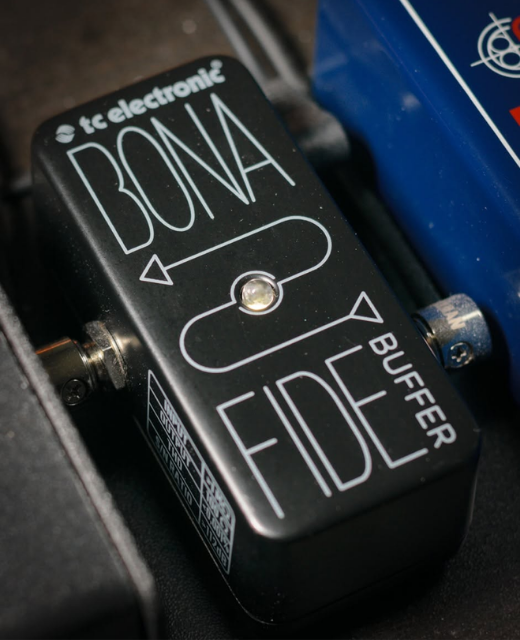

To solve signal loss without altering the original tonal character of the instrument, tc Electronic BONAFIDE BUFFER provides a premium impedance conversion solution.
Flexible impedance conversion
When placed at the beginning of the signal chain, BONAFIDE BUFFER receives the guitar's high-impedance signal (1 M& OMEGA;) and immediately converts it into a low-impedance signal (Low Impedance, Low-Z) at the output (100 & OMEGA;). Low-impedance signals are much more resistant to cable capacitance, allowing audio to travel through dozens of meters of cable and multiple pedals without losing a single hertz of high-frequency content.
Outstanding technical specifications
Unlike low-cost buffer circuits that often introduce hiss or create harsh treble frequencies, Bonafide Buffer delivers impressive technical specifications:
- Signal-to-Noise Ratio (S/N Ratio): >112 dB, ensuring an exceptionally quiet noise floor.
- Total Harmonic Distortion (THD): Extremely low at <0.001%, preserving the natural tonal characteristics of both the instrument's wood and pickup.
- Smart Bypass Relay: Automatically switches to True Bypass mode if the power supply is unexpectedly interrupted, ensuring that your performance signal is never lost.
💡 To protect the valuable character of their instrument's tone, musicians can explore professional signal preservation solutions distributed by Hoang Bao Khoa.
