Point Source Passive Speaker 1400W 10inch Turbosound KT10-HP

Name: Point Source Passive Speaker 1400W 10inch Turbosound KT10-HP
Brand: Turbosound
SKU: HBK51904
Price: 1.34 USD
Availability: InStock
Rating: 4.5 (16 reviews)

KT10-HP Point Source Passive Speaker 1400W 10inch Turbosound

Product code: KT10-HP 2,943

4.5/5 in 16 times

$368.2

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

NEW ARRIVAL

2 -way 10inch full-range for KTV

Shipping informations

Length

69 cm

Width

47 cm

Height

41 cm

Weight

23 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

2-way 10" full-range loudspeaker for KTV applications
Rotatable waveguide with 80° H x 60° V dispersion
350 Watts continuous, 1,400 Watts peak power
High power, lightweight 10" low frequency driver with aluminium cast basket
1 x 1.4" (35 mm) voice coil Polymide diaphragm HF compression driver
Precision-engineered crossover for maximum performance in the midrange vocal region
Multiple internal rigging points allow standard bracket mount and suspension in any orientation
12 mm (1/2") & 15 mm (5/8") plywood enclosure with hardwearing semi matt black paint finish
Architecturally styled powder coated perforated steel mesh grille with foam backing
Industry standard 4-pole twist-lock speaker connectors

KT10-HP

The 2-way 10” full range KT10-HP is a 1,400-Watt peak loudspeaker system designed specifically for KTV applications. Multiple M10 rigging points and a 35 mm pole mount provide versatility for installation.

Precision and Detailed Clarity

The KT10-HP loudspeaker features a 10" low frequency driver with a low mass voice coil for improved transient response, demodulation rings for maximum clarity at high spl, and a polyimide 1.5” diaphragm 1" exit ferrite motor compression driver mounted on a 80° horizontal by 60° vertical low distortion waveguide. All drivers are matched with a precision engineered passive crossover network that provides maximum performance in the midrange vocal region and high gain before feedback.

Construction and Connectivity

Finished in a highly durable semi matt black paint, the cabinet is constructed from 12mm (½") & 15 mm (⅝") plywood – and includes an architecturally styled powder coated perforated steel mesh grille backed with reticulated foam. Rotatable badge for vertical or horizontal deployment. Multiple internal M10 rigging points are provided for suspension in any orientation or mounting with an additional 35mm pole mount for stand mount options. The rear panel connector plate carries industry-standard twist-locking speaker input and link quick and convenient wiring. Custom-Engineered Drivers

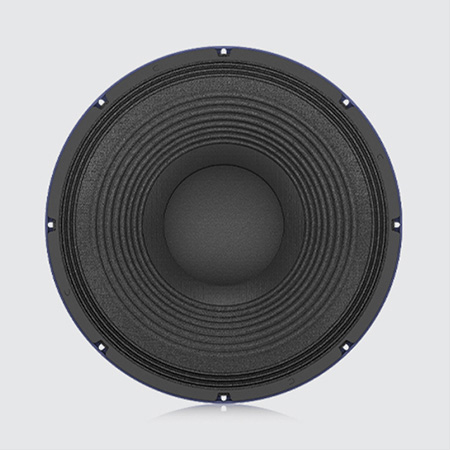

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed by ourselves or to our exacting standards. Our KT series transducers have been carefully designed and tested for the exacting requirements of the KTV market. Enclosure Design

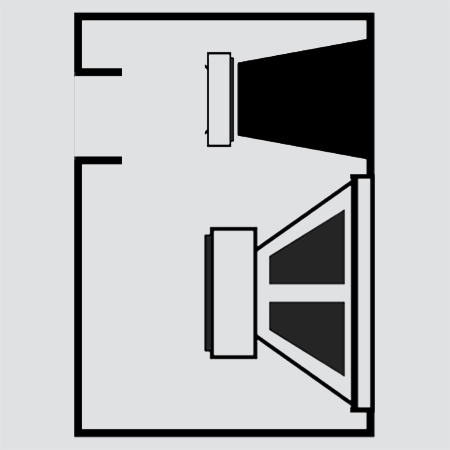

Enclosure Design

The KT series employees a low distortion rear ported design favoured for KTV applications for maximum bass impact, taking advantage of low frequency boundary effect loading. Architecture and Engineering Specifications

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 10" (250 mm) LF ferrite driver and one 1" (25 mm) HF ferrite compression driver with 1.5” voice coil. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine WAVE input, shall be flat within ±3 dB from 80 Hz to 20 kHz and within -10 dB from 48 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 80° H x 60° V, rotatable. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 350 Watts continuous, 1,400 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 96 dB, 1 Watt @ 1 metre. Maximum SPL of 133 dB in passive mode (Average Peak level over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set).

Dimensions: 590 mm high x 322 mm wide x 400 mm deep (23.2 x 12.7 x 15.8") Net weight: 20 kg (44.1 lbs). The loudspeaker system shall be the Turbosound KT10-HP. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.

Specification

System

Frequency response (±3 dB)¹	80 Hz - 20 kHz
Frequency response (-10 dB)¹	48 Hz - 20 kHz
Nominal dispersion (@ -6 dB points)	80° H x 60° V
Power handling (IEC)	350 W continuous, 1400 W peak
Sensitivity (1 W @ 1 m)¹	96 dB (1 W @ 1 m)
Maximum SPL	127 dB (133 dB peak)
Impedance	8 Ω
Components	1 x 1.4" (35 mm) voice coil Polymide diaphragm HF compression driver, 1 x 10" (250 mm) LF driver

Enclosure

Connectors	2 x Industry-standard 4-pole twist-lock speaker connectors (1+/1- Input,2+/2- Link)
Dimensions H x W x D	590 x 322 x 400 mm
Net weight	20kg (44.1 lbs)
Construction	12 mm and 15 mm (1/2" and 5/8") plywood
Finish	Black texture paint
Grille	Powder coated perforated steel
Flying hardware	M10 x 19 Points
UV rating	4-5 (ASTM G155-21)

Notes:

1. Free field conditions, measured at 1 metre on axis

2. MT standard with crest factor 6 dB pink noise

3. Calculated based on the rated power, 4dB crest factor
