KT12-HP Point Source Passive Speaker 2000W 12inch Turbosound

Product code: KT12-HP 2,973

4.67/5 in 3 times

$403.44

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

NEW ARRIVAL

2 -way 12inch full-range for KTV

Shipping informations

Length

73 cm

Width

47 cm

Height

46 cm

Weight

29.5 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

2-way 12" full-range loudspeaker for KTV applications
Rotatable waveguide with 80° H x 60° V dispersion
500 Watts continuous, 2,000 Watts peak power
High power, lightweight 12" low frequency driver with aluminium cast basket
1 x 1.4" (35 mm) voice coil Polymide diaphragm HF compression driver
Precision-engineered crossover for maximum performance in the midrange vocal region
Multiple internal rigging points allow standard bracket mount and suspension in any orientation
12 mm (1/2") & 15 mm (5/8") plywood enclosure with hardwearing semi matt black paint finish
Architecturally styled powder coated perforated steel mesh grille with foam backing
Industry standard 4-pole twist-lock speaker connectors

KT12-HP

The 2-way 12” full range KT12-HP is a 2,000-Watt peak loudspeaker system designed specifically for KTV applications. Multiple M10 rigging points and a 35 mm pole mount provide versatility for installation.

Precision and Detailed Clarity

The KT12-HP loudspeaker features a 12" low frequency driver with a low mass voice coil for improved transient response, demodulation rings for maximum clarity at high spl, and a polyimide 1.5” diaphragm 1" exit ferrite motor compression driver mounted on a 80° horizontal by 60° vertical low distortion waveguide. All drivers are matched with a precision engineered passive crossover network that provides maximum performance in the midrange vocal region and high gain before feedback.

Construction and Connectivity

Finished in a highly durable semi matt black paint, the cabinet is constructed from 12mm (½") & 15 mm (⅝") plywood – and includes an architecturally styled powder coated perforated steel mesh grille backed with reticulated foam. Rotatable badge for vertical or horizontal deployment. Multiple internal M10 rigging points are provided for suspension in any orientation or mounting with an additional 35mm pole mount for stand mount options. The rear panel connector plate carries industry-standard twist-locking speaker input and link quick and convenient wiring. Custom-Engineered Drivers

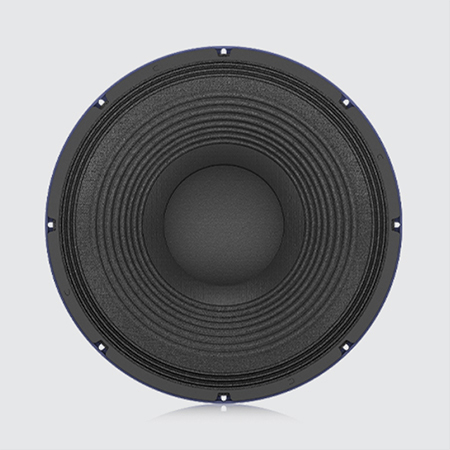

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed by ourselves or to our exacting standards. Our KT series transducers have been carefully designed and tested for the exacting requirements of the KTV market. Enclosure Design

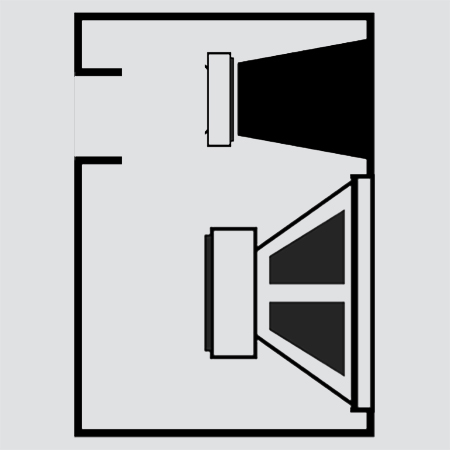

Enclosure Design

The KT series employees a low distortion rear ported design favoured for KTV applications for maximum bass impact, taking advantage of low frequency boundary effect loading. Architecture and Engineering Specifications

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 12" (300 mm) LF ferrite driver and one 1" (25 mm) HF ferrite compression driver with 1.5” voice coil. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine WAVE input, shall be flat within ±3 dB from 72 Hz to 20 kHz and within -10 dB from 44 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 80° H x 60° V, rotatable. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 500 Watts continuous, 2,000 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 98 dB, 1 Watt @ 1 metre. Maximum SPL of 137 dB in passive mode (Average Peak level over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set).

Dimensions: 635 mm high x 375 mm wide x 394 mm deep (25 x 14.8 x 15.5") Net weight: 26.3kg (58 lbs). The loudspeaker system shall be the Turbosound KT12-HP. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.

Specification

System

Frequency response (±3 dB)¹	72 Hz - 20 kHz
Frequency response (-10 dB)¹	44 Hz - 20 kHz
Nominal dispersion (@ -6 dB points)	80° H x 60° V
Power handling (IEC)	500 W continuous, 2000 W peak
Sensitivity (1 W @ 1 m)¹	98 dB (1 W @ 1 m)
Maximum SPL	131 dB (137 dB peak)
Impedance	8 & OMEGA;
Components	1 x 1.4" (35 mm) voice coil Polymide diaphragm HF compression driver, 1 x 12" (315 mm) LF driver

Enclosure

Connectors	2 x Industry-standard 4-pole twist-lock speaker connectors (1+/1- Input,2+/2- Link)
Dimensions H x W x D	635 x 375 x 394 mm
Net weight	26.3kg (58 lbs)
Construction	12 mm and 15 mm (1/2" and 5/8") plywood
Finish	Black texture paint
Grille	Powder coated perforated steel
Flying hardware	M10 x 19 Points

Notes:
1. Free field conditions, measured at 1 metre on axis
2. MT standard with crest factor 6 dB pink noise
3. Calculated based on the rated power, 4dB crest factor
