Modern outdoor stage productions require lighting systems that deliver not only high brightness but also stable performance under demanding operating conditions. Concerts, festivals, and touring events often expose lighting fixtures to dust, humidity, rain, and continuous transportation between venues.

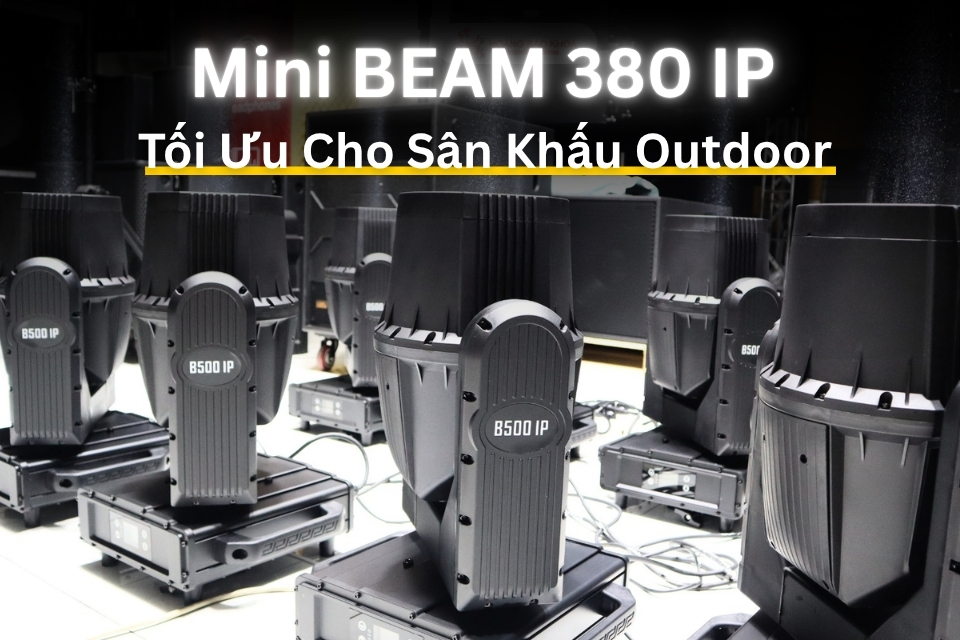

The Mini BEAM 380 IP from Mitek&HBK was developed specifically for these applications. Featuring a powerful OSRAM 381W light source, sharp aerial beam effects, and IP66-rated protection, the fixture is designed for professional outdoor lighting environments.
IP66 Die-Cast Housing for Touring Applications
The Mini BEAM 380 IP features a durable die-cast aluminum housing with IP66 protection against dust and water.
This weather-resistant construction allows the fixture to operate reliably in outdoor environments without requiring complicated rain covers or additional protection systems. The rugged mechanical design also improves durability during transportation and touring operations.
For rental companies and event production teams, this helps reduce maintenance concerns and improve operational efficiency during large-scale outdoor shows.
Powerful OSRAM 381W Beam Output
The fixture uses an OSRAM Sirius HRI 381W S lamp with an estimated lifespan of approximately 3,000 hours.
Delivering up to 230,000 lux at 15 meters, the Mini BEAM 380 IP produces an intense and highly concentrated beam effect. Its ultra-narrow 1.6° beam angle and 7800K color temperature create sharp aerial beams that remain visible even in large outdoor environments.
When combined with haze effects and high-powered sound systems, the fixture enhances the overall energy and visual impact of live performances.
Dual Prism System for Layered Visual Effects
The Mini BEAM 380 IP is equipped with independent 8-facet and 16-facet prism systems capable of generating layered beam effects.
Together with haze or smoke machines, the dual prism configuration expands a single beam into multiple dynamic light layers, adding depth and complexity to stage visuals. This makes the fixture particularly suitable for EDM festivals, concerts, and large-scale outdoor productions.
Despite its powerful performance, the compact “Mini” design helps optimize truss space and reduce overall rigging load.
Smart Investment for AV and Event Production
The fixture features smooth 540° Pan and 270° Tilt movement with precise motor positioning for fast and accurate lighting cues.
It supports DMX512 control and includes a rear touchscreen display that allows technicians to monitor operating temperature, fan speed, and fixture status directly on site.
With its weather-resistant design, strong aerial beam effects, and touring-friendly construction, the Mini BEAM 380 IP is a practical solution for professional AV contractors, rental companies, and outdoor event productions.
The product is currently available at Hoang Bao Khoa showrooms.
