NP2XX-SILENT Jack 6 ly mono Neutrik

Name: Jack 6 ly mono Neutrik NP2XX-SILENT
Brand: Neutrik
SKU: HBK59669
Price: 0.03 USD
Availability: InStock
Rating: 4.67 (3 reviews)

Product code: NP2XX-SILENT 12

4.67/5 in 3 times

$9.13

In stock

Buy Now

Add to cart

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Avoid pops and squeals

Hermetically sealed switching contacts

Lifetime beyond 1'000 mating cycles

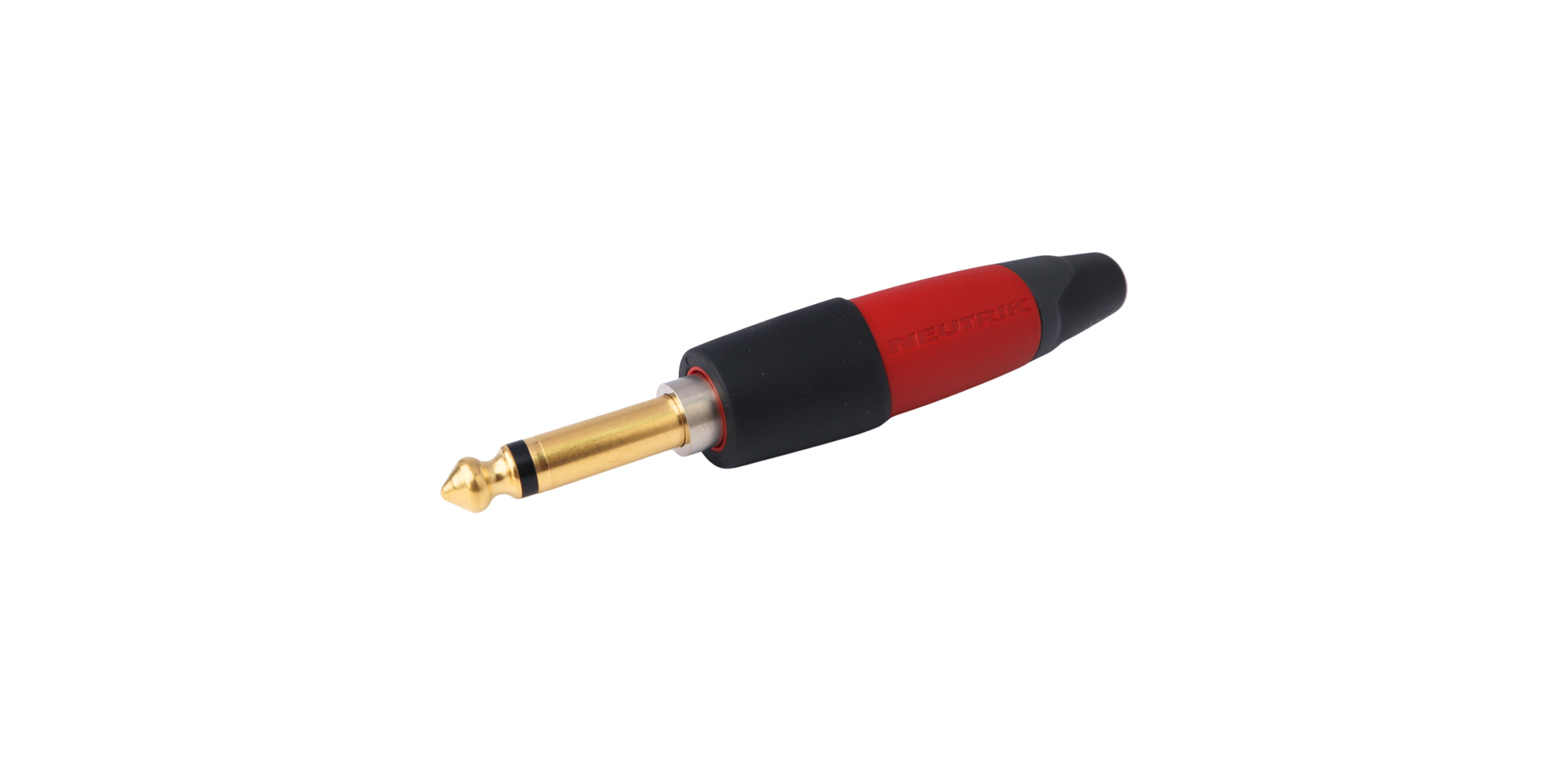

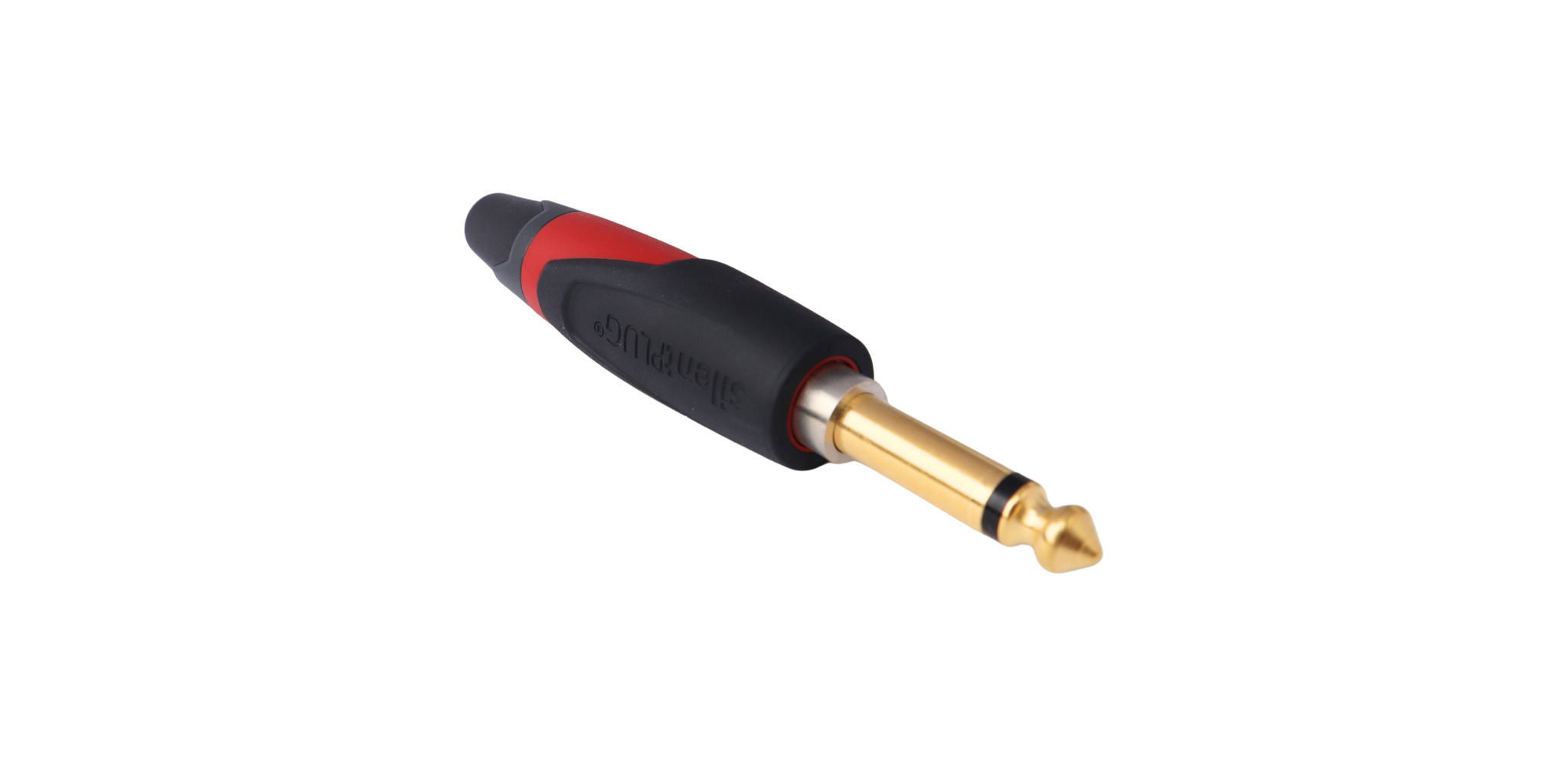

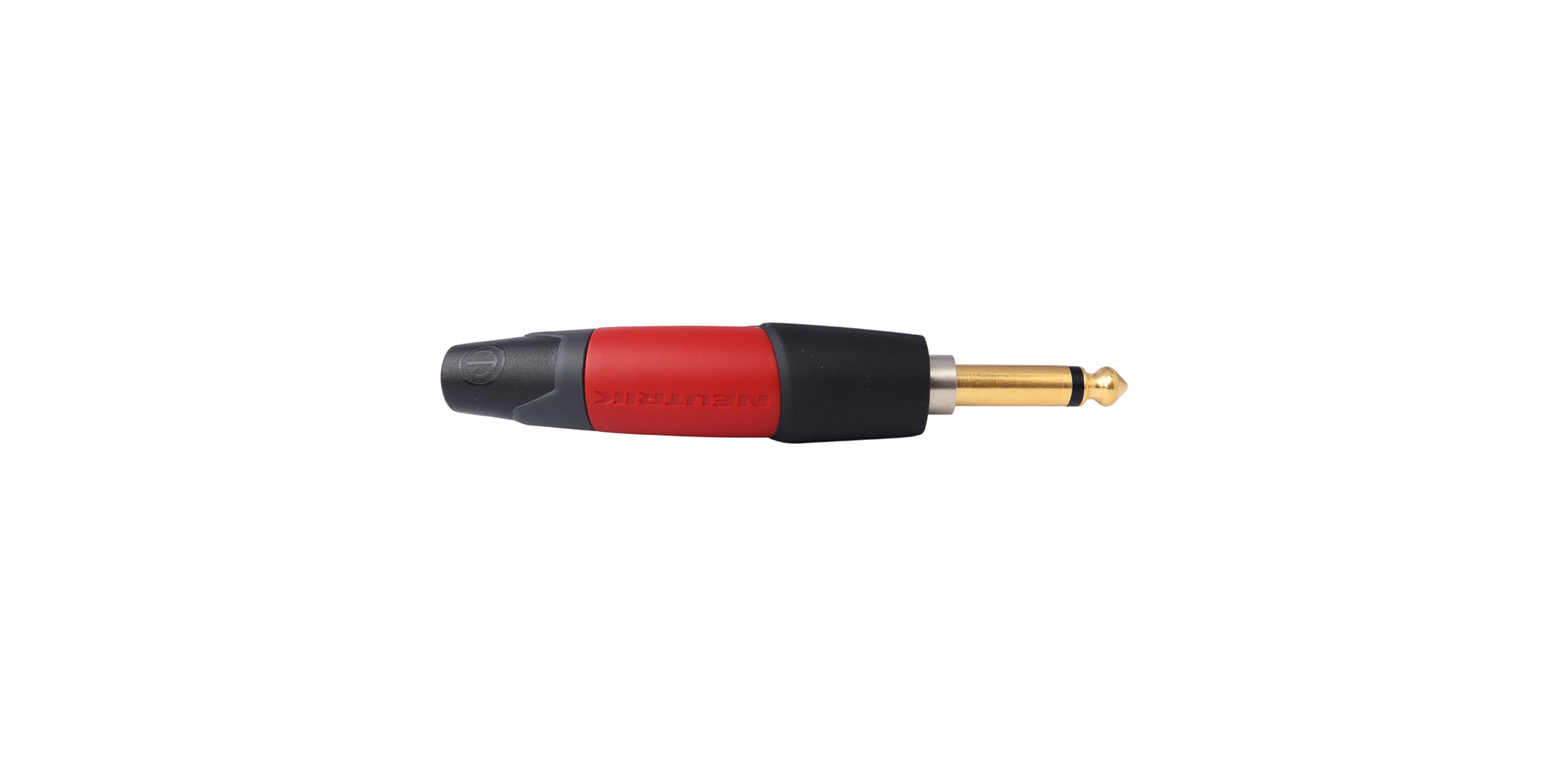

2 pole 1/4" (6.35 mm) professional phone plug, gold plated contacts, rubberized surfaces for best haptic experience, "silent switch"

Official Distributor Certificate

Neutrik distributor certificate

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1'000 mating cycles.

Features & Benefits

Avoid pops and squeals
Hermetically sealed switching contacts
Lifetime beyond 1'000 mating cycles
Slim plug with industry proven and reliable chuck type cable strain relief
Rubberized surfaces for best haptic experience

Technical Information

Product
Title	NP2XX-SILENT
Connection type	plug
Gender	male

Electrical
Contact resistance	depends on mating connector mΩ
Dielectric strength	0.2 kVdc
Insulation resistance	> 2 GΩ (initial)
Rated current per contact	depends on mating connector A
Rated voltage	< 50 V

Mechanical
Cable O.D.	4 - 7 mm
Lifetime	> 1000 mating cycles
Wiresize (mm / AWG)	1 mm² / 18 AWG
Wiring	Solder contacts

Material
Bushing	PP + PA6
Contact plating	0.2 μm Au
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6.6 30 % GR)
Shell	TPE + PA6
Strain relief	Polyacetal (POM)

Environmental
Standard compliance	IEC 60603-11 / EIA RS-453
Solderability	Complies with IEC 68-2-20
Temperature range	-20 °C to +65 °C

NP2XX-SILENT
