In-wall Speaker Tannoy PCI 7DC IW

Name: In-wall Speaker Tannoy PCI 7DC IW
Brand: TANNOY
SKU: HBK37182
Price: 0.79 USD
Availability: InStock
Rating: 4.67 (3 reviews)

PCI 7DC IW In-wall Speaker Tannoy

Product code: PCI 7DC IW 643,991,266

4.67/5 in 3 times

$202.94

Out of stock

Email to Pre-Order

Warranty 24 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Premium, high-definition loudspeaker for in-wall installation applications

7" Dual Concentric driver featuring Tannoy point-source constant directivity

Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs

Premium 7” Dual Concentric In-Wall Loudspeaker for Installation Applications

Shipping informations

Length

49 cm

Width

32.5 cm

Height

21.6 cm

Weight

4.1 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Premium, high-definition loudspeaker for in-wall installation applications
7" Dual Concentric driver featuring Tannoy point-source constant directivity
Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs
Blue Kevlar* cone with high-excursion, rubber surround for high power handling
3-way variable high-frequency level switch for customised performance preferences
80 Watts continuous, 320 Watts peak power
Extremely thin bezel for discreet installation
Rigid diecast chassis for improved bass performance and durable application
Integrated single unit construction for easy installation
Semi matt white finish fits unobtrusively in any environment
Powder coated UV resistant perforated steel mesh grille with dust protection
Removable grilles for custom painting
Self-aligning clamp mounting system
Removable Tannoy grille badge
Tannoy - Over 90 years of British sound heritage and innovation

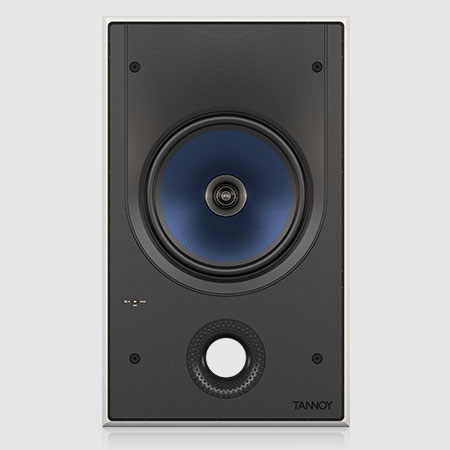

Studio Sound At Home

Designed to fit seamlessly into your world, the new Tannoy PCI series is the perfect premium loudspeaker for modern living. Discover a beautiful blend of innovative technology combined with sophisticated good looks that will match any décor. State of the art driver materials and Tannoy’s Unique Dual Concentric driver technology combine to deliver music and film that is breathtakingly realistic and with phenomenal clarity.

The PCI Range is designed with the same exacting standards as our flagship hi-fi and professional loudspeakers. The combination of accumulated knowledge and experience means you can expect the same sonic experience as our freestanding loudspeakers. Tannoy Dual Concentric drivers are renowned for the phase coherence. No other discrete two-way loudspeaker is capable of a more natural delivery. Bass is deep and well defined with speed and authority. The Mid-range is beautifully delicate making vocals feel like you can reach out and touch them, High frequencies are exceptionally smooth with pinpoint imaging and a holographic soundstage that covers a vast area. Suitable for Music and Movies, stereo, surround sound and multi-room installations the PCI range are exceptionally easy to drive and will fill your room with ultra-high reference sound.

Unlike other loudspeakers brands, Tannoy has a unique history of technological development and craftmanship. With over 90 years as a world leader in the pursuit of hi-fidelity sound, Tannoy has an unrivalled reputation for creating true reference loudspeakers trusted by the world’s highest profile professionals. During every step of the creative process from composition to recording, mixing and mastering to broadcast, artists around the world trust Tannoy loudspeakers to faithfully reproduce every music nuance with stunning accuracy.

Audiophiles trust Tannoy loudspeakers to authentically reproduce music exactly as the artist intended, with true to source accuracy and a design elegance that is equally pleasing to the ears and eyes. Carefully considered aesthetics, state of the art materials, quality and craftmanship seamlessly blend to create loudspeakers that will deliver reference sound to be enjoyed for many years to come.

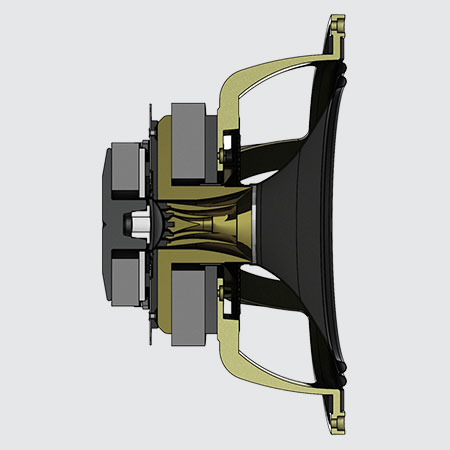

Tannoy Dual Concentric

At the heart of the PCI 7DC IW’s incredible performance you will find an all-new development of our legendary and exclusive Dual concentric driver technology. Designed and engineered it the UK, this listener focussed new driver handles up to 240 Watts and is extremely easy to drive. The compact, stylish and state of the art design comprises a single 177.8mm (7.00") LF/MF driver with a blue Kevlar cone and high-excursion rubber surround and centrally located HF driver. This new Dual Concentric driver offers enhanced dispersion – creating and even more balanced spread of sound around the listening area.These time-coherent, point source dispersion characteristics make this latest version of the Dual Concentric philosophy perfect for premium audio listening. Low frequency performance is full and impactful, the mid-range is detailed, and high frequencies deliver amazing clarity. As not all rooms are equal or have good acoustics, we have equipped the PCI range with a 3-way variable high-frequency level control for user customised performance preferences and optimum room integration. The flagship of the in-wall range the PCI 7 DC IW is the most accomplished, it features the largest driver coupled with a reflex loaded cabinet to produce stunning dynamics, higher SPL and extended low frequency performance. The PCI 7 DC IW is ideal for small, medium and large sized rooms.

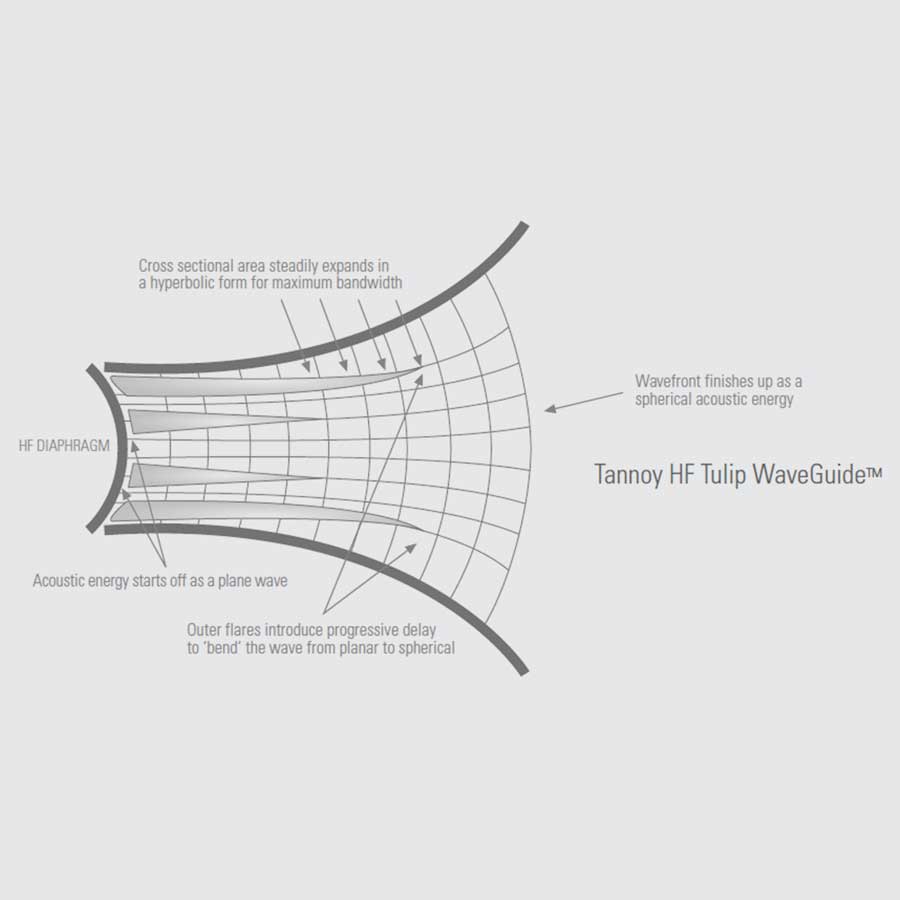

Advanced Tulip Waveguide

Performance is further enhanced by the implementation of a highly innovative point source Tulip Waveguide with symmetrical dispersion, which provides a broad soundstage with remarkably focused and accurate stereo imaging.

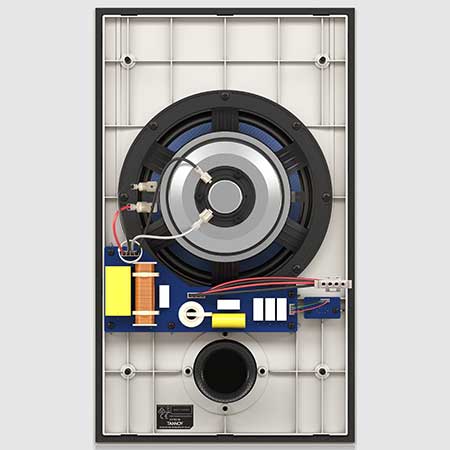

Elegant Simplicity

Engineered to the highest standard the PCI range feature powder-coated perforated UV resistant steel mesh grills that protect from dust and can be removed and painted to match any décor. Unlike many in-wall loudspeakers PCI DC IW range has an extremely thin bezel for unobtrusive installation. A rigid diecast chassis improves bass performance and an innovative self-aligning clamping system makes the single integrated unit easy to install. Back Can PCI 7 DC IW is included making installation simple and easy.

Specification

Xem thêm

Performance

Frequencyresponse ( ± 3dB)	50 H z – 20 k H z
Frequencyresponse(-10dB)	30 H z – 20 k H z
Sensitivity(1 W @ 1m)	86dB
Directivityfactor (Q)	4.4averaged 1 k H z to10 k H z
Directivityindex(D I)	6.4averaged 1 k H z to10 k H z

Power hand ling (IEC)

Average	80 W
Programme	160 W
Peak	320 W
Recommendedamp lifierpower	240 W @ 8 Ω
Nominal Impedance(LoZ)	8 Ω
Rated maximum SPL(1 m,LoZ)	108dB
Average	105dB
Peak	111dB
Crossoverpoint	1.6 k H z

Coverage angles

500 Hz	180° horizonta l ,152° vertical
1 kHz	132° horizonta l ,136° vertical
2 kHz	118° horizontal ,130° vertical

Transducers

Low frequency diameter/material/type	201 mm ( 7")
High frequency diameter/material/type	25.4 mm (1")

Physica l

Backcan	Wood, with spraypainting
Baffle	Reflex loaded UL94 V-0rated ABS
Grille	Steel , with weather resistant coating
Safety features	N/A
Clamping design	N/A
Connectors	Replacement Plug Housing
Dimensions ( HxWxD)	1202 x347 x128 mm (4 7.3 x13.7 x5.0")
Bezel dimensions	410 x248 mm(16.1 x9.8")
Mounting depth	101 mm (4.0")
Hole cutout dimensions	395x231 mm (15.6x9.1")
Net weight	13.5kg(29.8 lbs)
Packed quantity	1
Included accessories	Grille,paint mask, tool kit, screws (x4), spring washers (x4), p lain washer (x4)
Optional accessories	BACK CAN PCI 7DC I W
