In a church sound system, loudspeaker quality is not the only factor that determines overall performance. Even high-quality loudspeakers can deliver poor speech intelligibility if they are installed in the wrong locations, resulting in excessive reflections, overlapping sound, and inconsistent listening experiences across different seating areas.
To achieve clear and consistent speech reproduction throughout the sanctuary, the placement of the main loudspeaker cluster, delay loudspeakers, and sound coverage pattern should be carefully planned during the system design stage. The following are the key engineering principles for proper church loudspeaker placement.

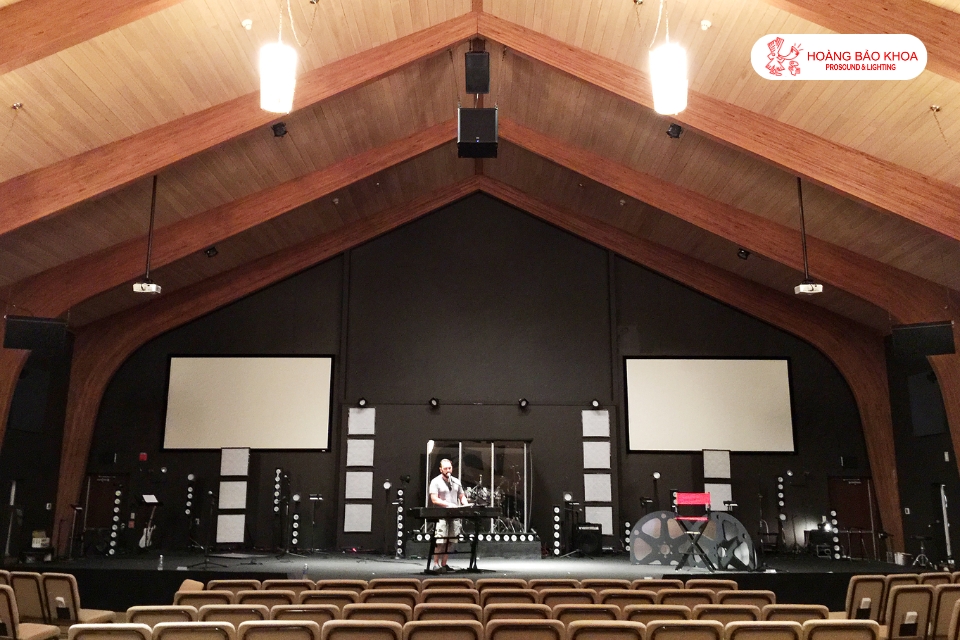

A central speaker cluster improves speech intelligibility in church sound systems
When the primary objective of the system is speech reinforcement, using a single sound source always provides the best performance whenever the building design allows.
According to sound system design principles, the ideal location is to suspend the main speaker cluster at the center above the front EDGE of the chancel riser or stage. When the entire audio system originates from the same position, listeners perceive a natural sound source and can follow speech more easily.
Using a central speaker cluster also minimizes the arrival of multiple sound sources at different times, significantly improving the clarity of every word and spoken sentence.
.jpg)
One of the most common reasons why a church sound system lacks clarity is that excessive sound energy is projected onto reflective surfaces such as:
- Walls.
- Ceilings.
- Floors.
- Other hard surfaces throughout the space.
When sound is directed toward these surfaces, the sound WAVES are reflected multiple times before reaching listeners. As a result, listeners receive several identical signals arriving at different times, reducing speech clarity and making spoken words more difficult to understand.
In contrast, when the loudspeaker coverage is properly designed and focused mainly on the audience area, most of the sound energy is absorbed by listeners instead of reflecting throughout the room. This is one of the key factors in improving church sound quality.
Church speaker placement when a central cluster is not possible

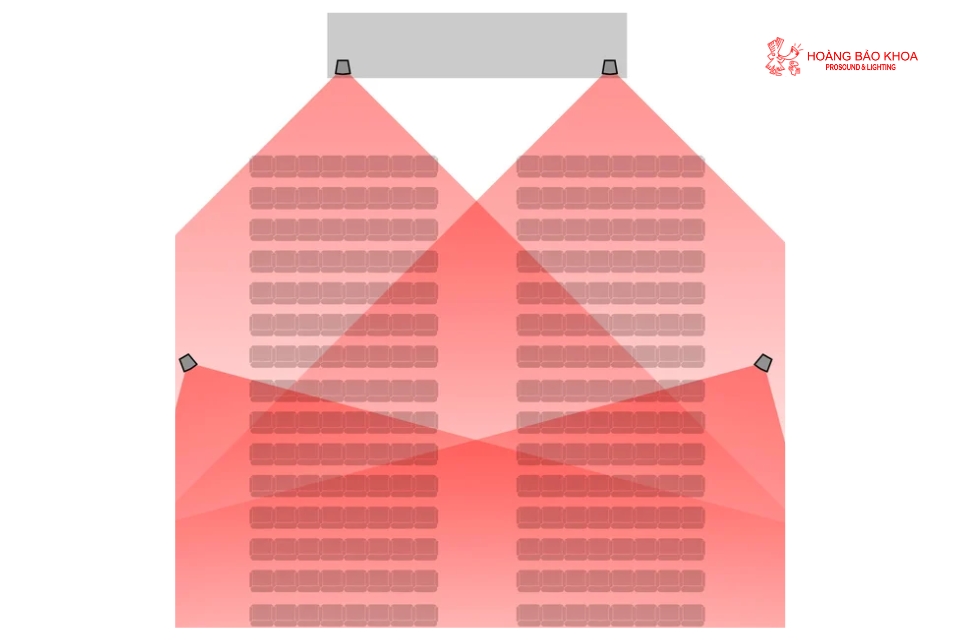

Not every building allows the installation of a central speaker cluster. In many situations, the practical solution is to install loudspeakers on the left and right sides of the stage.
However, this configuration introduces a challenge related to sound arrival time.
For people seated near the left or right sides of the church, signals from both loudspeakers reach their ears at different moments. If the coverage patterns overlap excessively, listeners may perceive unfocused sound or reduced speech intelligibility.
To minimize this issue, loudspeakers with narrower coverage angles should be selected to provide more precise directional control.
The objective is to:
- Allow the left loudspeaker to primarily cover the left seating area.
- Allow the right loudspeaker to primarily cover the right seating area.
- Minimize overlapping sound energy in the center section.
This approach reduces interference between the two sound sources while improving speech intelligibility throughout the listening area.
.jpg)

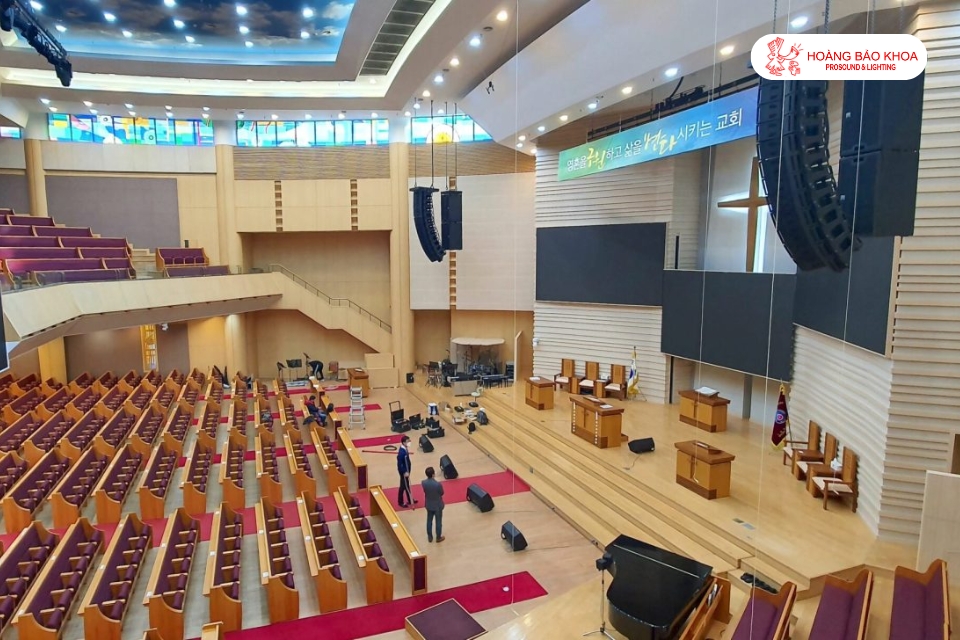

As a general guideline, loudspeakers should be mounted as high as practical to increase the distance between the speakers and the front seating rows. However, the installation height should typically not exceed approximately 18 to 22 feet (about 5.5 to 6.7 meters).
If the loudspeakers are mounted too low, the following problems commonly occur:
- People seated in the front experience excessively high sound levels.
- People seated farther back may feel the sound level is insufficient.
This imbalance makes it much more difficult to achieve consistent sound levels throughout the entire venue.
Using delay speakers to provide even sound coverage in deep churches
For churches with significant depth or relatively low ceilings, relying solely on a single pair of main loudspeakers rarely delivers the best performance.

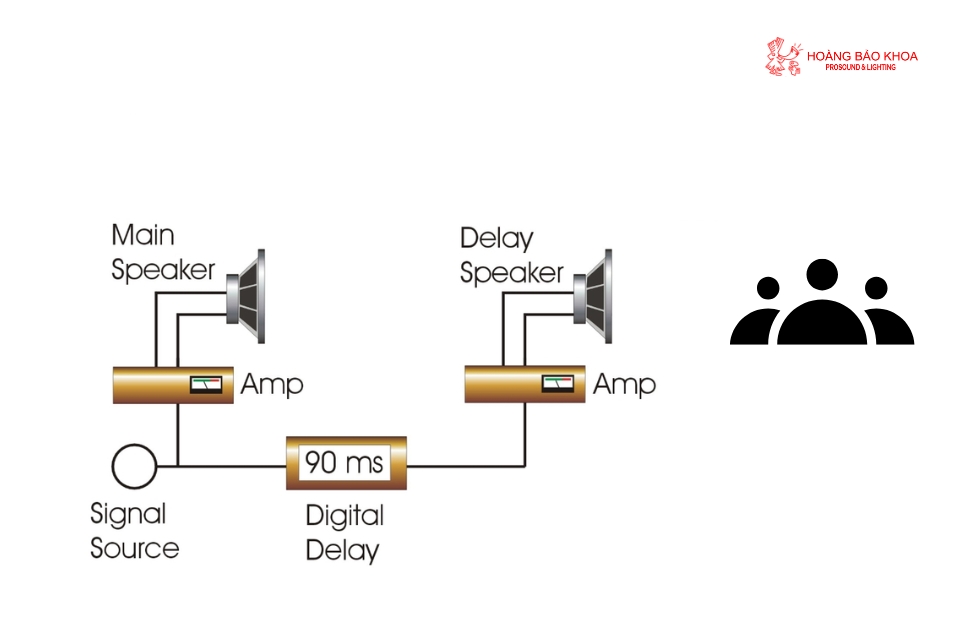

In these situations, instead of increasing the output level of the main speakers, a better engineering solution is to install additional delay speaker clusters along the length of the building. These loudspeakers are typically spaced approximately 25 to 30 feet (about 7.5 to 9 meters) apart, depending on the actual building layout. Since sound requires time to travel through the air, every additional speaker cluster must be configured with the appropriate time delay.
The purpose of delay settings is to ensure that sound from both the main speakers and the additional speakers reaches listeners at nearly the same moment, regardless of where they are seated inside the church. If a third delay speaker cluster is installed, it must also receive its own independent delay setting to synchronize with the preceding speaker zones.
(1).jpg)
When every loudspeaker is properly time-aligned, listeners perceive a single, unified sound source while maintaining excellent speech intelligibility throughout the venue. Even if the ceiling height is adequate, simply increasing the output level of the main speakers to cover the rear seating area is not the optimal solution for long churches.
Although people seated farther back may still hear the sound, they will perceive the distance from the source because of reflections from walls and ceilings. This reduces speech intelligibility and negatively affects the listening experience. Using multiple properly synchronized delay speaker clusters distributes sound more evenly while significantly reducing the impact of acoustic reflections throughout the space.
Conclusion and frequently asked questions
An effective church sound system depends not only on equipment quality but also on how sound sources are positioned throughout the venue. Prioritizing a central speaker cluster, controlling coverage patterns, selecting an appropriate mounting height, and deploying delay speakers when necessary can significantly improve speech intelligibility and the listening experience for the entire congregation.
.jpg)
During the design stage, accurately calculating loudspeaker locations is far more effective than attempting to correct acoustic problems after the system has already been installed.
Why is a central speaker cluster ideal for churches?
Because the entire sound system originates from a single source, listeners receive only one direct signal, resulting in better speech intelligibility while minimizing acoustic interference.
When should delay speakers be used?
Delay speakers should be installed when a church has considerable depth or a low ceiling that prevents the main speakers from providing uniform coverage throughout the listening area.
Do delay speakers require time delay settings?
Yes. Every delay speaker cluster must be configured with the appropriate time delay so it remains synchronized with the main speakers, allowing sound to reach listeners simultaneously.
What is the recommended loudspeaker mounting height?
In most cases, loudspeakers should be installed at a height of approximately 5.5 to 6.7 meters (18–22 feet), depending on the architectural characteristics of the building.
