RHYTHM DESIGNER RD8 Drum Machines Behringer

Powerful & Feature-Rich Sequencer

The RD-8 features one of the most powerful step sequencers ever created, which provides much-improved workflows over the original. The 64-step sequencer also includes storage for up to 256 patterns and 16 songs, allowing the creation of song arrangements ranging from ultra-simple to incredibly complex.

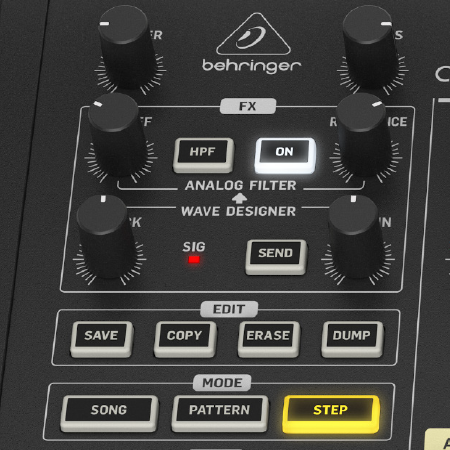

Wave Designer & Dual-Mode Filter

The integrated Wave Designer has individual attack and sustain controls that can be applied to individual voices to bring another dimension to your drum beats. This provides yet another way to control sounds to build virtually unlimited – and awesome new tones. Additionally, RD-8’s highly-flexible dual-mode 12 dB filter button toggles between LPF and HPF, allowing you to experiment with the cutoff frequency and resonance controls to create out of this world beats. And those fluid sweeps can be recorded straight into the sequencer and further tweaked using the step editor.

Parameter Chaining

RD-8’s robust encoder lets you set separate chain preferences for each of your parameters, allowing them to function globally or to switch on when a song or pattern changes. Parameters include tempo, swing, flam, probability, independent track mutes/solos, FX bus assignments, filter modes and sweeps for enhanced real-time control. Patterns can be changed on-the-fly for further creative control when using the RD-8 as the heart of your live setup.

USB Control

To bring the RD-8 into the modern age, USB connectivity has been added for sync and MIDI triggering. This enables the RD-8 to be controlled by your DAW if desired, allowing songs and patterns to be swapped or individual sounds to be triggered.

The Numbers

The RD-8 has 29 knobs, 5 switches and 59 buttons, all laid out in a highly-intuitive format that puts the fun back into your beat creation. Input and output connections include: Phones; Mono audio; MIDI In, Out and Thru over USB and 5 pin MIDI ports; and 11 independent analog outputs for external processing or recording your rhythms as multitrack audio. With its 3 trigger outs, the RD-8 lets you control external synths and hardware sequencers to create songs without a digital audio workstation (DAW) in sight. The RD-8 can also send and receive clock information with highly-accurate timing to sync it to the outside world.

A Brief History of Drum Machines

From its humble beginnings as rhythmic support to organists, to later setting dance floors ablaze with unrelenting and hypnotic beats, the drum machine has been one of the most unappreciated of all musical inventions. Uncompromising in its metronomic precision, the drum machine provides a flawless rhythm section that never tires of playing the same four-bar loop. However, when put into the right hands and proper musical context, they can be finessed to create awe-inspiring rhythmic artistry.

First Drum Machine – The Rhythmicon

The ground-breaking Rhythmicon was created by Russian inventor Léon Theremin in 1931. The machine was a collaboration with American composer Henry Cowell and can produce up to 16 different rhythms with a strikingly bleepy sound.

Chamberlin Rhythmate

The Rhythmate was a pioneering drum machine, which used tape loops to create rhythms to accompany an organ player. The machine had 14 tape loops with a sliding control that allowed playback of different tracks on each piece of tape that could be combined to create many variations.

LinnDrum

The inspirational LinnDrum was created by Linn Electronics in 1982, using superior sounding samples that gave birth to a new generation of users who are synonymous with the sound of the ‘80s. The LinnDrum was used on countless classics tracks throughout the '80s, including hits by Prince, Tears for Fears and Madonna.

Oberheim DMX

Launched in 1981, the Oberheim DMX also used sampled sounds of real drums, individual tuning controls for each drum voice and a swing function to add a little groove. The controls gave the DMX the ability to emulate a real drummer via timing variations, rolls and flams to create a more human “feel”. The DMX has 11 samples, which can be used to create 24 individual drum sounds and allows up to 8 voices simultaneously. It has 8 separate outputs for individual channel processing and holds up to 100 sequences and 50 songs.

The DMX’s hard-hitting and convincing drum sound made it attractive to artists and producers in the burgeoning hip-hop culture, and it is featured on many of the scenes early innovative records. New Order used the DMX to great effect on their 1983 single, “Blue Monday” with its repeating bass drum pattern.

E-mu SP-1200

Released in 1987, the E-mu SP-1200 was quickly accepted into the hip hop world due to its limited bandwidth sampling rate, classic 4-pole filter and 12-bit sampling resolution. This all contributed to the unit’s gravelly sounds, which have been feature on many hit recordings. The SP-1200’s ability to build the main structure of a song within a single piece of gear (a first for the industry) cut hip-hop artists loose from the studio to perform live alongside the machine. Famous users include the Beastie Boys, The Prodigy and Daft Punk.

AKAI MPC60
