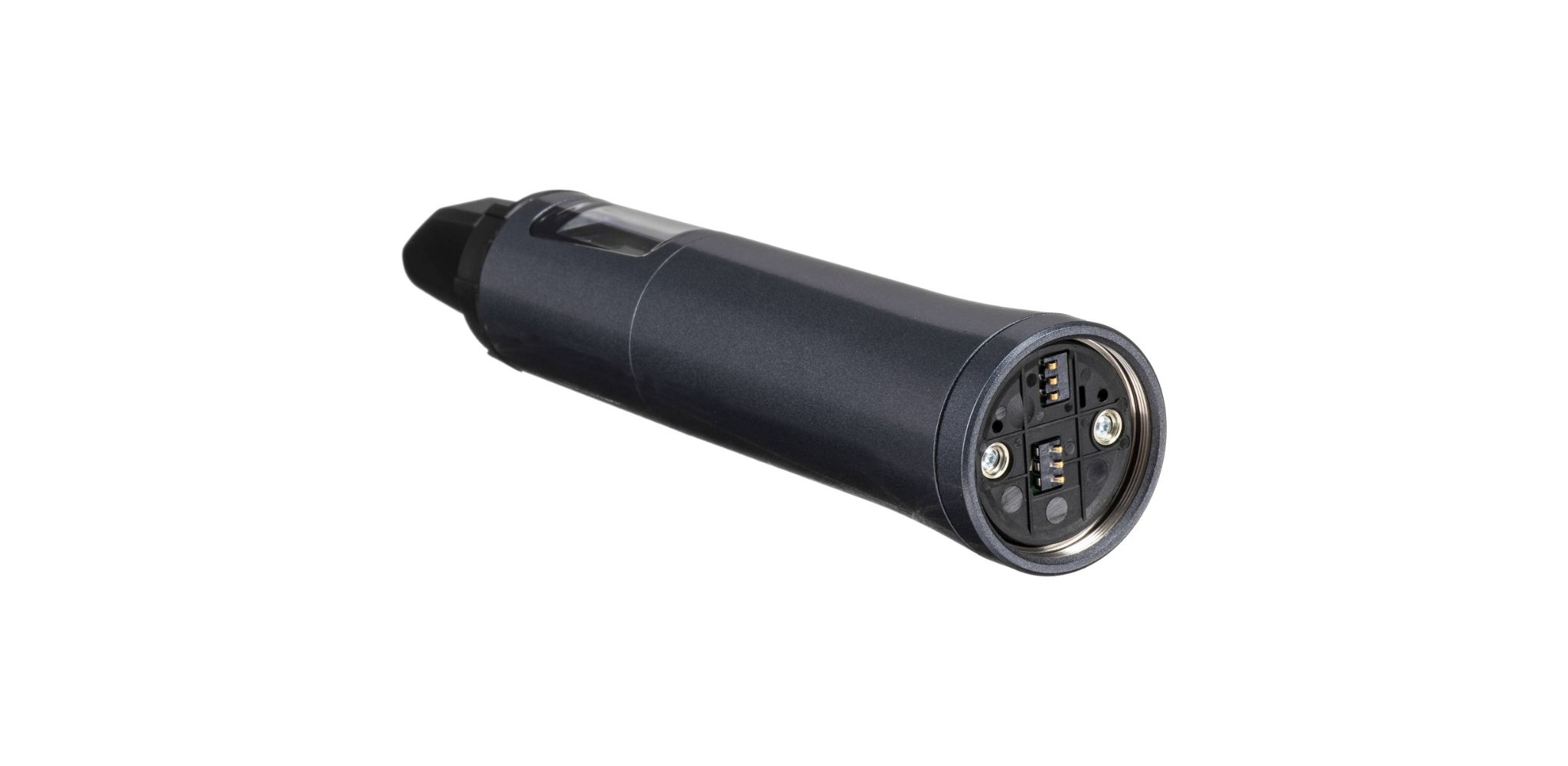

SKM 100 G4-A (A: 516 - 558 MHz) Handheld Transmitter Sennheiser

SKM 100 G4-A Sennheiser

Powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems.

FEATURES

• Your choice of Sennheiser‘s renowned e 835, e 845, e 865, E 935, E 945 capsules
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequen cies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

RF characteristics
Modulation	Wideband FM
Frequency ranges	A: 516 - 558 MHz
Transmission frequencies	Max. 1680 receiving frequencies, adjustable in 25  kHz STEPS
	20 frequency banks, each with up to 12 factory-preset channels, no intermodula tion
	1 frequency bank with up to 12 programmable channels
Switching bandwidth	up to 42 MHz
Nominal/peak deviation	±24 kHz / ±48 kHz
Frequency stability	≤ ±15 ppm
RF output power at 50 & OMEGA;	Max. 30 mW
Pilot tone squelch	Can be switched off

AF characteristics
Compander system	Sennheiser HDX
AF frequency response	80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation)	≥ 110 dBA
Total harmonic distortion (THD)	≤ 0.9 %
Max. input voltage	3 Veff
Input impedance	40 kΩ
Input capacitance	Switchable
Setting range for input sensitivity	48 dB, adjustable in 6 dB steps

Overall device
Temperature range	-10 °C to +55 °C
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage	3 V battery / 2.4 V rechargeable battery
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time	Typically 8 h
Dimensions	Approx. Ø 50 x 265 mm
Weight (incl. batteries)	approx. 450 g

DIMENSIONS

WHAT'S IN THE BOX
