Passive Subwoofer Turbosound TBV118L

Q: Which brand does TBV118L belongs to?

TBV118L belongs to Turbosound . Turbosound, a 48-year-old famous British speaker company founded by Mr. Tony Andrews

Q: How long is the warranty of TBV118L?

TBV118L is 12 months of warranty.

TBV118L Passive Subwoofer Turbosound

Product code: TBV118L 639,655,473

4.67/5 in 3 times

$873.7

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

700 Watts continuous, 2,800 Watts peak power

Switchable input and link connections for 4 core speaker cables

portable and installation applications

18 inch Front Loaded Subwoofer for Touring, Portable and Installation Applications

Shipping informations

Length

91.60 cm

Width

77.30 cm

Height

68.10 cm

Weight

44.84 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Front loaded subwoofer for touring, portable and installation applications
700 Watts continuous, 2,800 Watts peak power
Carbon fibre loaded 18" neodymium low frequency driver
Dual voice coil design for high power capacity and extended low frequency output
Low distortion bass reflex port design
18 mm (3/4") plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Integral suspension hardware for efficient array configuration
Multiple internal M10 mount points allow eyebolt suspension in any orientation
20 mm threaded pole mount to support satellite speaker
Durable handles for easy lifting and carrying
Switchable input and link connections for 4 core speaker cables
Neutrik speakON* NL4 connectors for reliable long life operation
Designed and engineered in the U.K.

BERLIN TBV118L

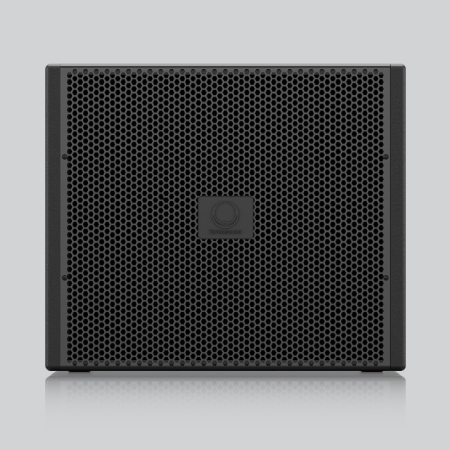

The TBV118L is a compact passive single 18" 2,800-Watt front-loaded subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable and touring audio systems. The TBV118L is designed to work in conjunction with LAKE DSP and LAB GRUPPEN amplification, providing optimal FOH performance, as well as considerable flexibility to readily adapt to varying venue requirements.

Front Loaded Enclosure Design

Front loaded enclosures provide an optimal combination of low frequency extension, bass articulation and temporal accuracy for high impact sound reinforcement applications. The low distortion bass reflex port design utilised in the TBV118L reinforces the bass musical instrument frequencies and steep cut-off slopes ensure an effective acoustic transition for use with TBV123 line array elements. For low-frequency bass extension, the recommended cabinet ratio consists of one TBV118L subwoofer per 3 TBV123 elements. For reverse cardioid subwoofer configurations, multiples of three TBV118L enclosures are recommended with two front-firing enclosures and one rear-firing enclosure.

Construction and Connectivity

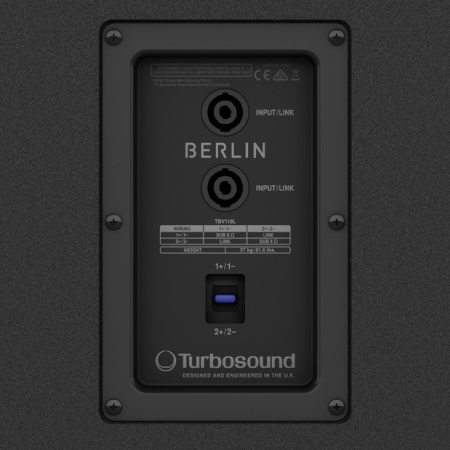

An integral suspension system engineered to meet BGV-C1 specifications is provided for suspending or ground stacking TBV118L and TBV123 elements with a 10:1 safety factor. Designed for speed and simplicity of use, custom-engineered flybars and wheel boards are available as separate accessories. Finished in hard wearing semi matt black paint, the cabinet is constructed from 18 mm (3/4") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

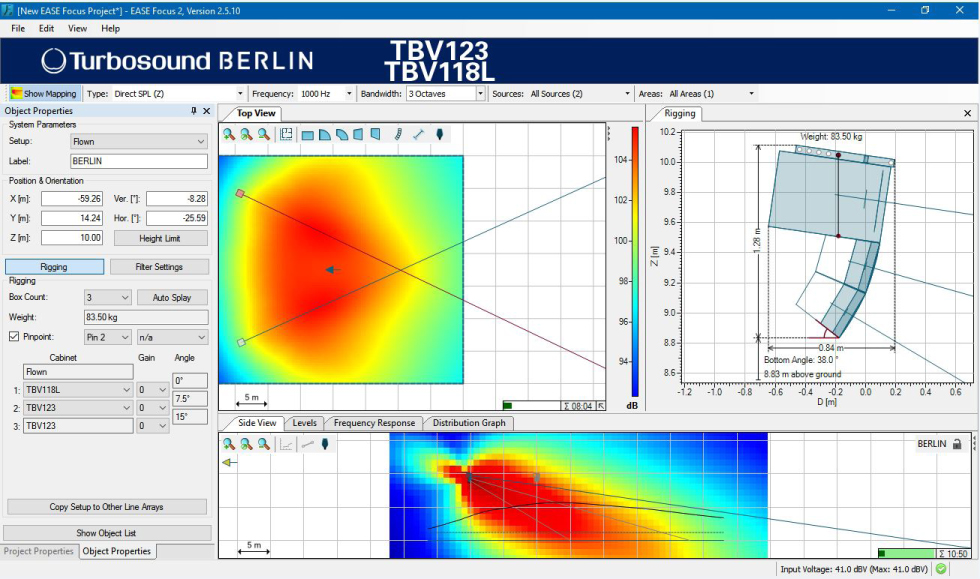

Acoustic Simulation Tools

EASE GLL files are provided for EASE Focus Acoustic Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and suspension pick point selection for tilting and aiming the array at the desired angle.

Specification

Enclosure

Connectors	2 x Neutrik speakON* NL4
Wiring	Switch Position 1+ / 1-: Pins 1+ / 1- input, pins 2+ / 2- link Switch Position 2+ / 2-: Pins 1+ / 1- link, pins 2+ / 2- input
Dimensions (H x W x D)	513 x 598 x 751 mm (20.2 x 23.5 x 29.6")
Net Weight	37.0 kg (81.6 lbs)
Construction	18 mm (3/4") plywood
Finish	Semi matt black paint
Grille	Powder coated perforated steel
Suspension hardware	Integral Suspension System and M10 x 4 points

Accessories

TBV123-FB	Fly Bar
TBV118L-RC1	Road case for 1x TBV118L
TS-PC18B-3	Protective cover for 1x TBV118L
TPOLE 60-20	60 cm Lightweight Steel Pole with M20 Screw Attachment
TPOLE 90-20	90 cm Lightweight Steel Pole with M20 Screw Attachment
