Powered Speaker Turbosound TBV123-AN

Name: Powered Speaker Turbosound TBV123-AN
Brand: Turbosound
SKU: HBK25544
Price: 5.17 USD
Availability: InStock
Rating: 4.67 (3 reviews)

TBV123-AN Powered Speaker Turbosound

Product code: TBV123-AN 544,960,363

4.67/5 in 3 times

$1,354.74

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

2,500 Watt

Arrayable 2 Way 12" Constant Curvature Loudspeaker

Dendritic Waveguide, Klark Teknik DSP Technology

ULTRANET Networking

Arrayable 2 Way 12 inch Constant Curvature Loudspeaker with Dendritic Waveguide, Klark Teknik DSP Technology and ULTRANET Networking

Shipping informations

Length

73.00 cm

Width

46.70 cm

Height

49.70 cm

Weight

26.57 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

2 way full range loudspeaker for touring, portable and installation applications
Constant curvature Dendritic waveguide with 100? H x 15? V dispersion for seamless array coverage
2,500 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
Carbon fibre loaded 12" neodymium low frequency driver with inside/outside wound coil
Dual aluminium dome 1" neodymium motor compression drivers
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
18 mm (3/4") plywood enclosure with hard wearing semi matt black paint finish
Integral flying hardware for efficient array configuration and aiming
Multiple internal rigging points allow suspension in any orientation
Dual angle pole mount for accurate audience coverage
Rugged powder coated perforated steel mesh grille
Durable handles for easy lifting and carrying
Mains input and link output on Neutrik powerCON* connectors
Designed and engineered in the U.K.

BERLIN TBV123-AN

The 2-way full range TBV123-AN is an arrayable 2,500 Watt 12" powered loudspeaker system that is ideally suited for touring, portable, and installed sound reinforcement applications. Designed to work individually without a controller, the TBV123-AN provides optimal performance for FOH, offstage fill, stereo in-fill or distributed fill applications in a wide range of venues – including nightclubs, concert halls, houses of worship, and more.

Custom-Engineered Drivers

TURBOSOUND is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TBV123-AN loudspeaker features a carbon fibre loaded 12" neodymium low frequency driver, and dual aluminium dome 1" neodymium motor compression drivers mounted on a 100° horizontal by 15° vertical dispersion constant curvature Dendritic waveguide, which maximises the direct sound field while reducing reverberant energy.

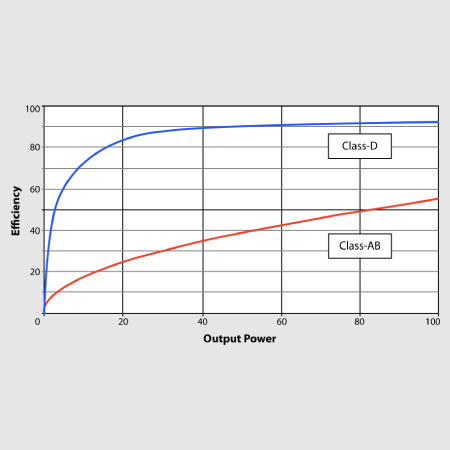

Class-D – Massive Power, Perfect Sound

Equipped with a very efficient and lightweight KLARK TEKNIK Class-D power amplifier, the TBV123-AN provides an impressive 2,500 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.

Onboard DSP

A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ and transparent limiting for the utmost punch and definition at high output levels – and long-term reliability.

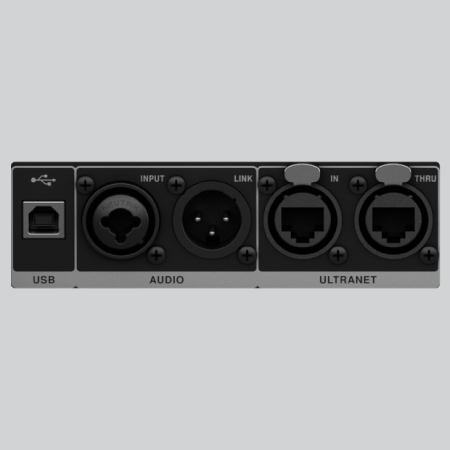

ULTRANET Connectivity

ULTRANET connectivity is provided by two locking etherCON* connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

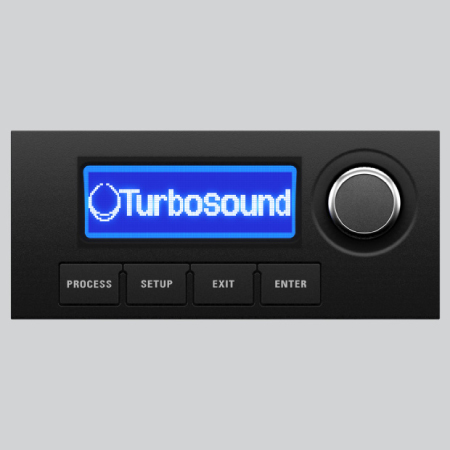

Intuitive User Interface

On the rear panel of the amplifier module, the user interface's LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the TBV123-AN via a free PC computer software download from turbosound.com – as well as convenient DSP firmware updates.

Plywood Construction

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (3/4") plywood with a rugged powder coated perforated steel mesh grille backed with reticulated foam, a convenient dual angle 35 mm pole/speaker stand mount for accurate audience coverage, and a durable handle for easy transport. The TBV123-AN includes integral suspension hardware for efficient array configuration and aiming, plus multiple internal M10 mount points that allow eyebolt suspension in any orientation.

Mains input and output link power connectors are Neutrik powerCON.

Touring-Grade Performance

Designed to provide exceptional performance for travelling musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 2,500-Watt TBV123-AN puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.

Specification

Ultranet Digital Network

Digital processing
A/D conversion	24-bit, 44.1 / 48 kHz sample rate
System
Signal	16 channels
Latency	< 0.9 ms
Cabling
Cables	Shielded CAT5
Cable length	max. 246 ft / 75 m recommended

Power Supply

Current consumption	Input: 20A Max, Link output: 15A Max
Power consumption	200 W @ 1/8 max power forindividual product
Voltage
USA / Canada/ Japan	100-120 V~, 50/60 Hz
UK / Australia / Europe / Korea / China	220-240 V~, 50/60 Hz

Enclosure

Dimensions (HWD)	344 x 598 x 398 mm (13.6 x 23.5 x 15.7")
Net weight	23.0 kg (50.7 lbs)
Construction	18 mm (3/4") plywood
Finish	Powder coated perforated steel
Suspension hardware	Integral Suspension System andM10 x 4 points

Accessories

TBV123-FB	Bar
TBV123-RC2	Road case for 2x TBV123-AN
TS-PC12-3	Protective cover for 1x TBV123-AN
TPOLE 60-20	60 cm Lightweight Steel Pole withM20 Screw Attachment
TPOLE 90-20	90 cm Lightweight Steel Pole withM20 Screw Attachment
TPOLE 120-20	120 cm Lightweight Steel Pole withM20 Screw Attachment
