TCC M-F-W Ceiling Mounted Microphones Sennheiser

Features

• Patented automatic and dynamic beamforming technology
• TruVoicelift
• 15 SMD electret condenser capsules manufactured in Germany
• Clear and intelligible speech reproduction
• Dante or analog output
• PoE/PoE+ power supply (single/serial power)
• Single-cable connection mode
• Exclusion zones and priority zones
• Camera control based on speaker position data
• Sennheiser Audio Control Protocol API (SSCv2), encrypted with TLS 1.2

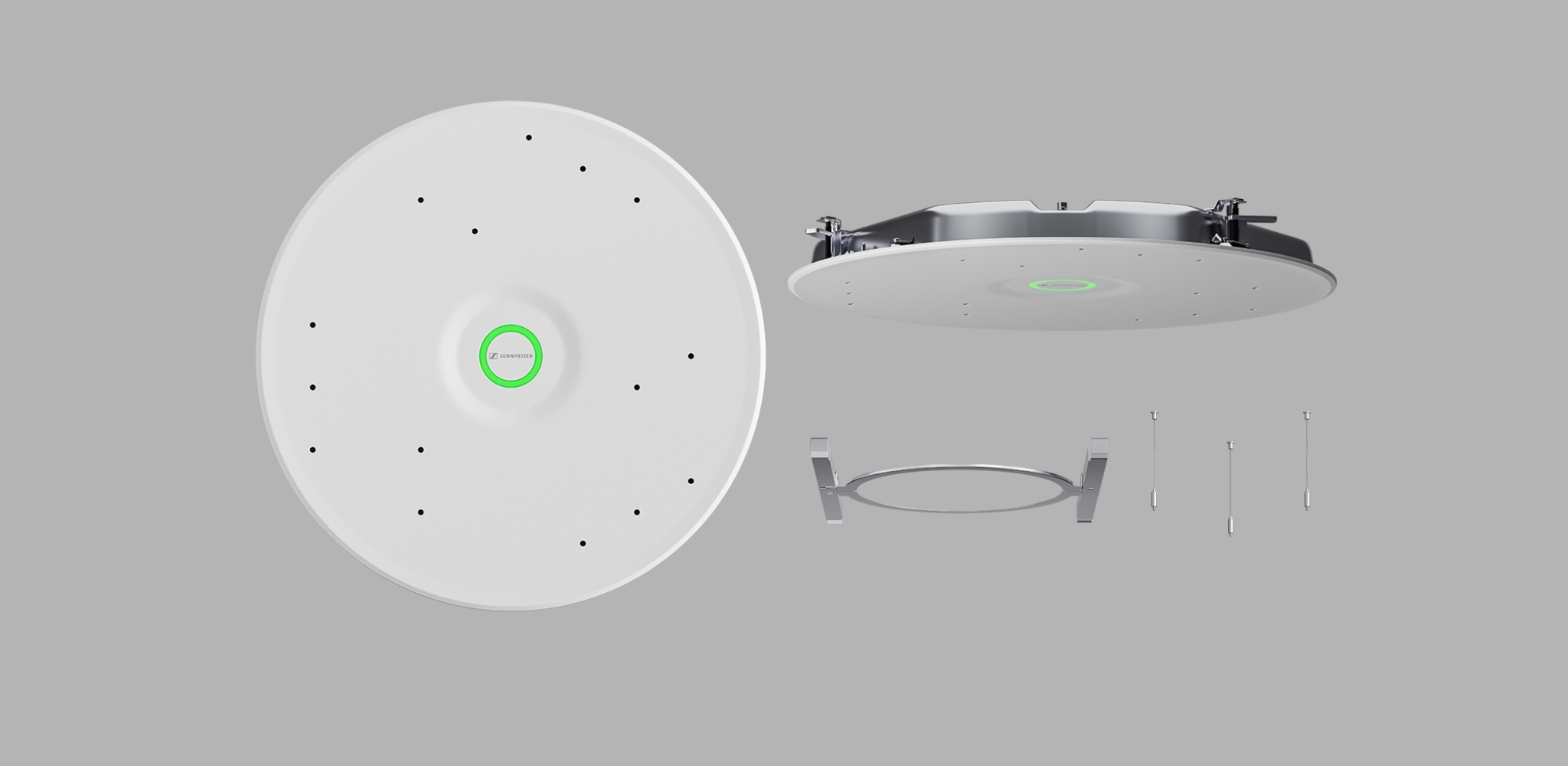

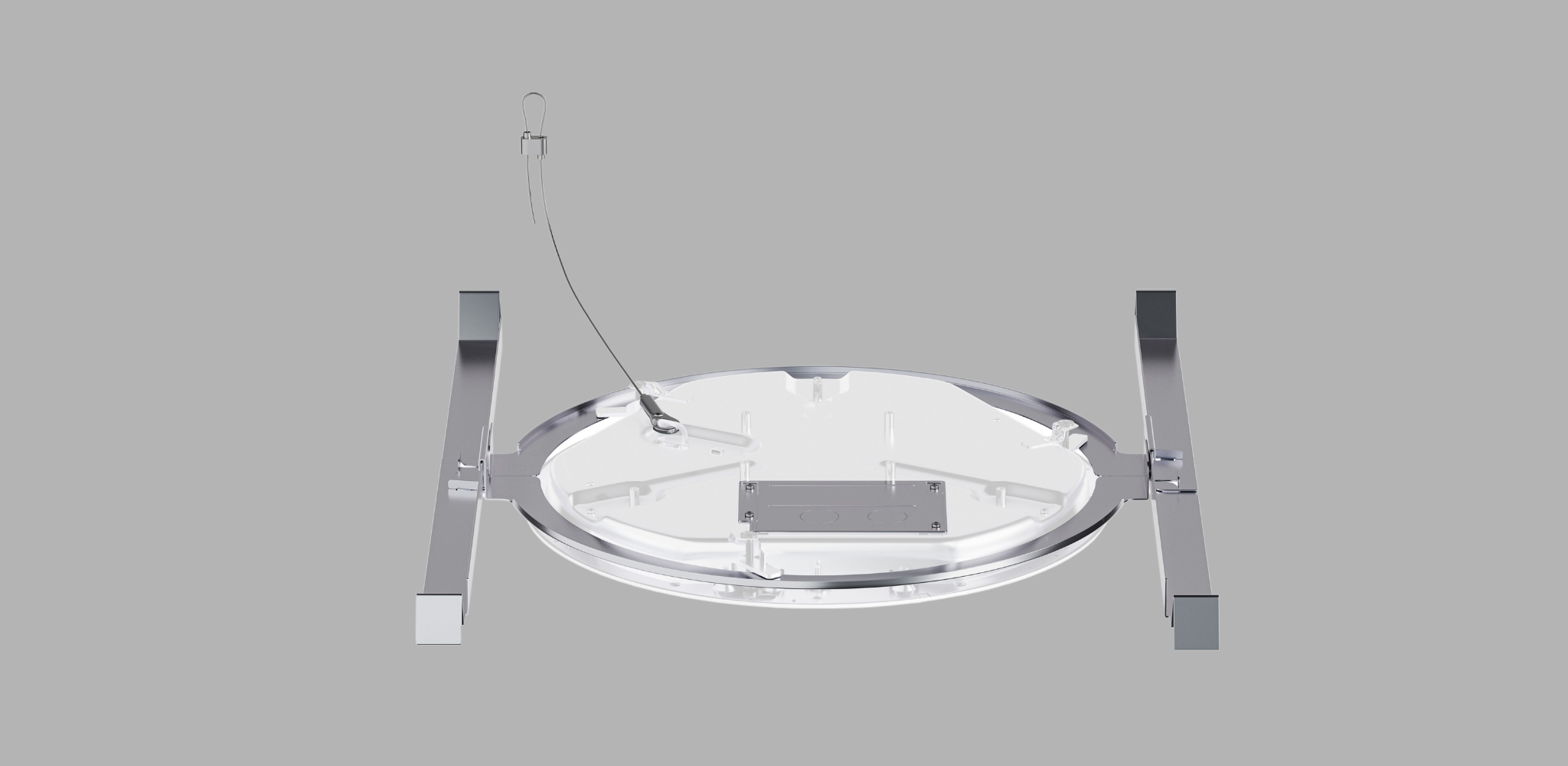

• Installation options: flush-mounted, surface-mounted, suspended, or VESA
• Paintable metal housing
• IEEE 802.1x
• Intelligent noise control
• Color: White
• Certified for Microsoft Teams

Key Specifications

• Audio output: 1 x 3-pin connector (compatible with Phoenix MCVW 1.5-3-ST-3.81 connector)
• Maximum sound pressure level: 98 dB SPL
• Power consumption: Approx. 8 W
• Sensitivity: 0 dBV/Pa (1020 mV/Pa)
• Signal-to-noise ratio: 79 dB(A)
• Transducer type: Pre-polarized condenser
• Connection: Wired

Technical Specifications

Technical Specifications

• HEX color code: #FFFFFF

Product

• Transducer type: Pre-polarized condenser
• Color: White

Frequency Response

• Audio frequency response: 100 Hz to 16,000 Hz

Acoustic Characteristics

• Dynamic range (>): 83 dB(A)
• Equivalent noise level: 15 dB(A)
• Maximum sound pressure level: 98 dB SPL
• Signal-to-noise ratio: 79 dB(A)

Connection

• Connection: Wired

Input/Output

• Audio output: 1 x 3-pin connector (compatible with Phoenix MCVW 1.5-3-ST-3.81 connector)

Environmental Conditions

• Relative operating humidity (≤ %): 20 to 95%, non-condensing

Battery and Power

• Battery included: No
• Power consumption: Approx. 8 W

Electrical Characteristics

• Sensitivity: 0 dBV/Pa (1020 mV/Pa)

Product Dimensions

• Product weight (g): 4900
• Product height: 46
• Product length: 407
• Product width: 407
