Pasive Monitor 1920W 14inch Turbosound TQ14M

Q: Which brand does TQ14M belongs to?

TQ14M belongs to Turbosound . Turbosound delivers durable, high-performance audio solutions: iP Series Column PAs, iQ Active Speakers, and Line Arrays. Featuring Ultranet & Klark Teknik DSP integration.

Q: How long is the warranty of TQ14M?

TQ14M is 12 months of warranty.

TQ14M Pasive Monitor 1920W 14inch Turbosound

Product code: TQ14M 1,146

4.67/5 in 3 times

$926.16

In stock

Buy Now

Add to cart

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

2 way full range loudspeaker for Tour and Live Sound applications

480 Watts continuous, 1,920 Watts peak power

Carbon fibre loaded 14" neodymium motor low frequency driver

Co-axial 2 Way 14" Stage Monitor for Touring Applications

Shipping informations

Length

66.3 cm

Width

44.3 cm

Height

59 cm

Weight

27 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

2 way full range loudspeaker for Tour and Live Sound applications
480 Watts continuous, 1,920 Watts peak power
Carbon fibre loaded 14" neodymium motor low frequency driver
Titanium dome 1.4" exit, 3" voice coil, neodymium motor compression driver
Low profile design to maximise audience sight lines
Low distortion waveguide provides 60° H x 40° V dispersion
Switchable passive/bi-amp operation for flexibility of use
15 mm (5/8") plywood enclosure
IP44 dust and water ingress protection
Weather-resistant enclosure construction with durable semi matte black paint finish
Cloth covered powder coated perforated steel mesh grille
Durable handle for easy lifting and carrying
Industry standard 4-pole twist-lock speaker connectors for reliable long life operation

TQ14M

The 2-way full range TQ14M is a switchable passive/bi-amp 1,920 Watt 14" loudspeaker system that is ideally suited for all professional stage monitor reinforcement applications. The TQ14M is designed to work in conjunction with Lab Gruppen PLM+ and IPX amplification and TQ14M provides optimal performance for stage monitoring.

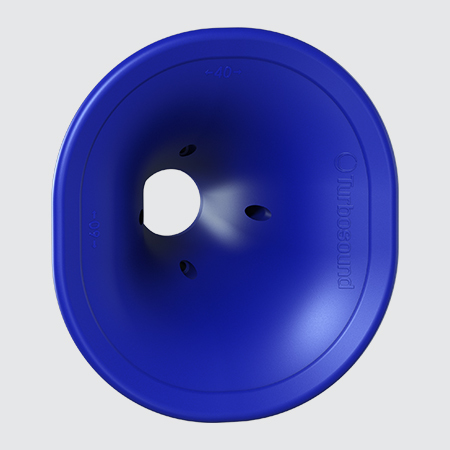

Custom-Engineered Drivers and Waveguides

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition. The TQ14M loudspeaker features an FEM optimized common motor 14" neodymium low frequency driver as well as a titanium and polyimide dome 1.4" exit, 3” voice coil neodymium high frequency compression driver, which is mounted on a 40° horizontal by 60° vertical dispersion low Aluminium zero ring custom horn. This also acts as a heatsink from the motor assembly reducing power compression insuring consistent performance over extended durations.

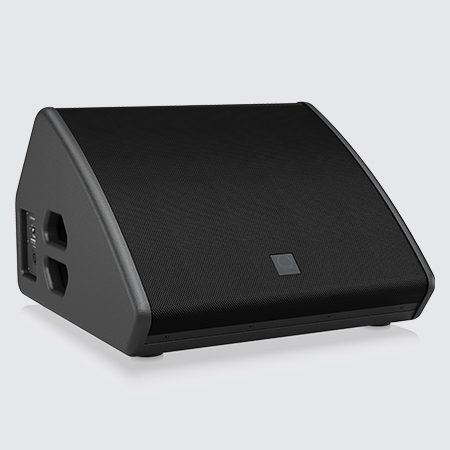

Plywood Construction

Finished in a highly durable semi matt PU black paint, the cabinet is constructed from 12 and 15 mm (½" and 5/8") plywood. It includes a rugged powder coated cloth wrapped perforated steel mesh grille. The TQ14M includes a convenient pole mount socket for use with 35 mm poles/speaker stands to optimise coverage and side handles for easy transport. The side panels carry two industry-standard twist-locking speaker connectors for input and link connections to additional enclosures, a high-power recessed toggle switch allows switching between passive and bi-amp modes. TQ14M’s low profile design provides improved audience line of sight for seamless integration into any stage application.

Touring-Grade Performance

Designed to provide exceptional and unobtrusive onstage performance for touring musicians, houses of worship, banquet facilities, night clubs – and a host of other venues, the 1,920-Watt TQ14M puts touring-grade sound quality into a scalable loudspeaker system that is supremely portable and versatile.

Architecture and Engineering Specifications

The loudspeaker shall be of the two-way bi-amp switchable passive type consisting of one common motor co-axial 14" (340 mm) LF driver and one 1.4" (36 mm) exit HF compression driver (3”/72mm Voice Coil). Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine WAVE input, shall be flat within ±3 dB from 60 Hz to18 kHz and within -10 dB from 55 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 40° H x 60° V. Nominal impedance shall be bi-amp mode: HF: 8 Ohms, LF: 8 Ohms & passive mode 8 Ohms. Power handling shall be HF: 80 Watts continuous, 320 Watts peak, LF: 400 Watts continuous, 1600 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be HF: 106 dB, 1 Watt @ 1 metre, LF: 99dB, 1 Watt @ 1 metre. Maximum SPL of 138dB in Bi-Amp mode or 137 dB in passive mode (Average Peak level over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set. Dimensions: 339mm high x 530mm wide x 563 mm deep (14.13 x 20.86 x 22.16"). Net weight: 20.5kg (45.2 lbs). The loudspeaker system shall be the Turbosound TQ14M.

No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.

Show less

Specification

Show less

Frequency response ( +/-3 dB)*	60 Hz - 18 kHz
Frequency response (-10 dB)*	55 Hz - 20 kHz
Nominal dispersion (@ -6 dB points)	40 H x 60 V
Power handling (IEC)	LF: 400 W continuous HF: 80 W continuous FR: 480 W continuous
Peak	LF: 1600 W peak HF: 320 W peak FR: 1920 W peak
Sensitivity (1 W @ 1 m)**	F: 99 db, HF:106 dB
Maximum SPL***	137 dB (passive mode) 138 dB (bi-amp mode)
Impedance	LF: 8 Ω / HF: 8 Ω FR: 8 Ω
Components	1 x 13.5" (340 mm) Co-axial LF driver 1 x 1.4" (36 mm) / 3" (72 mm) Voice coil HF compression driver

Enclosure

Connectors	2 x Industry-standard 4-pole twist-lock speaker connectors
Wiring	Passive: Pins 1+ / 1- input, pins 2+ / 2- link Bi-Amp: Pins 1+ / 1- LF input / link, pins 2+ / 2- HF input / link
Dimensions HWD	359 x 530 x 563 mm (14.13 x 20.86 x 22.16")
Net weight	20.5 kg (45.2lbs)
Construction	12 mm and 15 mm (1/2" and 5/8") birch plywood
Finish	PU Semi matt black paint
Grille	Powder coated perforated steel, cloth wrapped
IP rating	IP44
UV rating	4-5 (ASTM G155-13)
Pole Mount	Yes, (single, no tilt)

*Average over stated bandwidth. Measured at 1 metre on axis.

**SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set.

***Peak level at 1 m under half space conditions using pink noise with crest factor 4, with dedicated pre-set.

Ease Data can be downloaded from www.turbosound.com
