Power Voltage
|
100-240V~ 50/60Hz
|
|
Power Consumption
|
500W
|
|
Light Source
|
|
Front side
|
5pcs 60w RGBW 4in1 LED Pixel control
|
|
Back
|
42pcs 3W 3535 White LED + 84pcs 0.3W 5050 RGB 3in1 LED
|
|
Back side
|
14 sections pixel control, each section 9pcs led.
|
|
Zoom Angle
|
2.8°-50°
|
|
Movement
|
|
Pan/Tilt movement
|
360°infinite rotating
|
|
Fixation
|
Pan/Tilt Lock
|
|
Dimmer/Shutter
|
Smooth dimming from 0-100%; outstanding strobe effect with variable speed
|
|
Control
|
|
|
DMX Channel
|
24/29/105 Channels
|
|
Control Mode
|
DMX512,Auto
|
|
Firmware Upgrade via DMX link
|
|
Construction
|
|
Display
|
LCD display
|
|
Battery backup, for user setup without power connection
|
|
Data In/Out
|
3-pin XLR (5-pin XLR is optional),
|
|
Power In/Out
|
Power Connector in/out
|
|
Protection Rating
|
IP20
|
|
Features
|
|
With zoom and strobe function
|
|
Beam mode
|
5 LEDs can be controlled individually
|
|
Strobe mode
|
18 zone can be controlled individually
|
|
Linear motorized zoom
|
|
Outstanding color mixing effect
|
|

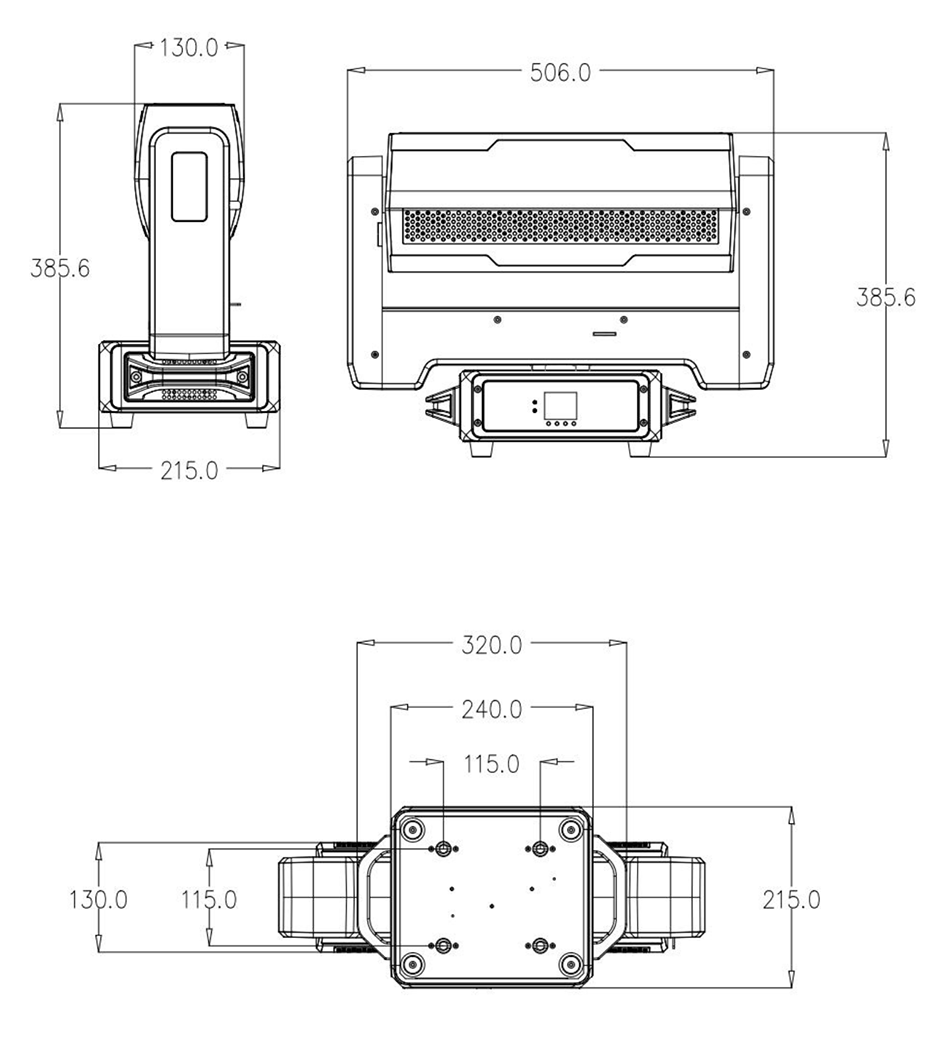

Dimensions/Weight
|
506x215x385.6mm, 15kgs
|
