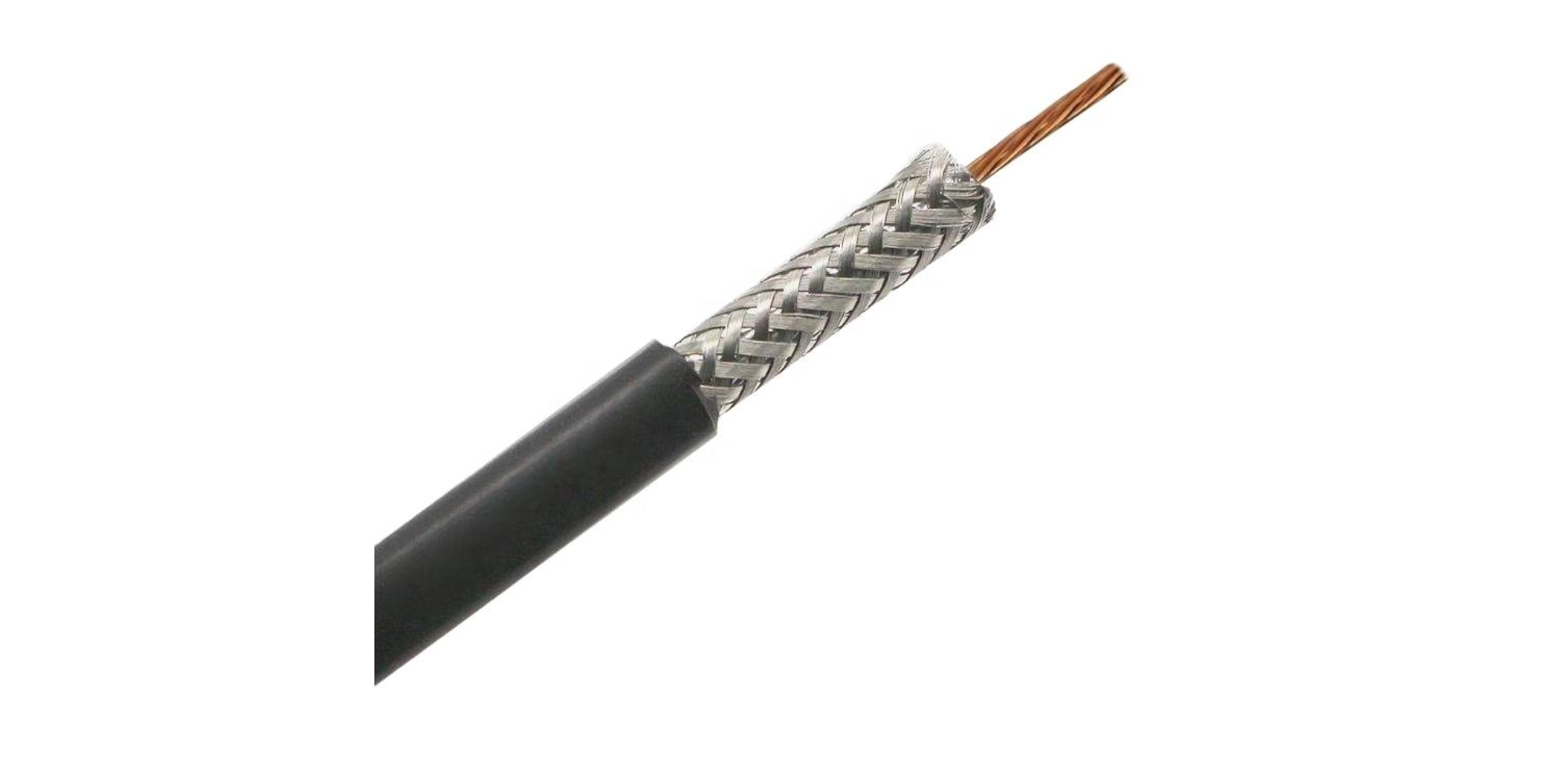

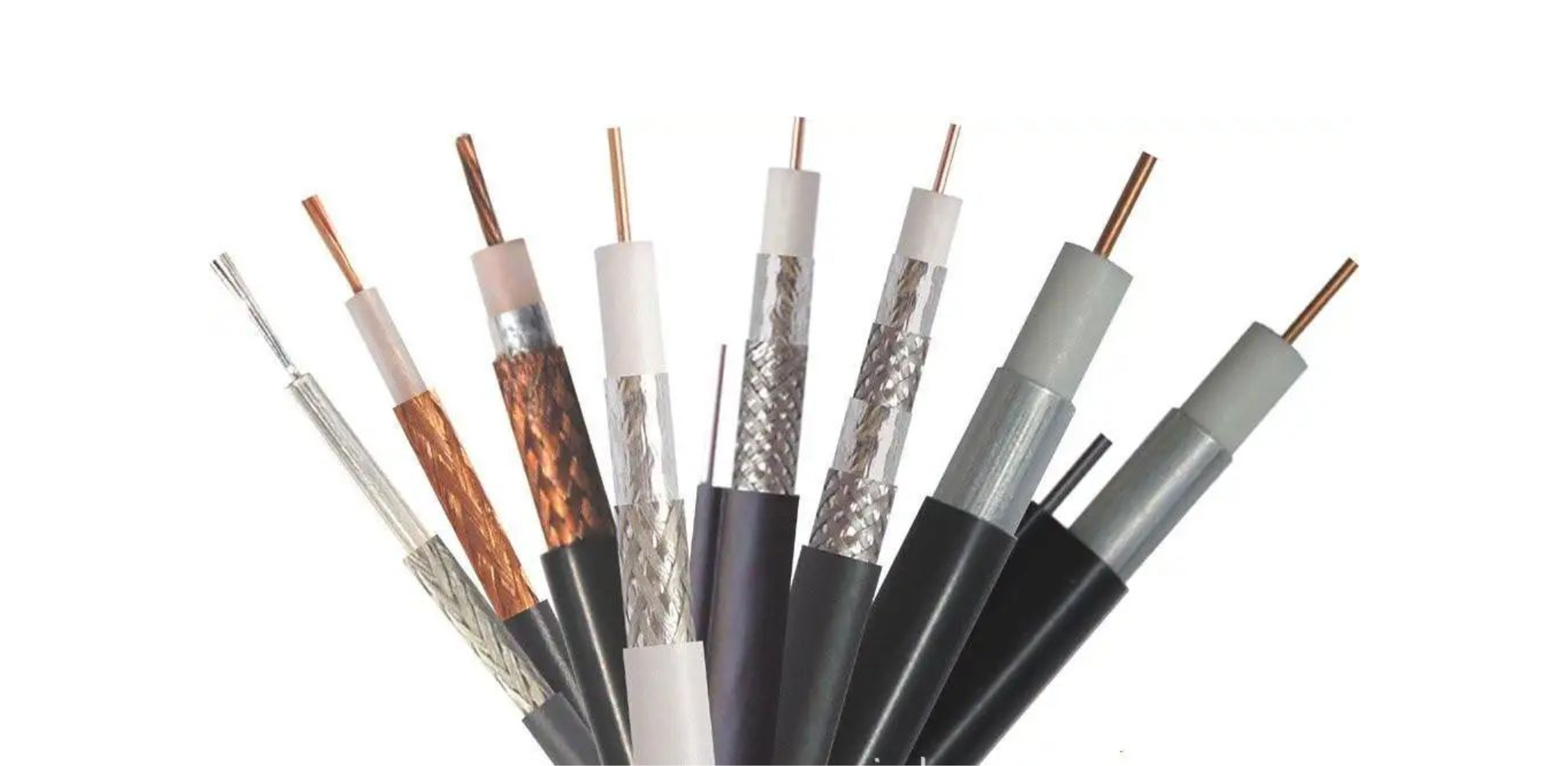

75& OMEGA; Video Coaxial Cable
|
|
◆ Mechanical Data
|
|
|
Conductor Area
|
1.0 mm² / AWG 17
|
|
Conductor Structure
|
31 x Ø 0.20 mm, bare annealed copper, OFC (oxygen-free copper)
|
|
Conductor Insulation
|
PE, transparent, Ø 5.0 ± 0.2 mm
|
|
Foil Shield
|
AL / PT Foil, 100% coverage, conductive side (AL coated) facing braid shield, spiral wound
|
|
Braided Shield
|
144 x Ø 0.1 mm, tin-plated copper, OFC
|
|
Jacket Material
|
PVC – restricted substance content: Cadmium < 5 PPM (Cadmium-free), Lead < 50 PPM, Mercury < 2 PPM, Chromium: not contained
|
|
Jacket Hardness
|
65 Shore-A
|
|
Jacket Color
|
Black to anthracite
|
|
Jacket Surface & Characteristics
|
Not shiny, not sticky, moderate smell
|
|
Overall Diameter
|
Ø 7.3 mm ± 0.2 mm
|
|
Flexibility & Mechanical Characteristic
|
According to approved customer samples
|
|
Working Temperature – Mobile
|
-5°C to +70°C
|
|
Working Temperature – Fixed
|
-20°C to +70°C
|
|
Cable Printing
|
According to customer request
|
|
◆ Electrical Data (Test conditions)
|
|
|
Conductor DC Resistance
|
≤ 20 mΩ/m (20°C)
|
|
Screen DC Resistance
|
≤ 17 mΩ/m (20°C)
|
|
Insulation Resistance
|
> 1 GΩ/km (20°C, 500 VDC)
|
|
Capacitance Conductor/Screen
|
≤ 140 pF/m (1 KHz)
|
|
Test Voltage Conductor/Screen
|
1000 V AC, 50 Hz, 1 minute
|
