DVS 801-WH Surface Mount Speaker Tannoy

Q: Which brand does DVS 801-WH belongs to?

DVS 801-WH belongs to TANNOY . The reputation Tannoy Speaker from Europe with 90 years of experience in the audio industry

Q: How long is the warranty of DVS 801-WH?

DVS 801-WH is 12 months of warranty.

Product code: DVS 801-WH 1,336

4.67/5 in 3 times

$120.81

In stock

Buy Now

Add to cart

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

60 Watts continuous, 240 Watts peak power

8" mineral loaded polypropylene driver

1" ferrofluid-cooled soft dome high-frequency driver

8" Coaxial Surface-Mount Loudspeaker with Transformer for Installation Applications

Shipping informations

Length

50 cm

Width

34 cm

Height

32 cm

Weight

10.4 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Full range surface-mount loudspeaker for indoor and outdoor installation applications
60 Watts continuous, 240 Watts peak power
8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
1" ferrofluid-cooled soft dome high-frequency driver
82° constant directivity dispersion for optimum coverage
EN54-24:2008 certified Type A
UL 1480 certified for general signalling systems
UV and weather resistant UL 94 V-0 ABS enclosure
Multiple transformer taps for 70 V and 100 V line systems
Low insertion loss 60 W line transformer with easily accessible tapping switch
All components weather resistant to IP64 for outdoor use
Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
Painted perforated aluminium mesh grille with dust protection
Yoke bracket included for ease of installation
Phoenix connectors for input and link output

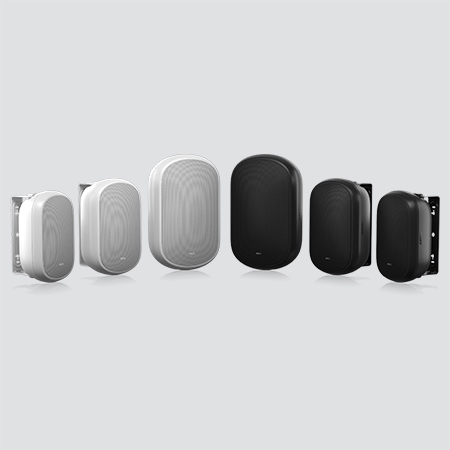

DVS 1.0 SERIES DVS 801

The DVS 801 is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling.

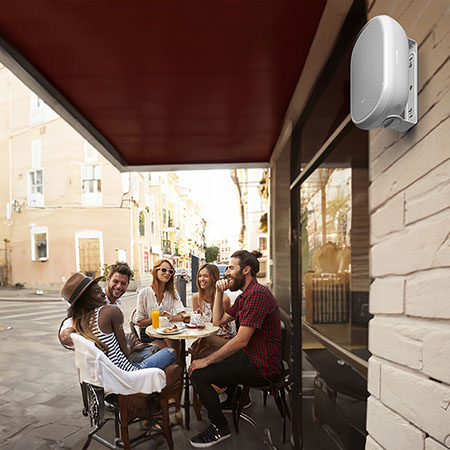

Exceptional Sound and Reliability

The design comprises a 200 mm (8.00") polypropylene full-range driver and 1.00" ferrofluid cooled soft dome high frequency driver mounted in a UV and weather resistant UL 94-V0 ABS enclosure. Dust protection is provided in the form of an attractive aluminium mesh grille. The mineral loaded polypropylene cone material and butyl rubber surround enhance durability and long-term reliability. DVS 801 is specifically designed for applications requiring the combination of excellent music and speech sound quality and exceptional reliability.

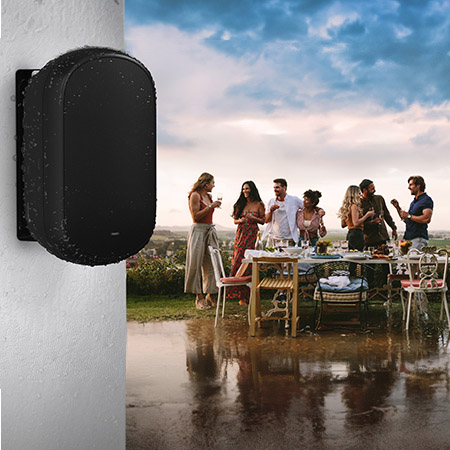

Weather-Resistant Enclosure

The elegantly styled semi-matt black moulded enclosure blends beautifully into any décor. Additionally, the DVS 801 design and performance has achieving an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and scuff-resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing aluminium grille. Installation is quick and easy, thanks to the included colour matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix* connectors for input and link output are provided for convenience.

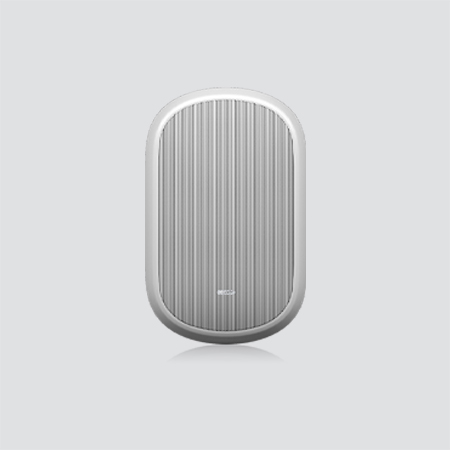

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 8" (200 mm) LF driver and one 1.0” (25 mm) HF driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 85 Hz to 20 kHz and within -10 dB from 75 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall be 82° conical, averaged 1kHz – 10 kHz. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 60 Watts continuous, 240 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 88 dB, 1 Watt @ 1 metre. Maximum SPL of 106 dB average measured at 1 m under free field conditions, using unweighted pink noise.

Dimensions: 398 mm high x 251 mm wide x 198 mm deep (15.7" x 9.88" x 7.80"). Net weight: 8.7 kg (19.2 lbs). The loudspeaker system shall be the Tannoy DVS 801. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.

Specification

Performance

Frequency response (-3 dB)	85 Hz - 20 kHz
Frequency response (-10 dB)	75 Hz - 20 kHz
System sensitivity (1 W @ 1 m)	88 ± 2 dB
Dispersion (-6 dB)	82 degrees conical averaged 1 kHz - 10 kHz
Transducers	Coaxial
Low frequency	200 mm (8.00") paper cone with coating
High frequency	25 mm (1')
Crossover	3150 Hz ± 10%
Directivity (Q)	5.7 averaged 1 kHz to 10 kHz
Directivity (DI)	7.2 averaged 1 kHz to 10 kHz
Rated maximum SPL	106 dB (average) 112 dB (peak)

Transformer

Transformer taps

70 V - 60 W / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation

100 V - X / 60 W / 30 W / 15 W / OFF and LOZ low impedance operation

Maximum wire gauge for connector

2.5 mm CSA (AWG12)

Safety Agency Ratings

UL 1480A, EN54-24:2008

Power Handling

Average	60 W
Programme	120 W
Peak	240 W
Recommended amplifier power	120 W @ 8 Ohms
Nominal impedance	8 Ohms

DVS 801-WH Surface Mount Speaker Wall Mount Speaker Installed speaker Outdoor speaker
