Sennheiser EW-DX simplifies professional workflows by utilizing refined technologies, delivering a scalable digital UHF system. With an advanced feature set and multiple hardware options, the system is ideal for classrooms, corporate campuses, and live performance environments — all designed for seamless network integration.

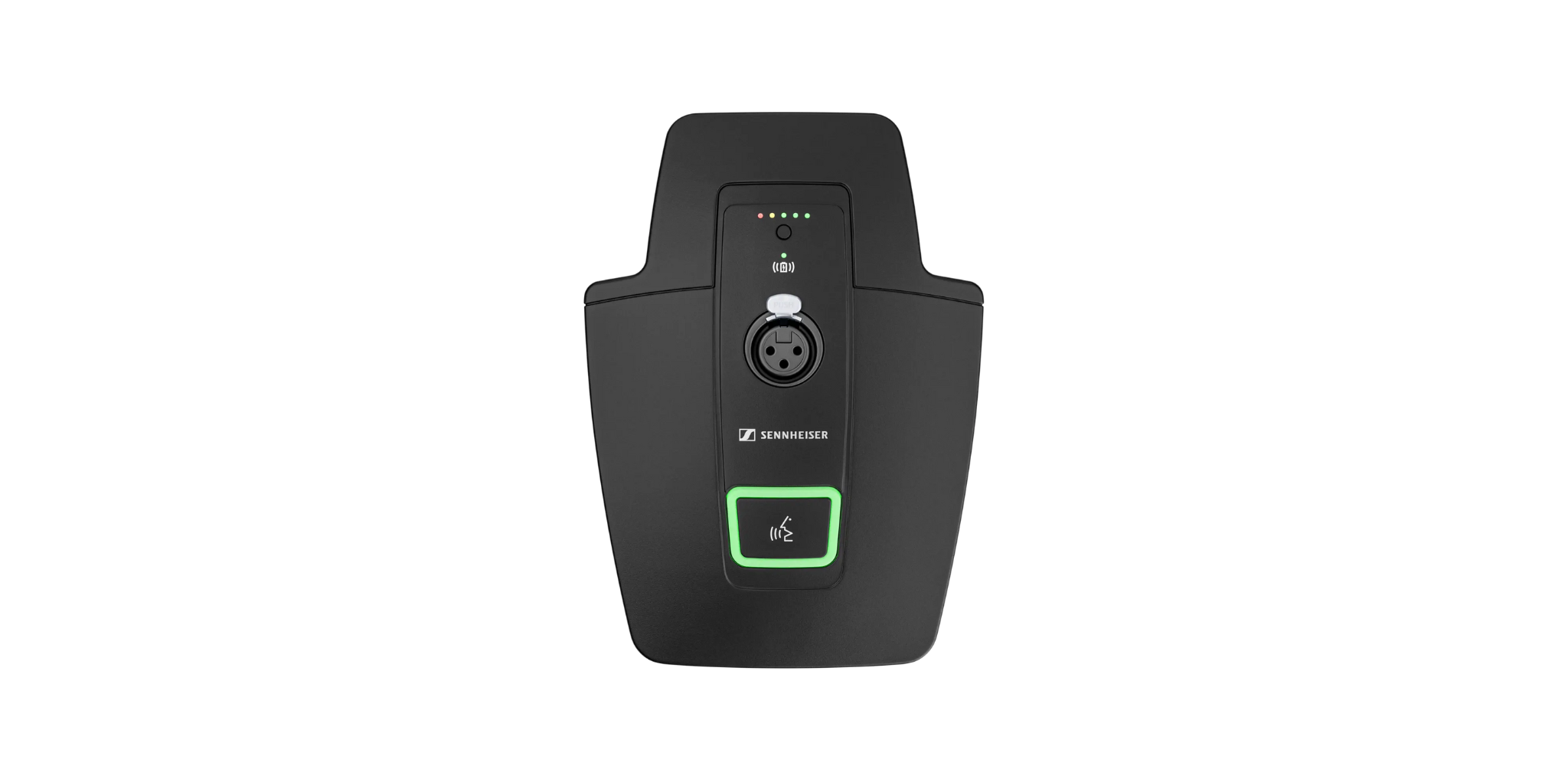

The EW-DX table stand transmitter is compatible with a wide range of Sennheiser gooseneck Microphones.
Features
- Table stand transmitter with 3-pin XLR connector
- Programmable Mute button
- Inductive charging with CHG 2W
- USB charging
- Up to 10 hours of battery life with BA 40 Li-ion battery
- Compatible with many Sennheiser gooseneck microphones (all non-LED 3-pin versions)
- Durable metal housing
Key Specifications
- Operating frequency range: 606.200 - 693.800 MHz
- Latency: 1.9 ms
Technical Specifications Table
Product Information
| Item |
Value |
| Model |
EW-DX TS 3-PIN Table Stand Transmitter |
| Warranty |
2 years |
| Housing |
Metal |
Electrical Characteristics
| Specification |
Value |
| Latency |
1.9 ms |
| Total Harmonic Distortion (THD) |
≤ -60 dB at 1 kHz @ -3 dBfs |
| Input voltage |
2.0 – 4.35 V |
| Transmission power |
Audio link: 10 mW ERP (Y1-3: 12 mW ERP) / LD mode: 10 mW ERP / BLE: max. 10 mW EIRP |
| Transmission method |
200 kHz |
Frequency
| Specification |
Value |
| RF frequency range |
606.200 – 693.800 MHz |
| Audio frequency response |
20 Hz – 20 kHz (-3 dB) |
Acoustics
| Specification |
Value |
| Dynamic range |
> 134 dB |
Operating Environment
| Specification |
Value |
| Operating humidity |
5 – 95% (non-condensing) |
| Operating temperature |
-10 °C to +50 °C (14 °F – 122 °F) |
Battery & Power
| Specification |
Value |
| Battery type |
BA 40 Lithium-ion |
| Capacity |
2.2 Ah |
| Battery voltage |
3.6 V |
| Operating time |
~10 hours |
| Charging current |
< 300 mA |
| Battery included |
Yes |
Dimensions & Weight
| Specification |
Value |
| Weight |
650 g |
| Dimensions (L × W × H) |
250 × 225 × 94 mm |
| Box dimensions |
250 × 225 × 94 mm |
Bluetooth
| Specification |
Value |
| Bluetooth transmission range |
2402 – 2480 MHz |
Included Accessories
- (1) EW-DX TS 3-PIN Table Stand Transmitter
- (1) BA 40 Rechargeable Battery
- (1) Quick Guide
- (1) Safety Instructions
- (1) Manufacturer Certificate
