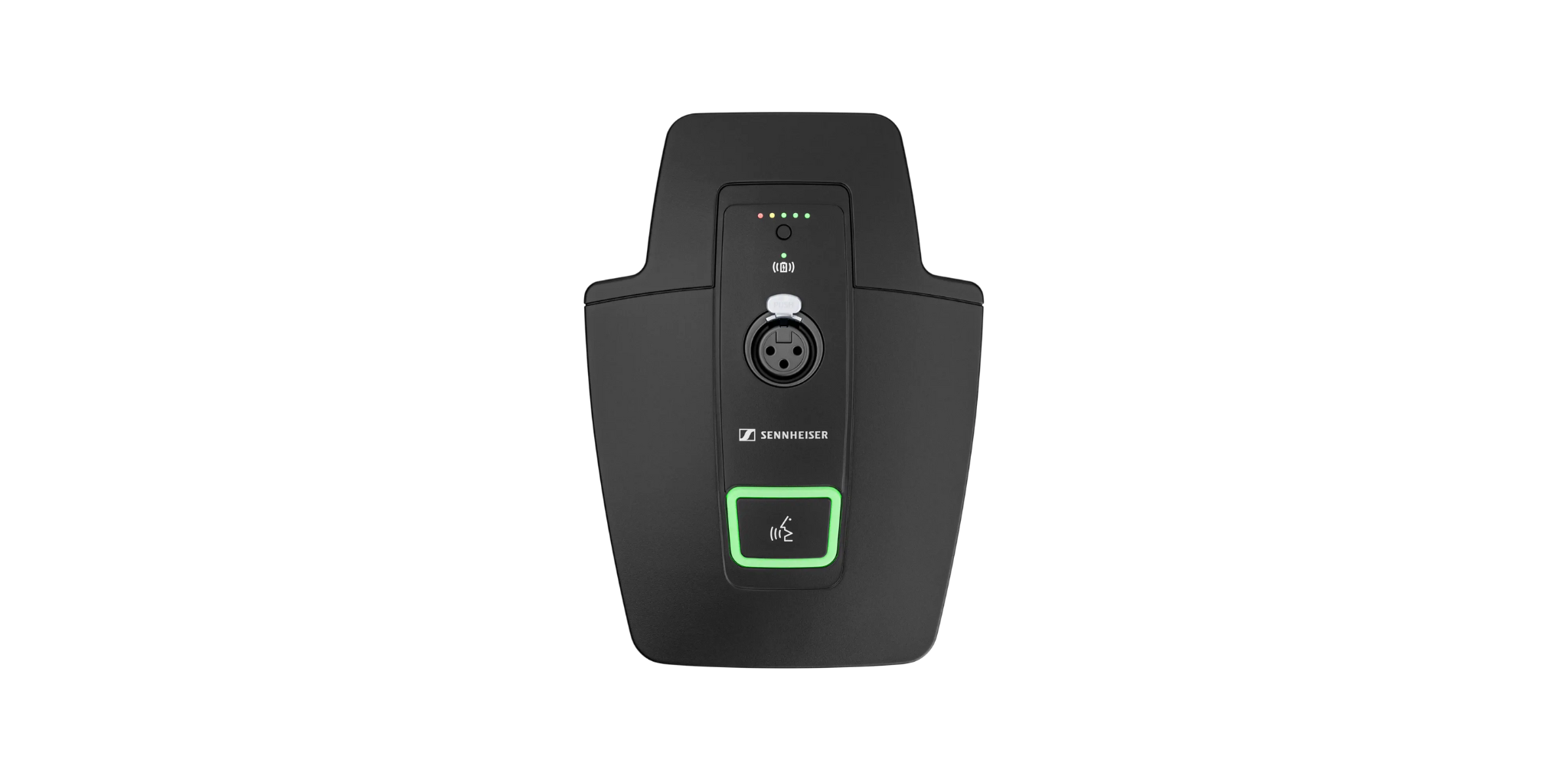

5-Pin Tablestand 630.0 - 693.8 MHz Sennheiser EW-DX TS 5-PIN (S4-10)

Name: 5-Pin Tablestand 630.0 - 693.8 MHz Sennheiser EW-DX TS 5-PIN (S4-10) | EW Digital
Brand: Sennheiser
SKU: HBK60575
Availability: InStock
Rating: 4.67 (3 reviews)

EW-DX TS 5-PIN (S4-10) 5-Pin Tablestand 630.0 - 693.8 MHz Sennheiser

Product code: EW-DX TS 5-Pin (S4-10) 12

4.67/5 in 3 times

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Tablestand transmitter with 5-pin XLR connector

Programmable mute switch

Inductive charging with CHG 2W

Charging via USB

EW-DX TS 5-pin tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones

CERTIFICATE

Sennheiser distributor certificate

Sennheiser EW-DX optimizes your professional workflow by applying refined technologies to provide a digitally scalable UHF system. With advanced features and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system designed for seamless integration. The EW-DX desktop transmitter is compatible with a wide range of Sennheiser gooseneck Microphones.

Features

Desktop transmitter with XLR 5-pin connection
Programmable mute switch
Touch charging with CHG 2W
USB charging
10-hour battery life with lithium-ion BA 40 battery
Compatible with MEG 14-40 L-II B gooseneck Microphone
Durable metal housing

Top Specifications

Specification	Value
Frequency Range	630.000 - 693.800 MHz
Latency (ms)	1.9

Technical Specifications

Specification	Value
Warranty (years)	2
Latency (ms)	1.9
Total Harmonic Distortion (THD)	≤ -60 dB at 1 kHz @ -3 dBfs input level
Frequency Range	630.000 - 693.800 MHz
Audio Frequency Response	20 Hz - 20 kHz (-3 dB)
Dynamic Range	> 134 dB
Operating Humidity	5 - 95% (non-condensing)
Operating Temperature (°C)	-10 °C - +50 °C
Battery Capacity (Ah)	2.2
Number of Batteries	1
Battery Included	Yes
Battery Voltage (V)	3.6
Charging Current (mA)	< 300 mA
Battery Runtime (h)	BA 40 rechargeable battery
Input Voltage	2.0 - 4.35 V
Transmission Power	Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP), LD mode: 10 mW ERP, BLE: max 10 mW EIRP
Transmission Method	200 kHz
Product Weight (g)	650
Product Height (mm)	94
Product Length (mm)	250
Product Width (mm)	225
Package Length (mm)	250
Package Height (mm)	94
Package Width (mm)	225
Bluetooth Frequency Range	2402 - 2480 MHz

What's in the Box

(1) EW-DX TS 5-PIN Desktop Transmitter
(1) BA 40 Rechargeable Battery
(1) Quick Start Guide
(1) Safety Guide
(1) Manufacturer's Declaration
