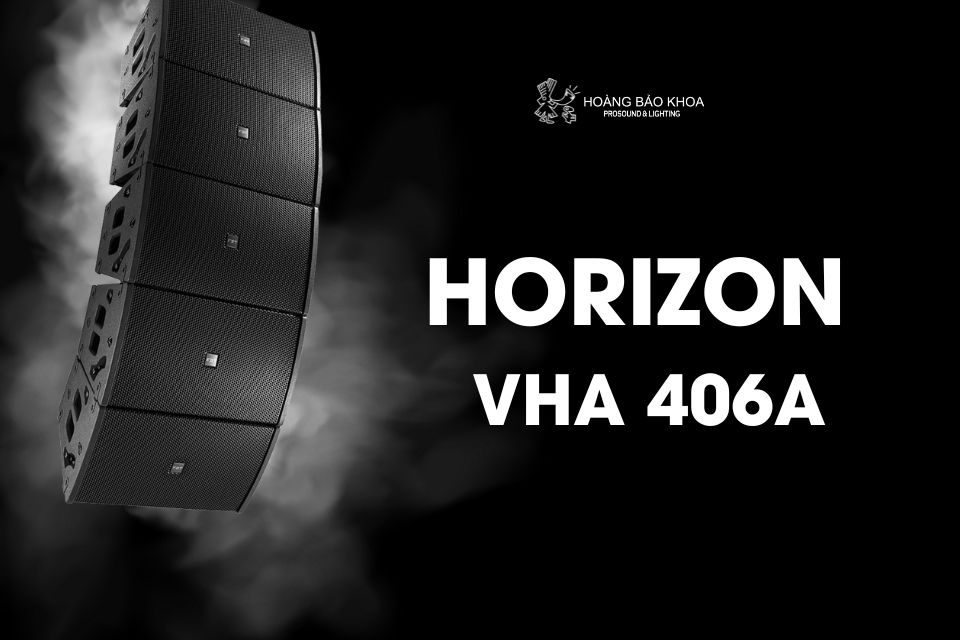

HORIZON VHA 406 A - Advanced Active Line Array for Touring & Installation
The HORIZON VHA 406A from FBT sets a new benchmark in active line-array technology, combining high-grade components, flexible rigging and installation options, and powerful amplification in one sleek package. Whether deployed for live touring or permanent installation, the VHA 406A is designed to deliver exceptional clarity, projection and reliability.
High-Performance Audio Design
At the core of the VHA 406 A is a bi-amplified 2-way system: four custom 165 mm (6.5″) woofers with 38 mm (1.5″) voice-coils handle the low end, while a neodymium B&C compression high-frequency driver with a 36 mm (1.4″) throat and 64 mm (2.5″) coil covers the upper range. The built-in Class-D amplifiers provide 600 W RMS for LF and 300 W RMS for HF, with peak power ratings of 1200 W / 600 W respectively. The frequency response spans from 65 Hz to 20 kHz (-6 dB), ensuring full-range performance with controlled directivity.
Precision Dispersion & Rigging Flexibility
FBT’s large-format waveguide delivers a uniform dispersion pattern of 90° horizontally by 20° vertically, enabling consistent coverage and directivity in complex venues. The enclosure features integrated suspension hardware with inclinable array settings from 5° to 20° in 5° STEPS, and supports both vertical and horizontal mounting via dedicated flybars. This flexibility makes the VHA 406A ideal for flown arrays or ground-stacked configurations-in touring rigs as well as fixed installations.
Rugged Build for Touring & Permanent Use
The cabinet is fabricated in robust 12 mm Baltic-birch plywood, finished with an anti-scratch varnish for durability on the road. Ergonomic rubber-insert handles and rubber-coated sides protect the enclosure during transport and setup. Input connectivity includes XLR in/out loop, and power is supplied through Neutrik PowerCON TRUE1 IN and LINK connectors, offering machine-room class reliability under demanding use.
Operational Convenience & Control
On-board DSP provides eight selectable equalisation presets, offering simple integration into a wide range of sound systems. The control panel features level adjustment, preset selection, high-pass filter toggle, and a ground-lift switch—making setup fast and intuitive for audio professionals. With an input impedance of 22 k& OMEGA; and AC power consumption of around 640 VA, the unit accommodates typical installation power feeds with ease.
Ideal Applications
Whether you are specifying a high-impact sound system for live concert touring, or deploying an elegant, compact line-array in a theatre, club or house of worship, the HORIZON VHA 406A delivers.Making it manageable on site, and aligns with road-case standards. With up to 128 dB continuous SPL and 133 dB peak, it offers real acoustic power where it counts.
