In professional stage lighting systems, Beam, Wash, and Spot fixtures are the three most essential moving head categories. Each type features distinct optical design, beam angle characteristics, and application purposes, resulting in completely different lighting effects. So, how do Beam, Wash, and Spot fixtures differ in real-world applications? A clear understanding of the specific characteristics of each type helps optimize lighting design, ensure strong visual impact, and enable accurate equipment investment for each production or event.

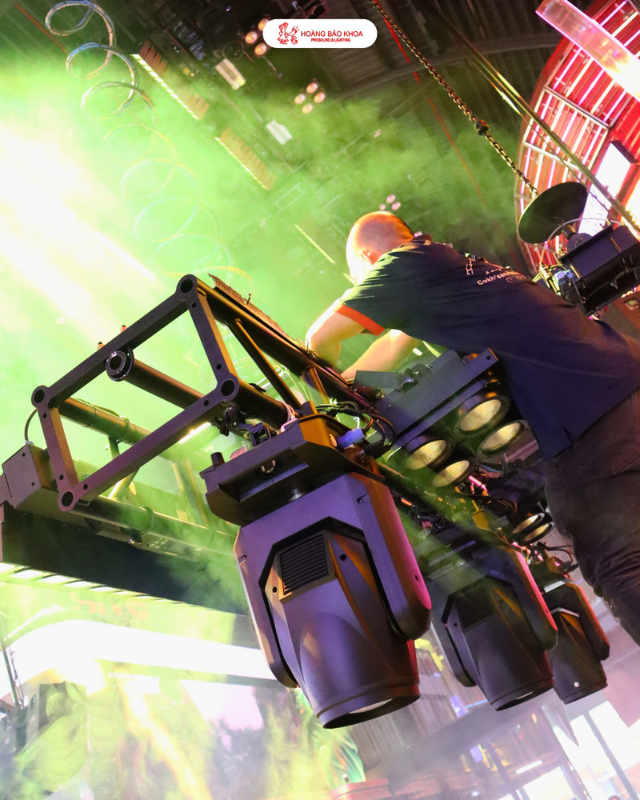

What Is a Beam Light? Practical Applications of Beam Lights
A Beam light is a lighting fixture with a very narrow beam angle, producing a highly concentrated and powerful shaft of light. It is commonly used to create strong spatial effects on stage.
Key features:
- Narrow beam angle (approximately 1° - 5°)
- Sharp and high-intensity light output
- Clear mid-air effects when combined with haze or fog machines
- Fast and flexible pan/tilt movement
Practical applications:
- Concert and EDM stages
- Bars, clubs, lounges
- Large-scale outdoor events
- Mid-air beam sweeping effects
Beam lights are mainly used to create dynamic effects and enhance stage energy, rather than for background illumination or detailed subject lighting.
What Is a Wash Light Used for in Lighting Systems?
Wash lights feature a wide beam angle, producing soft and evenly distributed light. They play a key role in building the overall lighting foundation.
Technical characteristics:
- Wide beam angle (15° – 60° or wider)
- Smooth and even light distribution
- Flexible color mixing
- Creates balanced and full-stage illumination
Practical applications:
- Stage background lighting
- Color washing across spaces
- Backdrop and curtain illumination
- Theaters, auditoriums, corporate events
Wash lights establish a stable lighting base before adding dynamic Beam effects or precise highlights from Spot fixtures.
How Is a Spot Light Different from Beam and Wash?
Spot lights are precision-focused fixtures designed for detailed projection and advanced lighting effects in performances and events.
Key features:
- Medium beam angle (10° - 30°)
- Adjustable focus control
- Integrated gobo, prism, and iris functions
- Projection of images, logos, and patterns
Practical applications:
- Spotlighting singers and MCs
- Logo projection for events
- Theater stages and conferences
- Product highlighting at launch events
Compared to Beam lights, Spot lights focus on detail rather than mid-air beam effects. Compared to Wash lights, Spot fixtures do not provide wide coverage but instead emphasize specific subjects.
Combining Beam - Wash - Spot in Professional Lighting Design
In professional lighting systems, all three fixture types are typically combined for optimal results:
- Beam creates dynamic effects and spatial depth
- Wash builds the overall color foundation
- Spot delivers precise highlights on key subjects
This combination creates a well-structured lighting layout, enhances visual contrast, and elevates the overall professionalism of a production.
To select the right lighting configuration based on stage size and budget, consulting an authorized equipment supplier with technical expertise is essential. In Vietnam, Hoang Bao Khoa is a professional distributor of genuine Stage Lighting equipment, providing consultation for Beam, Wash, and Spot configurations tailored to various needs, from auditoriums and live music stages to professional clubs.
