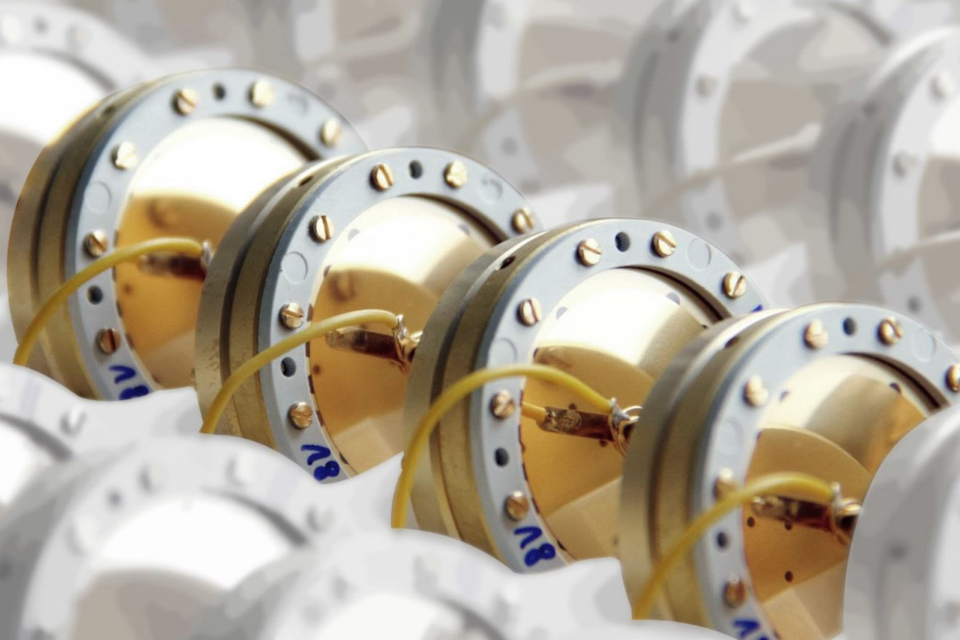

The capsule is the most critical component of a Neumann microphone. During warranty service, the capsule must be tested using specialized measurement equipment to ensure precise acoustic performance.
What is a Neumann Microphone capsule and why is it the most important component?
The capsule is the component that converts sound vibrations into electrical signals, and it plays a major role in determining the microphone’s sensitivity, polar pattern, and overall sound quality.
In Neumann studio Microphones, capsules are manufactured with extremely high precision, using ultra-thin diaphragms and carefully tuned electrode systems. For this reason, the capsule is often considered the “heart” of the Microphone.
If the capsule encounters a problem, the microphone may show issues such as:
- Loss of sensitivity or weak signal
- High background noise
- Distorted sound or lack of detail
- Changes in the Microphone’s polar pattern
Therefore, during warranty service, inspecting the capsule is always an important step in determining the actual operating condition of the microphone.
At authorized service centers, Neumann microphone capsules are inspected using specialized measurement equipment and technical procedures.
Common testing methods include:
1. Frequency Response Test
The capsule is tested in a standard measurement environment to determine how the microphone responds across different frequency ranges.
This process helps detect issues such as:
- Frequency deviations
- Imbalanced sound response
- Frequency drop-offs in certain ranges
2. Sensitivity Measurement
Sensitivity indicates the level of electrical signal produced by the capsule when it receives sound.
If sensitivity does not meet the required specifications, the microphone may:
- Capture weak signals
- Require excessive gain
- Be more prone to background noise
3. Self-Noise Test
The capsule’s internal noise level is measured to ensure the microphone maintains clean signal performance, which is especially important in studio environments.
4. Physical inspection of the diaphragm
Technicians will inspect the diaphragm condition to detect:
- Dust contamination
- Moisture exposure
- Diaphragm deformation
- Mechanical damage
These factors can directly affect the microphone’s recording performance.
Capsule inspection process during Neumann microphone warranty service
During warranty servicing, the microphone capsule is typically checked through a clear technical procedure.
1. Overall equipment inspection
Technicians examine the entire microphone to determine whether the issue originates from the capsule or other components such as:
- Circuit board
- Connector
- Phantom power supply
- Internal preamp system
2. Capsule testing with specialized equipment
The capsule is measured using acoustic testing systems to evaluate:
- Frequency response
- Sensitivity
- Noise level
- Signal stability
3. Capsule cleaning or recalibration
In some cases, the capsule may only be affected by dust or humidity and can be restored through a specialized cleaning process.
4. Capsule replacement if necessary
If the capsule is severely damaged, the service center will replace it with genuine components that meet Neumann’s standards.
After the repair is completed, the microphone will be fully tested and recalibrated to ensure all acoustic parameters meet the manufacturer’s specifications before being returned to the customer.
Why should capsule inspection be done at an authorized service center?
The capsule is an extremely precise component, so inspection or technical intervention should only be performed by authorized service centers.
Checking the capsule at an official service center ensures:
- The equipment is tested using specialized measurement systems
- Technicians understand the structure of Neumann microphones
- Replacement parts meet the manufacturer’s standards
- The microphone is calibrated according to proper technical specifications
In Vietnam, Hoang Bao Khoa is an authorized Neumann service center that performs inspection and warranty services according to the manufacturer’s technical standards.
If a Neumann microphone experiences issues with signal level, sensitivity, or sound quality, having the capsule inspected at an authorized service center ensures the device is handled with the correct procedures and maintains its original sound performance.
