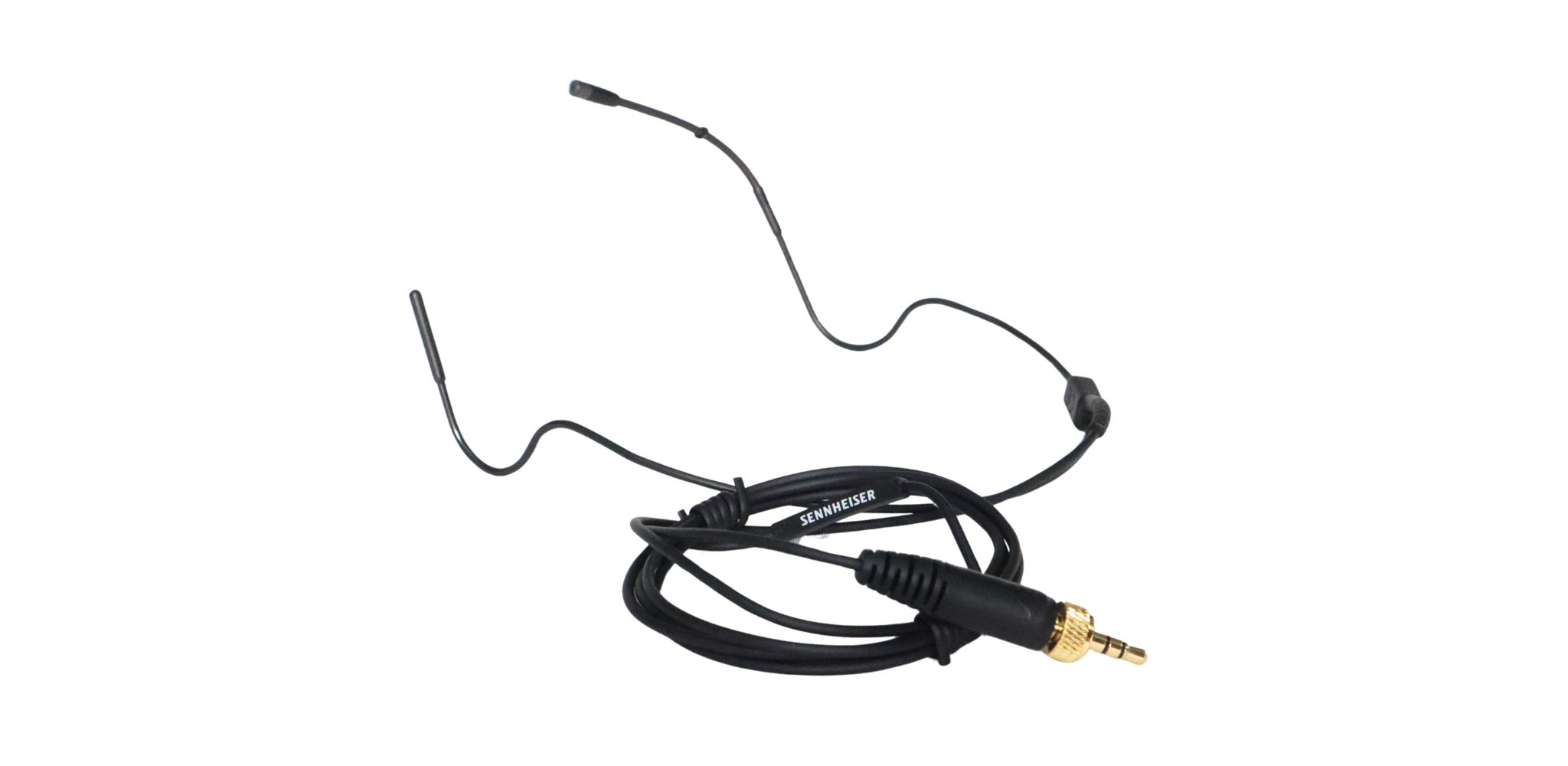

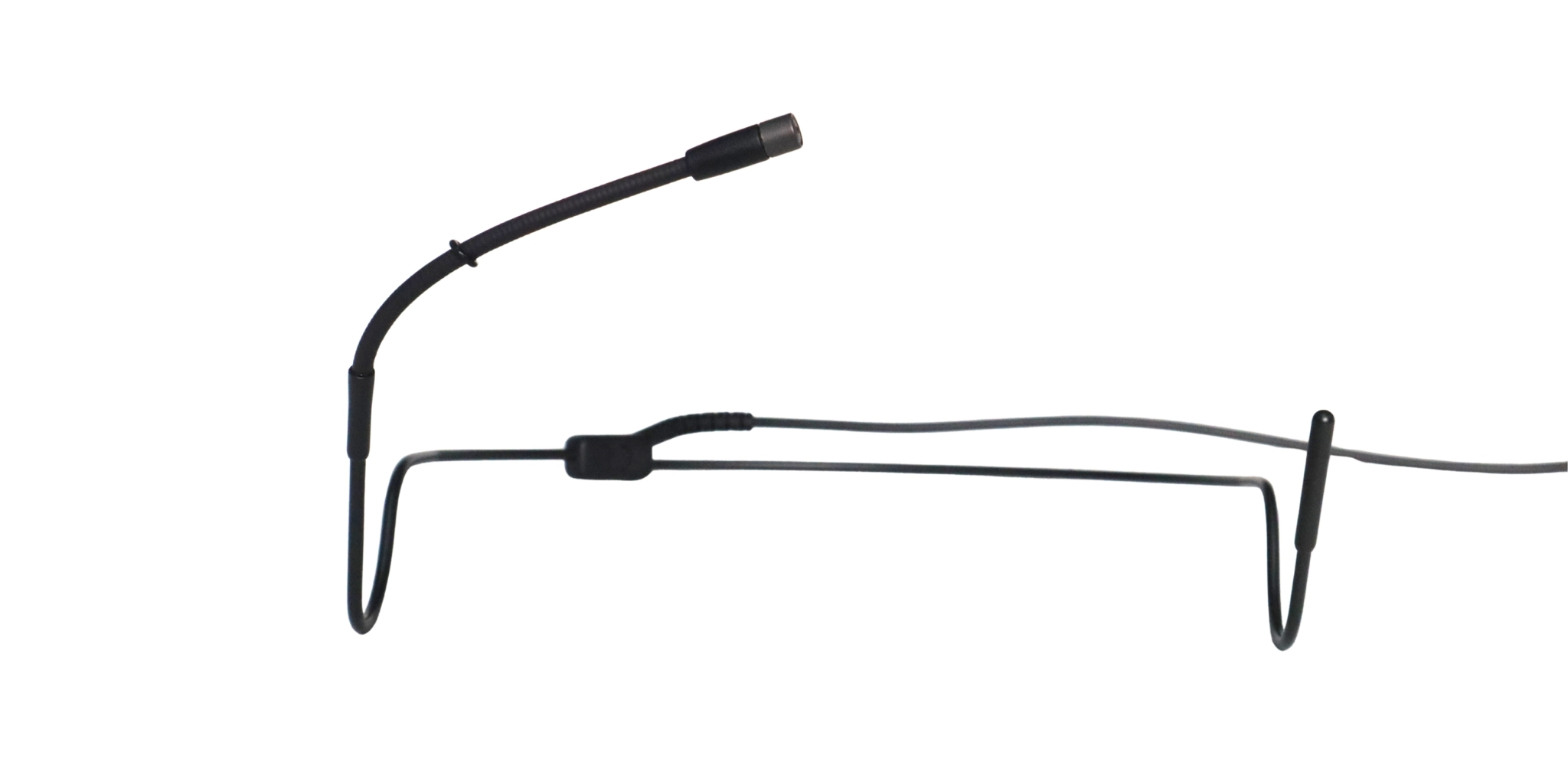

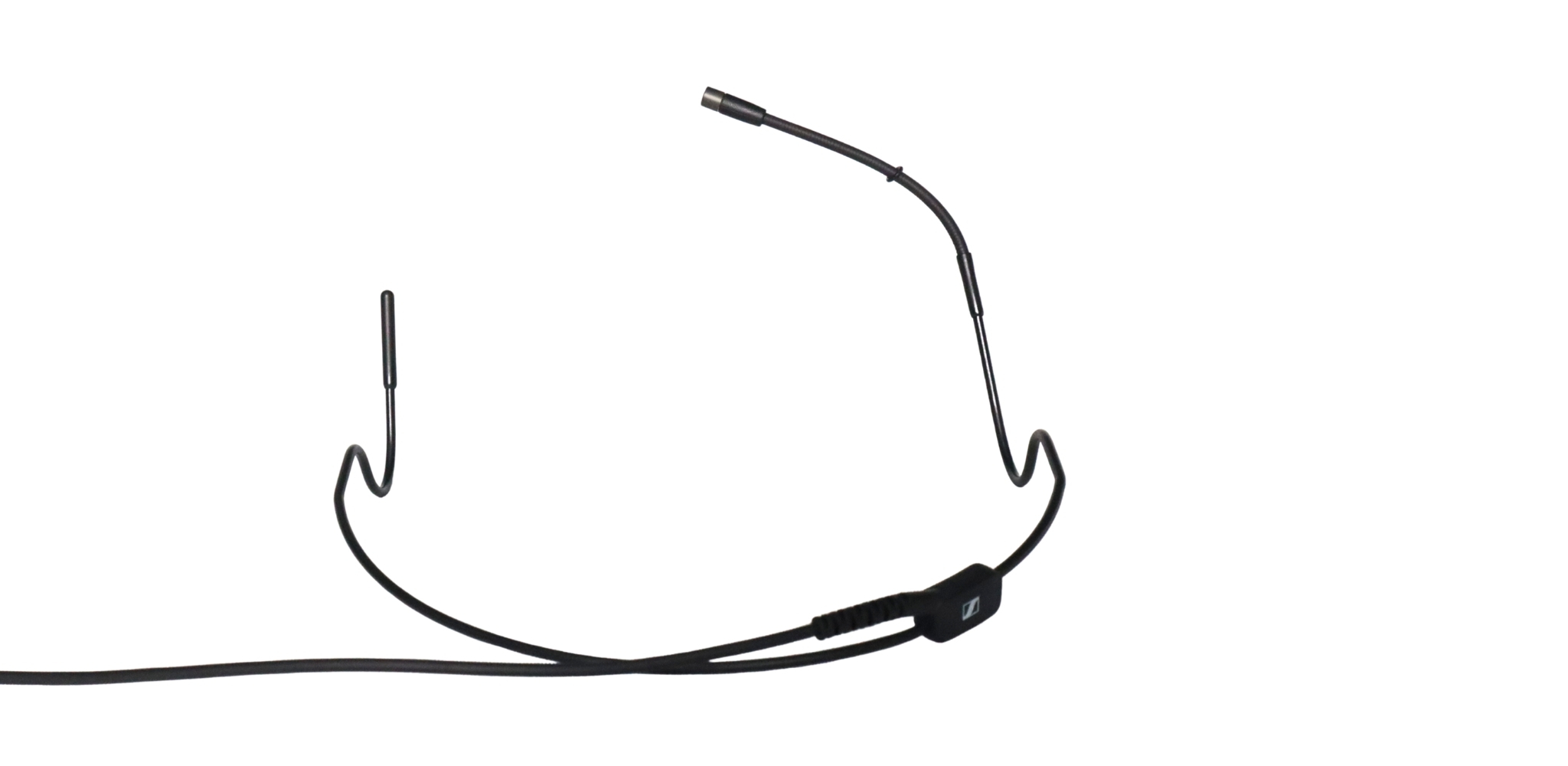

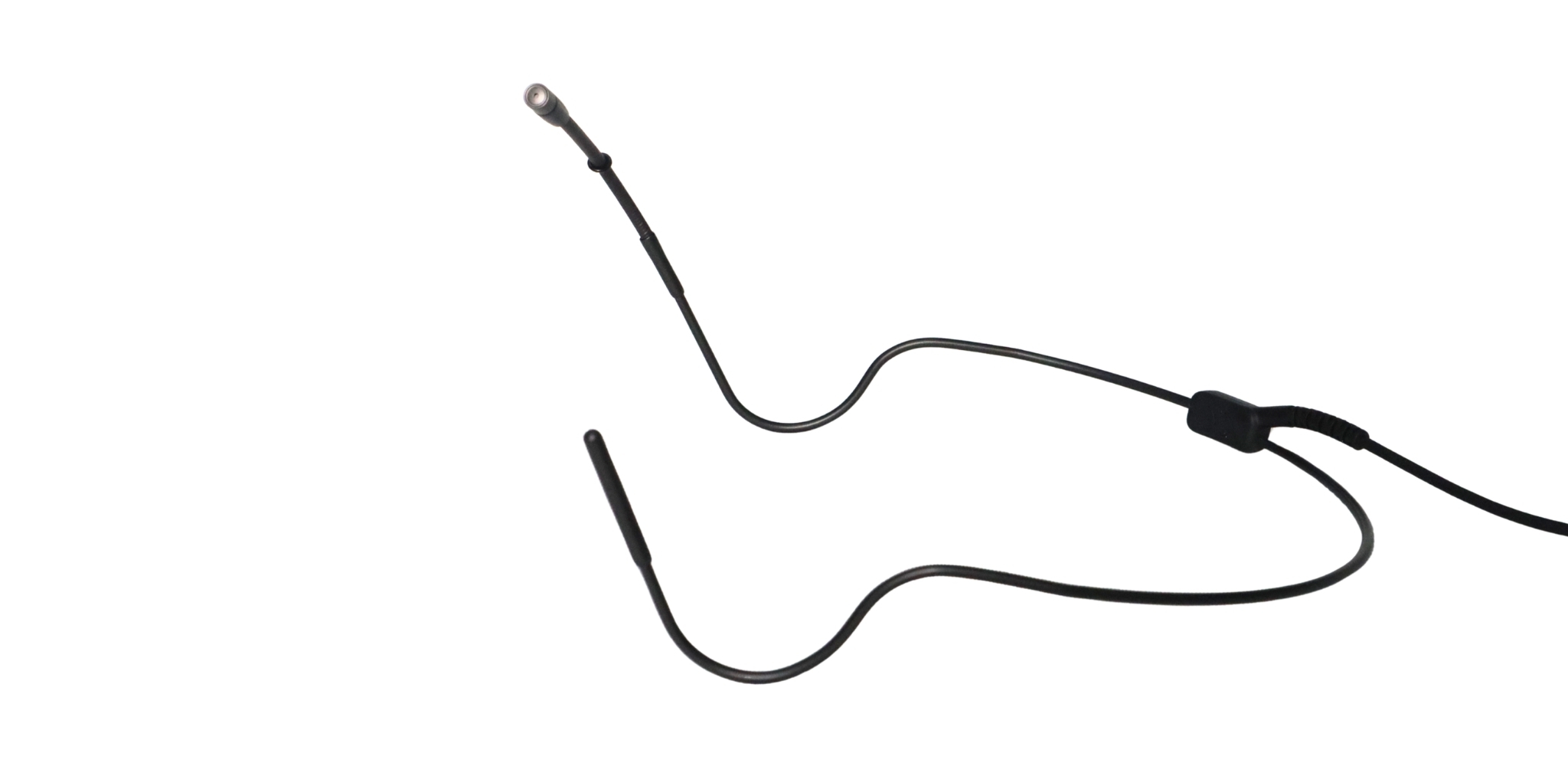

The HS 2 BK is a neckworn microphone with a very robust steel wire cable for connection to wireless bodypack transmitters. It features the omni-directional MKE 2 capsule and meets the highest demands on sound quality and robustness. The condenser microphone can easily be brought into the optimum position by the interplay of the small capsule and a short gooseneck. The HS 2 is equally suitable for voice and speech transmission.
FEATURES
• Omni-directional with MKE 2 capsule
• Excellent sound suitable for singers and speakers alike
• Easy handling and rugged construction
• Available in beige and black
• Connector: 3.5 mm jack plug
SPECIFI CATIONS
Product
|
| Polar pattern |
Omnidirectional |
| Sensitivity in free field |
5 mV/ Pa ±3 dB |
| Pick-up pattern |
omni-directional |
Frequency Specifications
|
| Frequency response |
20 - 20.000 Hz |
| Audio frequency response |
20 to 20.000 Hz |
| Max. sound pressure level |
140 dB |
Equivalent noise level
|
| A-weighted |
28 dB |
| CCIR-weighted |
41 dB |
| Power supply |
7.5 V |
| Connector |
3.5 mm jack plug |
Electrical Properties
|
| Nominal impedance |
1 kΩ |
| Min. terminating impedance |
4.7 kΩ |
Dimensions
|
| Diameter of microphone |
4.8 mm |
| Height (mm) |
58 |
| Length (mm) |
205 |
| Weight (g) |
30 g ( HS 2 BE/ BK); 29 g (HS 2 BE/BK 3-pin) |
| Width (mm) |
170 |
| Product height |
58 |
| Product weight (g) |
30 g (HS 2 BE/ BK); 29 g (HS 2 BE/BK 3-pin) |
| Product width |
170 |
| Cable length (m) |
1,6 m |
DIMENSIONS

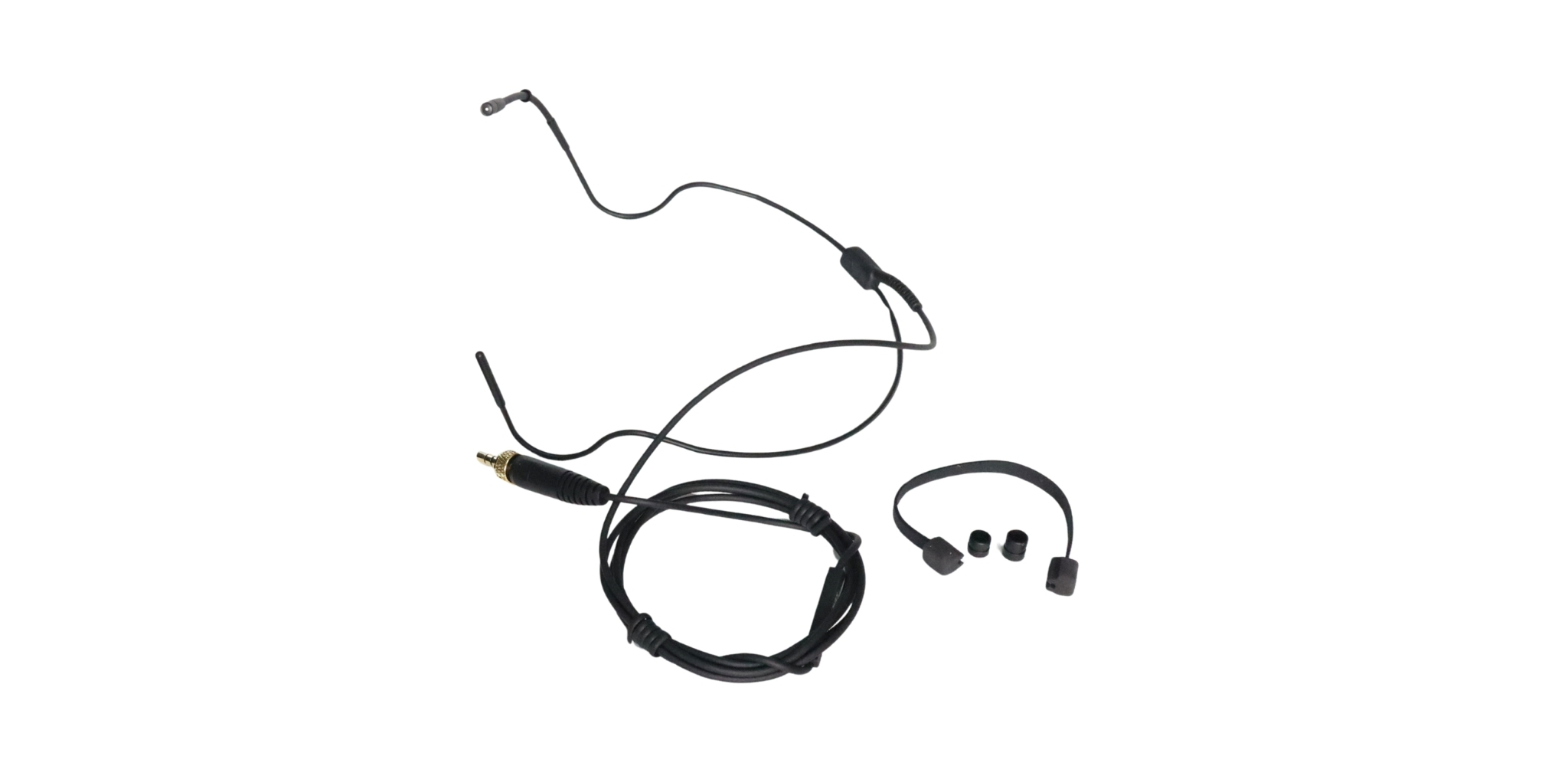

WHAT'S IN THE BOX
• HS 2
• Short cap: MZC 2-1
• Long cap: MZC 2-2

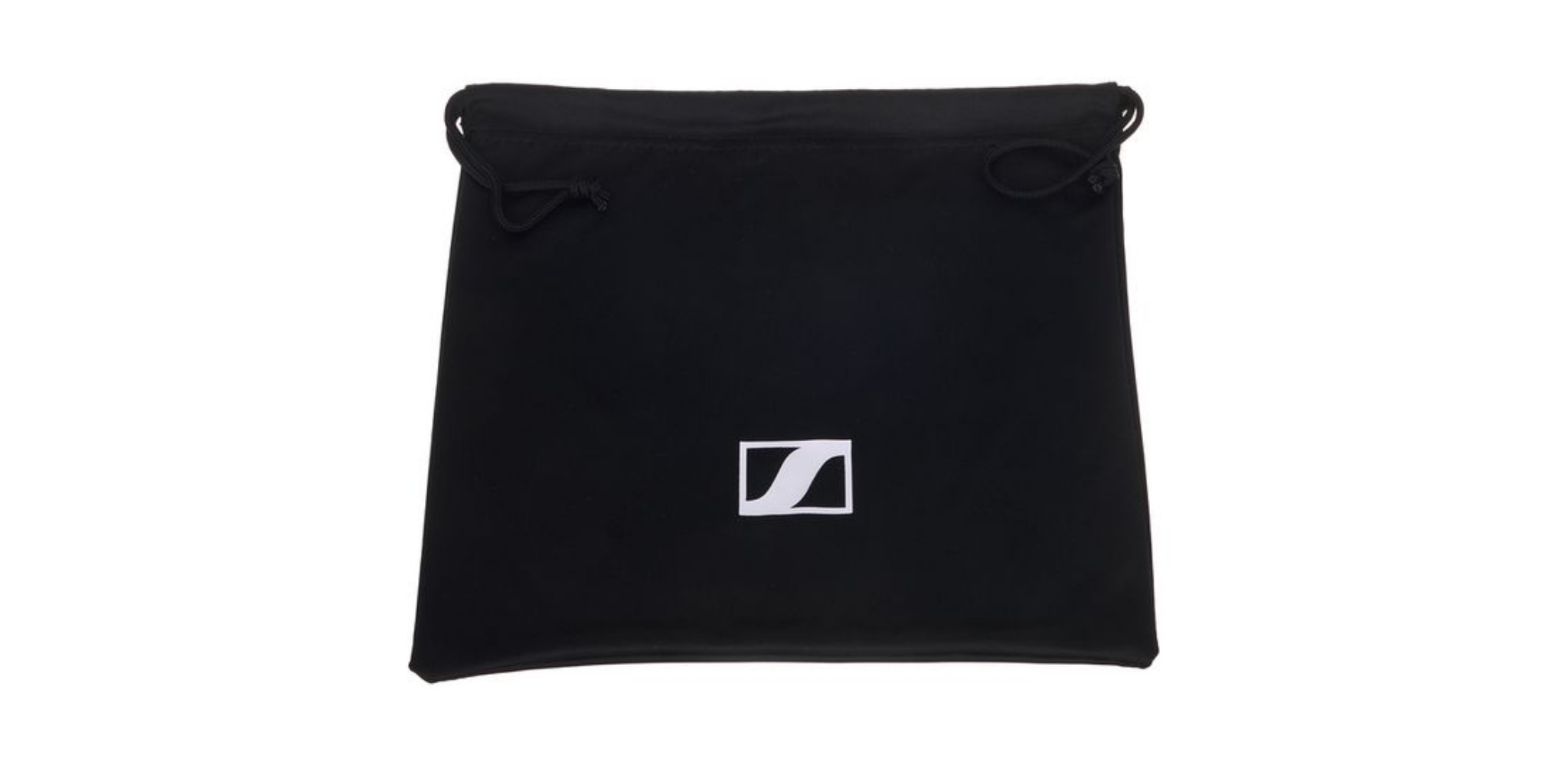

• Bag
• Quick Guide
• Safety Guide
