When researching or purchasing LED lighting, you'll often come across specifications such as Watt (W), Lumen (lm), and Lux (lx). Many people assume that a higher wattage automatically means a brighter light, but in reality, wattage is only one of several technical specifications.
Understanding the differences between lumens, lux, and watts will help you select the right lighting solution for your application, whether it's for stage lighting, architectural illumination, industrial facilities, showrooms, or commercial spaces.
What Are Watt, Lumen, and Lux?
These three specifications are all related to lighting systems, but each measures a completely different aspect of lighting performance.
| Specification |
Unit |
Meaning |
When Is It Important? |
| Watt |
W |
Electrical power consumption |
Evaluating energy usage |
| Lumen |
lm |
Total light output |
Comparing brightness between fixtures |
| Lux |
lx |
Amount of light falling on one square meter |
Evaluating actual illumination on a surface |
In simple terms:
- Watt tells you how much electricity a light consumes.
- Lumen tells you how much light the fixture produces.
- Lux tells you how bright the illuminated area actually is.
What Is Watt? Does a Higher Wattage Mean a Brighter Light?
.jpg)
Watt (W) is the unit of electrical power. It indicates how much electricity a lighting fixture consumes during operation. With traditional incandescent and halogen lamps, higher wattage generally meant higher brightness. However, this is no longer true with modern LED technology.
For example:
| LED Fixture |
Power |
Luminous Flux |
| Light A |
100W |
12,000 lm |
| Light B |
100W |
17,000 lm |
Although both fixtures consume 100 watts, Light B produces significantly more light because it uses more efficient LED chips and a better optical system. This demonstrates that wattage alone cannot accurately represent the brightness of an LED fixture.
What Is Lumen? The Key Measurement of LED Brightness
.jpg)
Lumen (lm) is the unit of luminous flux, representing the total amount of visible light emitted by a light source in all directions. The higher the lumen value, the greater the light output.
Lumen is the most important specification when comparing the brightness of two LED fixtures designed for the same application. Users should also consider luminous efficacy (lm/W), which indicates how many lumens are produced for every watt of electricity consumed.
| Luminous Efficacy |
Meaning |
| 100 lm/W |
100 watts produce approximately 10,000 lumens |
| 150 lm/W |
100 watts produce approximately 15,000 lumens |
| 170 lm/W |
100 watts produce approximately 17,000 lumens |
The higher the luminous efficacy, the more energy-efficient the fixture is while maintaining excellent brightness.
What Is Lux? Why Can the Same Light Appear Brighter in One Area Than Another?
.jpg)

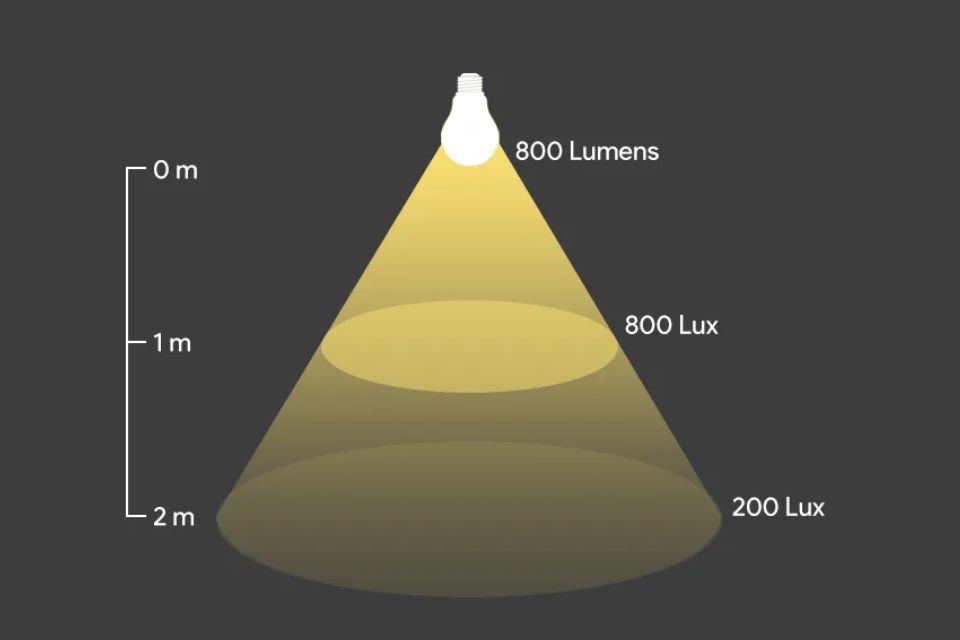

Lux (lx) is the unit of illuminance, measuring how much light falls on a given surface area. One lux equals one lumen distributed over one square meter.
Unlike lumens, lux depends not only on the fixture's light output but also on several installation factors, including:
- Mounting height.
- Distance from the illuminated surface.
- Beam angle.
- Lens and reflector design.
For example, a fixture producing 20,000 lumens will deliver much higher illuminance (lux) when focused on a stage with a narrow beam than when spread across an entire public square with a wide beam angle.
When Should You Focus on Watt, Lumen, or Lux?
| Your Goal |
Priority Specification |
| Reduce energy consumption |
Watt and luminous efficacy (lm/W) |
| Compare brightness between fixtures |
Lumen |
| Design a professional lighting system |
Lux |
| Select Stage Lighting |
Lumen, Lux, and beam angle |
| Architectural or outdoor lighting |
Lumen, Lux, and IP rating |
Imagine two water hoses delivering the same flow rate. If one nozzle produces a narrow jet while the other sprays over a wide area, the amount of water reaching each square meter will be very different. Light behaves in much the same way.
When selecting an LED fixture, don't rely on wattage alone.
- Prioritize Lumen when comparing brightness.
- Prioritize luminous efficacy (lm/W) when maximizing energy efficiency.
- Prioritize Lux when designing professional lighting installations.
- Also consider beam angle, CRI, color temperature, and IP rating to ensure the fixture matches its intended application.
