15 Passive Speakers - Point Source Turbosound MC15-R

Name: 15 Passive Speakers - Point Source Turbosound MC15-R
Brand: Turbosound
SKU: HBK60211
Price: 7.96 USD
Availability: InStock
Rating: 4.67 (3 reviews)

MC15-R 15" Passive Speakers - Point Source Turbosound

Product code: MC15-R 28

4.67/5 in 3 times

$2,165.42

Pre-order

Buy Now

Add to cart

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

15" Point Source Close Cluster Array Element for Install and Touring

High power 15" low frequency transducer with lightweight neodymium motor

1 x 1.4" exit coaxial neodymium mid-high compression driver

15" Point Source Close Cluster Array Element for Install and Touring Applications

Shipping informations

Length

81 cm

Width

79 cm

Height

66 cm

Weight

60.4 kg

CERTIFICATE

Music Tribe distributor certificate

Product Features

15" Point Source Close Cluster Array Element for Install and Touring
High power 15" low frequency transducer with lightweight neodymium motor
1 x 1.4" exit coaxial neodymium mid-high compression driver
Integral Asymmetrical Dendritic waveguide for advanced dispersion characteristics
990 Watts continuous, 3,960 Watts peak power
30° horizontal x 0 - 30° asymetrical vertical dispersion
I-Bar & Track suspension system with advanced ergonomic design for rapid deployment and ease of use
Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
Advanced linear phase FIR hybrid processing for exceptional sound quality
IP54 dust and water ingress protection
Weather-resistant enclosure construction with durable semi matte black PU paint finish
Tour grade, NL4M connectors for input and link connection

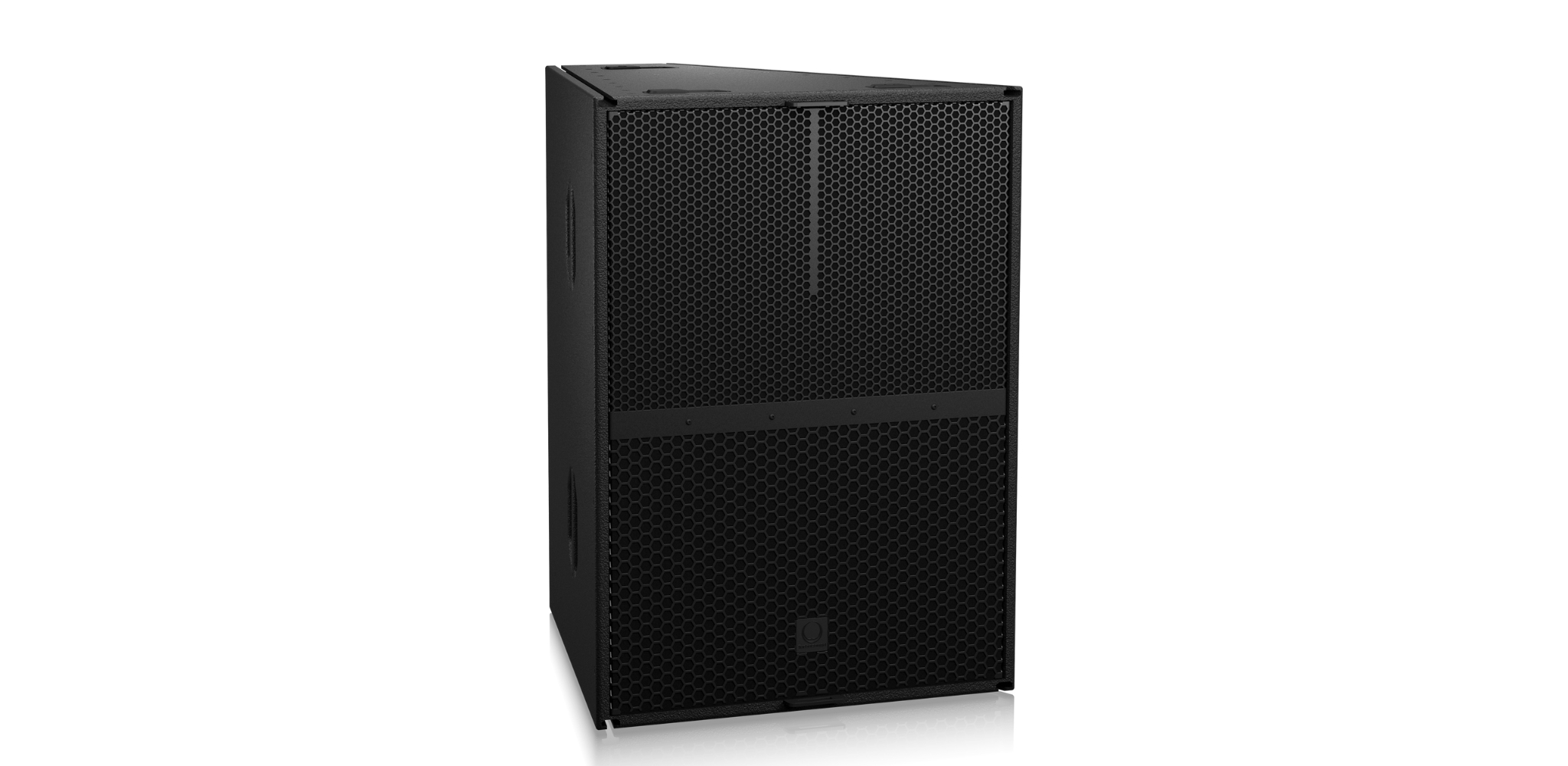

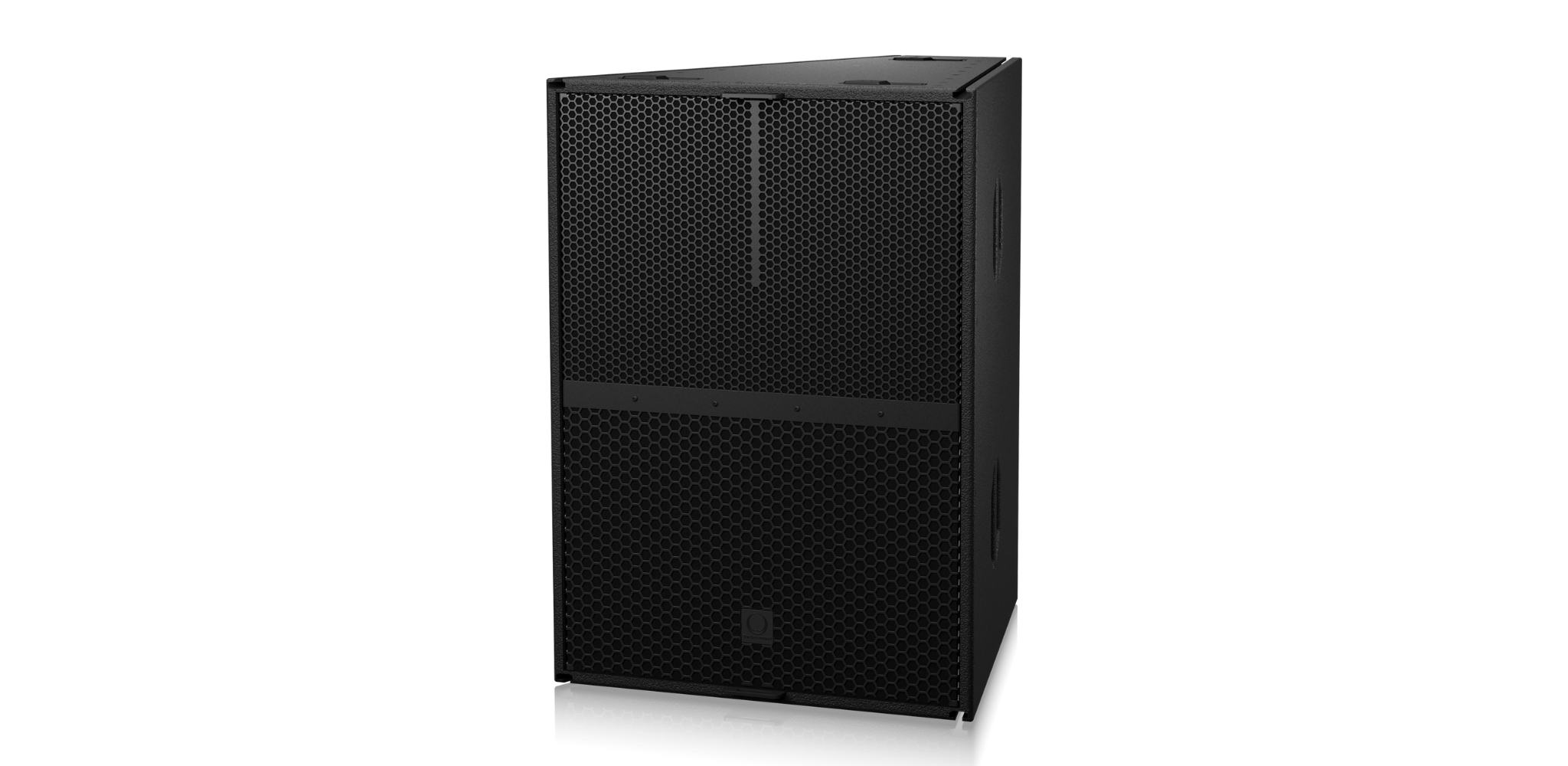

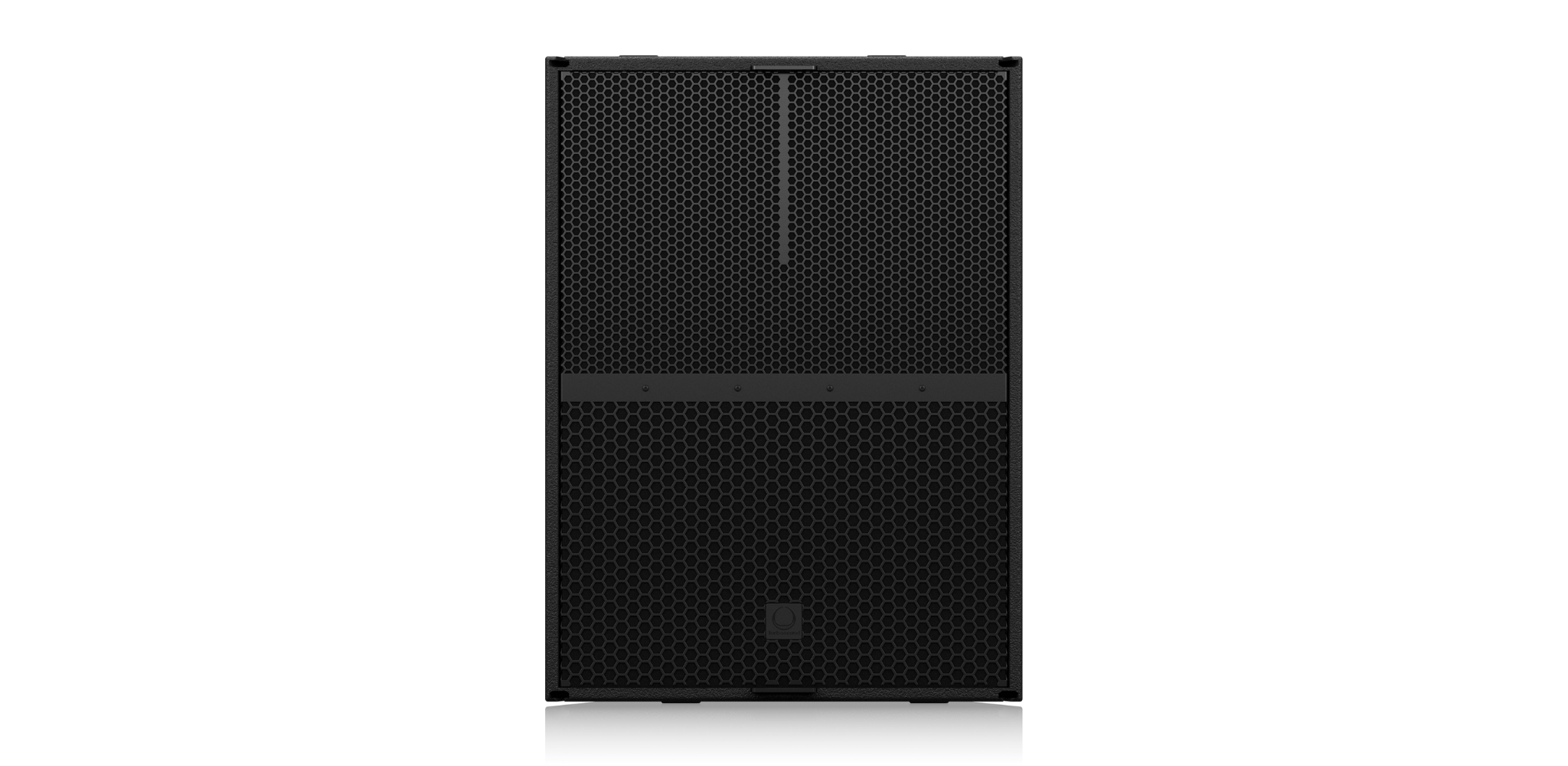

MC15-R

The Bi-amped 3-way full range MC15-R is a compact 15" 990-Watt asymmetrical close cluster array element that is ideally suited to a broad range of speech and music sound reinforcement applications in fixed installation, portable and touring audio systems. The MC15-R is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed specifically for each application – it’s what sets us apart from the competition.

Featuring 15" neodymium cone low frequency drivers and 1 dual concentric MF/HF compression driver, the MC15-R delivers unparalleled clarity and intelligibility in a compact enclosure that belies its impressive performance. Due to its 30° horizontal by 0 to -30° asymmetrical vertical dispersion pattern, the MC15-R provides exact coverage to form close cluster arrays, with unique innovative and loading of the MHF section horn allows horn to horn summation in both horizontal and vertical planes, Arrays of 2 rows of cabinets then give a dispersion 30° horizontal by 60° vertical per column of 2 cabinets. MC15-R arrays can be used as a standalone system with or without subwoofers and in distributed fill applications.

Construction and Connectivity

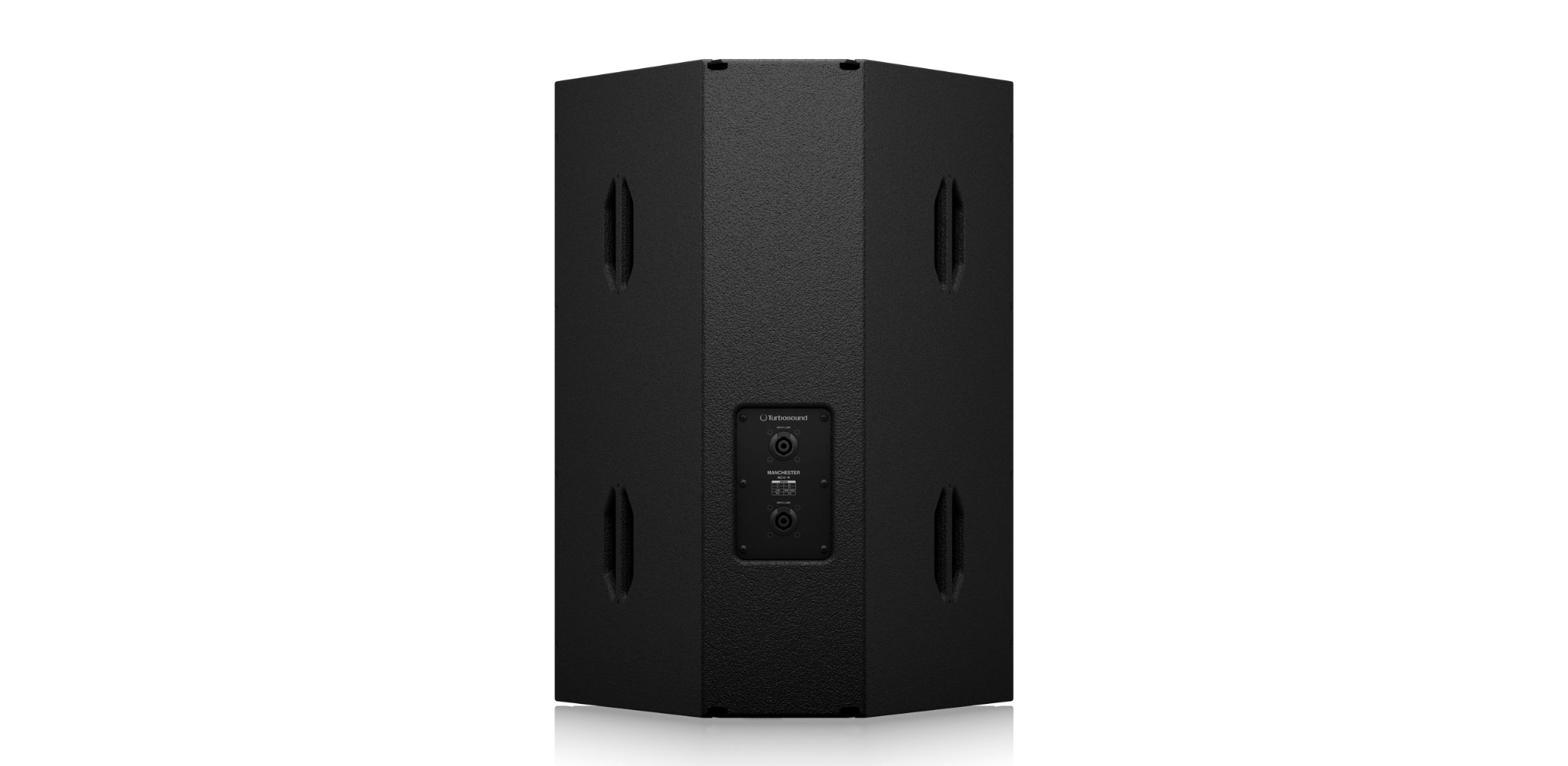

An integral suspension system engineered to meet BGV-C1 specifications is provided for suspending or ground stacking multiple MC15-R elements per hang guided by a WLL safety factor. Designed for speed and simplicity of use, custom-engineered MC15-FB fly-bar, MC15-RS Rigging Set and MC15-RC Rigging Chain Bridle are available as separate accessories. The Manchester MS121, MS215, MS218 subwoofers is specifically designed for use with MC15-R, providing additional low frequency extension and impact for more demanding sound reinforcement applications. Finished in ultra-hard wearing black polyurea, the cabinet is constructed from 15 mm (5/8") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries NL4 connectors for input and link connections to additional enclosures.

Integration with Lab Gruppen PLM+

With the ever-increasing complexity of modern-day line array systems. Seamless integration with the Lab Gruppen PLM+ is a prerequisite for the MANCHESTER series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section.

Acoustic Simulation Tools

EASE GLL files are provided for EASE Focus 3 Acoustic Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and suspension pick point selection for tilting and aiming the array at the desired angle.

Architecture and Engineering Specifications

The loudspeaker shall be of the three-way bi-amp switchable passive type consisting of one 15" (380 mm) LF driver and one 1.4" (36 mm) exit MHF compression driver (MF:4"/100 mm Voice Coil diameter, HF 2.5"/65 mm Voice Coil diameter). Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 55 Hz to 20 kHz and within -10 dB from 39 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 30° H x 0 -30° V. Nominal impedance shall be bi-amp mode: MHF: 12 Ohms, LF: 8 Ohms Power handling shall be MHF: 190 Watts continuous, 760 Watts peak, LF: 800 Watts continuous, 3200 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be MHF: 117.5 dB, 1 Watt @ 1 metre, LF: 101 dB, 1 Watt @ 1 metre. Maximum SPL of 144 dB in Bi-Amp mode (Average Peak level) over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set. Dimensions: 700 high x 522 wide x 648 mm deep (27.6 x 24 x 18.1"). Net weight: 47.2 kg (104.05 lbs). The loudspeaker system shall be the Turbosound MC15-R. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.

Show less

Specification

Thu gọn

System

Frequency response (-3 dB)1	55 Hz - 20 kHz
Frequency response (-10 dB)1	42 Hz - 20 kHz
Nominal dispersion @ -6 dB points	30 degrees (H) x 0/-30 degrees (V)
Power handling ((IEC) PASSIVE)	LF: 800 W continuous, 3200 W peak MHF: 190 W continuous, 380 W peak Combined: 990 W continuous, 3960 W peak
Sensitivity	LF: 102 dB (1 W @ 1 m) ² MHF: 114.5 dB (1 W @ 1 m) ²
Maximum SPL (FR)	144 dB ³
Impedance	LF: 8 Ω MHF: 12 Ω
Crossover type	External bi-amp
Components	1 x 15" (380 mm) LF driver 1 x 1.4" (35 mm) exit, large format dual compression driver
IP Rating	IP54
UV Rating	4-5 (ASTM G155)

Enclosure

Connectors	2 x NL4M
Wiring	Bi-amp mode: Pins 1+ / 1- LF, pins 2+ / 2- MHF
Dimensions H x W x D	700 x 522 x 648 mm (27.6 x 24 x 18.1")
Net weight	47.2 kg (104.05 lbs)
Construction	12 mm and 15 mm (1/2" and 5/8") plywood
Finish	Black textured PU paint
Grille	Powder coated perforated steel
Flying hardware	Rail and track custom

Accessories (Optional)

Fly bar	MC15-FB, weight 14.9 kg (32.8 lb)
Rigging system	MC15-RS, weight 3.33 kg (7.34 lb)
Rigging chain	MC15-RC, weight 1.42 kg (3.13 lb)
Wheel board	MC15-WB, weight 9.82 kg (21.6 lb)

Average over stated bandwidth. Measured at 1 metre on axis.
SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated pre-set.
Average Peak level over overlap bandwidth. Measured at 1 metre on axis with dedicated pre-set.
