Passive Subwoofer Turbosound MS121

Name: Passive Subwoofer Turbosound MS121
Brand: Turbosound
SKU: HBK49011
Price: 9.58 USD
Availability: InStock
Rating: 4.67 (3 reviews)

MS121 Passive Subwoofer Turbosound

Product code: MS121 3,304

4.67/5 in 3 times

$2,511.2

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Cardioid-arrayable, reflex loaded single 21" subwoofer for touring and installation applications

2000 Watts continuous, 8,000 Watts peak power

21" neodymium low Frequency transducer

Single 21" Reflex Loaded Subwoofer for Touring and Installation Applications

Shipping informations

Length

94 cm

Width

90.5 cm

Height

72.5 cm

Weight

94.2 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Cardioid-arrayable, reflex loaded single 21" subwoofer for touring and installation applications
2000 Watts continuous, 8,000 Watts peak power
21" neodymium low Frequency transducer
Ergonomic 4-point suspension system allows rapid deployment in either orientation
Suspend up to 9 MS121 elements at 10:1 safety factor
Designed for suspension with MV210-HC line array elements in mixed arrays
Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
Flexible cardioid configurations and electronic delay steering provide superior rear rejection and pattern control
Optimized tuning for extended low frequency impact and accurate transient response
Integral feet and recesses combined with suspension system accessories facilitate secure ground stacking
Integral M20 (3/4" / 20 mm thread) pole mount socket to support satellite speaker configurations
21 mm (8/10”) &18 mm (3/4") Baltic birch enclosure with extremely durable semi matte black paint finish
Tour grade Neutrik SpeakON* STX NL4 rear panel connector for input connection
Front-mounted NL4 connector for rear-firing cardioid operation

MANCHESTER MS121

The MS121 is a compact passive single 21" 8,000 Watt (peak) subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable and touring audio systems. The MS121 is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as considerable flexibility to readily adapt to varying venue requirements. Its four-point rigging system allows for an array of multiple configurations and all pre-sets are available to download.

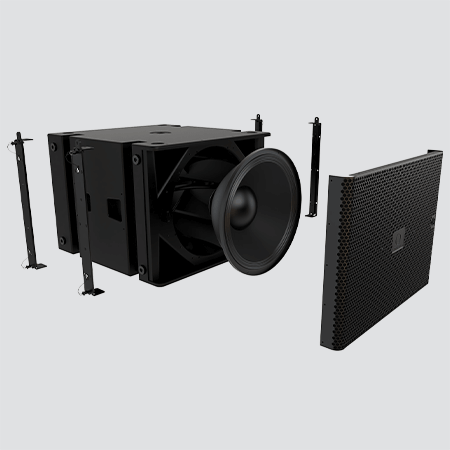

Custom-Engineered Drivers

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers designed by ourselves or to our exacting standards.

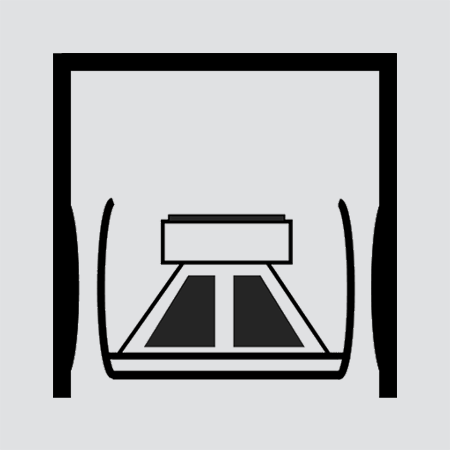

Enclosure Design

The low distortion design utilised in the MS121 reinforces the low frequency spectrum in program or live music, steep cut-off slopes and DLP Technology (Diverging Laminar Port) ensure an effective acoustic transition for use with MV210-HC and other Manchester series elements. For low-frequency bass extension, the recommended cabinet ratio consists of one MS121 subwoofer per one Manchester Array element. Cardioid and End-Fire pre-sets are available for all Manchester series subwoofers in Lake Load Library.

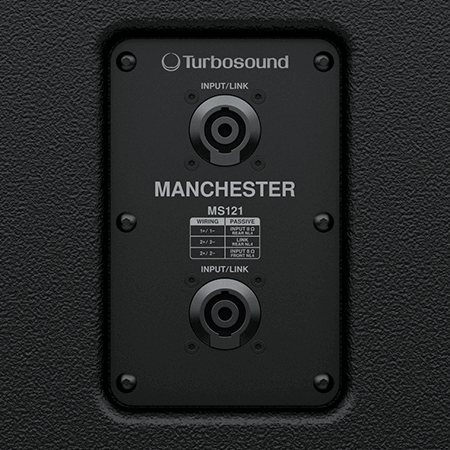

Construction and Connectivity

An integral suspension system engineered to meet BGV-C1 specifications is provided for suspending or ground stacking MS121 and MV210-HC elements with a 10:1 safety factor. Designed for speed and simplicity of use, custom-engineered fly grinds and wheel boards are available as separate accessories. Finished in a ultra-hard wearing polyurea black coating, the cabinet is constructed from 18 mm (3/4") & 21 mm (7/8”) birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

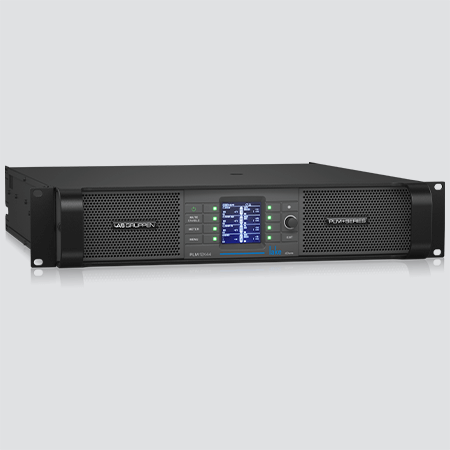

Integration with Lab Gruppen PLM+

With the ever-increasing complexity of modern-day line array systems. Seamless integration with the Lab Gruppen PLM+ is a prerequisite for the MANCHESTER series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section.

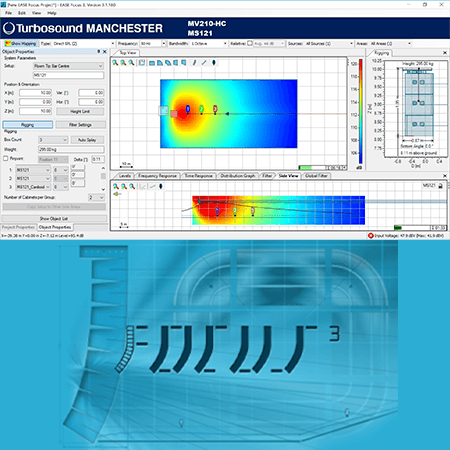

Acoustic Simulation Tools

EASE GLL files are provided for the EASE Focus 3 Acoustics Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and selection of suspension pick point for tilting and aiming the array at the desired angle.

Architecture and Engineering Specifications

The loudspeaker shall be of the passive subwoofer type, consisting of one 21" (530 mm) LF drivers. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 25 Hz to 95 Hz and within -10 dB from 20 Hz to 200 Hz. Nominal dispersion shall be “half space.” Maximum amplifier output power shall be 4,000 Watts peak, Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be LF: 97 dB, 1 Watt @ 1 metre. Peak level at 1 m under half space conditions using IEC 268-5 pink noise with crest factor 4, with dedicated pre-set, shall be 142 dB. Dimensions: 599 mm high x 777 mm wide x 800 mm deep (23.6 x 30.6 x 31.5”). Net weight: 87.4 kg (192.7 lbs). The loudspeaker system shall be the TURBOSOUND MS121. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equalled or exceeded.

Specification

System

Frequency response (-3 dB) ¹	25 Hz - 95 Hz
Frequency response (-10 dB) ¹	20 Hz - 200 Hz
Nominal dispersion	Omni
Power handling (IEC)	2000 W continuous
Sensitivity	97 dB (1 W @ 1 m)²
MaximumSPL	142 dB ⁴
Impedance	8 Ω
Components	1 x 21" (530 mm) LF driver
IP Rating	54
IP Rating	6

Enclosure

Connectors	3 x speakON NLT4MP STX
Wiring	Pins 1+ / 1- LF, pins 2+ / 2- LINK (Front Pins 2+ / 2- only)
Dimensions H x W x D	599 x 777 x 800 mm (23.6 x 30.6 x 31.5")
Net weight	87.4 kg (192.7 lbs)
Construction	Mix 21 mm and 18 mm marine birch plywood, vented and internally braced
Finish	Polyurethane black, with custom colours on request
Grille	Powder coated perforated steel
Flying hardware	4 point rigging system
