Line Array Speaker Turbosound MV210-HC

Name: Line Array Speaker Turbosound MV210-HC
Brand: Turbosound
SKU: HBK49109
Price: 10.19 USD
Availability: InStock
Rating: 4.67 (3 reviews)

MV210-HC Line Array Speaker Turbosound

Product code: MV210-HC 2,990

4.67/5 in 3 times

$2,628.45

In stock

Buy Now

Add to cart

Warranty 24 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Full size, dual 10" biamplified 3-way hybrid curve array element for installation and touring applications

Dual 10" low frequency transducers with lightweight neodymium motors

1 x 1.4" coaxial neodymium mid-high compression drivers

Dual 10" Full Size Hybrid Curve Line Array Element for Touring and Install Applications

Shipping informations

Length

82.5 cm

Width

66 cm

Height

41 cm

Weight

39.1 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Full size, dual 10" biamplified 3-way hybrid curve array element for installation and touring applications
Dual 10" low frequency transducers with lightweight neodymium motors
1 x 1.4" coaxial neodymium mid-high compression drivers
Integral Dendritic Plane Wave Transformer (DPWT) waveguides for perfect line source coupling in the vertical plane
990 Watts continuous, 3,960 Watts peak power
100° horizontal x 0 - 20° variable vertical curvature
3 way bi-amplified operation
Seamless integration with Lab Gruppen amplifiers and Lake DSP for a complete system solution
Advanced linear phase FIR hybrid processing for exceptional sound quality
3-point suspension system with advanced ergonomic design for extremely rapid deployment and ease of use
Suspend up to 12 MV210-HC elements at 10:1 safety factor
Weather-resistant enclosure construction with durable semi matte black paint finish
Tour grade Neutrik SpeakON* STX NL4 connectors for input and link connection

MV210-HC

The Bi-amped 3-way full range MV210-HC is a compact dual 10" 990-Watt line array element that is ideally suited to a broad range of speech and music sound reinforcement applications in fixed installation, portable and touring audio systems. The MV210-HC is designed to work in conjunction with Lake DSP and Lab Gruppen amplification, providing optimal FOH performance, as well as offering considerable flexibility to readily adapt to varying venue requirements.

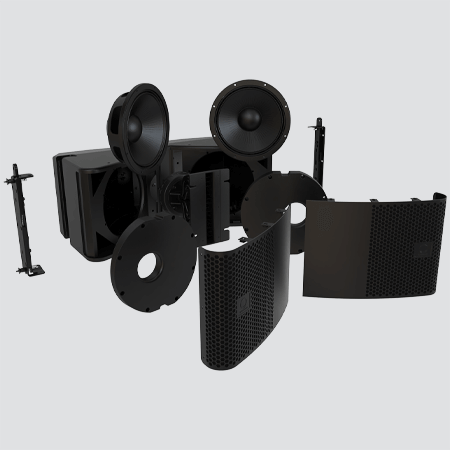

Custom-Engineered Drivers

Turbosound is recognized the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilizing only drivers designed specifically for each application – it’s what sets us apart from the competition.

Featuring two 10" neodymium cone low frequency drivers and 1 dual concentric MF/HF compression driver, the MV210-HC delivers unparalleled clarity and intelligibility in a compact enclosure that belies its impressive performance. Due to its broad 100° horizontal by 20° vertical dispersion pattern, the MV210-HC provides exceptional coverage in wide rooms and in distributed fill applications.

Construction and Connectivity

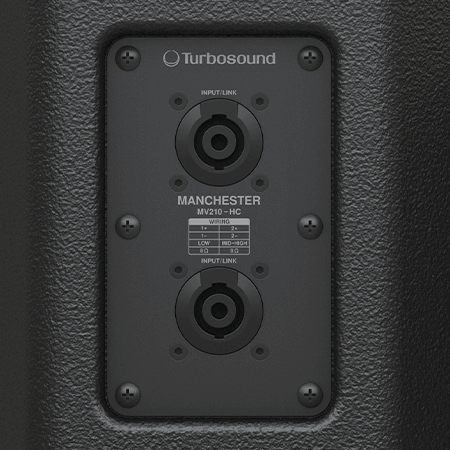

An integral suspension system engineered to meet BGV-C1 specifications is provided for suspending or ground stacking multiple MV210-HC elements per hang guided by a WLL safety factor. Designed for speed and simplicity of use, custom-engineered fly-grids are available as separate accessories. The companion MS121 Single 21" subwoofer is specifically designed for use with MV210-HC, providing additional low frequency extension and impact for more demanding sound reinforcement applications. Finished in ultra-hard wearing black polyurea, the cabinet is constructed from 15 mm 5/8") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Integration with Lab Gruppen PLM+

With the ever-increasing complexity of modern-day line array systems. Seamless integration with the Lab Gruppen PLM+ is a prerequisite for the MANCHESTER series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section.

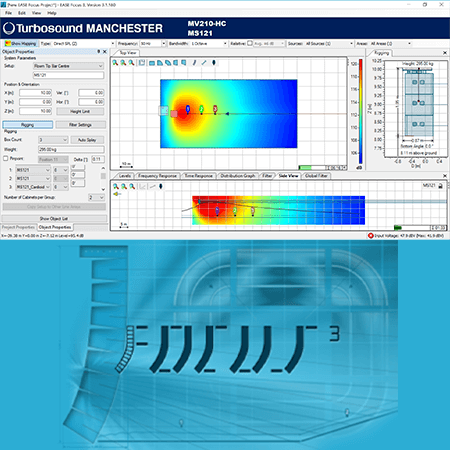

Acoustic Simulation Tools

EASE GLL files are provided for EASE Focus 3 Acoustic Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and suspension pick point selection for tilting and aiming the array at the desired angle.

Architecture and Engineering Specifications

The loudspeaker shall be of the three-way bi-amp passive type consisting of two 10" (250 mm) LF drivers and one 1.4" (36 mm) exit MHF compression driver (MF:4”/100mm Voice Coil diameter, HF 2.5”/65mm Voice coil diameter). Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 55 Hz to 20 kHz and within -10 dB from 38 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 100° H x 20° V. Nominal impedance shall be MHF: 12 Ohms, LF: 8 Ohms. Power handling shall be MHF: 190 Watts continuous, 760 Watts peak, LF: 800 Watts continuous, 3200 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be MHF: 117.5 dB, 1 Watt @ 1 metre, LF: 101 dB, 1 Watt @ 1 metre. Maximum SPL of 144 dB (Average Peak level over overlap bandwidth. Measured at 1 metre on axis with dedicated pre-set). Dimensions: 295 high x 715 wide x 545 mm deep (11.6 x 28.1 x 21.5"). Net weight: 35.5 kg (78.3 lbs). The loudspeaker system shall be the Turbosound MV210-HC. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.

Specification

System

Frequency response (-3 dB) ¹	58 Hz - 20 kHz
Frequency response (-10 dB) ¹	42 Hz - 20 kHz
Nominal dispersion	100 degrees (H) x 20 degrees (V)
Power handling (IEC)	LF: 800 W continuous MHF: 190 W continuous
Sensitivity	LF: 102 dB (1 W @ 1 m) ² MHF: 114.5 dB (1 W @ 1 m) ²
MaximumSPL	144 dB ³
Impedance	LF: 8 Ω MHF: 12 Ω
Crossover type	External bi-amp
Components	2 x 10" (250 mm) LF driver 1 x 1.4" (35 mm) exit, large format dual compression driver
IP Rating	54
UV Rating	6

Enclosure

Connectors	2 x speakON NLT4MP STX
Wiring	Pins 1+ / 1- LF, pins 2+ / 2- MHF
Dimensions H x W x D	295 x 715 x 545 mm (11.6 x 28.1 x 21.5")
Net weight	35.5 kg (78.3 lbs)
Construction	15 mm (enclosure) and 18 mm (front) marine birch plywood, vented and internally braced
Finish	Polyurethane black, with custom colours on request
Grille	Powder coated perforated steel
Flying hardware	3 point rigging system
