NBB75DFI BNC chassis connector Neutrik

Name: BNC chassis connector Neutrik NBB75DFI
Brand: Neutrik
SKU: HBK50963
Price: 0.03 USD
Availability: InStock
Rating: 4.67 (3 reviews)

Product code: NBB75DFI 2,932

4.67/5 in 3 times

$7.37

Plus $34.13 shipping UPS

Plus $36.62 shipping FedEx

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

True 75 Ω design meets the stringent HD requirements

Standard D-shape housing - provides flush mounting and protection from demage

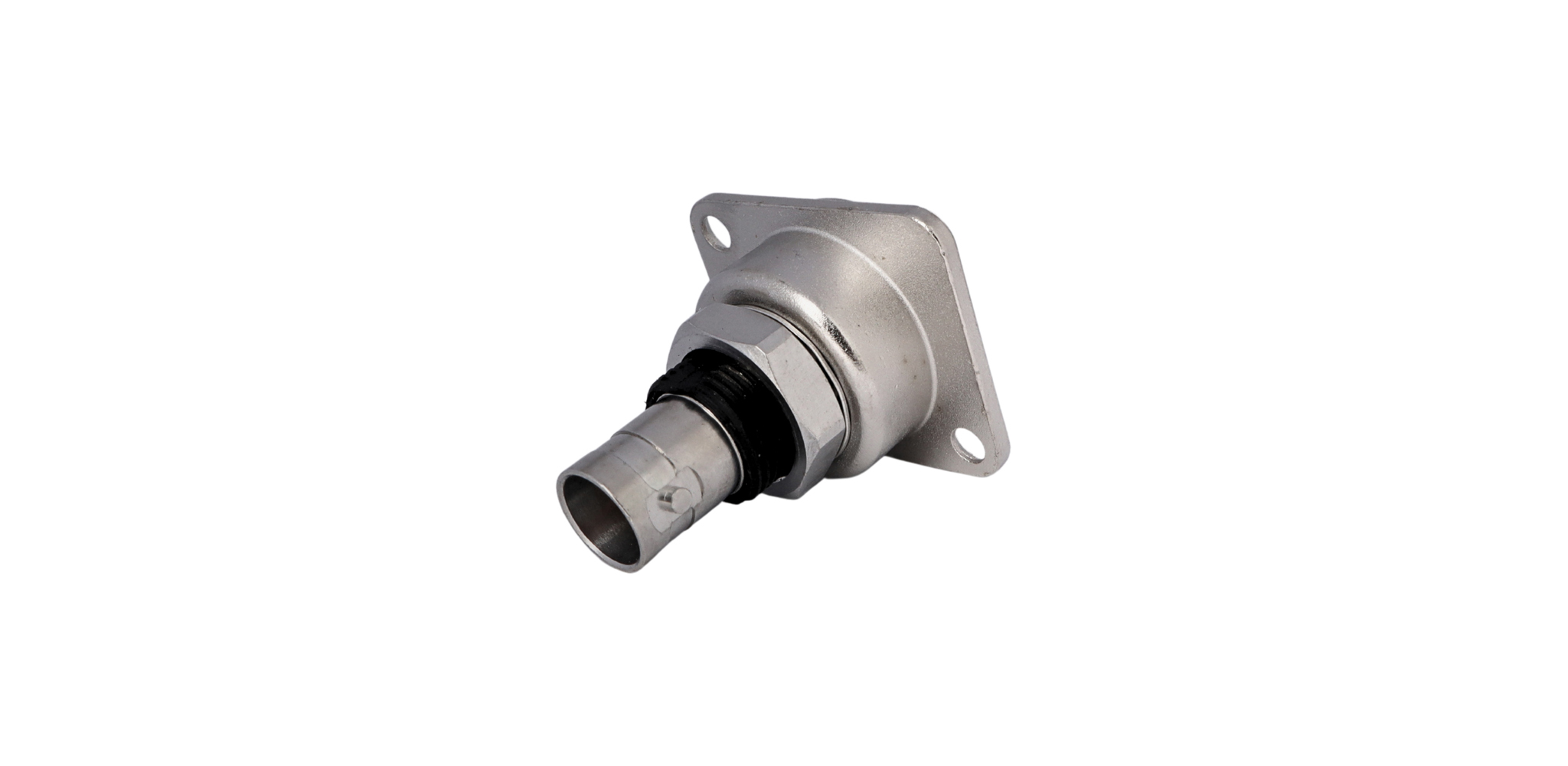

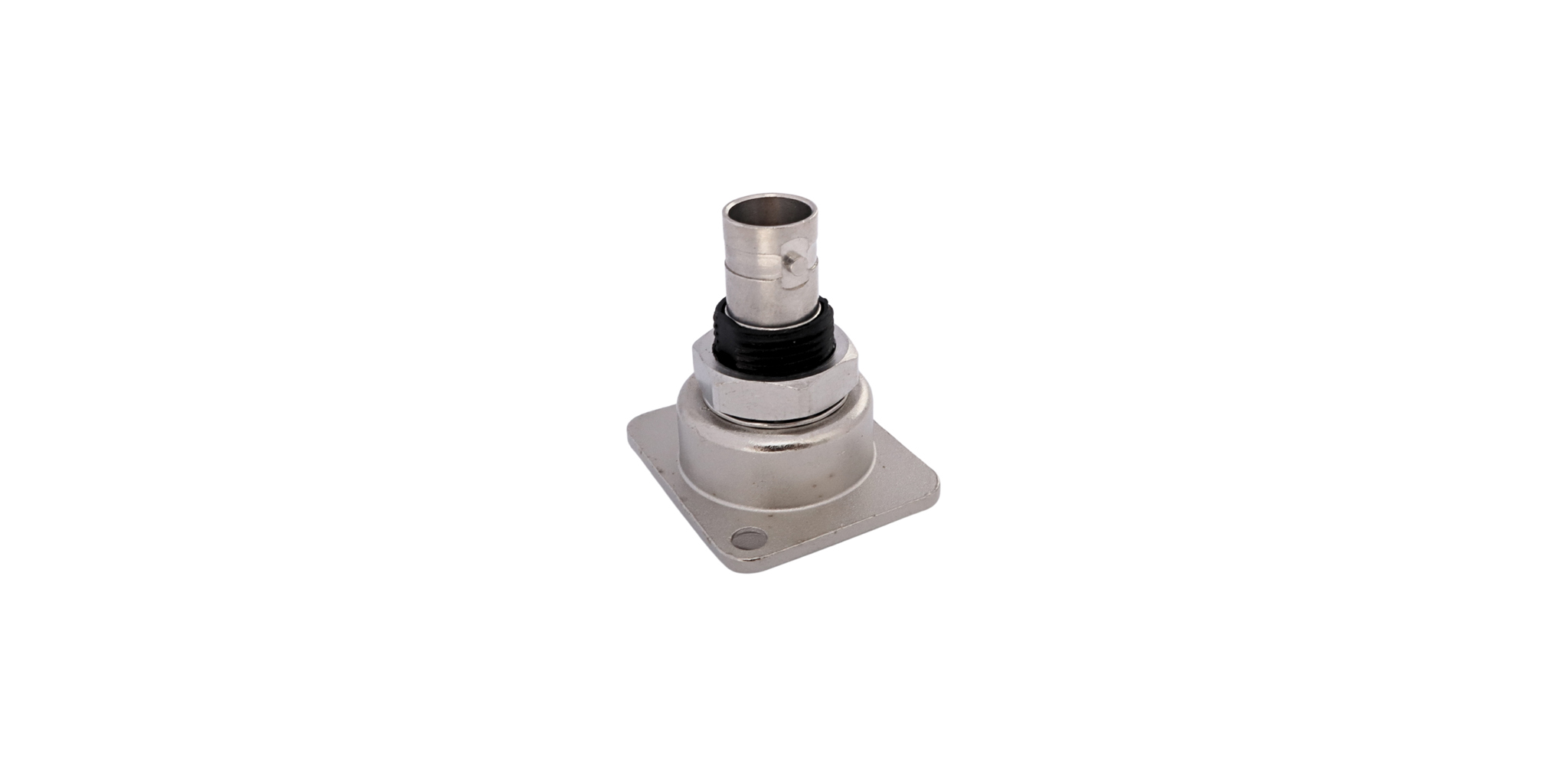

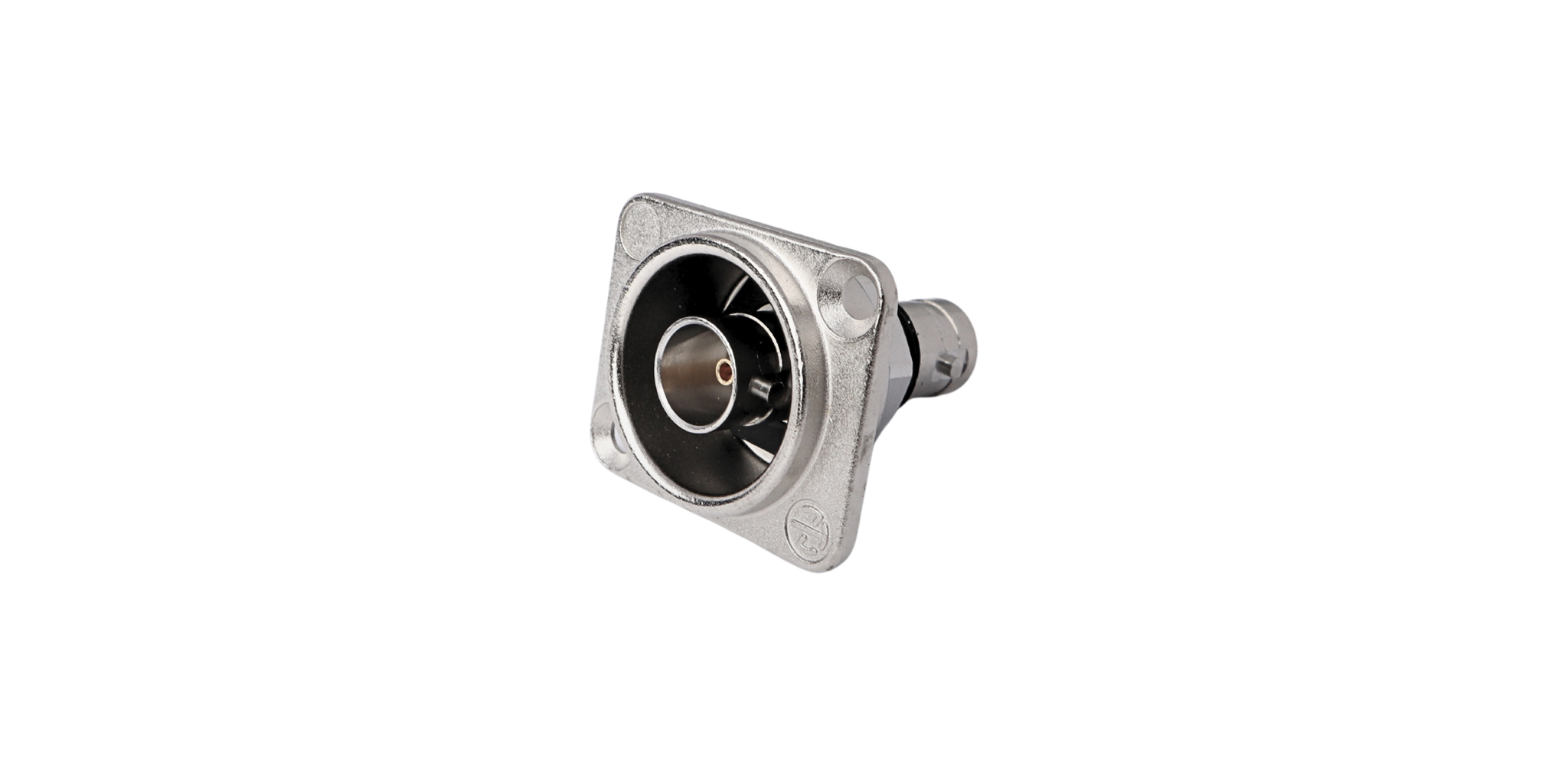

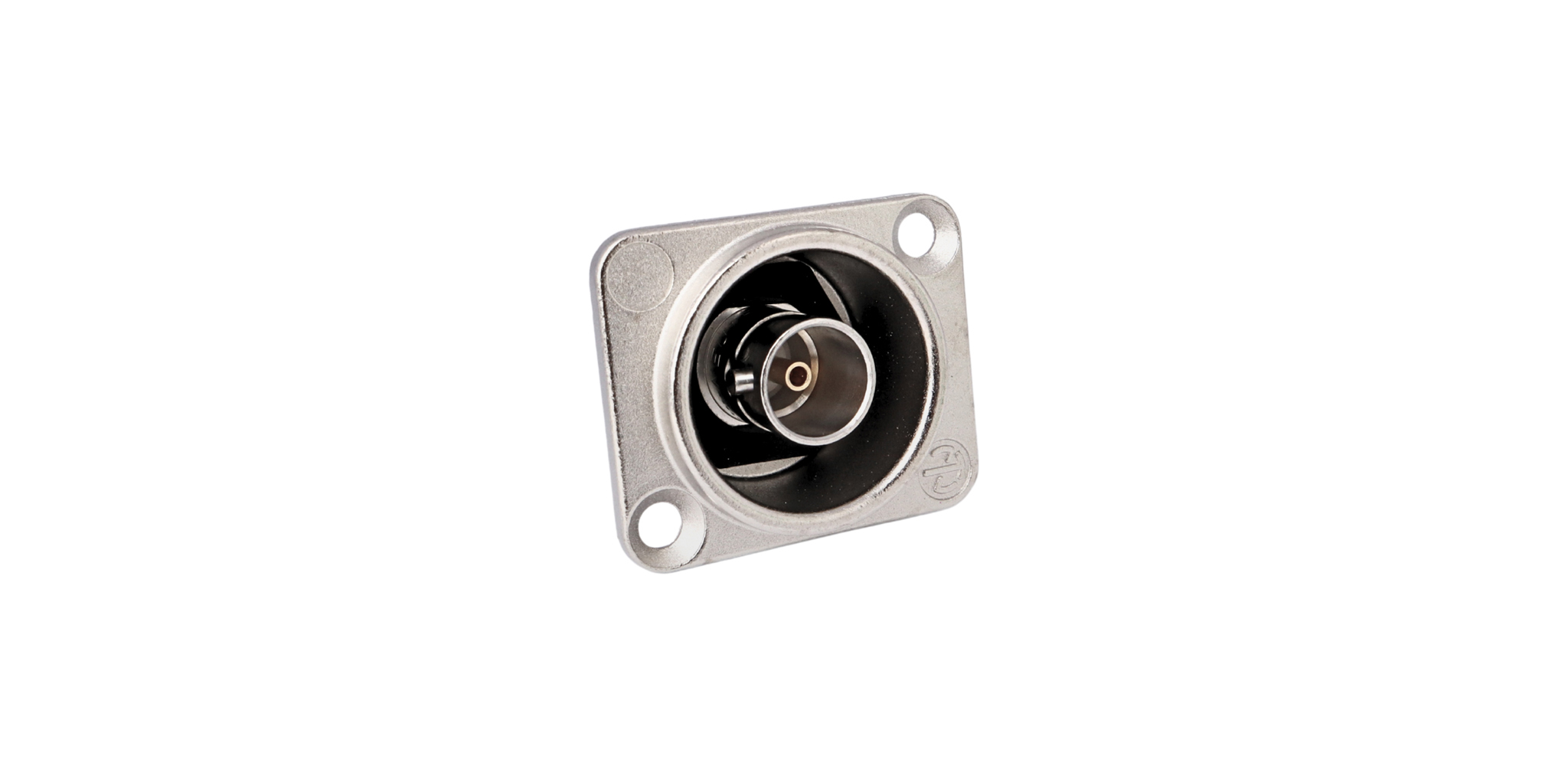

Isolated BNC chassis connector, feedthrough in nickel D-shape housing. Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Shipping informations

Length

12 cm

Width

12 cm

Height

5 cm

Weight

0.4 kg

CERTIFICATE

Neutrik distributor certificate

Features & Benefits

Gold plated cage type center contact
True 75 & OMEGA; design meets the stringent HD requirements
Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
Standard D-shape housing - provides flush mounting and protection from demage

New cage type contact

Closed contact design - extremely robust
Gold plated cage type clip - best possible shielding and lowest contact resistance

Technical Information

Product
Title	NBB75DFI
Connection Type	BNC 75 Ω
Gender	female

Electrical
Signal Type	HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance	≤ 3 mΩ (inner)
Contact resistance	≤ 2 mΩ (outer)
Dielectric strength	1,5 kVdc
Impedance	75 Ω
Insulation resistance	> 5 GΩ
Rated voltage	<50 V
VSWR	≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz

Mechanical
Insertion force	< 25 N
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Bayonett
Mounting direction	Front mounting
Chassis shape	D

Material
Contacts	Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert	PTFE
Shell	Polyacetal (POM) (Insulation Sheell)
Shell plating	Optalloy®
D-Shape housing	Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental
Temperature range	-30 °C to +85 °C

BNC Jack video Jack Neutrik
