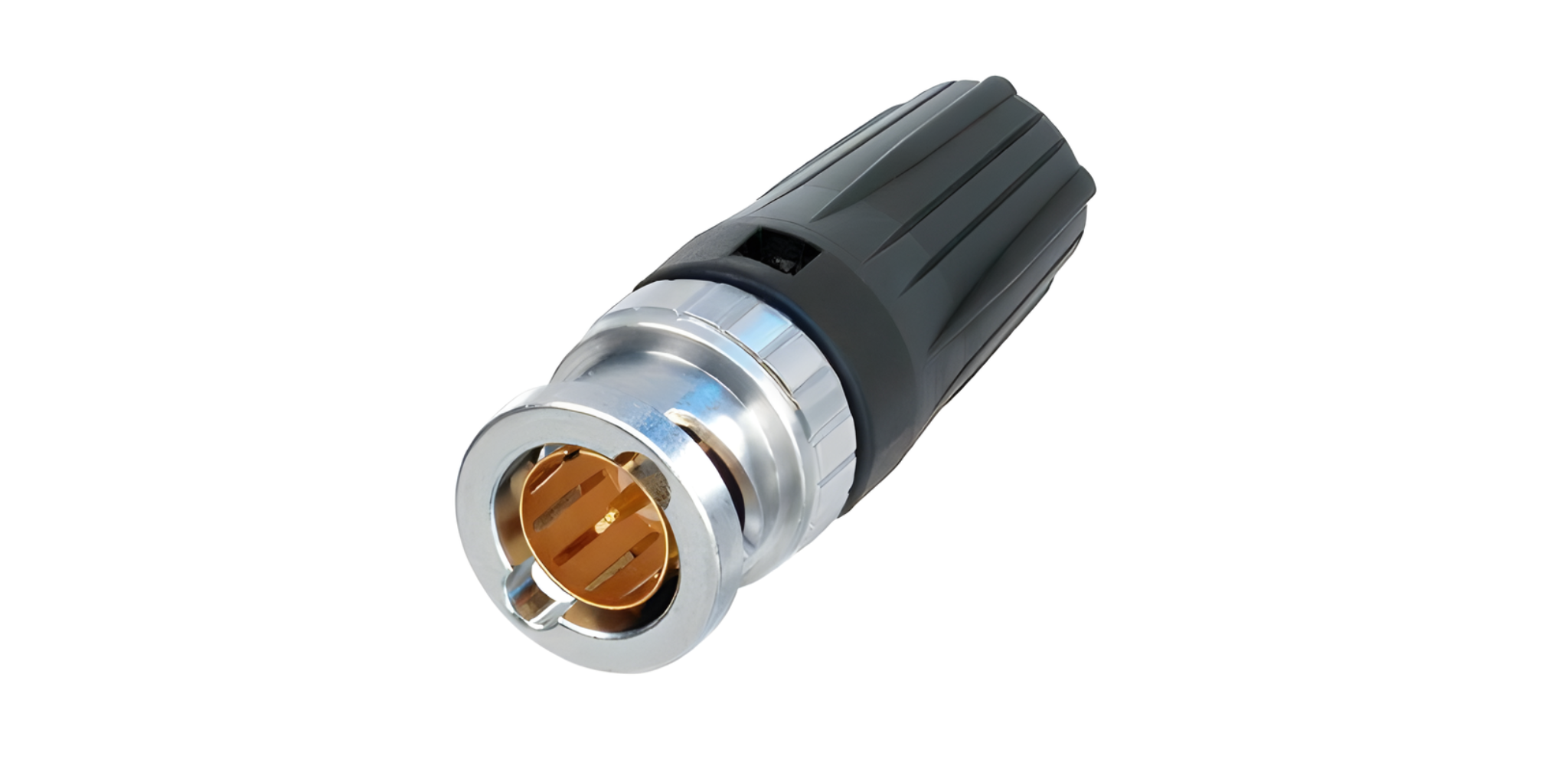

rearTWIST HD BNC Cable Connector is designed with true 75 & OMEGA; impedance, fully suitable for HD applications. The patented rearTWIST boot allows easy handling even in high-density connection environments, while supporting color coding for quick identification.
Compatible cables: Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95
Crimp size:
- Pin: 1.6 mm (square)
- Shield: 6.47 mm (hex)
Features & Benefits
- "rearTWIST" principle: easy lock/unlock via flexible boot (Patented DE 100 48507).
- Ideal for wall panels or deep enclosures where front access to the connector is difficult, with rear-side twisting design.
- True 75 & OMEGA; design meets strict HDTV / DVD standards.
- Leading area guides prevent misalignment and protect contacts.
- Minimum 1,000 mating cycles.
- Snug-fit center pin provides clear tactile feedback on connection.
- Crimp technology for shield & jacket prevents exposed ground wires.
- Excellent cable retention and protection.
- Precision brass components manufactured in Switzerland for superior durability.
- Accessories included: color-coded boots, crimp tool, and crimp dies.
Technical Information
Category
| Category |
Detail |
| Product type |
BNC 75 & OMEGA; – male |
| Product code |
NBNC75BLP7 |
Electrical Specifications
| Parameter |
Value |
| Contact resistance (inner) |
≤ 3 mΩ |
| Contact resistance (outer) |
≤ 2 mΩ |
| Dielectric strength |
1.5 kVDC |
| Impedance |
75 Ω |
| Insulation resistance |
> 5 GΩ |
| Rated voltage |
< 50 V |
| VSWR |
≤1.050 / >32 dB up to 1 GHz
≤1.065 / >30 dB up to 2 GHz
≤1.100 / >26 dB up to 3 GHz |
Mechanical Specifications
| Parameter |
Value |
| Cable diameter |
6.3 mm |
| Cable retention |
> 30 N (Center) |
| Crimp shield |
6.47 mm – hex crimp (IEC 60803 – die E) |
| Crimp pin |
1.6 mm – square crimp (IEC 60803 – die 2) |
| Insertion force |
< 25 N |
| Lifespan |
> 1,000 mating cycles |
| Locking mechanism |
Bayonet |
| Cable fixation |
Jacket crimping |
Materials
| Part |
Material |
| Center contact |
Brass (CuZn35Pb2), gold- COBALT plated 0.2 µm |
| Insulator |
PTFE |
| Outer shell |
Brass (CuZn39Pb3) |
| Outer plating |
Optalloy® |
Environmental
| Parameter |
Value |
| Operating temperature |
-30 °C to +85 °C |
| Crimping compliance |
Complies with IEC 60803 & IEC 60352-2 |
