NL8MPRXX 8 pole male speakON chassis connector Neutrik

Q: Which brand does NL8MPRXX belongs to?

NL8MPRXX belongs to Neutrik . Neutrik provides the world's leading connectivity solutions: XLR, PowerCON, SpeakON, BNC, and Data jacks. Genuine Swiss quality, 24-month warranty, distributed by Hoàng Bảo Khoa (HBK).

Q: How long is the warranty of NL8MPRXX?

NL8MPRXX is 0 months of warranty.

Product code: NL8MPRXX 2,251

4.67/5 in 3 times

$7.37

Plus $34.13 shipping UPS

Plus $36.62 shipping FedEx

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

Airtight design – optimized for speaker applications

The receptacles are robust, versatile and easy to terminate.

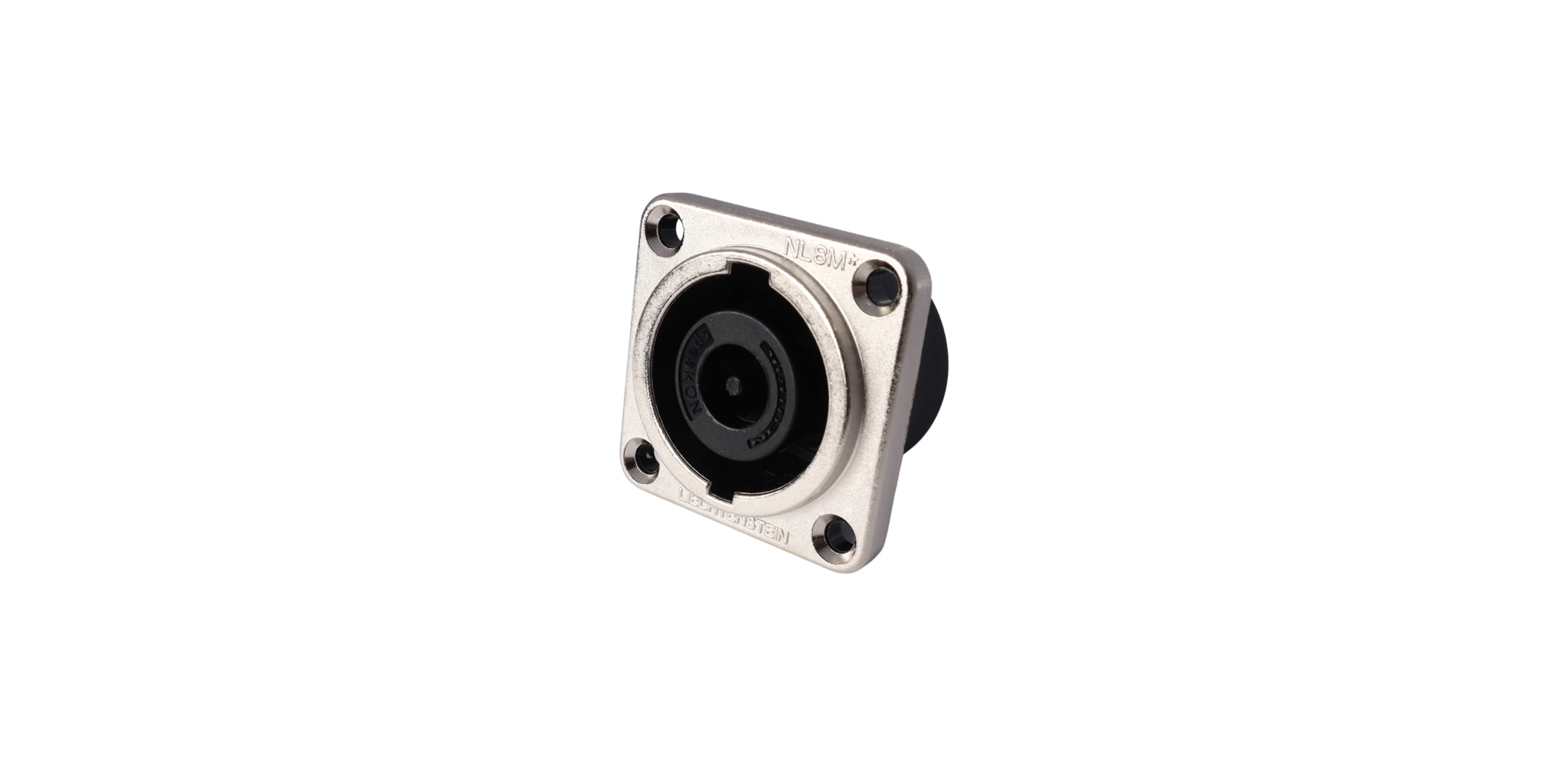

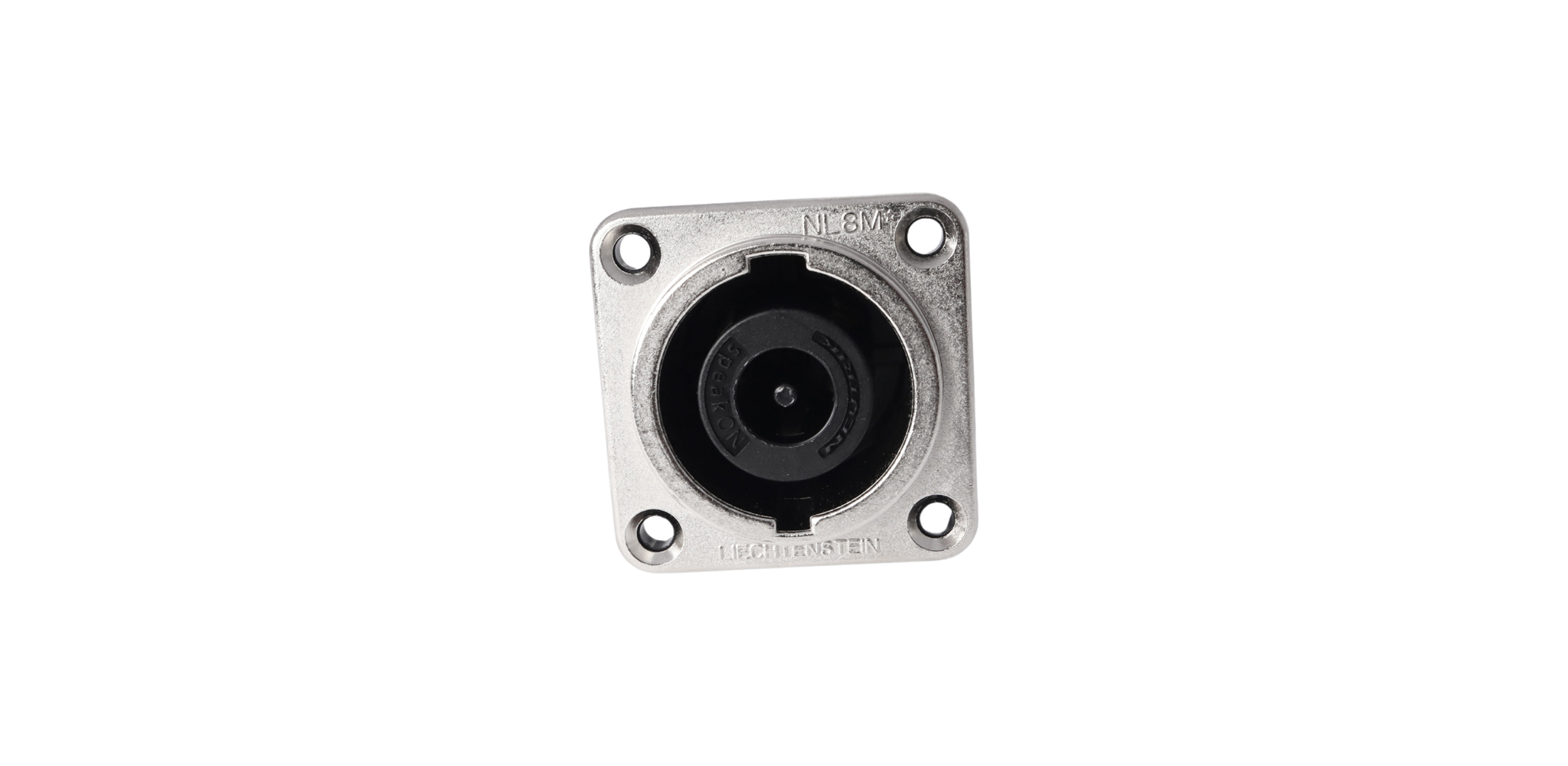

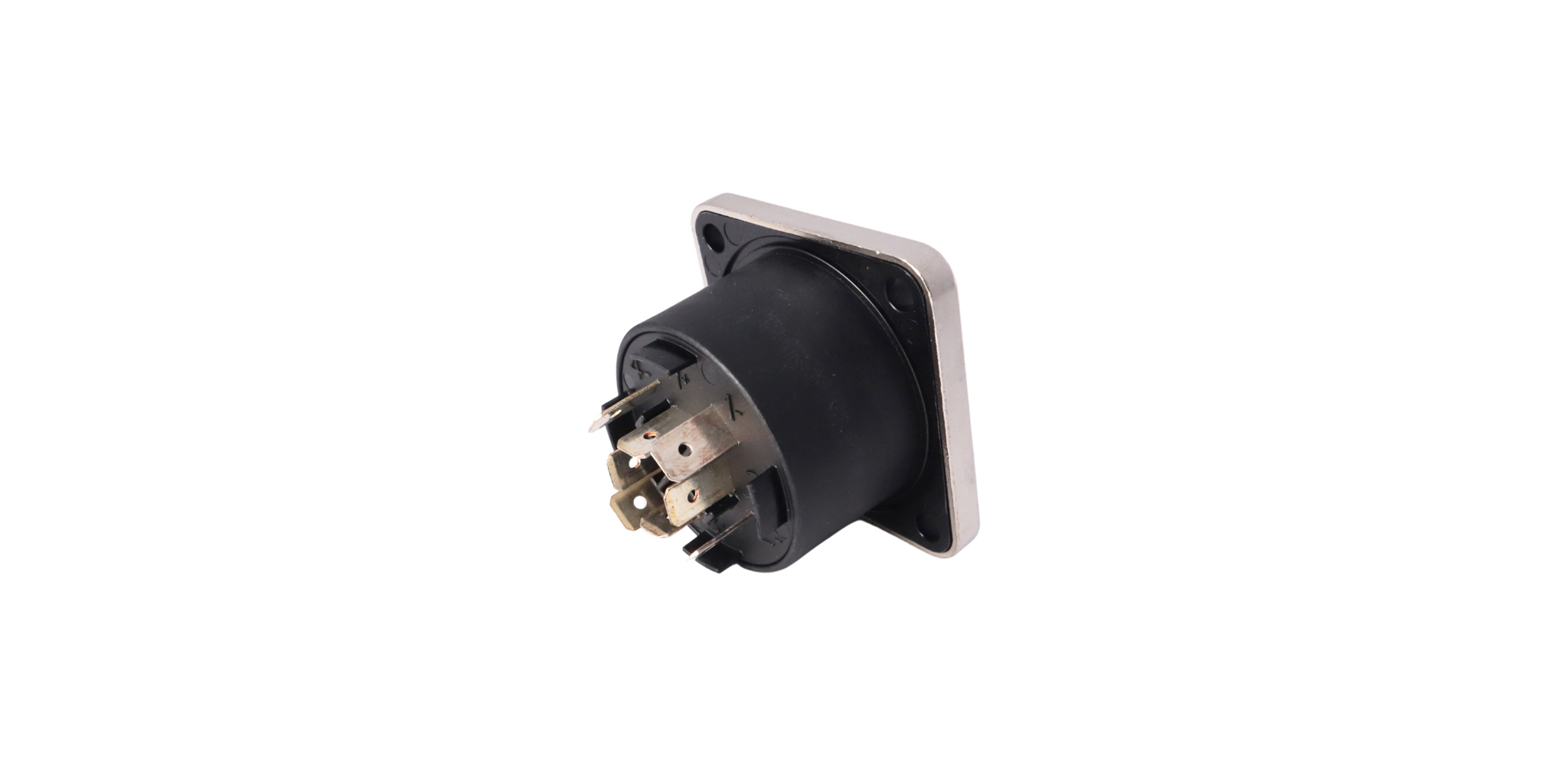

8 pole male chassis connector, metal square G-size housing, countersunk thru holes, 3/16“ flat tabs. This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.

Shipping informations

Length

12 cm

Width

12 cm

Height

5 cm

Weight

0.4 kg

CERTIFICATE

Neutrik distributor certificate

Features & Benefits

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Current rating 30 A rms
Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
Precise keyway for secure mating
Airtight design – optimized for speaker applications

Technical Information

Product
Title	NL8MPRXX
Gender	male

Electrical
Contact resistance	≤ 2 m& OMEGA;
Dielectric strength	1.5 kVac
Insulation resistance	> 0.1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous (acc. to IEC 61984)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Mechanical
Lifetime	> 5000 mating cycles

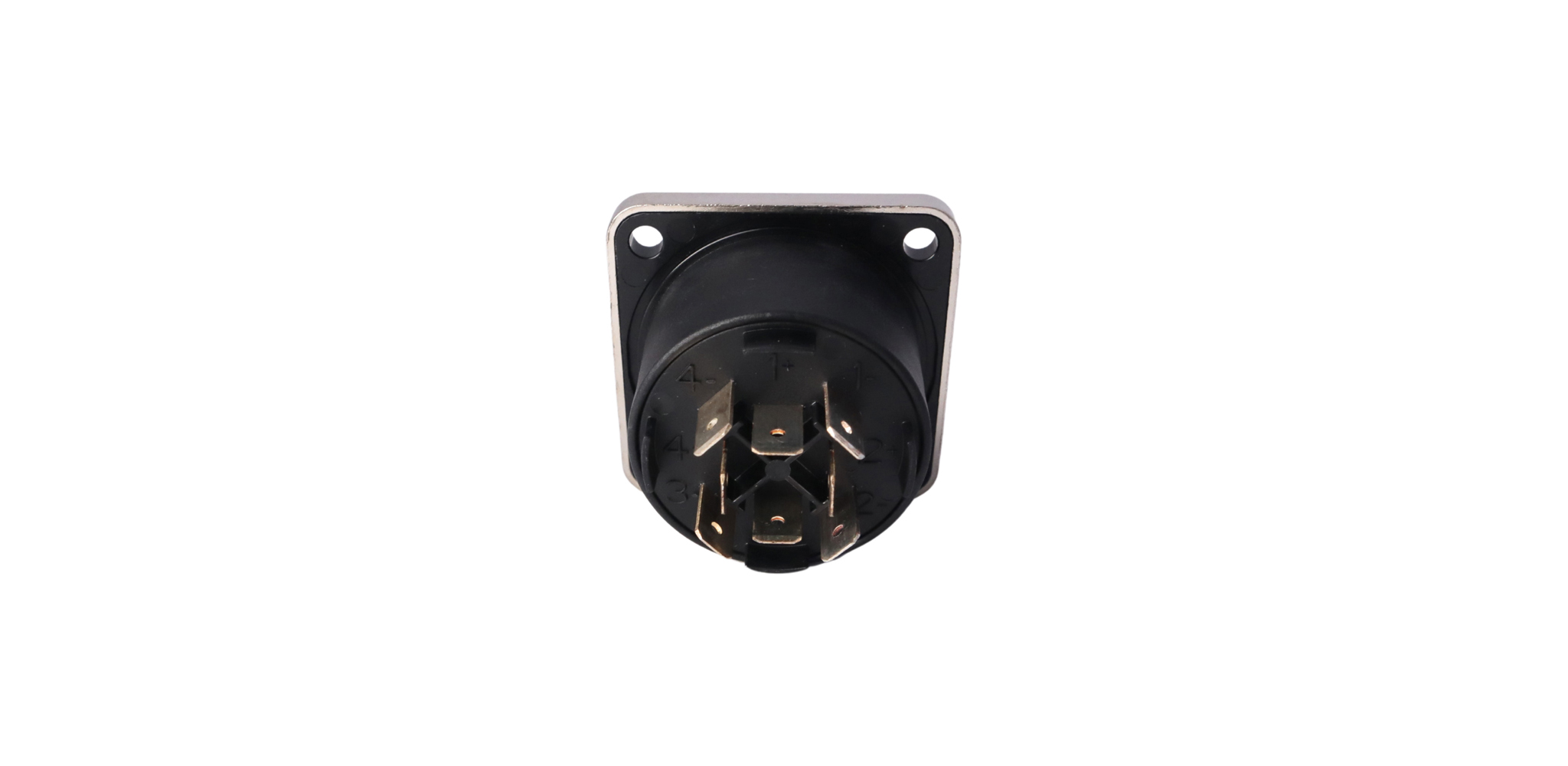

Termination	3/16" flat tabs
Locking device	Quick Lock
Mounting direction	Rear / front mounting
Chassis shape	square G-size flange
Layout	four thru holes

Material
Contact plating	Ag
Contacts	Copper Alloy
Shell	Zinc diecast, Nickel plated
Insert	Polyamide (PA 6.6)

Environmental
Temperature range	-30 °C to +80 °C
Flammability	UL 94 V-0
