Home Page » Audio » SpeakON Audio » NLT8MXX-BAG 8 pole male speakON cable connector Neutrik

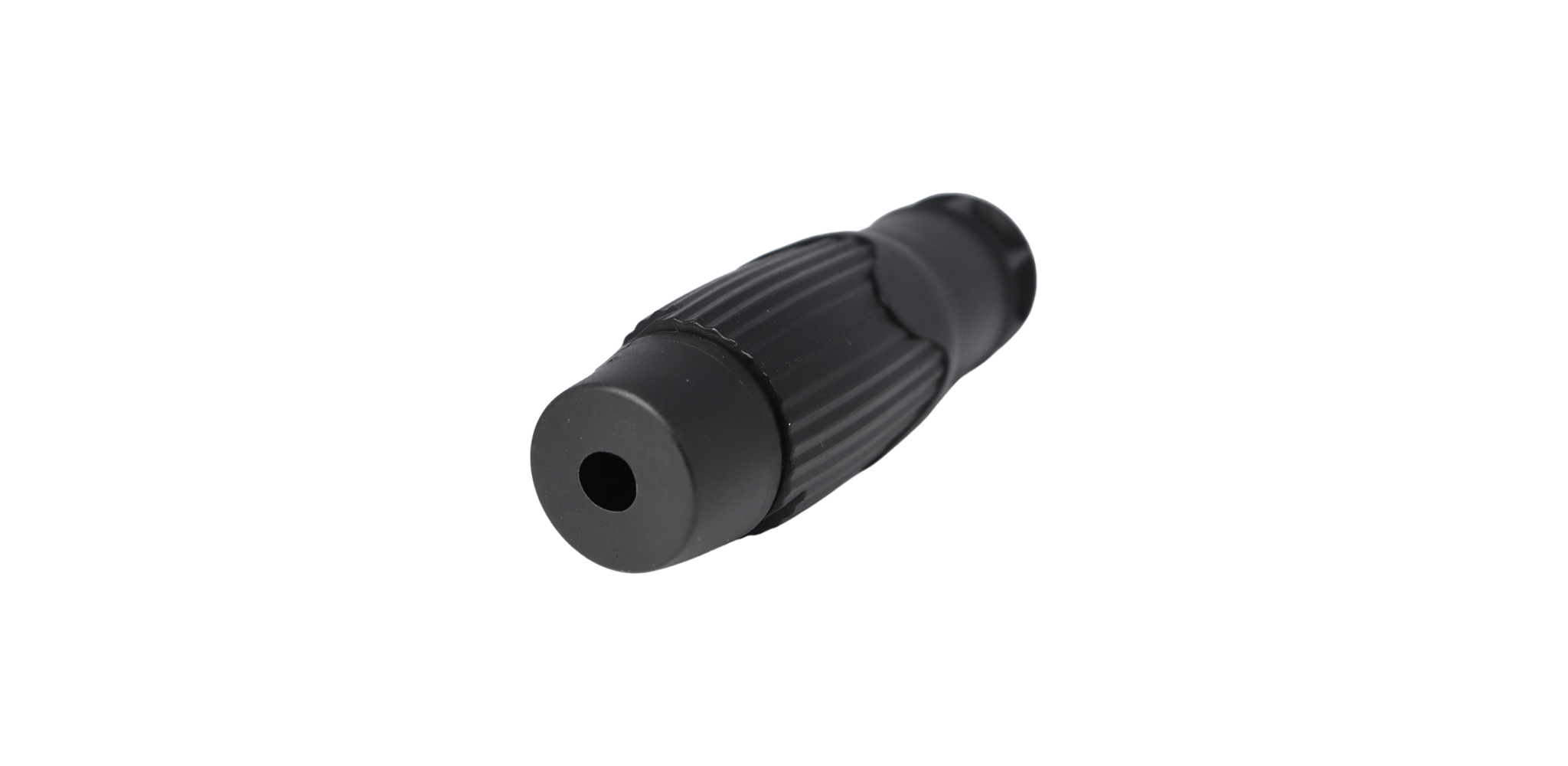

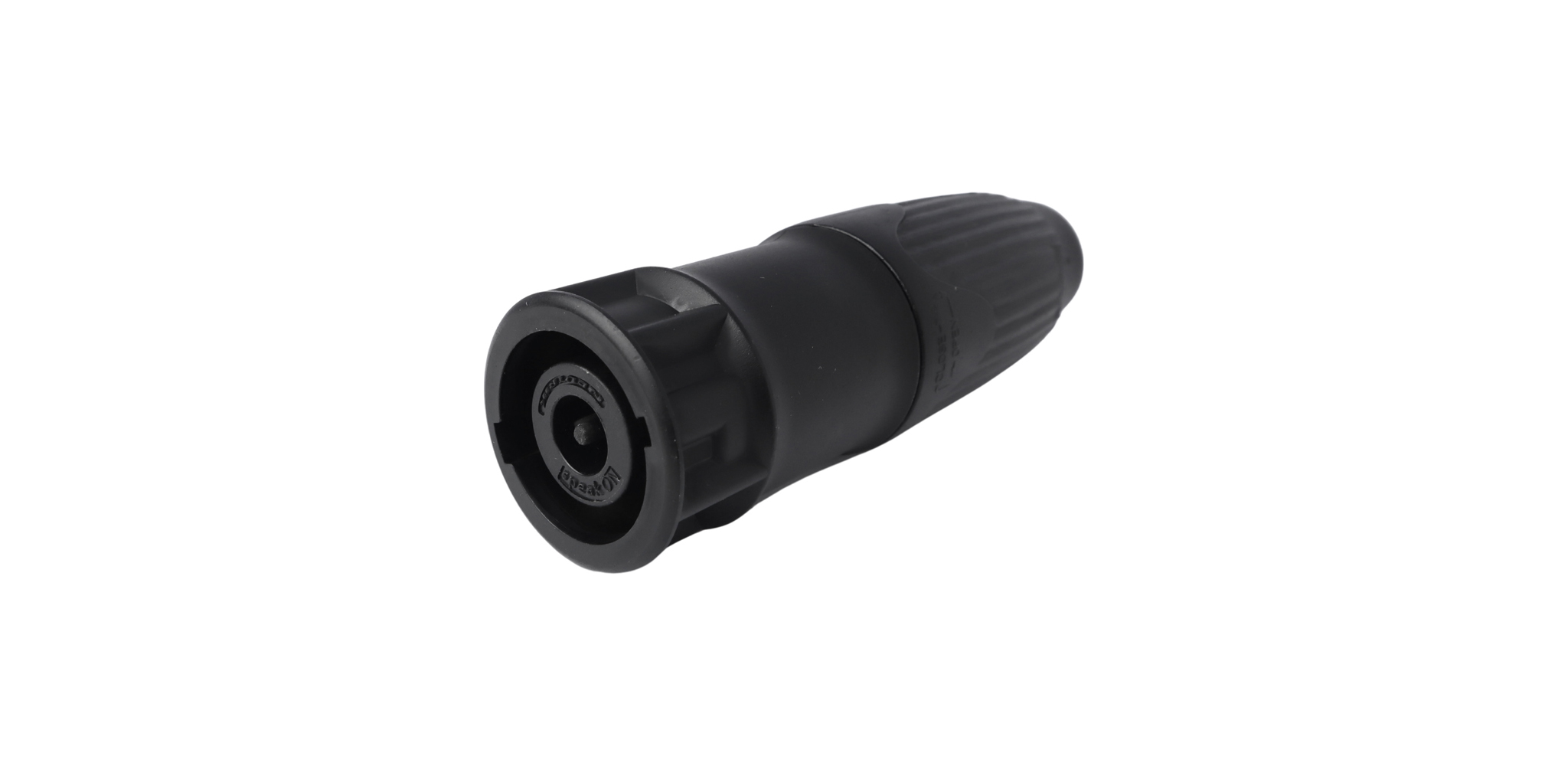

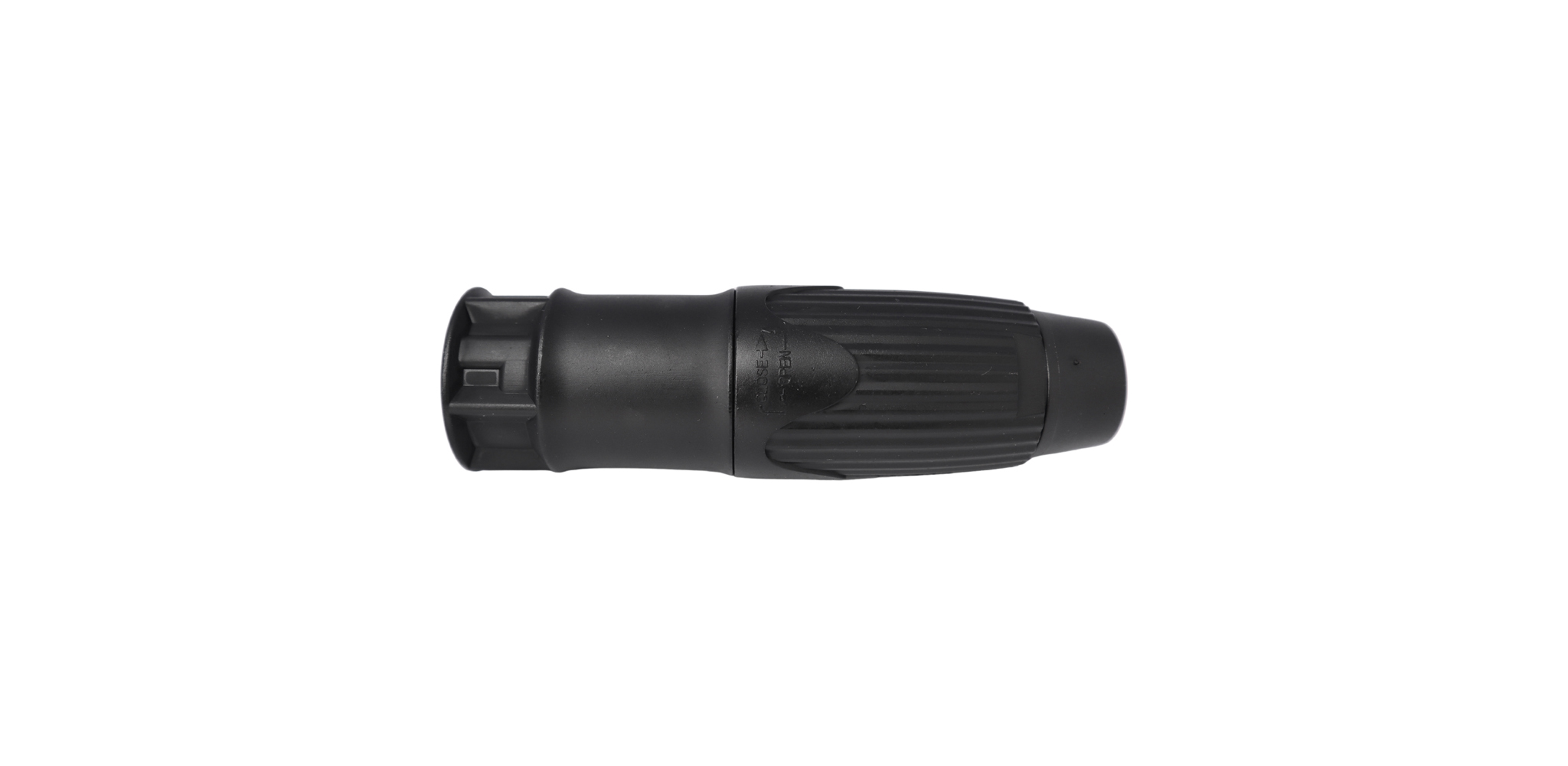

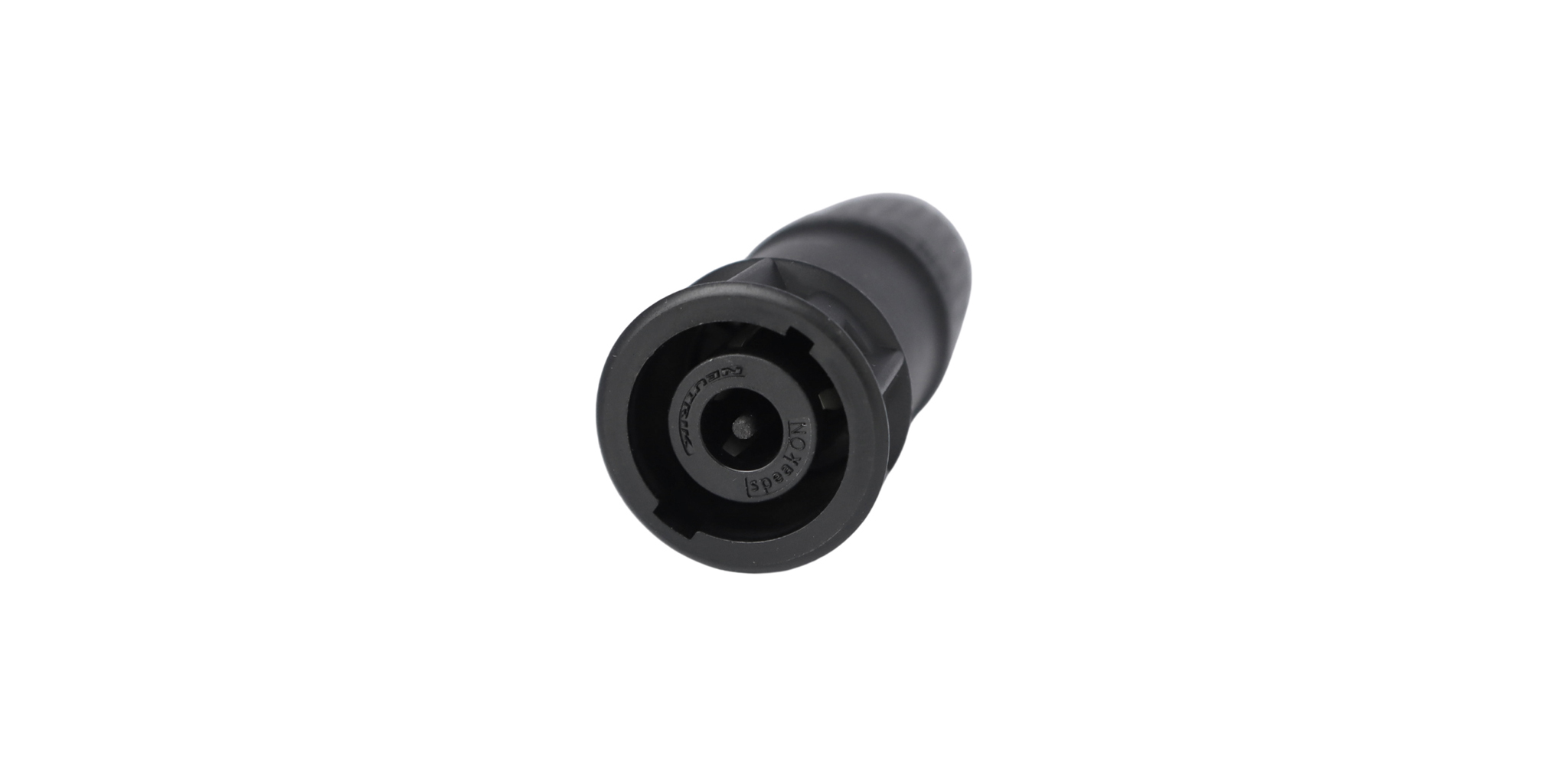

NLT8MXX-BAG 8 pole male speakON cable connector Neutrik

Q: Which brand does NLT8MXX-BAG belongs to?

NLT8MXX-BAG belongs to Neutrik . NEUTRIK offers premium copper connectors and cables, innovative fiber optic systems and unique digital network devices

Q: How long is the warranty of NLT8MXX-BAG?

NLT8MXX-BAG is 0 months of warranty.

Product code: NLT8MXX-BAG 517,982

4.67/5 in 3 times

$20.04

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

Current rating 30 A rms

Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment

Precise “Quick Lock” system

Com

8 pole male cable connector, black metal housing, chuck type strain relief, ¼“ flat tabs This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Shipping informations

Length

12 cm

Width

12 cm

Height

5 cm

Weight

0.4 kg

Official Distributor Certificate

Neutrik distributor certificate

Technical Information

Product
Title	NLT8MXX-BAG
Gender	male

Electrical
Contact resistance	< 2 mΩ
Dielectric strength	1.5 kVac
Insulation resistance	> 0.1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous (acc. to IEC 61984)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Mechanical
Cable O.D.	8 - 20 mm
Cable retention	≥ 220 N (subject to cable O.D. and material)
Lifetime	> 5000 mating cycles
Wiresize	1.5 mm² - 6 mm²
Wiresize	10 AWG
Termination	¼" flat tabs
Locking device	Quick Lock

Material
Contact plating	Ag
Contacts	Copper Alloy
Shell	Zinc diecast, black chrome plated
Insert	Polyamide (PA 6.6)
Strain relief	Polyacetal (POM)

Environmental
Temperature range	-30 °C to +80 °C
Flammability	UL 94 V-0
Protection class	IP 50 (mated condition)

Jack NLT8MXX-BAG Neutrik NLT8MXX-BAG Jack SpeakON 8 Pin Jack SpeakON Chuẩn IEC 61984 Jack loa 8 pin chuyên dụng
