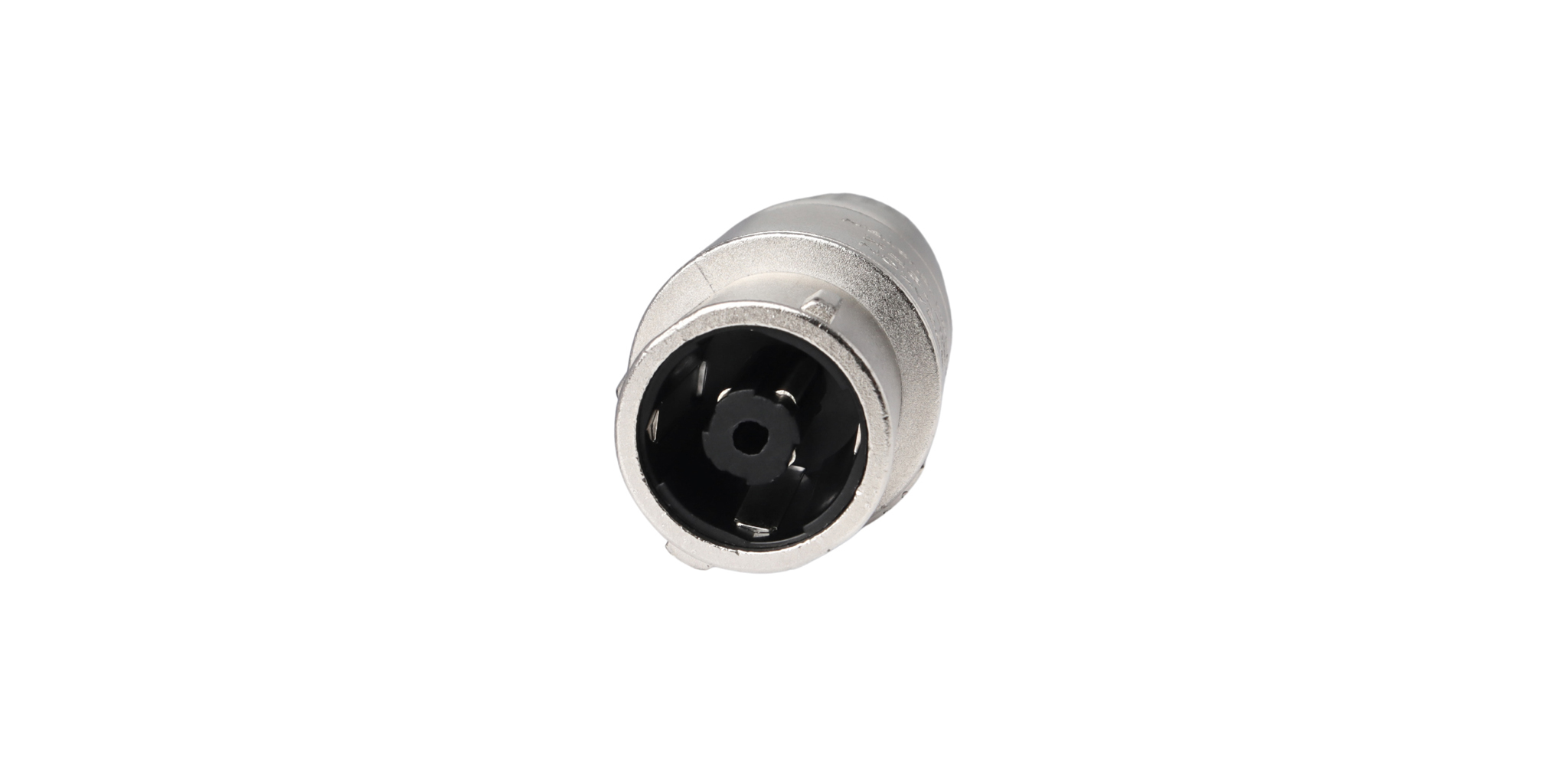

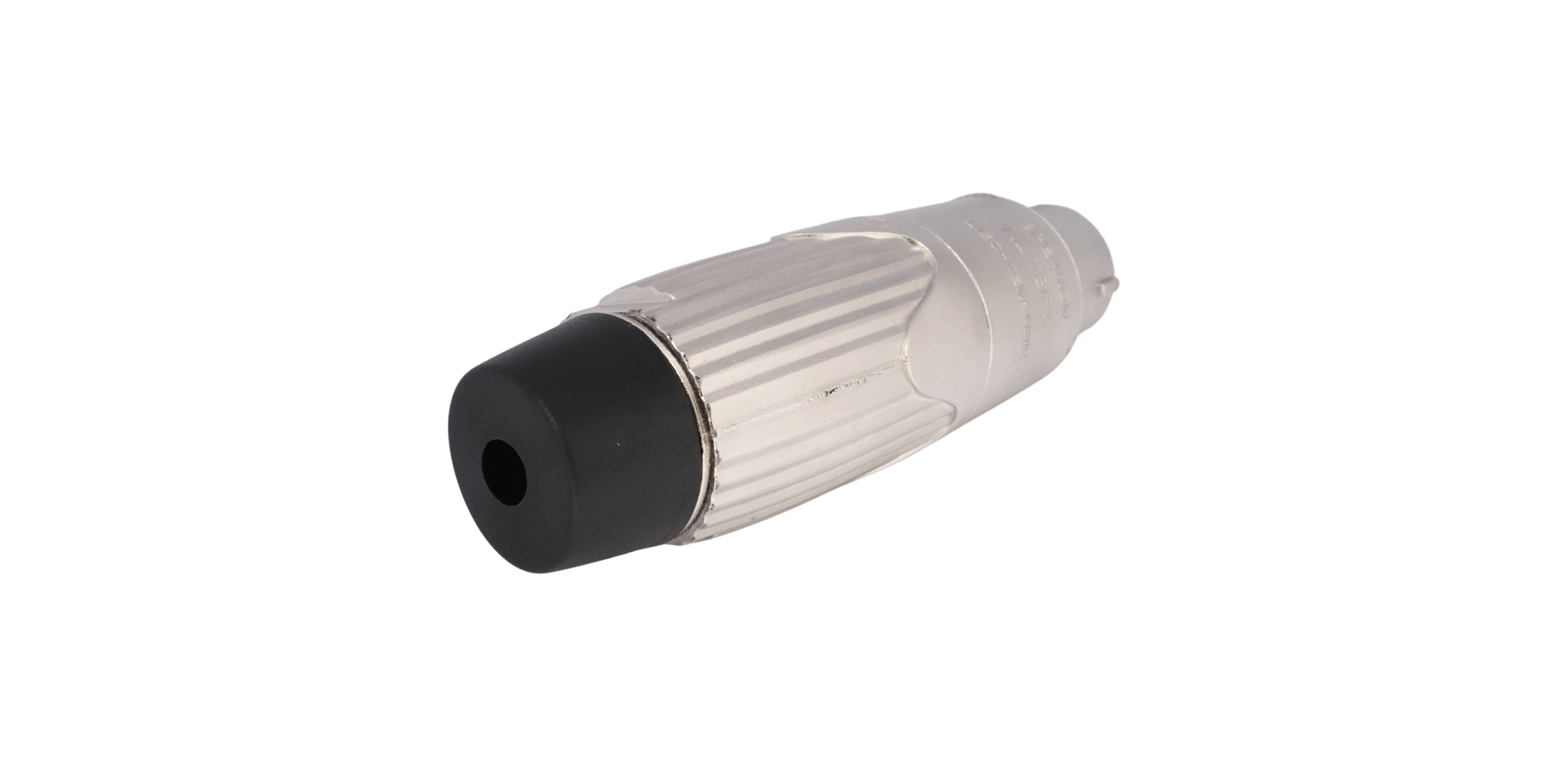

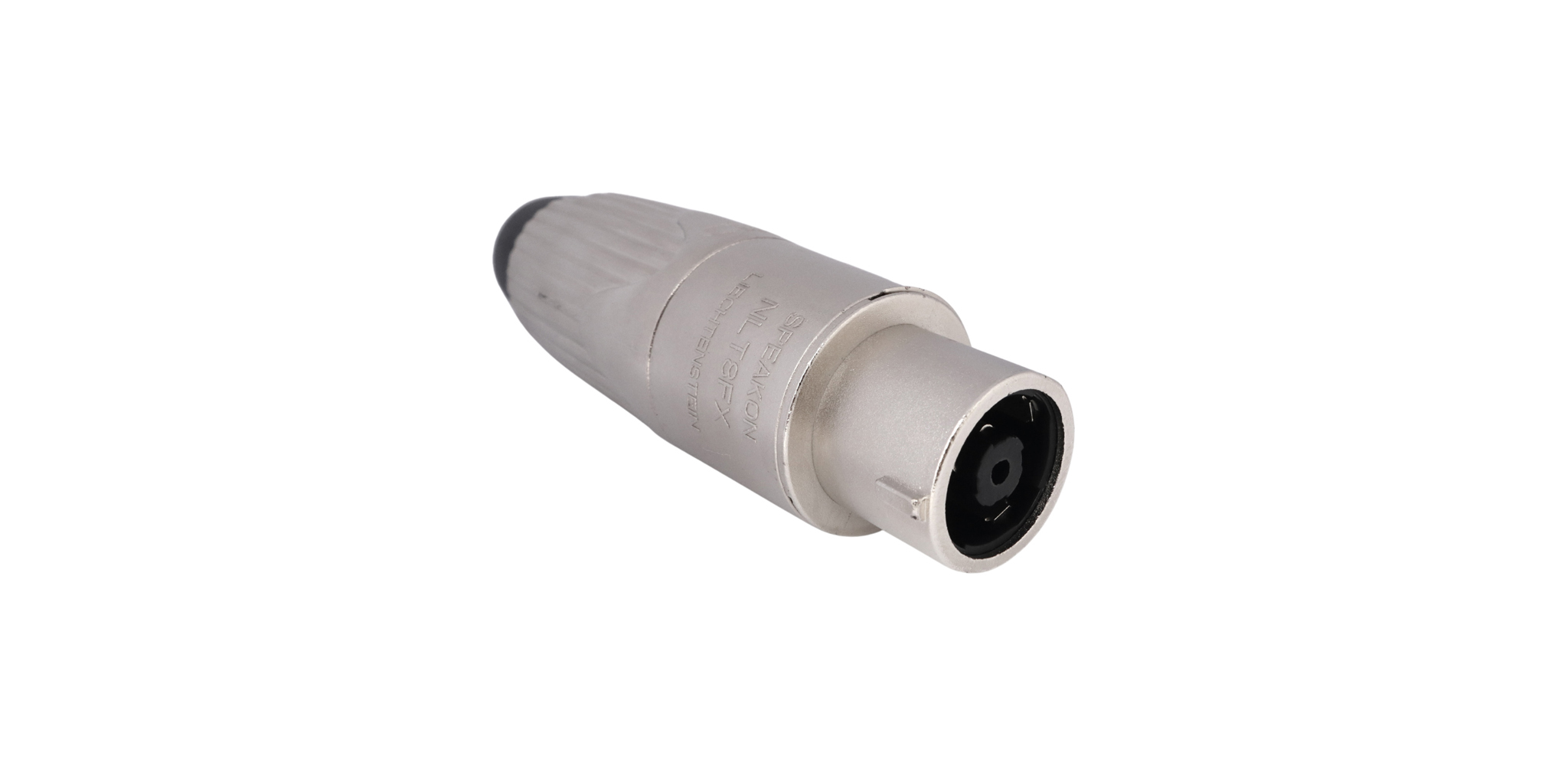

NLT8FXX 8 pole female speakON cable connector Neutrik

Q: Which brand does NLT8FXX belongs to?

NLT8FXX belongs to Neutrik . NEUTRIK offers premium copper connectors and cables, innovative fiber optic systems and unique digital network devices

Q: How long is the warranty of NLT8FXX?

NLT8FXX is 0 months of warranty.

Product code: NLT8FXX 1,239,122

4.67/5 in 3 times

$17.24

Plus $34.32 shipping

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

Current rating 30 A rms

Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment

8 pole female cable connector, metal housing, chuck type strain relief, solder contacts This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984. The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Shipping informations

Length

12 cm

Width

12 cm

Height

5 cm

Weight

0.4 kg

Official Distributor Certificate

Neutrik distributor certificate

Features & Benefits

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
Current rating 30 A rms
Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
Precise “Quick Lock” system
Compatible with complete speakON 8 pole product series

Technical Information

Product
Title	NLT8FXX
Gender	female

Electrical
Contact resistance	< 2 mΩ
Dielectric strength	1.5 kVac
Insulation resistance	> 0.1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous (acc. to IEC 61984)
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Mechanical
Cable O.D.	8 - 20 mm
Cable retention	≥ 220 N (subject to cable O.D. and material)
Lifetime	> 5000 mating cycles
Wiresize	1.5 mm² - 6 mm²
Wiresize	10 AWG
Termination	Solder contacts
Locking device	Quick Lock (latch)

Material
Contact plating	Ag
Contacts	Copper Alloy
Shell	Zinc diecast, Nickel plated
Insert	Polyamide (PA 6.6)
Locking element	Zinc diecast
Strain relief	Polyacetal (POM)

Environmental
Temperature range	-30 °C to +80 °C
Flammability	UL 94 V-0
Protection class	IP 50 (mated condition)
Solderability	Complies with IEC 68-2-20

NLT8FXX Jack Neutrik 8 pin Neutrik NLT8FXX Speaker Jack
