Stage Par Led Mitek & HBK Par 6003 RGB

Name: Stage Par Led Mitek & HBK Par 6003 RGB
Brand: Mitek & HBK
SKU: HBK56870
Availability: InStock
Rating: 4.67 (3 reviews)

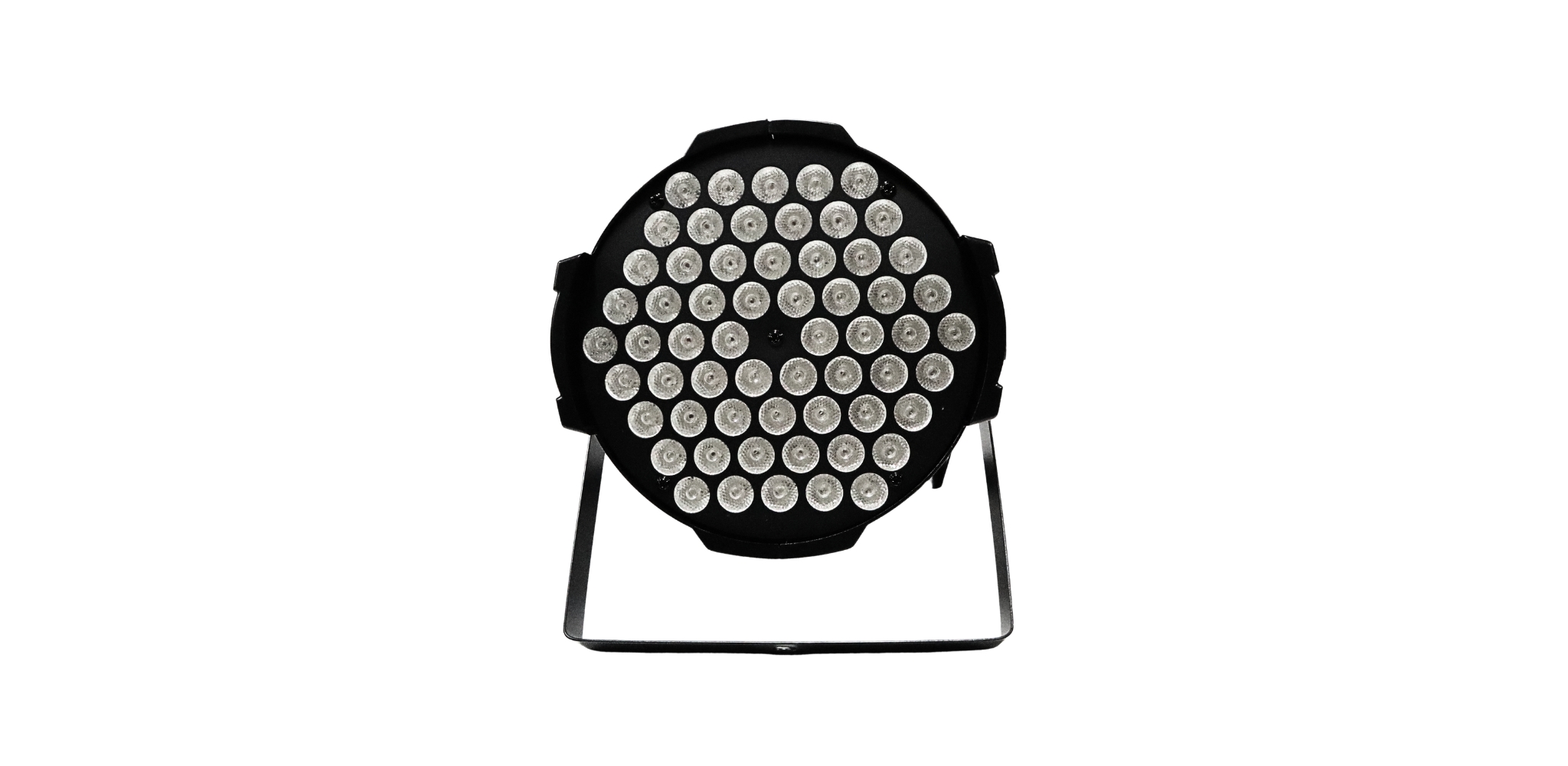

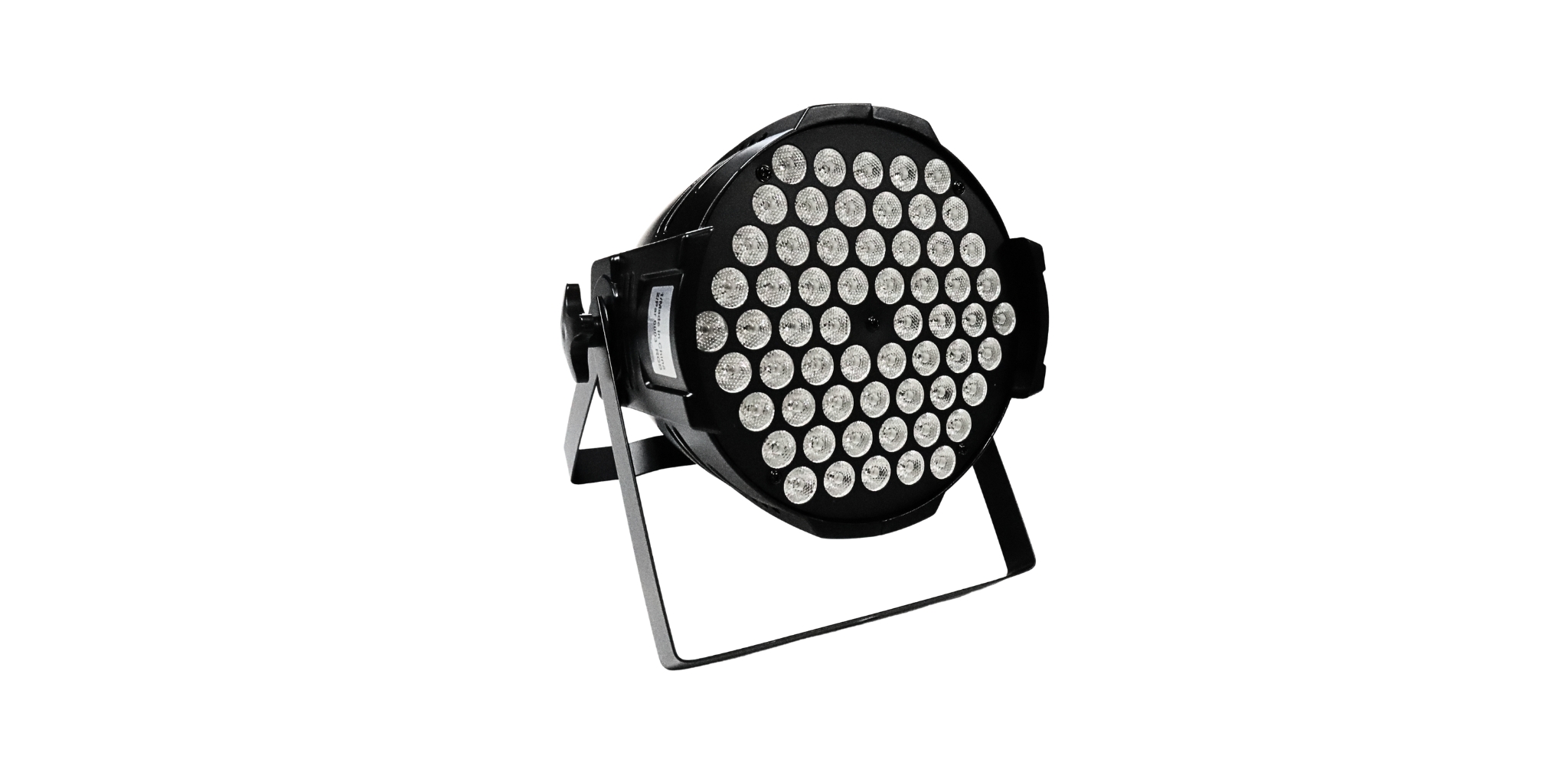

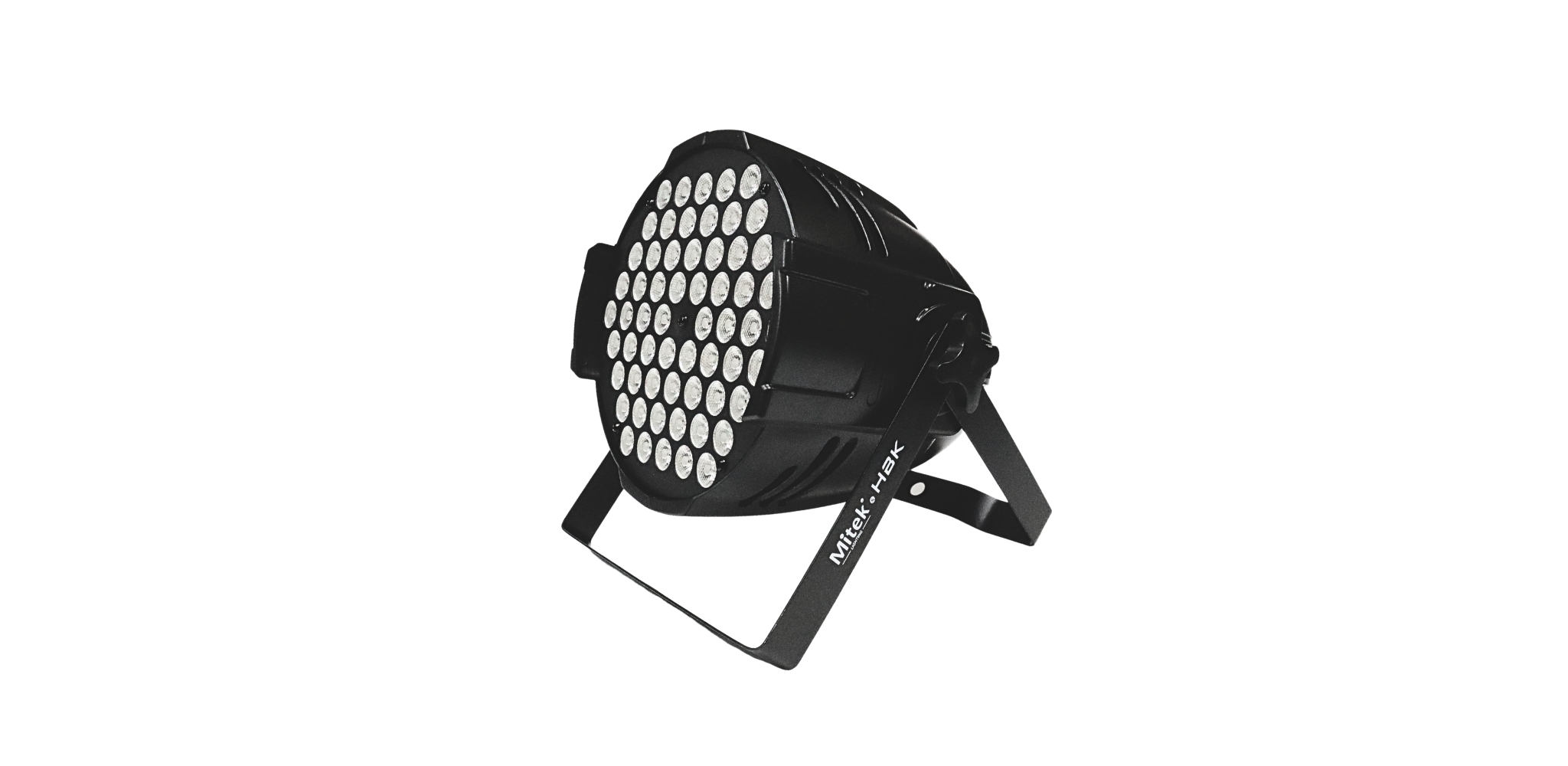

Par 6003 RGB Stage Par Led Mitek & HBK

Product code: Par 6003 RGB 22

4.67/5 in 3 times

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Rated voltage: AC230V + 10%

Rated frequency: 50Hz

Rated power: 200W

Light source: 3W LED

60*3W RGB LEDs

Technical Specifications:

Rated voltage:	AC230V + 10%
Rated frequency:	50Hz
Rated power:	200W
Light source:	3W LED
Number of lamp beads:	60
Angle:	45 degrees
Color:	16.7 million color changes
Number of channels:	8 DMX5126 channels
Working environment:	indoor
Control mode:	self-walk, voice control, DMX512, master-slave synchronization
Net weight:	2.45 KG
Gross weight:	2.75 KG
Product size:	24 * 24 * 34
Inner packaging size:	25 * 25 * 36CM one pack one
Outer packaging size:	79 * 53 * 39CM one pack six

Product description

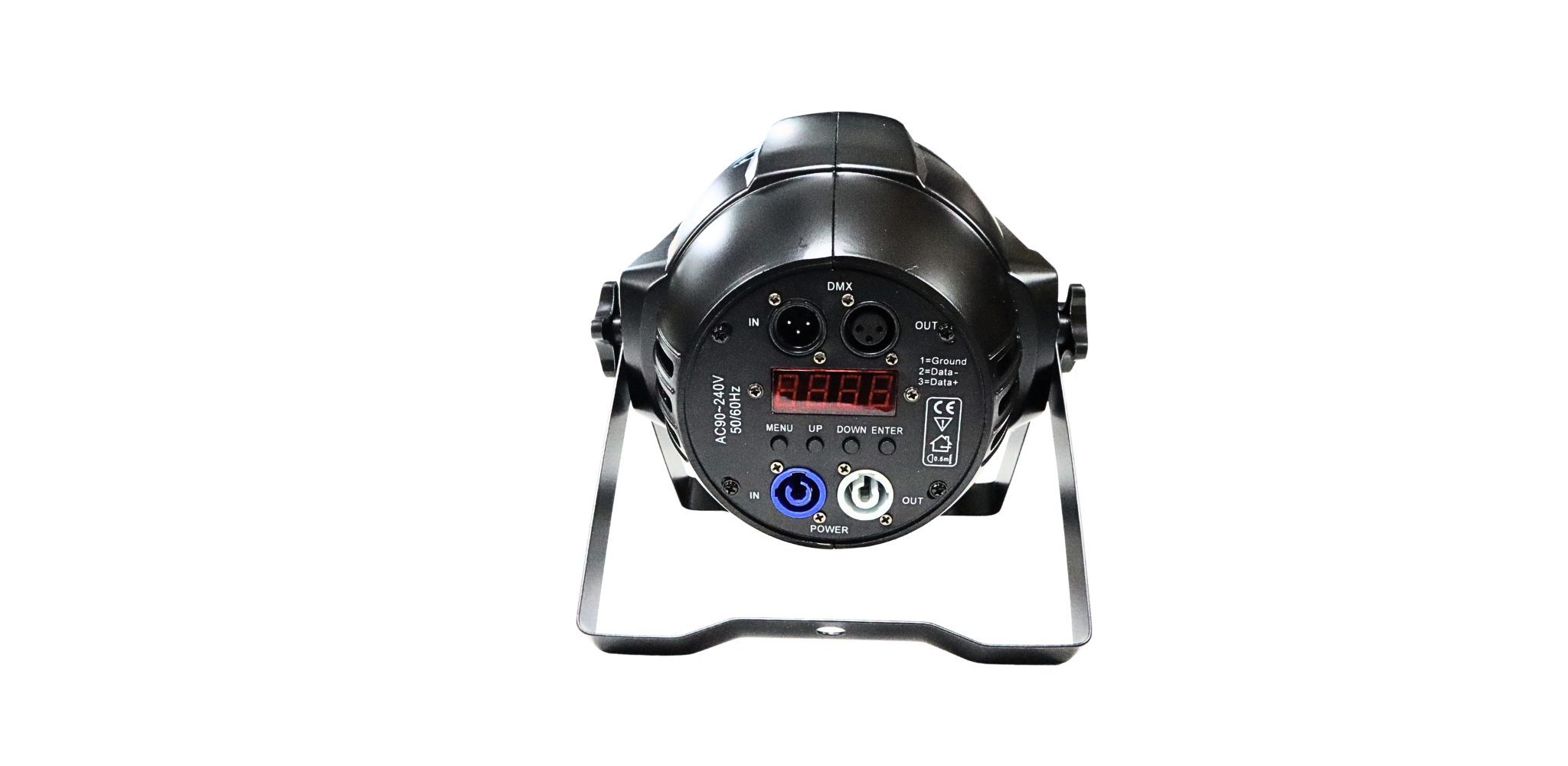

1. Graphic section:

A. Function key
B. Additional key
C. The key reduction
D. Confirmation key
The A B C D E.LED display window
Operation instructions: pressing function key A will cycle eight different functional effects. The first two digits of the digital tube represent the current function (refer to the function table). The last two numbers represent the function of this kind.address code. Or the speed, the parameters of the. Press either B or C to modify the parameter values. Press the key D to confirm.

Order number	Show	Function declaration
1	A 0001	Address code setting, (001- -512) Key B and C keys add or subtract the address code value
2	CHND（4CH/8CH）	Channel mode is set at 4 CH / 8 CH
3	CL01（CL01—CL15）	15 static mixed colors, (01- -99) B, C key to modify the combination of change speed
4	CC99（CC01—CC99）	Jump self mode, (01-99) B, C key to modify the combination of change speed
5	EE99（EE01—EE99）	Mutation-induced self-driven mode (01- -99) B, C key to modify the combination of change speed
6	FF99（FF01—FF99）	Gradade mode, (01-99) B, C key to modify the combination of change speed
7	ST99（ST01—ST99）	Strobe self-drive mode, up and down key speed, confirmed color (CL01-CL15)

2. LED display window function control table (all functions press selected and then press D key to confirm)

8	SUO1 (SUO1/2/3/4)	Voice control mode SOU 1 jump voice control The SOU 2 mutant sound control SOU 3 discoloration strobe sound control SOU 4 jump + mutation + color change strobe sound control
9	R255	Red color selection, (000- -255) B and C key to modify the color selection
10	G 255	Green color selection, (000- -255) B and C key to modify the color selection
11	B255	Blue color selection, (000- -255) B and C key to modify the color selection
12	W255	White selection, (000-255) B and C key to modify the color selection
13	FAN (ON/OFF)	ON smart fan on, OFF smart fan off, the fan is at full speed

3. DMX512 channel description

Order number	Function	Explain
Channel 1	Total dimming	R, G, B, W total dimming, linear dimming, from dark to bright
Channel 2	R aiming	R dimming, linear dimming, from dark to bright
Channel 3	G aiming	G dimming, linear dimming, from dark to bright
Channel 4	B aiming	B dimming, linear dimming, from dark to bright
Channel 5	W aiming	W dimming, linear dimming, from dark to bright
Channel 6	stroboflash	Flashscopic effect, 0-10 closed light, (11 to 255 speed from slow to fast)
Channel 7	Effect combination	0-10 closed light, 11-50 static color mixing mode, 51-100 hopping self-walk mode, 101-150 gradual self-go mode, 151-200 mutant self-walk mode, 201-220 hopping voice-control mode, 221-240 mutant sound-control mode, 241-255 color strobe control mode
Channel 8	speed control	Speed adjustment (0 to 255 Speed from slow to fast)

4. Functional features:

The operation is very simple, humanized design, dimming without flicker, jitter phenomenon, etc. Can adapt to photography, photography, television stations and other strict requirements on the lighting occasions.

Master and slave Synchronization Notes:

When the host is used, the lamp will send the DMX-512 signal, which cannot be connected to the DMX-512 console, otherwise it will interfere with each other and cannot run synchronously.
Multiple lamps and lanterns operate synchronously, among which only one lamp is the main engine, and the other lamps are the slave machine. Otherwise, it cannot be run synchronously. Maintenance: It is recommended to use a professional glass cleaning agent and clean it with a flannelette. Keep it clean frequently to obtain the maximum LED brightness output.
