As you know, multicore power distribution systems facilitate a significant reduction in cabling effort and cost. CONTRIK offers a comprehensive power multicore portfolio, en- compassing both passive and active distribution boxes, along with multicore cables.
In response to customer demands for versatile multicore stringer boxes, CONTRIK proudly introduces Power Strip Multicore boxes.

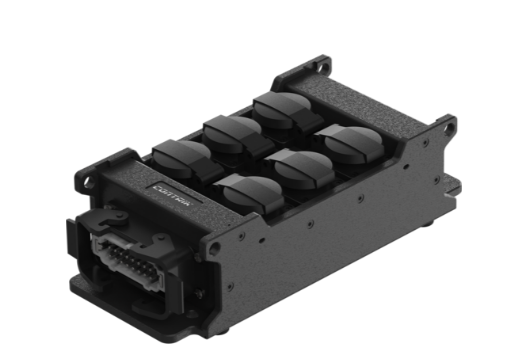

CPSM-H1-T6

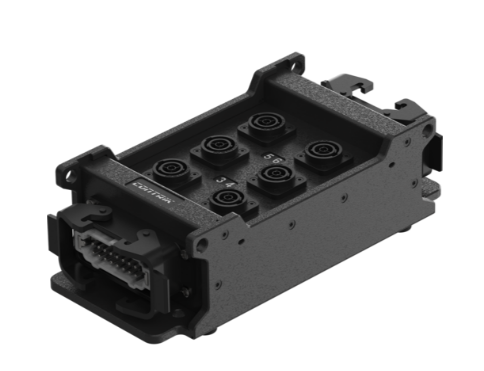

CPSMX-H2-T6
CPSM-H1-F6
Xtreme Outdoor Protection. High mechanical (IK) and environmental protection (IP)
Xtreme Protection. High mechanical protection (IK)
These boxes are not only extremely rugged, but also remarkably compact. The series presents a variety of options for both indoor and outdoor applications, allowing seam- less connection of loads with powerCON and Schuko connectors, as well as offering daisy-chain versions.
Benefits
-
Reduction of cabling volume and effort due to Harting E16 multipin Input / Daisy-chain.
-
Versatile portfolio including versions for outdoor and indoor versions, Harting E16 input, powerCON and Schuko outputs, daisy-chaining.
-
High mechanical protection: Rugged Easylen® housing with high IK, full con- nector protection with housing elements.
-
Xtreme Outdoor protection: Outdoor versions are IP65 protected due to sealed housing and output connectors. With Harting E16 connectors in mated condi- tion.
-
Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.
-
Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
-
Versatile mounting options: mounting wholes for pegs and suspension, truss clamp
Market & Application
-
Markets: Professional video wall / lighting / audio
-
Mobile application: Festivals, live events
-
Semi-permanent applications: Theaters, studios
Features:
|
IN / Through:
|
Harting E16 (6 channel)
|
|
OUT:
|
powerCON TRUE1 TOP or Schuko Type F
|
|
Environmental:
|
-XO version with IP65 protection or X version with IP20 protection
-Flame retardant & non-conductive housing material
|
Ordering information:
|
Name
|
Details
|
|
CPSM-H1-T6
|
IN: 1x Harting E16
OUT: 6x powerCON TRUE1 TOP with self-closing sealing caps
Environmental: IP65 with Harting E16 connectors in mated condition
|
|
CPSM-H2-T6
|
IN / Daisy chaining: 2x Harting E16. Please order Harting seal- ing cap for daisy chain connector separately.
OUT: 6x powerCON TRUE1 TOP with self-closing sealing caps Environmental: IP65 with Harting E16 connectors in mated condition
|
|

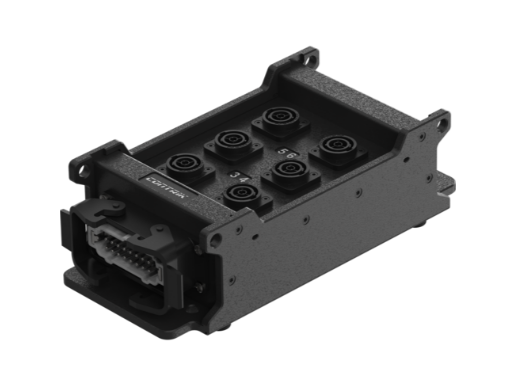

CPSMX-H1-T6
|
IN: 1x Harting E16 (6 channel) OUT: 6x powerCON TRUE1 TOP
Environmental: IP20
|
|
CPSMX-H2-T6
|
IN / Daisy chaining: 2x Harting E16 OUT: 6x powerCON TRUE1 TOP
Environmental: IP20
|
|
CPSM-H1-F6
|
IN: 1x Harting E16 (6 channel)
OUT: 6x Schuko Type F with self-closing sealing caps Environmental: IP54 with Harting E16 connectors in mated condition
|
|
CPSM-H2-F6
|
IN / Through: 2 x Harting E16. Please order Harting sealing cap for daisy chain connector separately.
OUT: 6x Schuko Type F with self-closing sealing caps Environmental: IP54 with Harting E16 connectors in mated condition
|
Target markets & norms
In the first step, the products are launched for EU markets. In case of country specific additional norms requirements: Please kindly check the norm conformity with the prod- uct management.
