2 Way 12 Full Range Loudspeaker Turbosound PQ12

Name: 2 Way 12 Full Range Loudspeaker Turbosound PQ12
Brand: Turbosound
SKU: HBK59439
Price: 2.02 USD
Availability: InStock
Rating: 4.2 (18 reviews)

PQ12 2 Way 12" Full Range Loudspeaker Turbosound

Product code: PQ12 913

4.2/5 in 18 times

$555.75

In stock

Buy Now

Add to cart

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

500 Watts continuous, 2,000 Watts peak power

12" low frequency driver with low mass voice coil for improved transient response

1.7" Voice Coil, Polyimide Diaphragm Neodymium Compression driver

2 Way 12" Full Range Loudspeaker Tour and Live Sound Applications

CERTIFICATE

Music Tribe distributor certificate

Product Features

2 way full range loudspeaker for Tour and Live Sound applications
500 Watts continuous, 2,000 Watts peak power
Ideal for FOH, side fill and monitor applications
12" low frequency driver with low mass voice coil for improved transient response
1.7" Voice Coil, Polyimide Diaphragm Neodymium Compression driver
Rotatable Catenary Horn provides 80° H x 50° V dispersion
15 mm (5/8") plywood enclosure with hard wearing semi matt black PU paint finish
Rugged powder coated perforated steel mesh grille
Integral 35 mm dual angle pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation
2 x NL4M connectors for reliable long life operation

PQ12

The 2-way, full range PQ12 is a processed passive 2,000-Watt 12" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Lab Gruppen powered loudspeaker management systems, the PQ12 provides optimal performance for FOH, side-fill, stage monitor and delay line applications.

The PQ12 features a 12" ferrite low frequency driver with a low mass voice coil for improved transient response, and a polyimide dome 1" neodymium high frequency compression driver mounted onto an 80° horizontal by 50° vertical rotatable exponential Catenary horn. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure. The rear panel connector plate carries two industry-standard twist-locking speaker connectors for input and link connections to additional enclosures.

Finished in a highly durable PU semi-matt black paint, the cabinet is constructed from 15 mm (5/8") plywood – and includes a rugged powder coated cloth wrapped perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting. Optional flying yoke, swivel brackets are available separately. The PQ12 also features a dual 35 mm socket for standard pole mounting – plus an integrated handle for convenient transport.

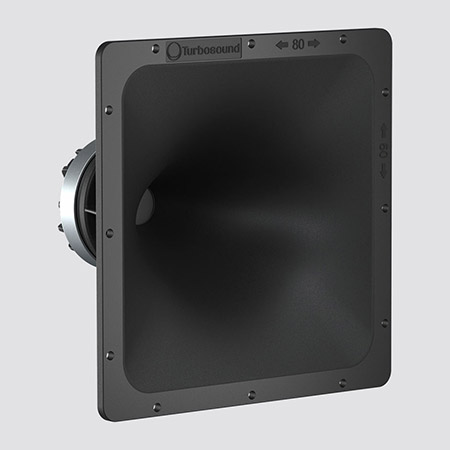

Custom-Engineered Drivers, Waveguides and Horns

Turbosound is recognised the world over for designing and building some of the most iconic loudspeakers and subwoofers. We take meticulous care and pride in maintaining that reputation by utilising only drivers, waveguides and horns designed and specified by ourselves to our exacting standards. Our new Catenary horn design gives an 80° x 50° dispersion for the bandwidth of the high frequency device.

Integration with Lab Gruppen IPX 4800 and PLM+

With the ever-increasing complexity of modern-day sound systems. Seamless integration with the Lab Gruppen IPX 4800 and PLM+ is a prerequisite for the PQ series from Turbosound. Our engineers have prepared and meticulously designed a series of presets that will allow the user to achieve the maximum system performance and consistency possible. These can be found within the download section. Future FIR capable platforms from Lab Gruppen will be supported.

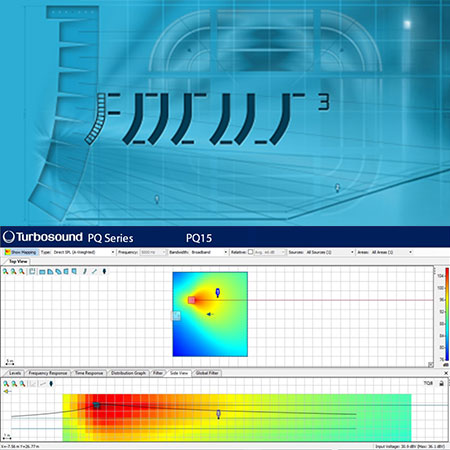

Acoustic Simulation Tools

EASE GLL files are provided for the EASE Focus 3 Acoustics Simulation Software, which is available for free download. This allows accurate calculation of both acoustic coverage and selection of suspension pick point for tilting and aiming the cabinet at the desired angle.

Architecture and Engineering Specifications

The speaker shall be of the full range, two-way passive type consisting of one 12" (300 mm) LF ferrite driver with 2.5'' voice coil and one 1" (25mm) HF neodymium compression driver with 1.7” voice coil. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine WAVE input, shall be flat within ±3 dB from 74 Hz to 20 kHz and within -10 dB from 49 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 80° H x 50° V, rotatable. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 500 Watts continuous, 2,000 Watts peak (LF: 500 W continuous HF: 50 W continuous FR: 550 W continuous). Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 98 dB, 1 Watt @ 1 metre. Maximum SPL of 137 dB in passive mode (FR rating, Average Peak level over overlap bandwidth. SPL level at 1 m under free field conditions, using pink noise with crest factor 4, with dedicated preset).

Dimensions: 630 mm high x 373 mm wide x 329 mm deep (24.8 x 14.7 x 12.9"). Net weight: 23.6kg (52.02 lbs). The loudspeaker system shall be the Turbosound PQ12. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.

Show less

Specification

Show less

System

Frequency response (±3 dB)¹	74 Hz - 20 kHz
Frequency response (-10 dB)¹	49 Hz - 20 kHz
Nominal dispersion (@ -6 dB points)	80° H x 50° V
Power handling (IEC) PASSIVE	LF: 500 W continuous HF: 50 W continuous FR: 550 W continuous
Peak	LF: 2000 W peak HF: 200 W peak FR: 2200 W peak
Sensitivity (1 W @ 1 m)¹	98 dB
Maximum SPL (FR)³	131 dB (137 dB peak)
Impedance	8 Ω
Crossover type	Passive
Components	1 x 12" (315 mm) Ferrite LF driver
	1 x 1.75"(44.4 mm) voice coil Polymide diaphragm, Neo Motor HF compression driver

Notes:

1. Free field conditions. Measured at 1 metre on axis.

2. MT IEC 268 standard with crest factor 6 dB pink noise.

3. Calculated/Peak based on the rated FR power using pink noise with a crest factor of 4 dB, with dedicated pre-set.
