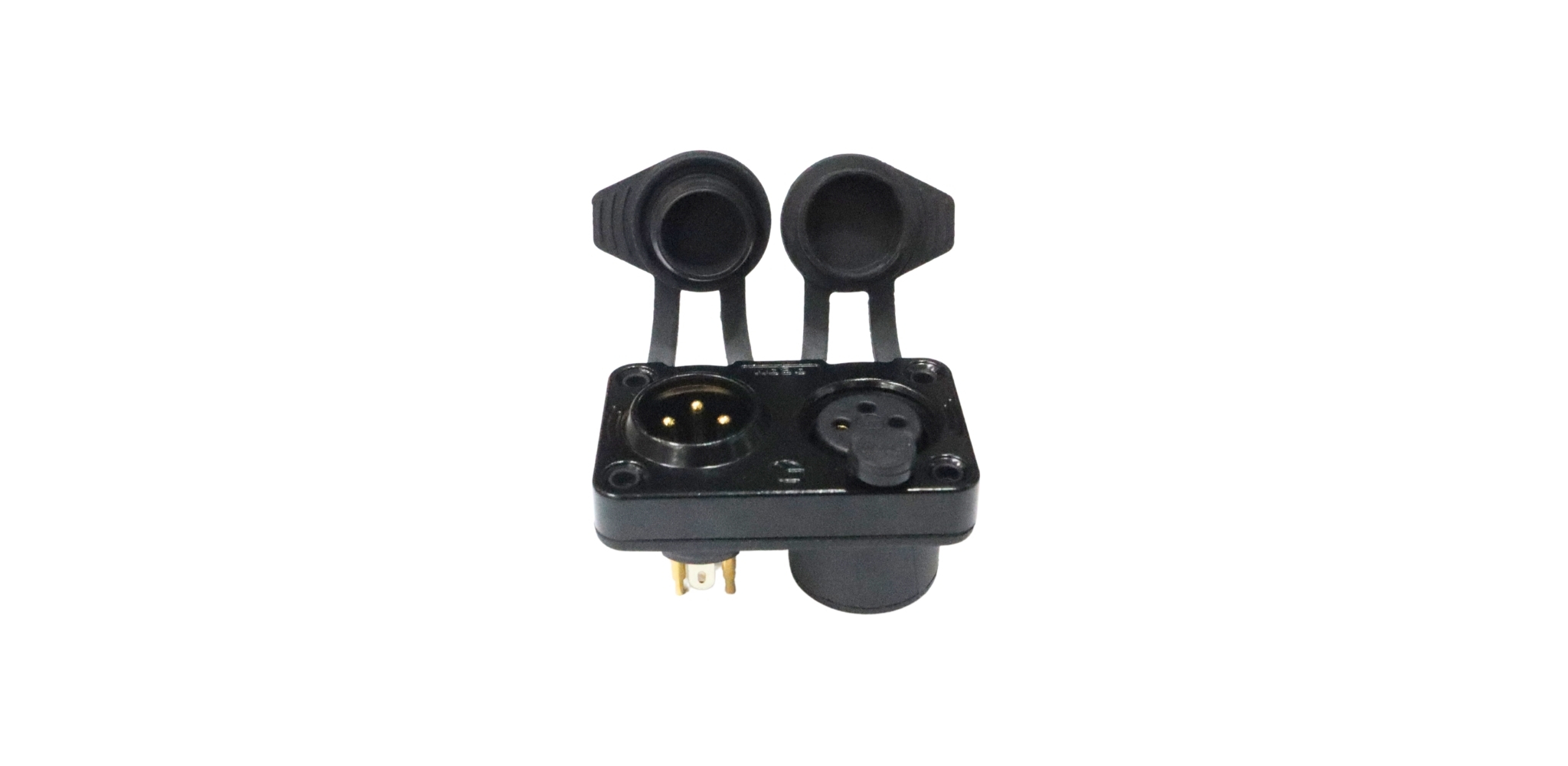

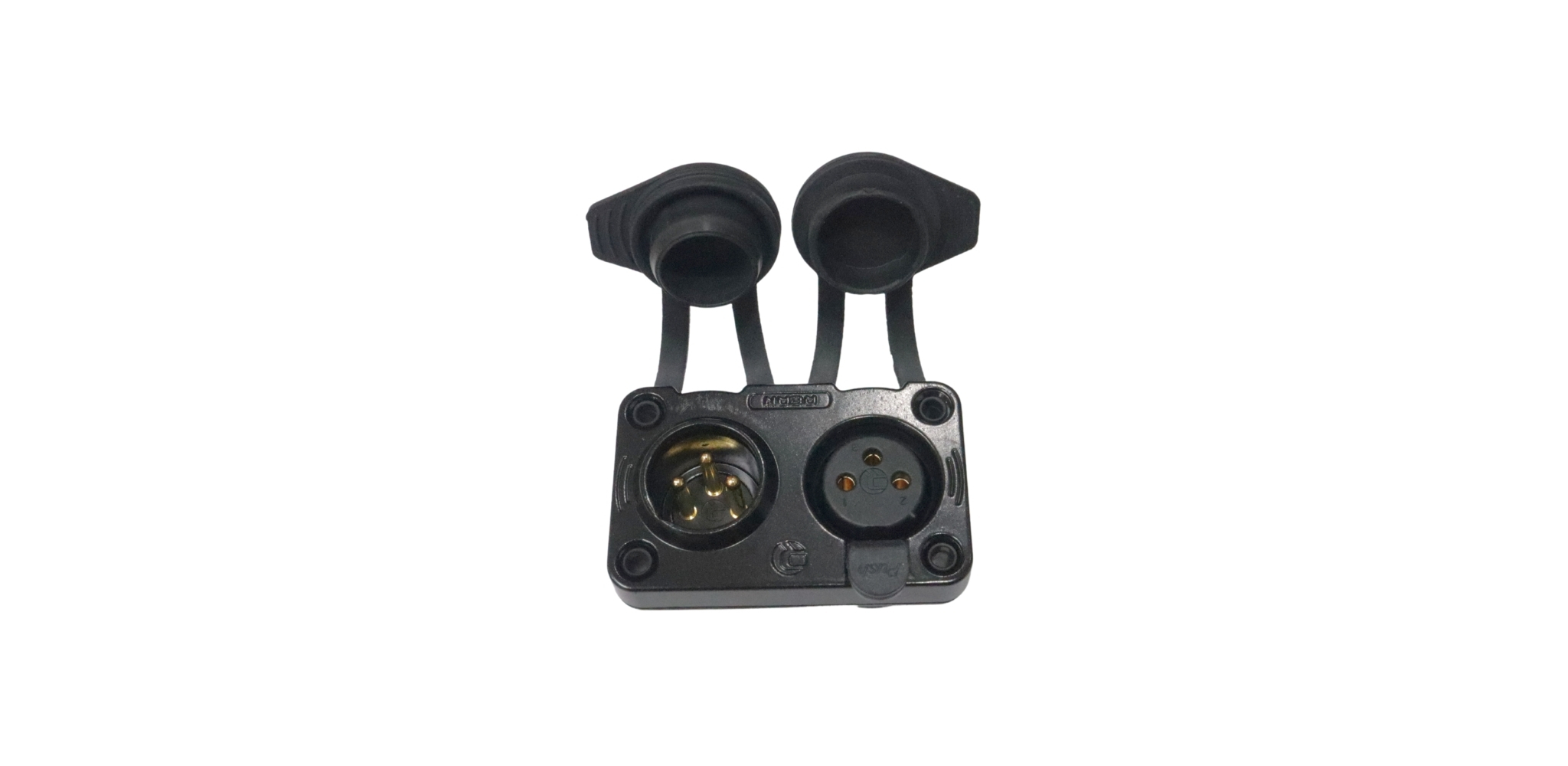

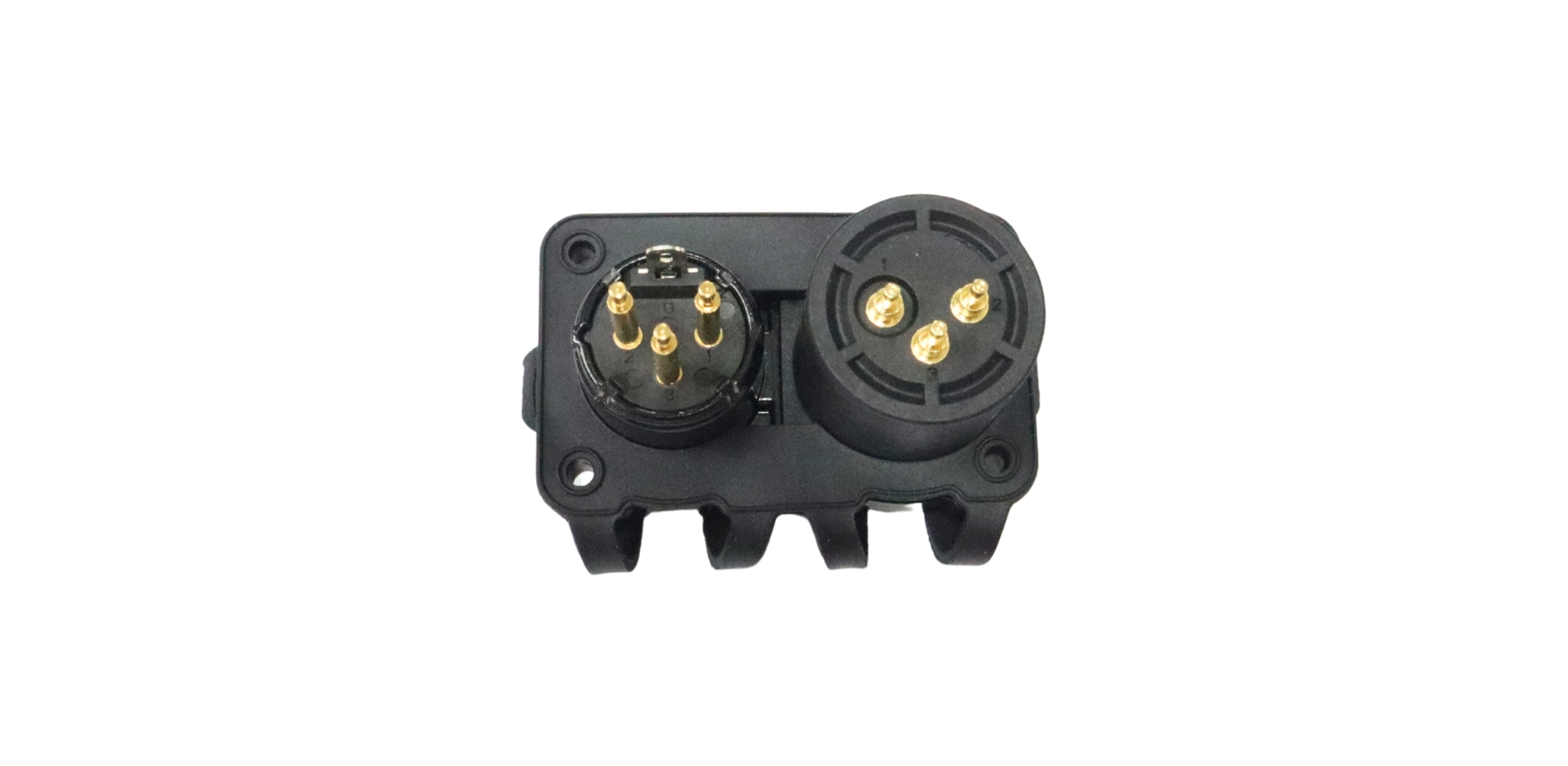

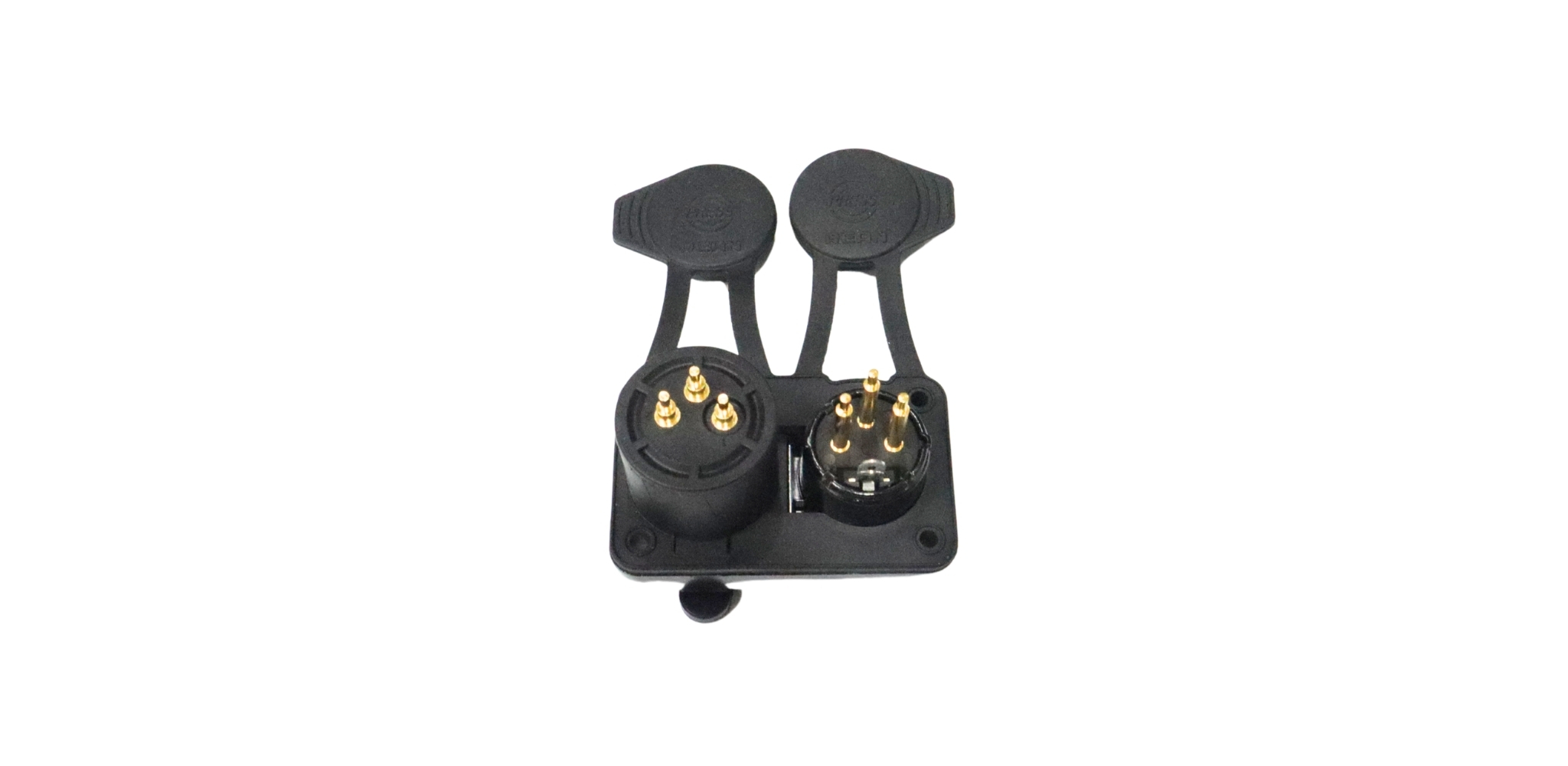

RRX3MF-Z-012-0 XLR 3 pole female and male combination receptacle Rean

Specification

Product
Title	RRX3MF-Z-012
Connection type	XLR Receptacle
Gender	Male/Female

Electrical
Contact resistance	<5 mΩ
Dielectric strength	1.5 kVdc
Insulation resistance	> 5 GΩ
Rated current per contact	16 A
Rated voltage	< 50 V

Mechanical
Insertion force	≤ 40 N
Withdrawal force	≤ 40 N
Lifetime	> 1000 mating cycles
Locking device	Latch lock
Mounting	Front
Chassis shape and Panel cutout	See drawing

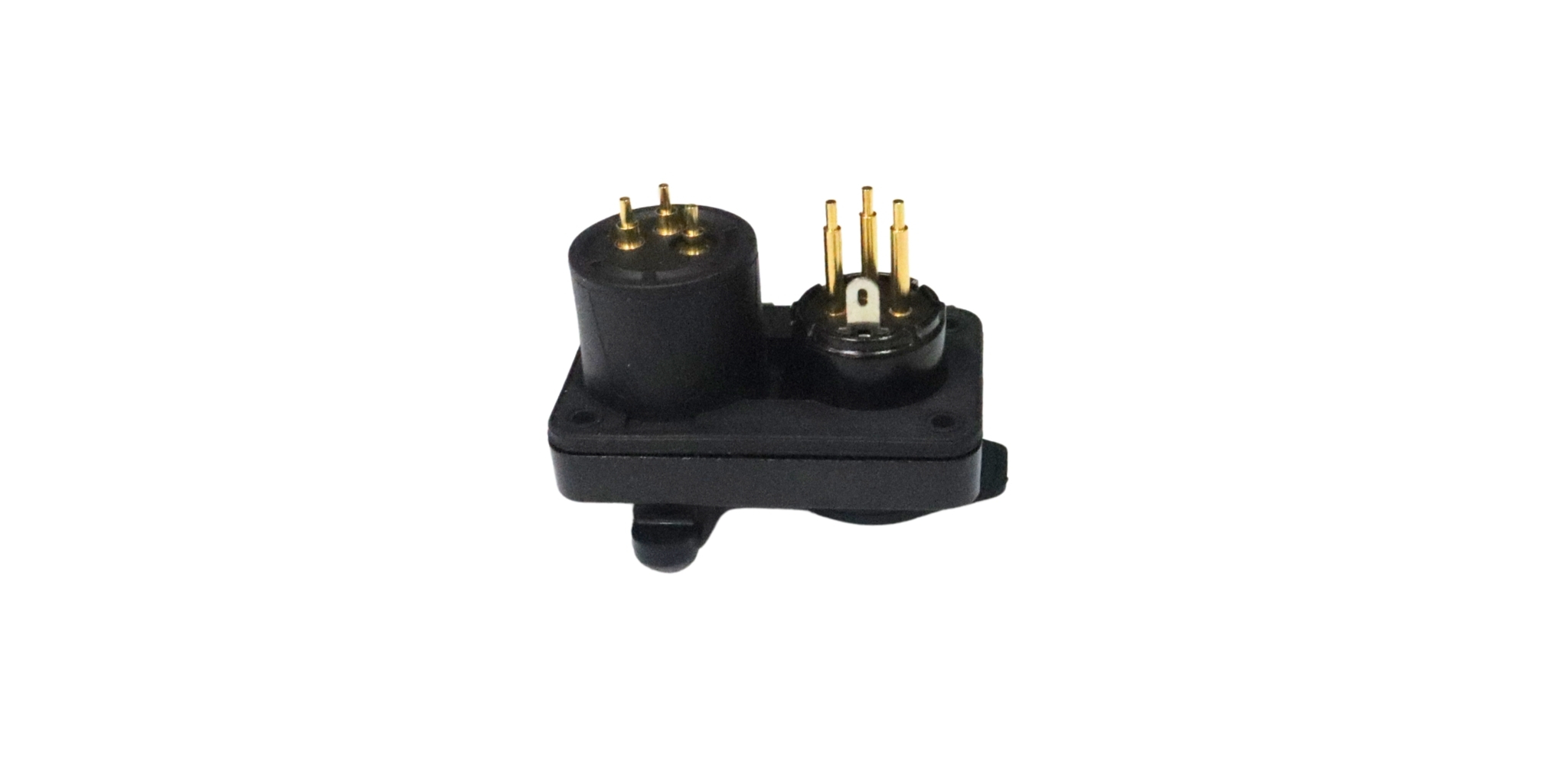

Wiring	vertical PCB mount

Material
Contact plating	Gold plating
Contacts	Bronze
Shell	Zinc
Insert	PA66
Shell plating	Black plating

Environmental
Flammability	UL94 V-0
Protection class	IP65 and Airtight
Temperature range	-30 °C to +80 °C
