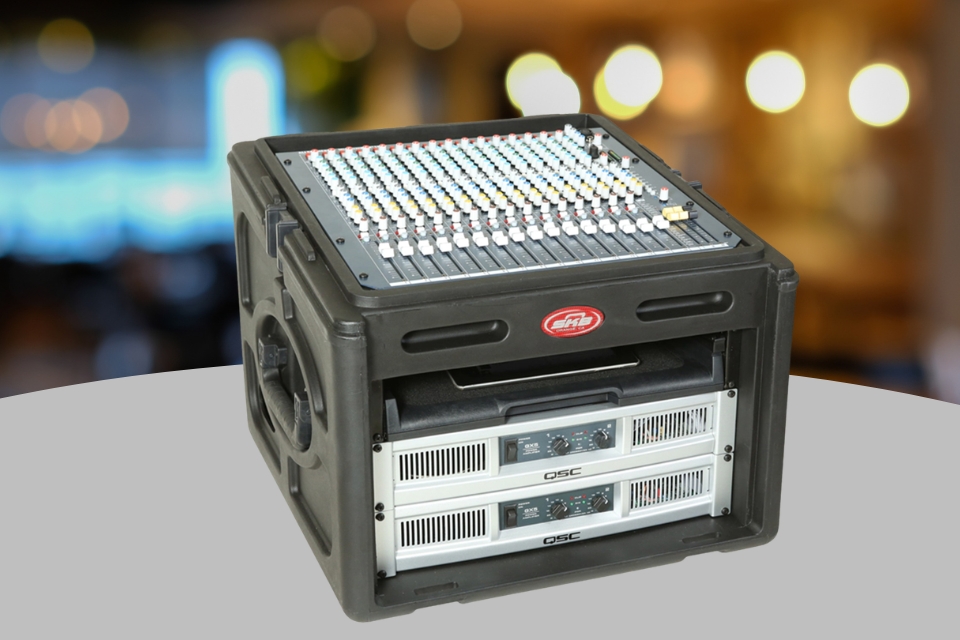

1SKB-R106 is a professional rack case from SKB, featuring a 10U slanted top section and a 6U front rack section. This configuration allows users to combine control equipment such as mixers and DJ controllers on the top with rack-mounted equipment such as amplifiers, DSPs, processors, and signal processing devices at the front. It is an ideal solution for sound systems that require multiple pieces of equipment to be housed in a single case while maintaining convenient access, operation, and portability.
1SKB-R106 features a 10U angled rack and 6U front rack design
The key difference of 1SKB-R106 lies in its two-section rack configuration. The upper section provides a 10U angled rack, suitable for mounting mixers or DJ controllers that require direct access during operation. The front section adds a 6U rack with threaded steel rails, providing space for amplifiers, DSPs, wireless receivers, power conditioners, and other standard rack-mount audio equipment.
The lower body of the case is roto-molded from Linear Medium Density Polyethylene (LMDPE), while the lid and doors are molded from Rubber Modified Styrene (RMS). This construction provides the durability and impact resistance required to protect Professional Audio equipment. The rear lid is designed to open outward, allowing easier access to the rack-mounted equipment inside during installation or maintenance.
1SKB-R106 is also equipped with access ports on both sides to facilitate cable routing, helping prevent signal and power cables from becoming tangled or difficult to manage when the system contains multiple devices. The rigid top lid features a flat design, allowing compatible cases to be stacked for storage or transportation.
| Specifications |
1SKB-R106 |
| Product Type |
Roto Rack Console |
| Upper Rack |
10U, angled design |
| Front Rack |
6U |
| Rack Rails |
Threaded steel |
| Rack Depth |
6 inches at the upper rail position; approximately 19.5 inches maximum from the front rail to the rear lid |
| Dimensions |
60.33 × 59.37 × 53.98 cm |
| Weight |
14 kg |
| Body Material |
Roto-molded LMDPE |
| Lid and Doors |
Injection-molded RMS |
| Locks |
Travel Sentry® Approved |
| Cable Access Ports |
Yes, on both sides |
| Stackable |
Yes |
Note: Rack depth should be considered based on the actual installation position, as the angled rack section has different depth measurements at different positions.
What audio equipment is the 1SKB-R106 suitable for?
With its 10U upper + 6U front configuration, the 1SKB-R106 is particularly suitable for audio systems that combine control equipment with rack-mounted devices. Users can place a mixer or DJ controller in the angled rack for convenient operation, while mounting amplifiers, DSPs, processors, wireless receivers, or other rack-mounted equipment in the front section.
This design is also well suited to portable sound systems, DJ setups, stages, and events, where multiple devices need to be integrated into a single case structure. The side access ports make cable routing more convenient, while the protective lids and doors help shield the equipment during transportation or storage.
Before choosing the 1SKB-R106, users should check the dimensions, rack units, and depth of each device, especially when using large mixers or controllers. Determining the system configuration in advance helps maximize the available 10U angled and 6U front rack space without interfering with cable connections or case closure.
Customers can contact Hoàng Bảo Khoa for assistance in selecting the right product.
