Surface Mount Speaker Tannoy AMS 8DC-WH

Name: Surface Mount Speaker Tannoy AMS 8DC-WH
Brand: TANNOY
SKU: HBK26862
Price: 0.86 USD
Availability: InStock
Rating: 4.67 (3 reviews)

AMS 8DC-WH Surface Mount Speaker Tannoy

Product code: AMS 8DC-WH 663,198,566

4.67/5 in 3 times

~~$288.36~~-23%

$221.74

In stock

Buy Now

Add to cart

Warranty 24 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Full range surface-mount loudspeaker for indoor and outdoor installation applications

90 Watts continuous, 360 Watts peak power

8" next generation Dual Concentric driver featuring Omnimagnet technology

8" Dual Concentric Surface-Mount Loudspeaker for Installation Applications (White)

Shipping informations

Length

55 cm

Width

37 cm

Height

33.8 cm

Weight

8.9 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Full range surface-mount loudspeaker for indoor and outdoor installation applications
90 Watts continuous, 360 Watts peak power
8" next generation Dual Concentric driver featuring Omnimagnet technology
Torus Ogive waveguide for improved high frequency response and directivity
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
Low insertion loss 60 W line transformer with easily accessible tapping switch
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 AMS series loudspeakers per channel
All components weather resistant to IP65 for outdoor use
High temperature resistant ABS enclosure rated at 120°C
Semi matt white paint finish fits unobtrusively in any environment
Yoke bracket included for ease of installation
Optional VARIBALL multi-angle bracket with secure clamp mechanism for accurate audience coverage
Weatherproof cable gland cover to protect Phoenix* connectors and tap selector switch
Designed and engineered in the U.K.

AMS 8DC-WH

The AMS 8DC-WH is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our all-new proprietary 8" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 8DC-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 8DC-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.

Weather-Resistant Enclosure

The elegantly styled semi white moulded enclosure blends beautifully into any décor. Additionally the AMS 8DC-WH’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

The highly durable and heat resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included colour-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 60 W transformer with convenient tap switching.

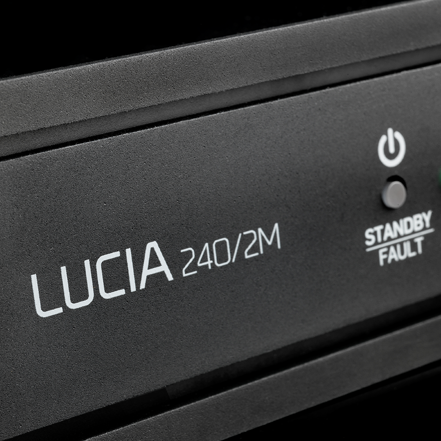

LAB GRUPPEN Ready

The AMS 8DC-WH is optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 AMS Series loudspeakers
per channel.

Specification

Performance

Frequency Response (-3 dB) (1)	65 Hz - 30 kHz
Frequency Range (-10 dB) (1)	53 Hz - 40 kHz
System Sensitivity (1 W @ 1 m) (2)	92 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle	90 degrees conical
Power Handling	Average: 90 W Programme: 180 W Peak: 360 W
Recommended Amplifier Power	180 W @ 16 Ohms
Nominal Impedance (Lo, Z)	16 Ohms
Rated Maximum SPL	Average: 111 dB Peak: 117 dB
Transformer Taps (via front rotary switch)	70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation 100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

TRANSDUCERS

Dual Concentric point source driver	1 x 200 mm (8.0") Dual Concentric driver, using Omnimagnet technology
Low Frequency	44 mm (1.75") voice coil, treated multi fiber paper pulp cone
High Frequency	25 mm (1.00") PEI dome

PHYSICAL

Enclosure	ABS
Grille	Weather-resistant zinc nickel-plated steel grille
Connectors	Removable locking connector with screw terminals
Transformer setting	Rotary switch
Dimensions (H x W x D)	409.8 x 260.0 x 306.3 mm (16.13 x 10.24 x 12.06")
Net Weight (ea)	7.82 kg (17.24 lbs)
Shipping Weight	8.69 kg (19.16 lbs)
Included Accessories	Yoke bracket
Packed Quantity	2
