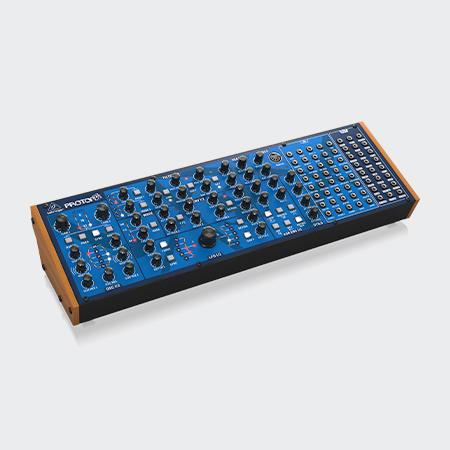

PROTON Analog Synthesizer Behringer

1 / 2 (monophonic / paraphonic)

Analog

2 VCO

2 LFO

2 LPF/HPF/band Pass switchable 12 dB/octave

2 ADSR / 2 ASR

1 Wavefold circuit

Rear panel

5-pin DIN (top panel)

5-pin DIN (rear panel)

USB 2.0 Type B socket

6.35 mm (1/4") TR jack

6.35 mm (1/4") TR jack

6.35 mm (1/4") TRS jack

Class compliant USB 2.0 Type B

Windows 7 or higher

Mac OS 10.10 or higher

Tune x 2, Shape x 2, Pulse Width x 2, Sub Osc x 2, Osc Mix.

Range x 2, Paraphonic on/off, Sync on/off

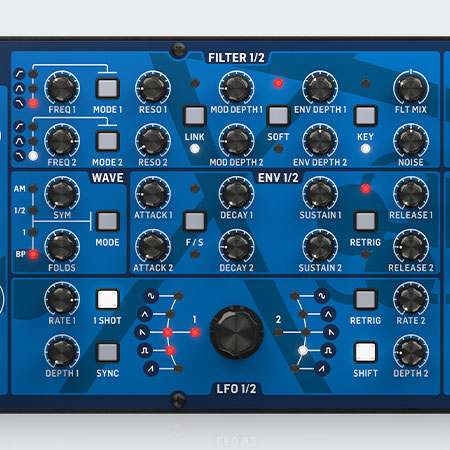

Frequency x 2, Resonance x 2, Modulation Depth x 2, Envelope Depth x 2, Noise

Filter Mode x 2, Filter Link on/off, Soft on/off, Key Track on/off

Symmetry, Folds

Mode

Attack x 2, Decay x 2, Sustain x 2, Release x 2

Fast/Slow, Retrigger

Attack x 2, Release x 2

Loop, Bounce, Sustain, Invert, Reverse, Retrigger

Shape x 2, Rate x 2, Depth x 2

1 Shot, Key Sync, Retrigger, Shift

Bias x 2, Volume, External Audio

CV Mix, Portamento Time, Attenuator 1, Attenuator 2

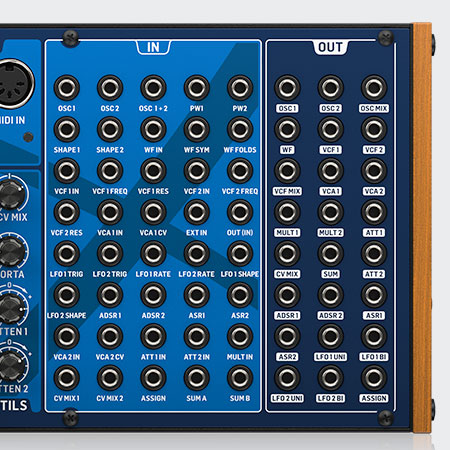

Osc 1 CV, Osc 2 CV, Osc 1&2 CV, PW 1, PW 2, Shape 1, Shape 2, WF In, WF Sym, WF Folds, VCF 1 In, VCF 1 Freq, VCF 1 Resonance, VCF 2 In, VCF 2 Freq, VCF 2 Resonance, VCA 1 In, VCA 1 CV, External Input, Out Input, LFO 1 Trig, LFO 2 Trig, LFO 1 Rate, LFO 2 Rate, LFO 1 Shape, LFO 2 Shape, ADSR 1 Trig, ADSR 2 Trig, AR 1 Trig, AR 2 Trig, VCA 2 In, VCA 2 CV, Att 1 In, Att 2 In, Mult In, CV Mix 1, CV Mix 2, CV Mix CV, Sum A, Sum B

Osc 1, Osc 2, Osc Mix, WF, VCF 1, VCF 2, VCF Mix, VCA 1, VCA 2, Mult 1, Mult 2, Att 1, CV Mix, Sum, Att 2, ADSR 1, ADSR 2, AR 1, AR2, LFO 1 Uni, LFO 1 Bi, LFO 2 Uni, LFO 2 Bi, Assign
