Analog synthesizer with dual VCO design allows for insanely fat music creation
Authentic recreation of circuits from the legendary “Model 15” modular synthesizer
Semi-modular design requires no patching for immediate performance
Pure analog signal path based on authentic VCO, VCF and VCA designs
Dual oscillators with 4 waveforms, oscillator sync, pulse width modulation and sub-oscillator
Classic 24 dB ladder filter with resonance for legendary sound performance
Advanced step sequencer with 3 separate 256-step memory slots, key transpose and multiple playback modes
Arpeggiator featuring hold function and multiple playback modes for recording and playing back your melodies and riffs
Fully analog LFO with 4 waveforms and dedicated controls for pitch, filter and pulse width modulation
Spring reverb emulation for inspiring sound effects
48 patch points for advanced modular connection and integration with external equipment
37 controls give you direct and real-time access to all important parameters
Complete Eurorack solution – main module can be transferred to a standard Eurorack case
16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

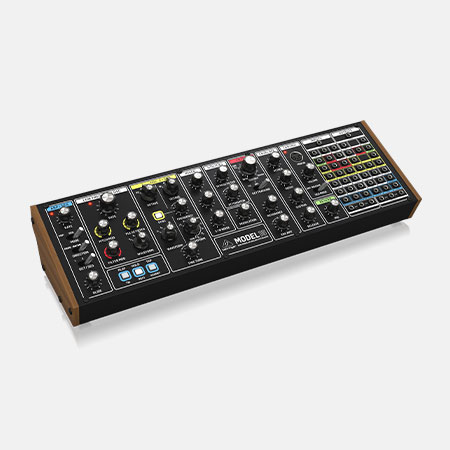

This is the synth your grandma wish she had! Introducing the Behringer MODEL 15! This compact analog synthesizer features dual VCOs so you can create super-fat bass lines and awesome lead sounds that’ll have everyone in the crowd vibing!
The Behringer MODEL 15’s semi-modular design makes it ready to go right out of the box with its 48 patch points at your disposal so you can connect and integrate any module in your collection. And if you were a fan of the legendary System 55, we’ve taken everything great about that and put it in a sleek, compact chassis, so you won’t need a whole truck to transport your setup!
Featuring a pure analog signal path, the MODEL 15 features dual oscillators each with 4 waveforms, pulse width modulation and sub-oscillator. On top of that, the MODEL 15 also comes with 3 separate memory slots for its 256-step arpeggiator with multiple playback modes.
Adding reverb to any song, riff or melody is a great way to add depth and character to a piece of music. The MODEL 15 comes with spring reverb emulation that’ll add a sense of space to your music. Couple that with a 4-waveform LFO with adjustable pitch, filter and pulse width modulation and MODELL 15 is capable of lush, intricate and expansive sounds.
The MODEL 15 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the MODEL 15 to be mixed with other synth modules for a truly unique set up.
Get another sweet addition to your setup plus all the classic tones it comes with by getting a Behringer MODEL 15 today!
Show more
Monophonic
Analog
2 + sub
1
1 ADSR
White, pink
DC input connector
Push button on / off
USB 2.0, type B
2 x 5-pin DIN / 16 channels
1/4" TS, unbalanced, max. +5.8 dBu
1/4" TRS, unbalanced, max. 7.5 mW into 32 Ω
8 Ω
3.5 mm TS
Impedance: 280 kΩ -5 V to +5 V
Impedance: 100 kΩ -5 V to +5 V
Impedance: 150 kΩ -5 V to +5 V
Impedance: 110 kΩ -5 V to +5 V
Impedance: 100 kΩ 0 V to +5 V
-8 V to +8 V (DC coupled)
-5 V to +5 V
Impedance: 90 kΩ -5 V to +5 V
More than 2.5 V
0 V to +8 V (DRONE setting)
Impedance: 110 kΩ -8 V to +8 V
off = 0 V / on = +5 V
Rate min to max (0.07 Hz - 1.3 kHz) Pitch mod 0% - 100% Pulse width 0% - 100% Filter mod 0% - 100%
Shape: sine / sawtooth / ramp / square
Rate indication

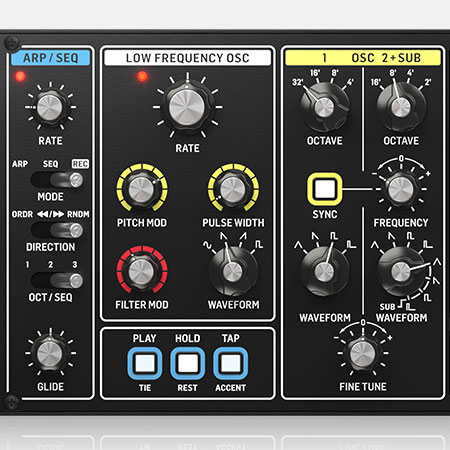

Octave 1: 32', 16', 8', 4' Octave 2: 16' ,8', 4', 2' Frequency ±7 semitones Waveform Osc 1: Triangle, sawtooth, square, pulse Waveform Osc 2: Triangle, sawtooth, square, pulse, sub triangle, sawtooth, square, pulse Fine tune ±4 semitones
Sync
Osc 1 0% - 100% Osc 2 0% - 100% Sub / white noise 0% - 100%
Hi pass filter 0% - 100% max attenuation 36 dBu
depth 0% - 100%
Cutoff frequency: 20 Hz - 20 kHz Resonance: 0% - 100% Env amount: 0% - 100%
Key tracking: 1:2 / off / 1:1
Attack: 2 mS to 16 S Decay: 2 mS to 40 S Sustain: 0 to 8 V Release: 2 mS to 20 S
Mix 0 - 100%
Volume 0% - 100%
VCA mode env, release, on
