Eurorack Synthesizers Behringer SYSTEM 55

Q: Which brand does SYSTEM 55 belongs to?

SYSTEM 55 belongs to Behringer . We hear you. We at Behringer believe in listening carefully and providing you with life-changing products at the right price so you can fulfill your musical dreams.

Q: How long is the warranty of SYSTEM 55?

SYSTEM 55 is 24 months of warranty.

SYSTEM 55 Eurorack Synthesizers Behringer

Product code: SYSTEM 55 2,743

4.5/5 in 16 times

$1,194.4

In stock

Buy Now

Add to cart

Warranty 24 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Pre-assembled ”SYSTEM 55“ modular synthesizer with 38 vintage sounding modules from the ’70s

1x 914 FIXED FILTER BANK with 12 active bandpass filters ranging from 125 Hz - 5.6 kHz and LP/HP filters

1x 923 FILTERS modules with 6 dB low and high pass filter

Complete \System 55\" Modular Synthesizer with 25 Modules, MIDI-to-CV Converter and 2 EURORACK GO cases"

Shipping informations

Length

90.3 cm

Width

39.1 cm

Height

44 cm

Weight

18.7 kg

Official Distributor Certificate

Music Tribe distributor certificate

Product Features

Pre-assembled ”SYSTEM 55“ modular synthesizer with 38 vintage sounding modules from the ’70s
1x 914 FIXED FILTER BANK with 12 active bandpass filters ranging from 125 Hz - 5.6 kHz and LP/HP filters
1x 923 FILTERS modules with 6 dB low and high pass filters and white/pink noise sources
1x 904B VOLTAGE CONTROLLED HIGH PASS FILTER and 1x 904A VOLTAGE CONTROLLED LOW PASS FILTER
1x 992 CONTROL VOLTAGES module allows CV mixing and switching with 1 inverting attenuator
5x 902 VOLTAGE CONTROLLED AMPLIFIER with 3 summed CV inputs and dual audio inputs and outputs
4x 911 ENVELOPE GENERATORS with S-trig inputs and CV outputs
1x 911A DUAL TRIGGER DELAY module with S-trig input and output
2x 921A OSCILLATOR DRIVER with 6x 921B VCOs and 1x 921 VCO gives you 7 fully featured voices
1x 960 SEQUENTIAL CONTROLLER module provides up to 24-step sequences in 8 steps with 3 rows
1x CM1A MIDI to CV converter enables control by MIDI keyboards or DAW, V-trig or S-trig outputs
3x CP3A-O module allows CV mixing and switching for the VCOs with 1 attenuator
3x CP3A-M 4 input mixer with master level, 4 outputs and 2 sets of 4 multiples
2x 995 ATTENUATORS modules with 3 linked passive attenuators
1x 903A RANDOM SIGNAL GENERATOR module provides dual white and pink noise sources
1x CP35 ATTENUATORS module with 4 linked attenuators, 2 sets of 4 multiples and reference voltages
1x 961 INTERFACE module converts multiple V-trig to S-trig for compatibility with other Eurorack modules
1x 962 SEQUENTIAL SWITCH module expands the 960 module into a 24 step sequencer
1x BP28, 2x BP56 and 2x BP2 blanks panels for a total of 144HP expansion space
1x CM1A MIDI-to-CV converter enables control via MIDI keyboards or DAW, V-trig or S-trig outputs
2x EURORACK GO cases including PSUs
2x EURORACK GO BRACKETS to link the 2 EURORACK GO cases together for easy patching

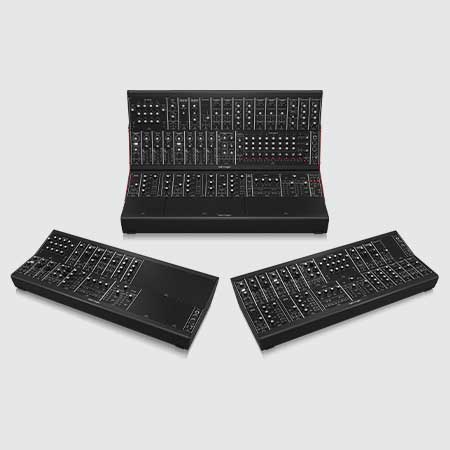

Modular Synthesis

The first System 55, 35 and 15 synth modules came out in the early '70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

SYSTEM 55

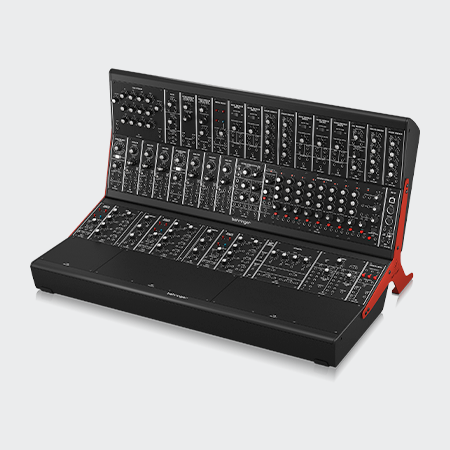

We’re bringing back all those amazing modular synths that you’ve all come to know and love and we’re putting them in one neat package that’ll surely blow you away. Enter the Behringer SYSTEM 55. This is a pre-assembled "System 55" modular synthesizer that comes packed with 38 of our vintage sounding synth modules, mounted and fully powered in two super-sturdy EURORACK GO cases. It even comes with some extra space for another one of our favorite things… more modules!

The Ultimate Synth!

The SYSTEM 55 is an amazing tool for those who want the ultimate modular synthesizer capable of fully scoring that next cyberpunk or sci-fi movie from start to finish. This entire setup comes equipped with a 914 FIXED FILTER BANK which features 12 active bandpass filters ranging from 125 Hz to 5.6 kHz with additional Low Pass and High Pass filters and one 923 FILTER MODULE with separate Low and High Pass filters each with their own dedicated frequency cutoff controls and jacks for both pink and white noise. But that’s only the start, with the SYSTEM 55 comes with so many more modules, you’re sure to have hours and hours of fun creating beats that you can just lose yourself in.

All the VCAs and Envelope Generators!

Is having one VCA a bit too limiting? Then, worry no more as the SYSTEM 55 features five 902 VOLTAGE CONTROLLED AMPLIFIERS with three summed CV inputs and dual audio inputs and outputs. Each module also comes with a rocker switch that allows you to toggle between linear and logarithmic response modes while you can manually set the control voltage with the Fixed Control Voltage knob. Need more envelope generators? The SYSTEM 55 also comes with four 911 ENVELOPE GENERATORS allowing you to create a deeply contoured signal with each of their 4 independent controls for Attack (T1), Decay (T2), Release (T3) and Sustain times from 2 ms up to 10 seconds. Create snappy and percussive sounds or long evolving drones perfect for a funky groove or a brooding soundtrack to your latest techno thriller.

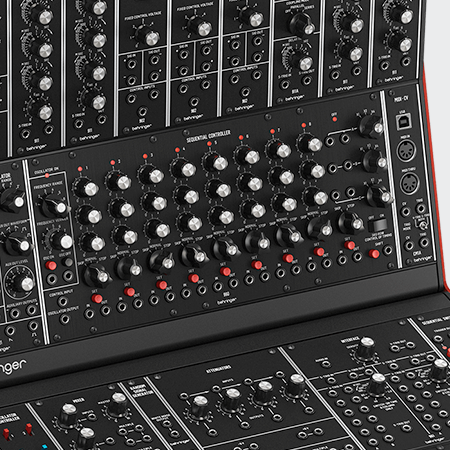

A Step in the Right Direction

A step sequencer has always been at the heart of every synthesizer setup, so of course we had to include one. The 960 SEQUENTIAL CONTROLLER is an 8-step sequencer with 3 rows of CV controls for adjusting the pitch of a signal at that stage. An additional 9th step can also be used to stop the sequence. More variations can be achieved by switching any of the desired Stage Mode Switches to Normal, Skip or Stop. You can even manually trigger each stage by pressing the respective Set button. “But we want more!” we hear you ask, so we decided to include the 962 SEQUENTIAL SWITCH module that transforms the 960 from an 8-step sequencer to a 24-step giant capable of more intricate sequences and beats.

Time to Flex

Adding even more flexibility to the SYSTEM 55, the 961 INTERFACE module converts V-trig to S-trig and vice versa and can even convert any audio source you plug in to a V-trig to drive other modules in your setup. The 903A RANDOM SIGNAL GENERATOR provides two white and pink noise sources that you can patch to other modules in the SYSTEM 55.

There’s More!

The SYSTEM 55 also comes with a 992 CONTROL VOLTAGES MODULE that allows you to mix and switch control voltages, 904B HIGH PASS FILTER and 904A VOLTAGE CONTROLLED LOW PASS FILTER and a CM1A MIDI-to-CV converter so you can control the SYSTEM 55 with a MIDI keyboard, sequencer or DAW, to truly round out this rig. We’ve even included a few blank panels in case you want to expand the SYSTEM 55 with even more modules! You don’t even have to worry about power as the included EURORACK GO cases come with their own PSUs.

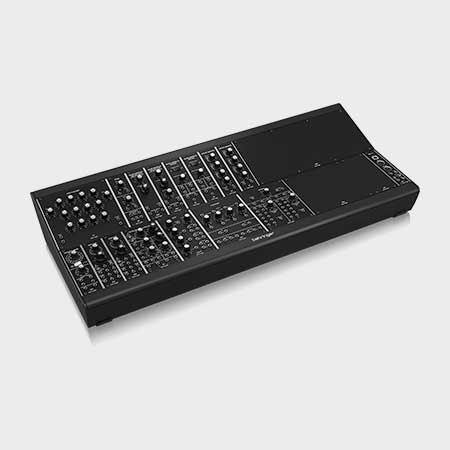

Amazing Gear at an Affordable Price

Whether you’re just getting into modular synths or looking to complete your collection, the SYSTEM 55 modular synthesizer from Behringer is a great tool to have when creating amazing music.

Get the SYSTEM 55 from your local Behringer dealer today!

Specification

Voltage Control (pitch)

Source	Destination
External MIDI Keyboard – MIDI Out	CM1A MIDI Interface MIDI In
CM1A CV Output	921A Frequency Input
21A Frequency Output	921B Frequency Link (in series)

Audio

921B Waveform Outputs (three of four)	CP3A-M Inputs
CP3A-M Output	904A Signal Input
904A Signal Output	902 Signal Input
902 Signal Output	Your mixer/amplifier/DAW

Voltage Control (amplitude)

CM1A s-trigger Output	Multiple
Multiple Output (three of)	2 x 911 s-trigger Input & 911A s-trigger Input
911A Output	3rd 911
1st 911 Output	1st 902 Control Input

Voltage Control (modulation)

2nd 911 Output	904A Control Input
921 Aux Sine Output	2nd 902 Signal Input
2nd 902 VCA Signal Output	CP3A-O Input 4
CP3A-O Outputs	921B DC Mod Input (three of )
3rd 911 Output	2nd 902 Control Input

Does the company offer free shipping?

Free shipping for local order over $22. Oversea buyers will pay for shipping cost under Ex-work term.

SYSTEM 55 has a discount?

This price is the best to you now.

Which brand does SYSTEM 55 belongs to?

SYSTEM 55 belongs to Behringer. We hear you. We at Behringer believe in listening carefully and providing you with life-changing products at the right price so you can fulfill your musical dreams.
