SURGES “Liquid” Multi-Mode Filter for Eurorack Behringer

Name: SURGES “Liquid” Multi-Mode Filter for Eurorack Behringer
Brand: Behringer
SKU: HBK58981
Price: 0.12 USD
Availability: InStock
Rating: 4.67 (3 reviews)

Product code: SURGES 131

4.67/5 in 3 times

$31.3

In stock

Buy Now

Add to cart

Warranty 12 months

Heavy / bulk items such as loudspeakers, digital mixers etc shipping via sea freight is recommended, contact [email protected] for more details

Price only applicable for overseas
Technical Support
Term of shipment: Ex-Works
Pick up at Hoang Bao Khoa LTD company
All shipping costs and risks, including export/import procedures, duty and others are on buyer’s account (Incoterm 2020)

Features

Based on Mutable Instruments Ripples

“Liquid” and musical tone coloration reminiscent of SH/Jupiter filters

Loudness compensation with increased resonance

Wide frequency range from 18 Hz to 18 kHz

Eurorack specs: 8 HP, 35 mA +12 V, 35 mA -12 V

Introducing Surges, a “Liquid” Multi-Mode Filter for Eurorack in 8HP. Voltage controlled multimode filter which provides high-pass, band-pass and low-pass. The slope of the band-pass and low-pass output is switchable (2-pole or 4-pole). Based on Mutable Instruments Ripples*.

Shipping informations

Length

4 cm

Width

3 cm

Height

2 cm

Weight

0.3 kg

Official Distributor Certificate

Music Tribe distributor certificate

SURGES - “Liquid” Multi-Mode Filter for Eurorack

Product Features

Voltage controlled multimode filter which provide high-pass, band-pass and low-pass. The slope of the band-pass and low-pass output is switchable (2-pole or 4-pole)
Based on Mutable Instruments Ripples
“Liquid” and musical tone coloration reminiscent of SH/Jupiter filters
Loudness compensation with increased resonance
Wide frequency range from 18 Hz to 18 kHz
Purely analog circuitry based on legendary 2164 and 13700 semiconductors
Eurorack specs: 8 HP, 35 mA +12 V, 35 mA -12 V

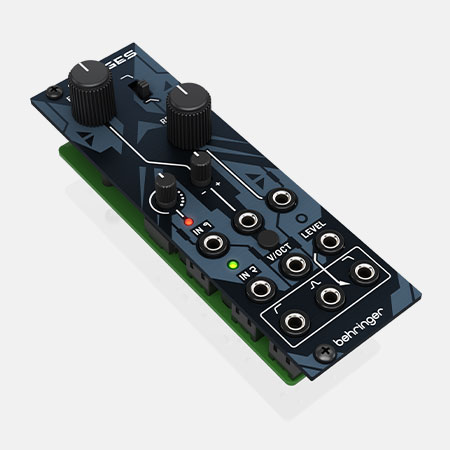

SURGES

Let your riffs, beats and patches flow like water with the Behringer SURGES multi-mode filter Eurorack module!

Go with the Flow

SURGES is a voltage controlled filter capable of high-pass, band-pass and low-pass output, with additional 2-pole or 4-pole settings for band- and low-pass.

Additional Ins and Outs

Audio inputs – signals from input 1 and 2 are mixed together with input 1 having a dedicated level knob that can result in an overdriven sound when pushed
CV inputs – resonance and cutoff modulation
Voltage controlled gain for low-pass output – externally control the level of the LP signal

Eurorack Ready

SURGES is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix SURGES with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

Specification

Inputs
Audio Input 1	3.5 mm TS jack, impedance 100 kΩ
Audio Input 2	3.5 mm TS jack, impedance 100 kΩ
Frequency CV	3.5 mm TS jack, range -8 V to +8 V
Resonance CV	3.5 mm TS jack, range -8 V to +8 V
Volt/octave	3.5 mm TS jack, range -3 V to +7 V
LPF output level	3.5 mm TS jack range 0 V to +7 V
Outputs
High Pass Filter	3.5 mm TS jack, impedance 1 kΩ
Band Pass Filter	3.5 mm TS jack, impedance 1 kΩ
Low Pass Filter	3.5 mm TS jack, impedance 1 kΩ
Controls
Controls	Frequency Resonance Frequency CV Attenuverter Input 1 Gain
Switches	Filter Slope
